Asus DSL-N17U Manuel utilisateur

DSL-N17U

Wireless-N300

ADSL/VDSL Modem Router

User Guide

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modiﬁed or altered, unless such repair, modiﬁcation of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identiﬁcation or explanation and to the owners’ beneﬁt, without intent

to infringe.

E10140

First Edition

January 2015

Table of contents

1 Getting to know your xDSL modem router

1.1 Welcome! ........................................................................................6

1.2 Package contents.........................................................................6

1.3 Your xDSL modem router..........................................................7

1.4 Positioning your xDSL modem router..................................9

1.5 Setup Requirements ................................................................ 10

1.6 xDSL Modem Router Setup................................................... 10

1.6.1 Wired connection..................................................................11

1.6.2 Wireless connection.............................................................12

2 Getting started

2.1 Logging into the Web GUI ..................................................... 13

2.2 Quick Internet Setup (QIS) Wizard

with Auto-detection ................................................................ 14

2.3 Connecting to your wireless network................................ 18

3 Conﬁguring the General settings

3.1 Using the Network Map ......................................................... 19

3.1.1 Setting up the wireless security settings......................20

3.1.2 Managing your network clients.......................................21

3.1.3 Monitoring your USB device.............................................22

3.2 Creating a Guest Network...................................................... 25

3.3 Using the Traﬃc Manager...................................................... 26

3.3.1 Managing QoS (Quality of Service) Bandwidth..........26

3.3.2 Monitoring Traﬃc .................................................................30

3.3.3 Spectrum .................................................................................31

3.4 Setting up Parental Control................................................... 32

3.5 Using the USB Application..................................................... 33

3.5.1 Using AiDisk...............................................................................33

3.5.2 Using Servers Center............................................................35

Table of contents

3.6 Using AiCloud............................................................................. 40

3.6.1 Cloud Disk................................................................................41

3.6.2 Smart Access...........................................................................43

3.6.3 Smart Sync...............................................................................44

4 Conﬁguring the Advanced Settings

4.1 Wireless......................................................................................... 45

4.1.1 General......................................................................................45

4.1.2 WPS ............................................................................................48

4.1.3 Bridge ........................................................................................50

4.1.4 Wireless MAC Filter ...............................................................52

4.1.5 RADIUS Setting ......................................................................53

4.1.6 Professional.............................................................................54

4.2 LAN................................................................................................. 56

4.2.1 LAN IP ........................................................................................56

4.2.2 DHCP Server............................................................................57

4.2.3 Route .........................................................................................59

4.2.4 IPTV ...............................................................................................60

4.3 WAN ............................................................................................... 61

4.3.1 Internet Connection.............................................................61

4.3.2 Dual WAN .................................................................................63

4.3.3 Port Trigger..............................................................................64

4.3.4 Virtual Server/Port Forwarding........................................66

4.3.5 DMZ............................................................................................69

4.3.6 DDNS .........................................................................................70

4.3.7 NAT Passthrough...................................................................71

4.4 IPv6................................................................................................. 72

4.5 VPN Server................................................................................... 73

4.6 Firewall.......................................................................................... 74

4.6.1 General......................................................................................74

Table of contents

4.6.2 URL Filter ..................................................................................74

4.6.3 Network Services Filter .......................................................75

4.7 Administration ........................................................................... 77

4.7.1 System.......................................................................................77

4.7.2 Firmware Upgrade................................................................78

4.7.3 Restore/Save/Upload Setting ...........................................78

4.7.4 DSL Setting..............................................................................79

4.7.5 Feedback ..................................................................................82

4.8 System Log .................................................................................. 83

5 Utilities

5.1 Device Discovery....................................................................... 84

5.2 Firmware Restoration .............................................................. 85

5.3 Setting up your printer server .............................................. 86

5.3.1 ASUS EZ Printer Sharing .....................................................86

5.3.2 Using LPR to Share Printer .................................................90

5.4 Download Master...................................................................... 95

5.4.1 Conﬁguring Bit Torrent download settings.................96

5.4.2 NZB settings............................................................................97

6 Troubleshooting

6.1 Basic Troubleshooting............................................................. 98

6.2 Frequently Asked Questions (FAQs) ................................101

Appendices

Notices .....................................................................................................111

ASUS Contact information..................................................................125

Networks Global Hotline Information.............................................126

1 Getting to know your xDSL

modem router

NOTES:

• Ifanyoftheitemsaredamagedormissing,contactASUSfor

technical inquiries and support. Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture

warranty services such as repair or replacement.

1.1 Welcome!

Thank you for purchasing an ASUS DSL-N17U Wireless VDSL/ADSL

Modem Router!

The ultra-thin and stylish DSL-N17U features 2.4GHz with speed

up to 300Mbit/s; operates as a router on an ADSL or VDSL line;

SMB server, UPnP AV server, and FTP server for 24/7 ﬁle sharing;

and capability to handle 300,000 sessions. These features make

this xDSL modem router a good choice for complete home

networking.

1.2 Package contents

VDSL/ADSL Wireless Modem Router

Network cable (RJ-45 cable)

Support CD (Manual, utility software)

Splitter (varies with region)

Power adapter

Quick Start Guide

DSL/phone cable (RJ-11 cable)

Warranty card

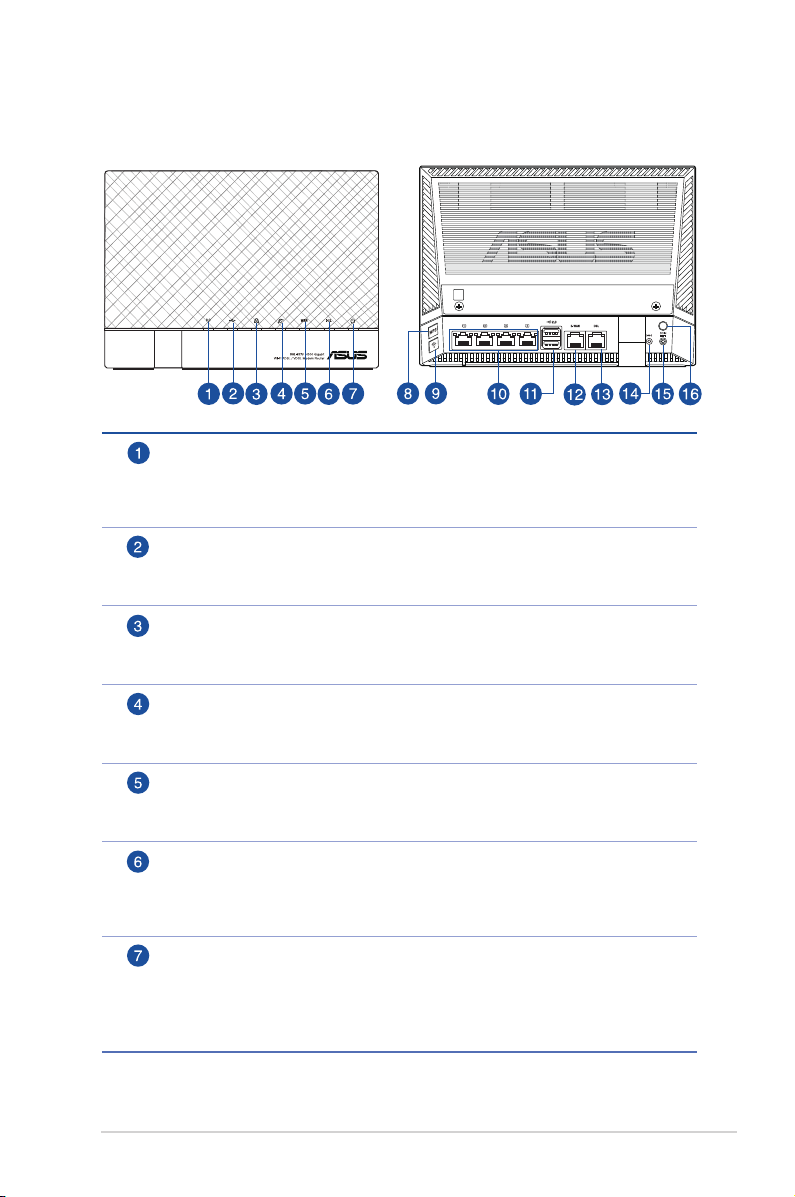

1.3 Your xDSL modem router

Wi-Fi LED

Oﬀ: No wireless signal.

On: Wireless system is ready.

Flashing: Transmitting or receiving data via wireless connection.

USB LED

Oﬀ: No power or no physical connection.

On: Has physical connection to USB devices.

LAN 1~4 LED

Oﬀ: No power or no physical connection.

On: Has physical connection to an Ethernet network.

Internet LED

Oﬀ: No power or no Internet connection.

On: Internet connection is established.

WAN LED

Oﬀ: No power or no physical connection.

On: Has physical connection to a wide area network (WAN).

DSL LED

Oﬀ: No DSL link or unable to establish DSL link.

On: DSL link is established.

Flashing: DSL is attempting to connect to a DSLAM.

Power LED

Oﬀ: No power.

On: Device is ready.

Flashing slow: Rescue mode

Flashing quick: WPS is processing.

NOTES:

• Useonlytheadapterthatcamewithyourpackage.Usingother

adapters may damage the device.

• Specifications:

• Powerconsumptioninomode:0.21W

• Powerconsumptioninnetworkstandbymode:4.21W

• Theaveragepowerconsumptionisdeterminedatroom

temperatures with the following load:

DC Power adapter DC Output: +12V with max. 2A current

Operating

Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

WPS button

This button launches the WPS Wizard.

Wi-Fi button

Pressthisbuttontoturnon/otheWi-Ficonnection

LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

USB 2.0 ports

Insert USB 2.0 devices such as USB hard disks or USB ﬂash drives into these

ports.

Ethernet WAN port

Connect a network cable into this port to establish WAN connection.

RJ-11 port

Use an RJ-11 cable to connect your xDSL modem router to a splitter or a

telephone outlet.

Reset button

This button resets or restores the system to its factory default settings.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a

power source.

Power button

Pressthisbuttontopoweronorothesystem.

1.4 Positioning your xDSL modem router

For the best wireless signal transmission between the xDSL

modem router and the network devices connected to it, ensure

that you:

• PlacethexDSLmodemrouterinacentralizedareafora

maximum wireless coverage for the network devices.

• Keepthedeviceawayfrommetalobstructionsandawayfrom

direct sunlight.

• Topreventsignalinterferenceorloss,keepthedeviceaway

from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer

peripherals, Bluetooth devices, cordless phones, transformers,

heavy-duty motors, ﬂuorescent lights, microwave ovens,

refrigerators, and other industrial equipment.

• Forthebestfront-to-rearcoverage,placethexDSLmodem

router in an upright position.

• Forthebestup-to-downcoverage,placethexDSLmodem

router in an inclined position.

1.5 Setup Requirements

To set up your wireless network, you need a computer that meets

the following system requirements:

• EthernetRJ-45(LAN)port(10Base-T/100Base-TX/1000Base-

TX)

• IEEE802.11b/g/nwirelesscapability

• AninstalledTCP/IPservice

• WebbrowsersuchasInternetExplorer,Firefox,Safari,or

Google Chrome

NOTES:

• Ifyourcomputerdoesnothavebuilt-inwirelesscapabilities,you

may install an IEEE 802.11b/g/n WLAN adapter to your computer to

connect to the network.

• TheEthernetRJ-45cablesthatwillbeusedtoconnectthenetwork

devices should not exceed 100 meters.

1.6 xDSL Modem Router Setup

IMPORTANT!

• UseawiredconnectionwhensettingupyourxDSLmodemrouterto

avoid possible setup problems.

• BeforesettingupyourASUSxDSLmodemrouter,dothefollowing:

 • IfyouarereplacinganexistingxDSLmodemrouter,disconnectit

from your network.

Autres manuels pour DSL-N17U

Table des matières

Autres manuels Asus Routeur réseau

Asus

Asus RT-AC58U Manuel utilisateur

Asus

Asus RT-N12 LX Manuel utilisateur

Asus

Asus Internet Security Router Manuel utilisateur

Asus

Asus RT-AC1750B1 Manuel utilisateur

Asus

Asus DSL-AC88U Manuel utilisateur

Asus

Asus 4G-N12 B1 Manuel utilisateur

Asus

Asus Republic of Gamers Rapture GT-AX11000 Manuel utilisateur

Asus

Asus RT-AX86S Manuel utilisateur

Asus

Asus GX-D1051 Manuel utilisateur

Asus

Asus ExpertWiFi EBR63 Manuel utilisateur

Asus

Asus DSL-AC87VG Manuel utilisateur

Asus

Asus RT-AX86S Manuel utilisateur

Asus

Asus RT-AC66U B1 Manuel utilisateur

Asus

Asus WL500GD Manuel utilisateur

Asus

Asus DSL-N12HP Manuel utilisateur

Asus

Asus RT-AX88U Manuel utilisateur

Asus

Asus RT-N13U - Wireless Router Manuel utilisateur

Asus

Asus SuperSpeed N WL-500W Manuel utilisateur

Asus

Asus ZenWiFi AC Mini CD6 Series Manuel utilisateur

Asus

Asus DSL-AC68VG Manuel utilisateur

Asus

Asus RT-AC87U Dual Band Manuel utilisateur

Asus

Asus AAM6020VI Manuel utilisateur

Asus

Asus DSL-AC68U Manuel utilisateur

Asus

Asus DSL-N11 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
