Asus DSL-AC3100 Manuel utilisateur

User Guide

DSL-AC3100

Dual-band Wi-Fi ADSL/VDSL

Modem Router

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the express

written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modified or altered, unless such repair, modification of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identification or explanation and to the owners’benefit, without intent

to infringe.

E14010

Revised Edition v2

February 2018

Table of contents

1 Getting to know your wireless router 5

Package contents ........................................................................................ 5

Hardware features....................................................................................... 6

2 Creating your network 9

Positioning your router ............................................................................. 9

What you need ...........................................................................................10

Connecting your devices........................................................................11

Before you proceed...................................................................................14

3 Network configuration using the web GUI 21

Logging in to the web GUI.....................................................................21

Setting up the wireless security settings ..........................................23

Managing your network clients ...........................................................25

Monitoring your USB device..................................................................26

Creating your Guest Network ...............................................................28

Using the Traffic Manager.......................................................................29

Managing QoS (Quality of Service) Bandwidth.......................29

Monitoring Traffic ..............................................................................30

Using USB application .............................................................................31

Using AiDisk for File Sharing ..........................................................31

Using the Servers Center ........................................................................34

Using the Network Place (Samba) Share service ....................34

Using the FTP Share service............................................................36

Using the Miscellaneous setting...................................................38

Configuring Advanced settings............................................................39

Setting up the DHCP Server ...........................................................39

Upgrading the firmware..................................................................40

Restoring/Saving/Uploading settings ........................................41

4 Firmware Upgrade 42

5 Troubleshooting 43

Troubleshooting ........................................................................................43

Restoring the firmware via the Rescue mode..................................46

ASUS DDNS Service ..................................................................................48

Appendices 50

Notices...........................................................................................................50

Networks Global Hotline Information................................................64

ASUS Contact information .....................................................................67

1 Getting to know your wireless

router

Package contents

• Ifanyoftheitemsisdamagedormissing,contactASUSfor

technical inquiries and support. Refer to the ASUS Support

Hotline list at the back of this user manual.

• Keeptheoriginalpackagingmaterialincaseyouwouldneed

future warranty services such as repair or replacement.

ADSL/VDSL WiFi modem router

Network cable

AC adapter

Phone cable

Quick Start Guide

Warranty card

Support CD (User Manual)

Splitter (varies with regions)

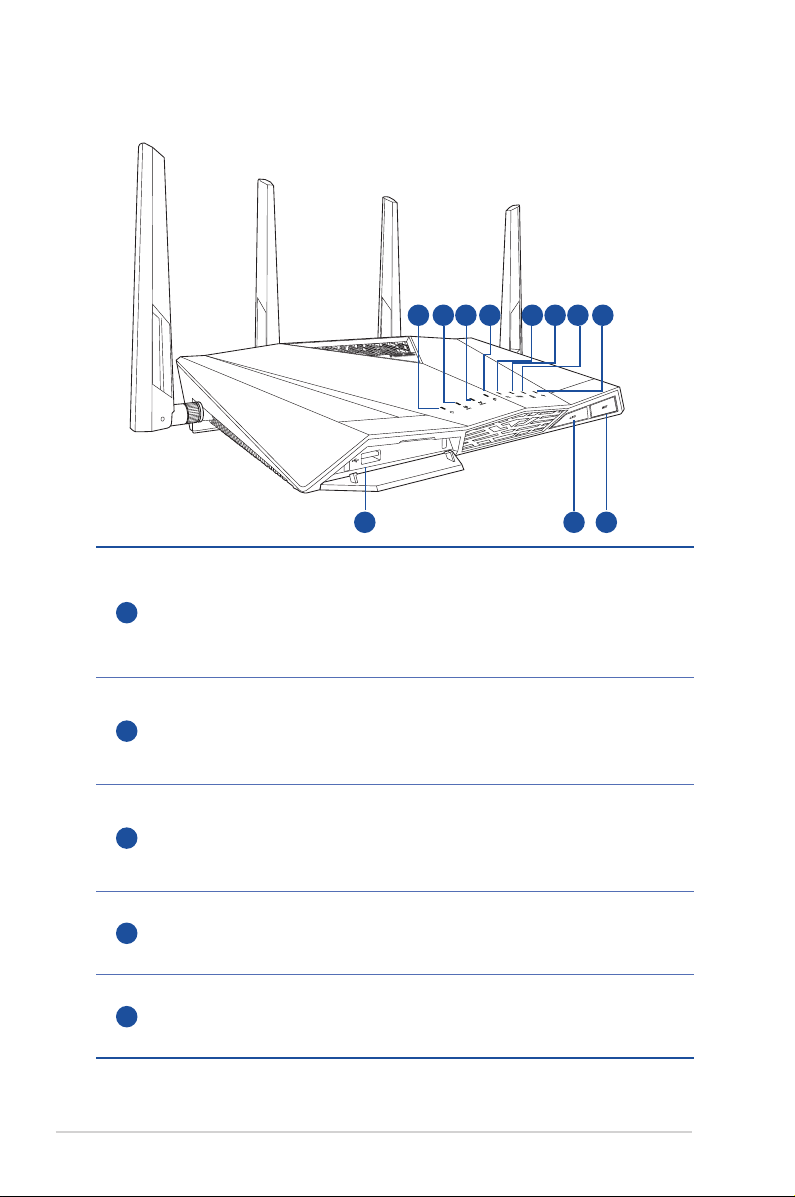

Hardware features

Power LED

O: No power.

On: Device is ready.

Flashing slowly: Rescue mode

Flashing quickly: WPS in progress.

5GHz LED

O: No 5GHz signal.

On: Wireless system is ready.

Flashing: Transmitting or receiving data via wireless connection.

2.4GHz LED

O: No 2.4GHz signal.

On: Wireless system is ready.

Flashing: Transmitting or receiving data via wireless connection.

INTERNET LED

Red: No power or no Internet connection.

On: Connection to a Wide Area Network (WAN).

DSL LED

O: No DSL connection.

On: Connection to DSL.

14 5 6

278

9 10 11

E-WAN LED

O: No Ethernet connection.

ON: Connection to Ethernet.

LAN LED

O: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

USB LED

O: No power or no physical connection with a USB device.

On: Has physical connection with a USB device.

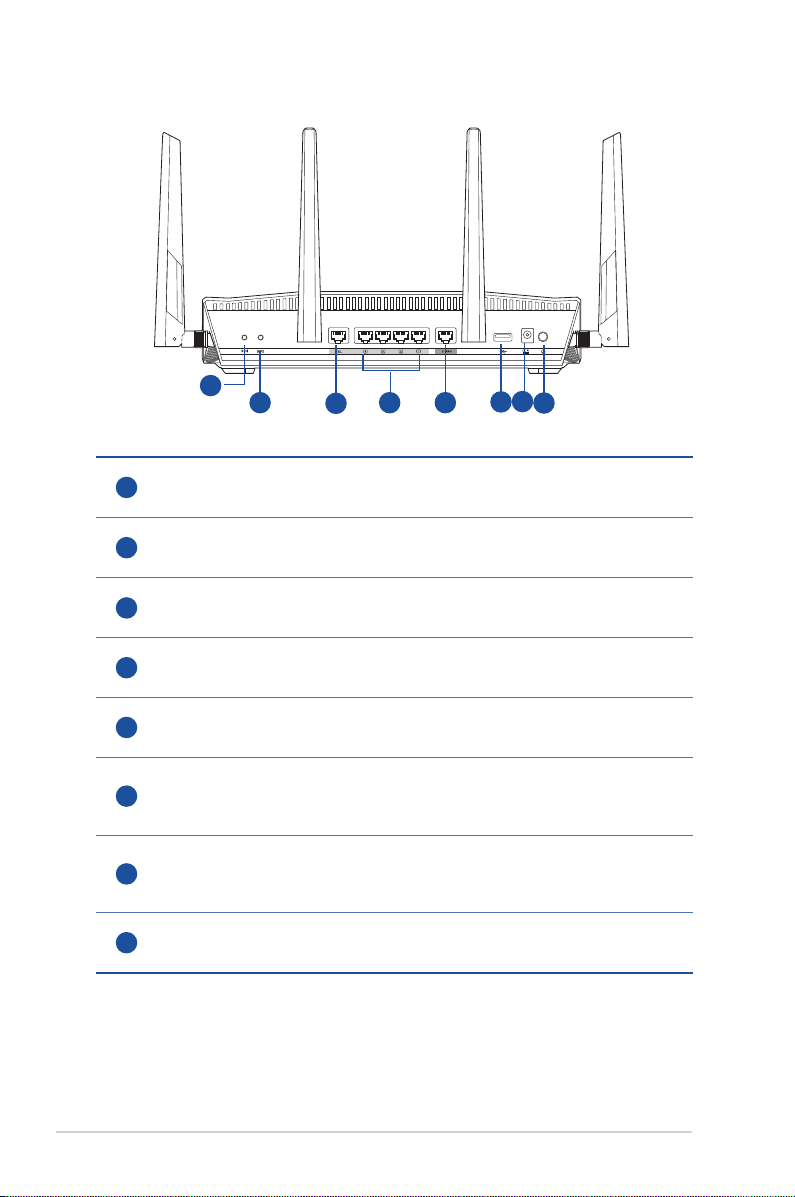

USB 3.0 port

Insert a USB 3.0/2.0 device such as USB hard disk or USB flash drive into the

port.

Insert your iPad’s USB cable into the port to charge your iPad.

10 LED Button

This button turns on/off the LED indicators.

11 Wi-Fi Button

This button enables or disables Wi-Fi.

Use only the power adapter that came with your package. Using

other adapters may damage the device.

DC Power adapter DC output 19V with max. 1.75A current

Operating

Temperature

0~40oCStorage Temperature 0~70oC

Operating Humidity 50~90% Storage Humidity 20~90%

Power adapter specications:

12 Reset button

This button resets or restores the system to its factory default settings.

13 WPS button

This button launches the WPS Wizard.

14 DSL port

Connect to a splitter or to a telephone outlet via an RJ-11 cable.

15 LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

16 WAN port

Connect a network cable into this port to establish WAN connection.

17 USB 2.0 port

Insert a USB 2.0 devices such as USB hard disks or USB flash drives into this

port.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a

power source.

19 Power button

This button powers on or powers off the router.

13 14 16 17 18 19

2 Creating your network

Positioning your router

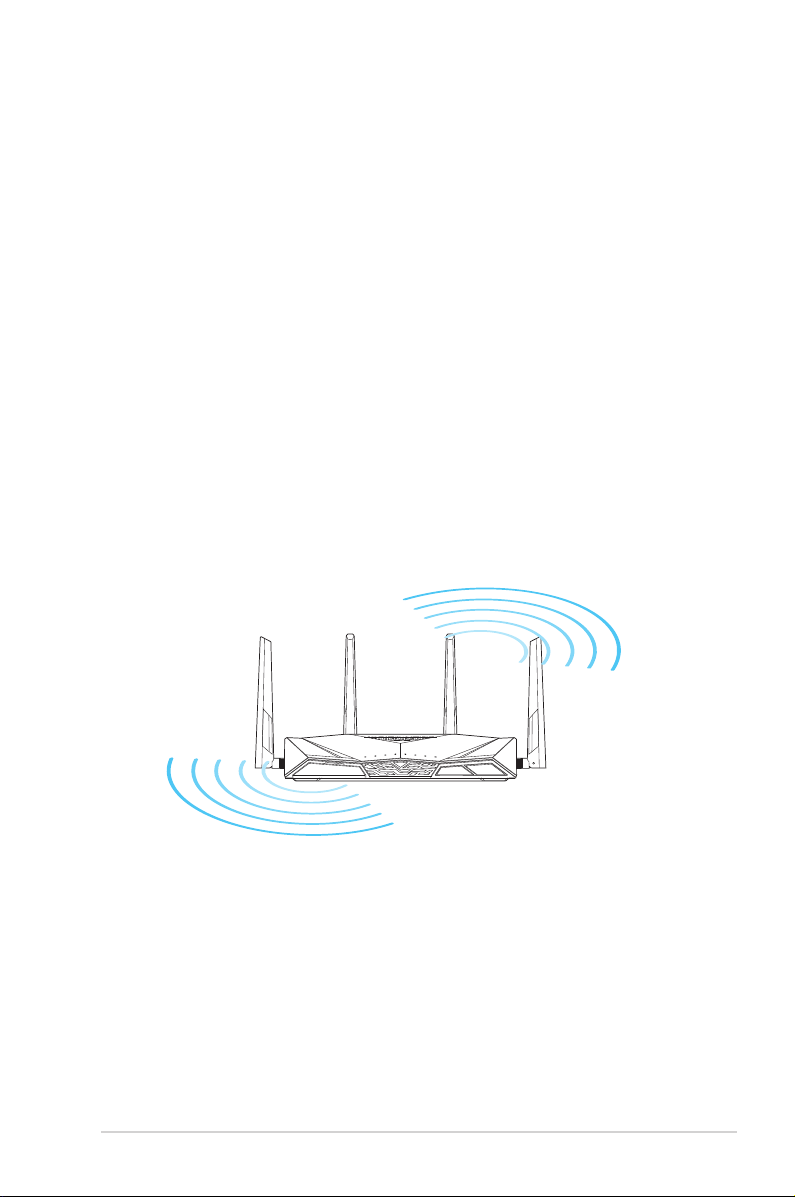

To get the best wireless network performance from your wireless

router, follow the recommendations below:

• Placethewirelessrouteratthecenterofyournetworkfor

maximum wireless coverage.

• Keepthedeviceawayfrommetalobstructionsandawayfrom

direct sunlight.

• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, fluorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

90°

WiFi

LED

What you need

To set up your network, you need one or two computers that meet

the following system requirements:

• EthernetRJ-45(LAN)port(10Base-T/100Base-TX/1000Base-T)

• IEEE802.11a/b/g/n/acwirelesscapability

• AninstalledTCP/IPservice

• WebbrowsersuchasMicrosoftInternetExplorer,Mozilla

Firefox, Apple Safari, or Google Chrome

• Ifyourcomputerdoesnothavebuilt-inwirelesscapabilities,

install an IEEE 802.11a/b/g/n/ac WLAN adapter to your

computer to connect to the network.

• Withitsdualbandtechnology,yourADSL/VDSLrouter

supports 2.4GHz and 5GHz wireless signals simultaneously.

This allows you to browse the Internet or access e-mail

messages using the 2.4GHz band while streaming high-

definition audio/video files such as movies or music using the

5GHz band.

• IfyouareusingonlyonecomputerwithasinglebandIEEE

802.11a/b/g/n/ac WLAN adapter, you will only be able to use

the 2.4GHz band.

• IfyouareusingonlyonecomputerwithadualbandIEEE

802.11a/b/g/n/ac WLAN adapter, you will be able to use the

2.4GHz or 5GHz band.

• IfyouareusingtwocomputerswithbothIEEE802.11a/b/g/

n/ac WLAN adapters, you will be able to use both 2.4GHz and

5GHz bands simultaneously.

• TheEthernetRJ-45cablesusedtoconnectthenetwork

devices should not exceed 100 meters.
