LSI MegaRAID User’s Manual
Q2143
August 2005
No part of this manual, including the products and software described
in it,may be reproduced, transmitted, transcribed, stored in a retrieval
system,or translated into any language in any form or by any means,
exceptdocumentation kept by the purchaser for backup purposes, without
theexpress written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN
NO EVENT SHALL ASUS, ITS DIRECTORS,OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR
LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING
FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is
repaired, modified or altered, unless such repair, modification of alteration
is authorized in writing by ASUS; or (2) the serial number of the product
is defaced or missing.
Products and corporate names appearing in this manual may or may not
be registered trademarks or copyrights of their respective companies,
and are used only for identification or explanation and to the ownersʼ
benefit, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS
MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND
ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS
OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2005 ASUSTeK COMPUTER INC. All Rights Reserved.
Copyright Information
LSI MegaRAID Userʼs Manual
i
About This Manual .....................................................................ii
Chapter 1: RAID Setup ............................................................1-1
1.1 Change the Speed of SCSI Channel ..........................1-1
1.2 RAID 0 or RAID 1 Setup .............................................1-3
1.3 RAID 5 Setup ..............................................................1-9
1.4 RAID 50 Setup ..........................................................1-15
1.5 RAID 10 Setup ..........................................................1-21
1.6 Rebuild the Arrays .....................................................1-27
1.7 Migration Setup .........................................................1-28
1.8 Hot Spare Setup .......................................................1-29
1.9 Clear RAID ................................................................1-31
Chapter 2 Setup for Operation Systems ......................................
2.1 Install Drives for SCSI RAID ............................................
2.1.1 Microsoft® Windows® .........................................................
2.1.2 Red Hat Linux® ...................................................................
Table of Contents
LSI MegaRAID Userʼs Manual
ii
This manual is designed for users who have already acquired knowledge
of peronal computer integration so as to help establish a powerful ASUS
server.
Overview
The structure of this manual is listed as follows:
1. Overview : How to use this manual
This chapter will make a description of how to use this manual as well as
guide throughout the contents of the following chapters.
2. Chapter 1: RAIDs Setup
With a step-by-step description, this chapter shows the procedures of
setting up a RAID on your system at the time when system is powered on
and not yet enters the operation system.
3. Chapter 2: Setup for Operation Systems
This chapter will guide you throught the relevant settings after entering
the operation systems.
Special Messages
This manual uses the following icons to call your attention to specific
instructions or explanations.
Warning: Provides messages of high importance, including
messages relating to personal safety or system integrity.
Caution: Draws attention so as to prevent possible
unappropriate actions which could leads to damages to the
system.
About This Manual
LSI MegaRAID Userʼs Manual
iii
Important: Important tips or things to be paid attention to.
Note: Tips, definitions, or further explanations
More Information about This Product
You could get, via the following two media, information about the ASUS
products you are using as well as the upgrade information for both
software and hardware.
1. ASUS Website
Visit ASUS global website and acquire all kinds of information about
ASUS hardware and software products.
2. Other Documents
Besides the articles listed as the contents of shipping package, there
also may have other documents within the package, such as warranty
documents provided by your dealer.
1
RAID Setup
With step-by-step descriptions, this
chapter introducess the procedures
of setting up a RAID on your system
at the time when system is powered
on and not yet enters the operation
system.
LSI MegaRAID Userʼs Manual
1-1
1.1
Change the Speed of SCSI Channel
1. Press Ctrl + H at the same time and enter the MegaRAID WebBIOS
configuration window. Select with your mouse or keyboard the SCSI
Channel Properties in the WebBIOS configuration menu.
2. The window will show the current operation speed of the SCSI channels.
You could enable one single channel (320-1) or two channels as well.
(320-0,320-2)
LSI MegaRAID Userʼs Manual
1-2
3. Click on the arrow of SCSI Capabilities box and open the drop down
menu. The four speed selections are Fast, Ultra, Ultra-II, U160, and
U320. Select a suitable speed and click the Submit button to save the
new configuration.
4. If it is to disable one of the channels (the disabled channel will not be
accessed to any storage devices), you could set the Termination of
this very channel to Disabled and click Submit to apply.
Warning: Do not make unnecessary changes to the settings
of Termination. The default setting is Enabled so that there
would be no such occasions that the system could not find
storage devices.
LSI MegaRAID Userʼs Manual
1-3
1.2 RAID 0 or RAID 1 Setup

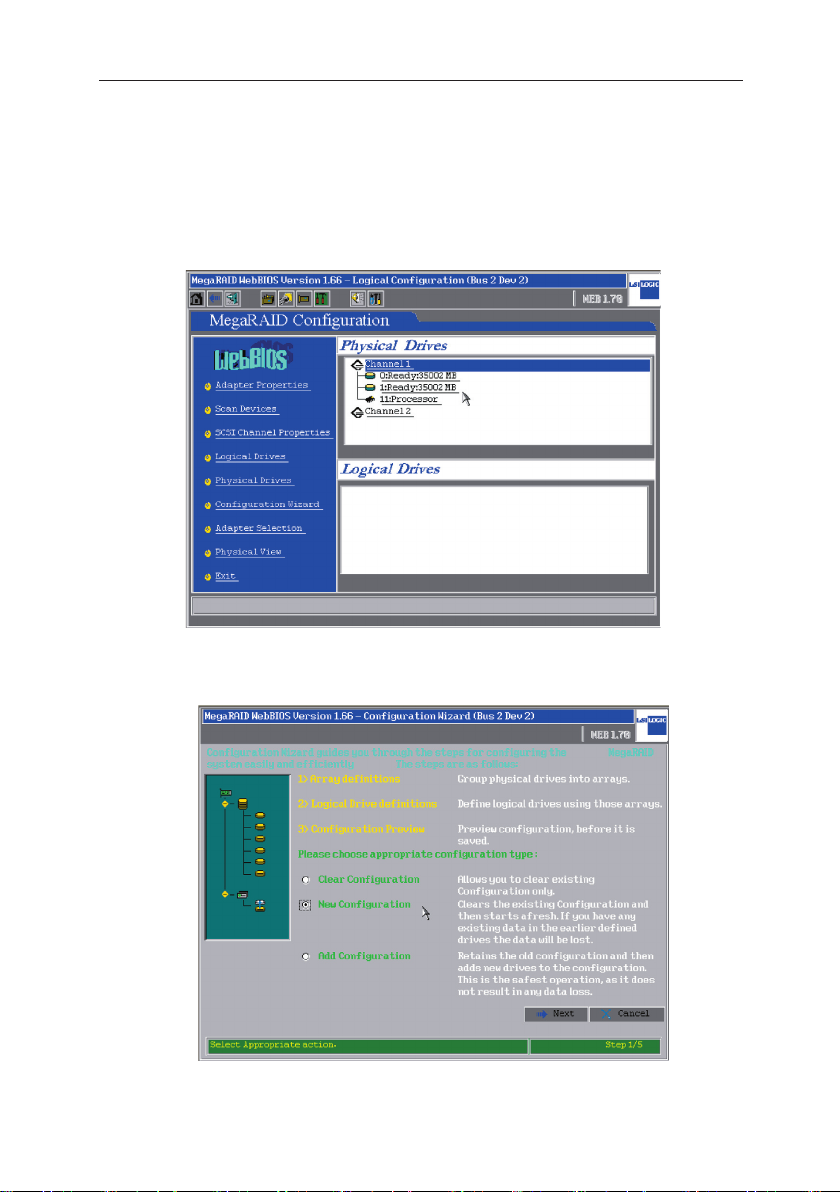

1. Press at the same time Ctrl + H and enter the MegaRAID WebBIOS
configuration window where information about all physical drivers
installed is displayed. Click Configuration Wizard to start RAID
setup.
2. If this is the first time to setup a RAID on your system, please select
New Configuration and click Next to continue.
