Asus AZCRB Manuel utilisateur

Zero-Channel RAID Board

(AZCRB)

E1369

Installation Guide

First Edition V1

August 2003

2 ASUS Zero-Channel RAID Board

No part of this documentation, including the products and software described in it, may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the

purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS DOCUMENTATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE. IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE

LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR

LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN

IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN

THIS DOCUMENTATION OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification

of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their

respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

For documentation updates, visit the ASUS website at www.asus.com.tw.

The specifications and information contained in this documentation are furnished for informational use only, and are subject to

change at any time without notice, and should not be construed as a commitment by ASUS. ASUS assumes no responsibility or

liability for any errors or inaccuracies that may appear in this documentation, including the products and the software described

in it.

ASUS Zero-Channel RAID Board 3

Contents

Conventions ............................................................................................ 4

Symbols ............................................................................................ 4

Typography ....................................................................................... 4

Welcome! ................................................................................................ 5

1. Package contents ............................................................................. 5

2. Features ........................................................................................... 6

3. Board layout ..................................................................................... 8

4. Board installation .............................................................................. 9

5. RAID configuration ......................................................................... 13

5.1 Configuring arrays and logical drives .................................... 15

5.2 Easy Configuration ................................................................ 16

5.3 New Configuration ................................................................. 25

5.3 View/Add Configuration ......................................................... 28

ASUS Contact Information .................................................................... 32

4 ASUS Zero-Channel RAID Board

Conventions

Symbols

Typography

<Enter> Indicates a keyboard key to press

<Ctrl><M> Indicates a key combination to press simultaneously or consecutively

text input

Indicates text or command that you have to type on the screen

NOTE Tips and additional information.

CAUTION Information to prevent damage to the components.

ASUS Zero-Channel RAID Board 5

1. Package contents

Check the following items in your ASUS Zero-Channel RAID board package. Contact

your retailer if any item is damaged or missing.

ASUS Zero-Channel RAID Board

Screws ans standoffs

Support CD

Installation guide

Welcome!

Thank you for buying the ASUS Zero-Channel RAID board (AZCRB)! Now, you can

create and manage multiple disk arrays within your ASUS AP1600R 1U system with

PR-DSLR533 motherboard. With the convenient online management and configuration

utilities bundled, creating a RAID system has never been easier.

If any of the items is damaged or missing, contact your dealer immediately.

6 ASUS Zero-Channel RAID Board

2. Features

The AZCRB is a proprietary daughterboard for the RAID connectors on the ASUS

PR-DLSR533 motherboard. The AZCRB includes the Intel

GC80303 integrated I/O

processor and 64MB ECC SDRAM cache, and 64MB ECC SDRAM.

RAID features

•RAID levels 0/1/5 support

•Background initialization for Quick RAID 5 setup

•40 logical drives per controller

•Auto-resume during array rebuild or reconstruction if the system shuts down

•Variable stripe size for all logical drives

•Supports multiple caching policies

- Write-back/Write-through

- Read Ahead: disable/enable/adaptive

- Cached direct I/O

ASUS Zero-Channel RAID Board 7

Fault tolerance

•COD (Configuration on Disk) and NVRAM

•Auto-detection of failed drives

•Automatic and transparent rebuild of hot spare drives

•Hot-swapping of drives without shutting the system down

•SAF-TE enclosure management support

•SMART support

Utilities

•Power Console Plus for Windows

/2000/XP/203

•MegaManager

•WebBIOS™

8 ASUS Zero-Channel RAID Board

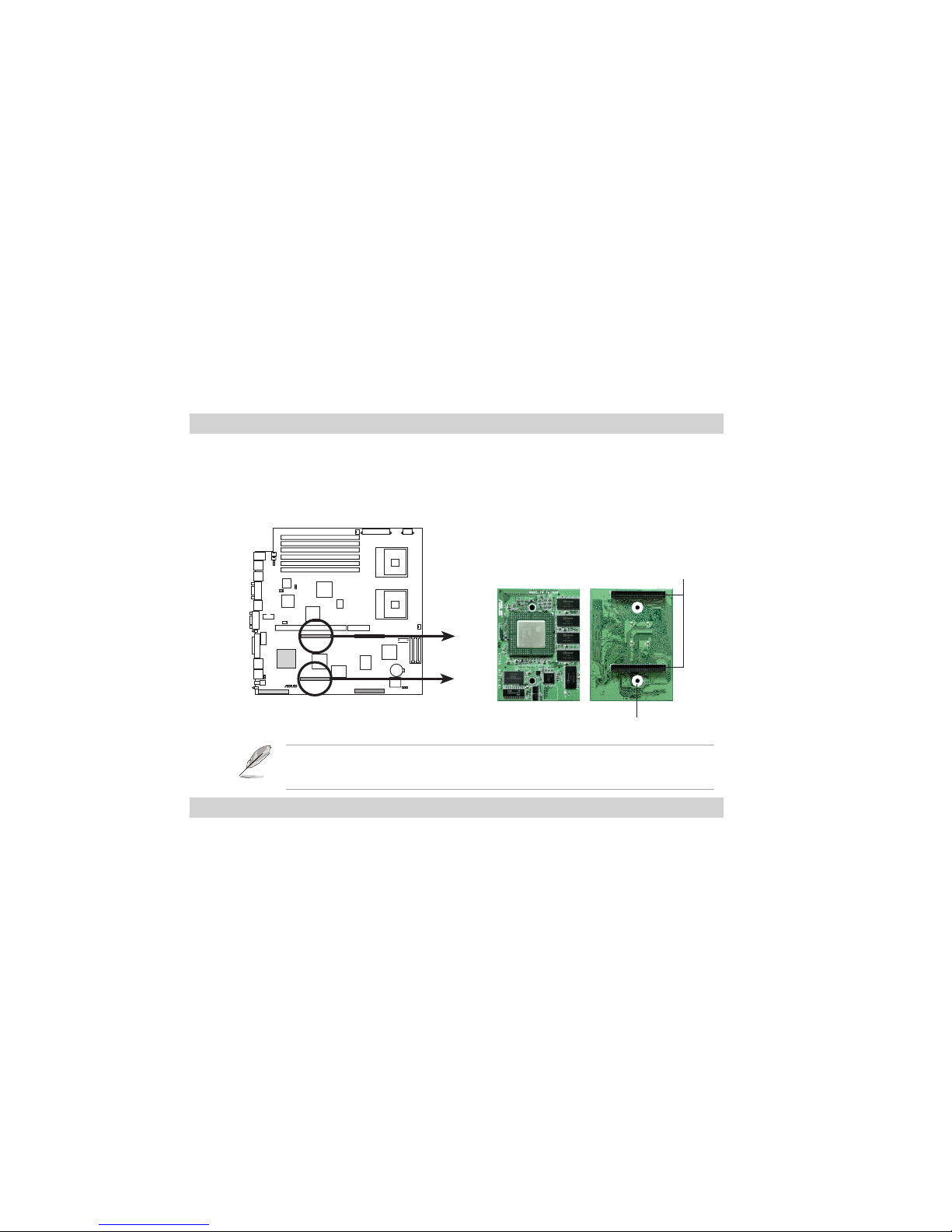

3. Board layout

The two connectors underneath the board fit the RAID connectors on the PR-

DLSR533 motherboard.

Make sure that your system motherboard is PR-DLSR533. Only the

proprietary RAID connectors on this motherboard will support the AZCRB.

PR-DLSR533

PR-DLSR533 AZCRB Connectors

AZCRB

RAID connectors

Standoff

ASUS Zero-Channel RAID Board 9

4. Board installation

To install the board:

1. Make sure that the system is off.

2. Remove the system cover to access

the RAID connectors on the

motherboard. Refer to the AP1600R

system manual for instructions.

3. Remove the PCI riser card and

bracket assembly by pulling up the

metal lever to release and detach

the assembly from the chassis.

Before handling the board, touch a bare metal portion of the system to

discharge static electricity from your body. Wear a wrist strap grounded to the

system chassis when handling the board.

PCI Riser Card and Bracket Assembly

Metal Lever

10 ASUS Zero-Channel RAID Board

4. Locate the proprietary RAID

connectors on the motherboard.

5. Remove the board from its anti-

static packaging.

RAID connectors on the motherboard
