Important Operating Considerations for Safety

•Place the projector in a horizontal positionno greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only InFocus-approved ceiling mounts. Warning: To prevent eye

injury if the projector is ceiling mounted, wear protective eyewear

before opening lamp door. A warning sticker is included with the user

documentation. Place this sticker on the lamp door if the projector is

mounted on the ceiling.

• Only genuine InFocus lamps are tested for use in this projector.

InFocus is not liable for the performance, safety or certification of any

other lamps. The use of other lamps violates the projector warranty and

voids all certification marks on this projector.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this guide for proper startup and shutdown procedures.

• Hg – Lamp contains mercury. Manage in accordance with local

disposal laws. See www.lamprecycle.org.

• In the unlikely event of a lamp rupture, particles may exit through the

projector side vents. When the projector is turned on, keep people,

food, and drinks out of the "keep out" area under and around the

projector, as indicated by the "X" areas below.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the Warranty Booklet.

5’/1.5m

8’/2.4m

3’/1m

2’/0.6m

http://www.pureglare.com.au

Introduction

Your new digital projector is simple to connect, easy to use, and

straightforward to maintain. It is a versatile projector that is flexible enough

for business presentations and home video viewing too. The A3100/A3200

has native XGA 1024x768 resolution, and the A3300 has WXGA 1280x800

resolution. This guide applies to all products. They are compatible with a

wide variety of computers and video devices.

Product specifications

To read the latest specifications on your multimedia projector, be sure to

visit our website at www.infocus.com, as specifications are subject to

change.

Accessories

The standard accessories that came with your projector are listed in the

included Quick Start Poster/Booklet. Optional accessories can be found on

our website at www.infocus.com or at your retailer or dealer.

Online registration

activate your warranty and receive product updates, announcements, and

registration incentives.

zoom (rear ring)

focus (front ring)

touch keypad

elevator foot

lens

remote control

receiver (IR)

elevator foot connector

panel

remote control

receiver (IR)

power cord

connector

http://www.pureglare.com.au

Connector panel

The projector provides both computer and video connection options,

including:

•VESAcomputer(2)

• HDMI, for computer (1) and for video (1)

•S-video

•Compositevideo

• Separate audio inputs for video and computer

• USB DisplayLink connector, for computer audio/video input. This

USB connection also provides slide advance (and mouse control when

used with an optional remote control only)

The projector also provides the following connectors:

• Monitor out, to provide an image on your desktop computer as well as

on the projection screen

• Audio out, to provide sound for external speakers

• A 5 volt DC output (see below)

It also has an RS-232 connector for serial control. The Command Line

Interface (CLI) specifications and commands are on our website.

NOTE: DisplayLink video and audio is not sent to monitor out and audio

out.

5 volt DC output

The 3.5mm mini-jack triggers provide a 5 volt, 2 amp DC output. It provides

a constant output while the projector is on. It is designed to provide power

for an InFocus LiteShow II wireless device, which allows wireless

projection. More information can be found on our website at

www.infocus.com or at your retailer or dealer.

audio inj

DisplayLink

connector

security lock RS-232

5 volt output

audio out

S-video

computer

composite

video HDMI for video

monitor out

http://www.pureglare.com.au

Positioning the projector

To determine where to position the projector, consider the size and shape of

your screen, the location of your power outlets, and the distance between the

projector and the rest of your equipment. Here are some general guidelines:

• Position the projector on a flat surface at a right angle to the screen. The

projector must be at least 4.9 feet (1.5m) from the projection screen.

• Position the projector within 10 feet (3m) of your power source and

within 6 feet (1.8m) of your video device (unless you purchase

extension cables). To ensure adequate cable access, do not place the

projector within 6 inches (.15m) of a wall or other object.

• If you are installing the projector on the ceiling, refer to the installation

guide that comes with the Ceiling Mount Kit for more information. To

turn the image upside down, see “Ceiling Mount” on page 30. We

recommend using an InFocus authorized ceiling mount.

• Position the projector the desired distance from the screen. The

distance from the lens of the projector to the screen, the zoom setting,

and the video format determine the size of the projected image.

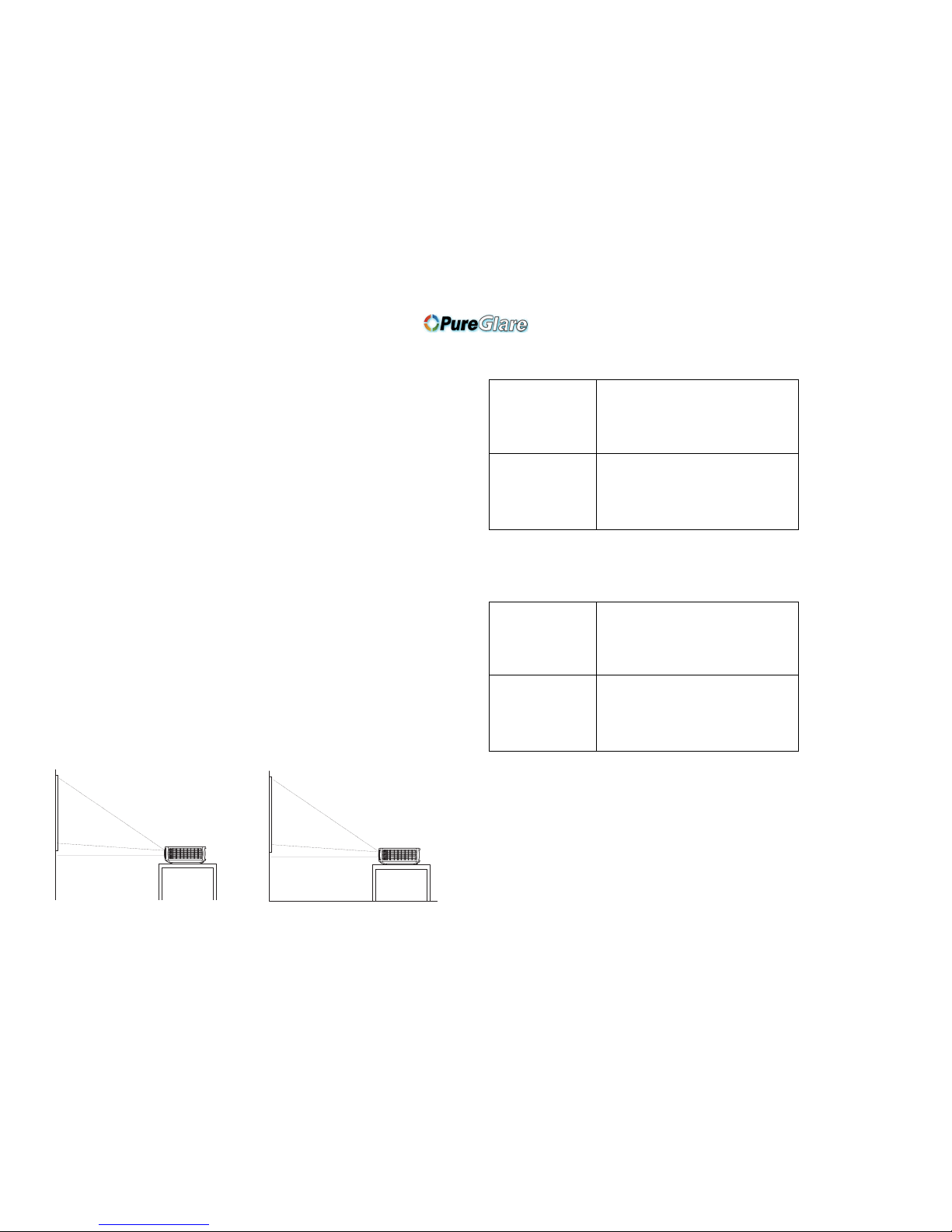

• The image exits the projector at a given angle. A3100/A3200 image

offset is 115% ; A3300 image offset is 112.4%. This means that if you

have an image 10’ high, the bottom of the image will be 1.5' (A3100/

A3200) and 1.24' (A3300) above the center of the lens.

(A3100 & A3200)

(A3300)

10 ft high


10 ft high


bottom of image

1.24 ft above center

of lens

Projection angle

lens center

bottom of image

1.5 ft above center

of lens

Projection angle

lens center

Table 1: (A3100 & A3200)

Range of distance to the screen for a given screen size

Diagonal

Screen Size

(inches/m)

Distance to screen

Maximum

distance (feet/

Minimum

Distance

(feet/m)

60/1.5 8.6/2.6 7.8/2.4

80/2.0 11.5/3.5 10.4/3.2

90/2.3 12.9/3.9 11.7/3.6

150/3.8 21.5/6.6 19.5/5.9

Table 2: (A3300)

Range of distance to the screen for a given screen size

Diagonal

Screen Size

(inches/m)

Distance to screen

Maximum

distance (feet/

Minimum

Distance

(feet/m)

60/1.5 7.3/2.2 6.5/2.0

80/2.0 9.7/2.9 8.7/2.7

90/2.3 10.9/3.3 9.8/3.0

150/3.8 18.1/5.5 16.3/5.0

http://www.pureglare.com.au

Projector and device connector guide

The following illustration and table should help you find the connectors to

use and obtain the best resolution possible from your input devices, such as

computers, standard VCRs, DVD players (progressive and interlaced),

HDTV sources (1080i, 1080p and 720p HDTV formats), TV and satellite

tuners, camcorders, video games (progressive and interlaced), and laser

disc players.

audio inj

DisplayLink

connector

security lock RS-232

5 volt output

audio out

S-video

computer

HDMI for video

composite

video monitor out

http://www.pureglare.com.au

Video Device Video

Compatibility

If Your Device

Connector Is

Attach to Adapter

or Labeled

Connector on

Projector

For Setup Instructions, see Comments

Standard Broadcast TV (not

HDTV) via: cable, digital

cable, satellite TV, DVD, or

VCR

NTSC, PAL, and

SECAM formats

Composite video

or S-video

Video 3

or Video 2

Composite video connection on

page 13.

S-video connection on page 13

Not for progressive

(i.e. HDTV) sources.

See page 8.

Standard Video Camera

NTSC, PAL, and

SECAM formats

Composite video

or S-video

Video 3

or Video 2

Composite video connection on

page 13.

S-video connection on page 13

Not for progressive

(i.e. HDTV) sources.

See page 8.

Standard Video Game

NTSC, PAL, and

SECAM formats

Composite video

or S-video

Video 3

or Video 2

Composite video connection on

page 13.

S-video connection on page 13

Not for progressive

(i.e. HDTV) sources.

See page 8.

http://www.pureglare.com.au

Video Device Video

Compatibility

If Your Device

Connector Is

Attach to Adapter

or Labeled

Connector on

Projector

For Setup Instructions, see Comments

HDTV

(High Definition TV)

1080i, 1080p, 720p

Component 480i

VGA

Component video

Computer 3 or

Computer 2

Computer 3 or

Computer 2 via

optional VESA to

Component adapter

HDMI

VESA connection on page 13

Component video connection on

page 13

HDMI connection on page 13

Progressive DVD

1080i, 1080p, 720p

Component 480p

and 480i

VGA

Component video

Computer 3 or

Computer 2

Computer 3 or

Computer 2 via

optional VESA to

Component adapter

HDMI

VESA connection on page 13

Component video connection on

page 13

HDMI connection on page 13

Progressive Video Game

1080i, 1080p, 720p

Component 480p

and 480i

VGA

Component video

Computer 3 or

Computer 2

Computer 3 or

Computer 2 via

optional VESA to

Component adapter

HDMI

VESA connection on page 13

Component video connection on

page 13

HDMI connection on page 13

http://www.pureglare.com.au

Connecting a computer source

Required computer connections (DisplayLink or VESA)

If your computer has Windows XP SP2 or newer*, connect the USB cable

between your computer's USB port and the projector's DisplayLink

connector, then follow the instructions on the screen. See the DisplayLink

Manager User's Guide for more information.

* For the latest information about support for other operating systems

(including Apple), go to www.infocus.com/support/displaylink

Or, connect one end of the provided computer cable to the Computer 2 or

Computer 3 connector on the projector and the other to the VESA

connector on your computer. If you are using a desktop computer, you will

need to disconnect the monitor cable from the computer’s video port first

(you can connect this monitor cable to the Monitor Out connector on the

projector, see below).

Connect the black power cord to the Power connector on the side of the

projector and to your electrical outlet. The Power light on the Status

Indicator Panel (page 14) turns amber.

NOTE: Always use the power cord that shipped with the projector.

Optional computer connections

To get sound from the projector, connect an audio cable (optional cable, not

included) to your computer and to the Audio In Computer connector on

the projector. You may also need an adapter.

If you are using a desktop computer and want to see the image on your

computerscreen as well as on the projection screen, connect the computer’s

monitor cable to the Monitor Out connector on the projector.

NOTE

: DisplayLink video and audio is not sent to monitor out and audio out.

To advance slides in a PowerPoint presentation using the remote control,

plug the USB cable into the USB mouse connector on your computer and

the DisplayLink connector on the projector.

MOLEX

connect USB cable

connect computer cable

connect power cord

connect audio cable

connect monitor cable

http://www.pureglare.com.au

Autres manuels pour A3100 -

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ask Proxima Projecteur

Ask Proxima

Ask Proxima D-ILA Pro AV SX1 Manuel utilisateur

Ask Proxima

Ask Proxima C410 Manuel utilisateur

Ask Proxima

Ask Proxima 9280 Manuel utilisateur

Ask Proxima

Ask Proxima Ultralight S520 Mode d’emploi

Ask Proxima

Ask Proxima 9290 Manuel utilisateur

Ask Proxima

Ask Proxima Impression A9 Manuel utilisateur

Ask Proxima

Ask Proxima M9 Manuel utilisateur

Ask Proxima

Ask Proxima A1100 Manuel utilisateur

Ask Proxima

Ask Proxima Ultralight DS1 Mode d’emploi

Ask Proxima

Ask Proxima C460 Manuel utilisateur

Ask Proxima

Ask Proxima DLP Projector Manuel utilisateur

Ask Proxima

Ask Proxima E3000 series Manuel utilisateur

Ask Proxima

Ask Proxima US1275 Manuel utilisateur

Ask Proxima

Ask Proxima Impression 880 Manuel utilisateur

Ask Proxima

Ask Proxima C5 Compact Mode d’emploi

Ask Proxima

Ask Proxima M20 Manuel utilisateur

Ask Proxima

Ask Proxima C175 Manuel utilisateur

Ask Proxima

Ask Proxima DP5800 Mode d’emploi

Ask Proxima

Ask Proxima ASK PROXIMA C95 Mode d’emploi

Ask Proxima

Ask Proxima M1 Manuel utilisateur

Ask Proxima

Ask Proxima C2 COMPACT Manuel utilisateur

Ask Proxima

Ask Proxima Impact WSX Manuel utilisateur

Ask Proxima

Ask Proxima A1100 Manuel utilisateur

Ask Proxima

Ask Proxima C445+ Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
