Declaration of Conformity

Manufacturer: InFocus Corporation, 27500 SW Parkway Avenue, Wilsonville,

Oregon 97070 USA

European Office: Louis Armstrongweg 110, 1311 RL Almere, The Netherlands

We declare under our sole responsibility that this projector conforms to the following

directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: IEC 60950-1: 1st Edition

July, 2007

Trademarks

Microsoft, PowerPoint, Word, Excel and Windows are trademarks or registered trade-

marks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered

trademarks of Adobe Systems Incorporated. Digital Light Processing is a trademark

or registered trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (styl-

ized) are either registered trademarks or trademarks of InFocus Corporation in the

United States and other countries.

FCC Warning

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by InFocus Corporation may void

authority to operate the equipment.

Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, CUL

Other specific Country Approvals may apply, please see product certification label.

This user’s guide applies to models IN38, C350, and W500.

InFocus reserves the right to alter product offerings and specifications at any time.

Table of Contents

Introduction 3

Connecting a computer 5

Required computer connections 5

Displaying a computer image 7

Adjusting the image 8

Connecting a video device 9

Displaying a video image 10

Shutting down the projector 12

Troubleshooting your setup 12

Using the keypad buttons 20

Using the remote control 21

Using the audio 22

Optimizing computer images 23

Presentation features 23

Optimizing video images 23

Customizing the projector 23

Using the menus 24

Picture menu 25

Settings menu 28

Maintenance 32

Cleaning the lens 32

Using the security lock 32

Replacing the projection lamp 33

Appendix 35

Projected image size 35

Important Operating Considerations for Safety

•Place the projector in a horizontal position no greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only InFocus-approved ceiling mounts.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this guide for proper startup and shutdown procedures.

•Warning: Hg – Lamp contains mercury. Manage in accordance

with local disposal laws. See www.lamprecycle.org.

• In the unlikely event of a lamp rupture, particles may exit through the

projector side vents. When the projector is turned on, keep people,

food, and drinks out of the "keep out" area under and around the pro-

jector, as indicated by the "X" areas below.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the Warranty booklet.

5’/1.5m

8’/2.4m

2’ / 0.6 m

3’ / 1 m

Introduction

Your new digital projector provides computer and video inputs and has

XGA 1024x768 resolution. The projector is easy to connect, easy to use, and

easy to maintain.

Product specifications

To read the latest specifications on your multimedia projector, be sure to

visit our website at www.infocus.com, as specifications are subject to

change.

Accessories

The standard accessories that came with your projector are listed in the

included user’s guide. Optional accessories can be found on our website at

www.infocus.com or at your retailer or dealer.

Online Registration

vate your warranty and receive product updates, announcements, and reg-

istration incentives.

Projector components and features

keypad

zoom

focus

elevator foot release

remote

control

receiver (IR)

connectors

leveling

foot

IR receiver

status indicators

lock

Connector Panel

The projector provides computer and video connectors:

• one M1-D/A (HD, DVI, and computer)

• one VESA (HD, HD component, and computer)

• one VESA (monitor out)

•onecomponentvideo

• one S-video

• one composite RCA video

• one audio in/one audio out

It also has an RS-232 connector for serial control. The Command Line Inter-

face (CLI) specifications and commands are on our website.

Connector panel

M1-D/A

s-video

composite

external

speaker

(audio out)

RS-232 serial control

video

computer

audio in

VESA in

monitor out

component

video

Connecting a computer

Required computer connections

Connect the black end of the computer cable to the Computer 1 connector

on the projector. Connect the blue end to the video port on your computer. If

you are using a desktop computer, you first need to disconnect the monitor

cable from the computer’s video port.

Some Macintosh®computers do not have a standard VESA-out video port.

If the supplied computer cable will not connect to your computer, purchase

the appropriate adapter from your Apple®reseller.

Connect the black power cable to the connector on the side of the projector

and to your electrical outlet.

The Power light on the Status Indicator Panel (page 12) turns amber.

NOTE: Always use the power cable that shipped with the projector.

Optional computer connections

To advance slides in a PowerPoint™ presentation using the up and down

arrow buttons on the remote, plug the USB connector on the computer cable

into the USB connector on your computer.

To have sound with your presentation, connect an audio cable (sold sepa-

rately) to your computer and to the Audio In connector on the projector.

connect computer cable

connect power cable

connect computer cable

connect audio cable

If you are using a desktop computer and want to see the image on your

computer screen as well as on the projection screen, plug the monitor cable

to the Monitor Out connector on the projector.

If you prefer connecting your projector to your computer with an optional

VESA cable, connect one end of the cable to the VESA port on your com-

puter, and connect the other end of the cable to the blue Computer 2 con-

nector on the projector.

You can control the projector from an LCD control panel or computer by

connecting an RS-232 cable to the projector’s Serial Control connector. Spe-

cific RS-232 commands can be found in the Service and Support section of

our website.

connect monitor cable

connect VESA cable

connect RS-232 cable

Displaying a computer image

Remove the lens cap.

Turn on the Power switch on the side of the projector.

Press the Power button on the top of the projector or the remote.

The Power light on the Status Indicator Panel (page 12) blinks green and the

fans start to run. When the lamp comes on, the start up screen displays and

the Power light is steady green. It can take a minute for the image to achieve

full brightness.

? No startup screen? Get help on page 13.

Turn on your computer.

The computer’s image should appear on the projection screen. If it doesn’t,

press the Source button on the projector’s keypad.

Make sure your laptop’s external video port is active.

Many laptops do not automatically turn on their external video port when a

projector is connected. Usually a key combination like FN + F8 or CRT/LCD

key turns the external display on and off. Locate a function key labeled

CRT/LCD or a function key with a monitor symbol. Press FN and the

labeled function key simultaneously. Refer to your laptop’s documenta-

tion to learn your laptop’s key combination.

? No computer image? Try pressing the Auto Image

button on the keypad. Get help on page 13.

remove lens cap

press Power switch and button

turn on computer

activate laptop’s external port

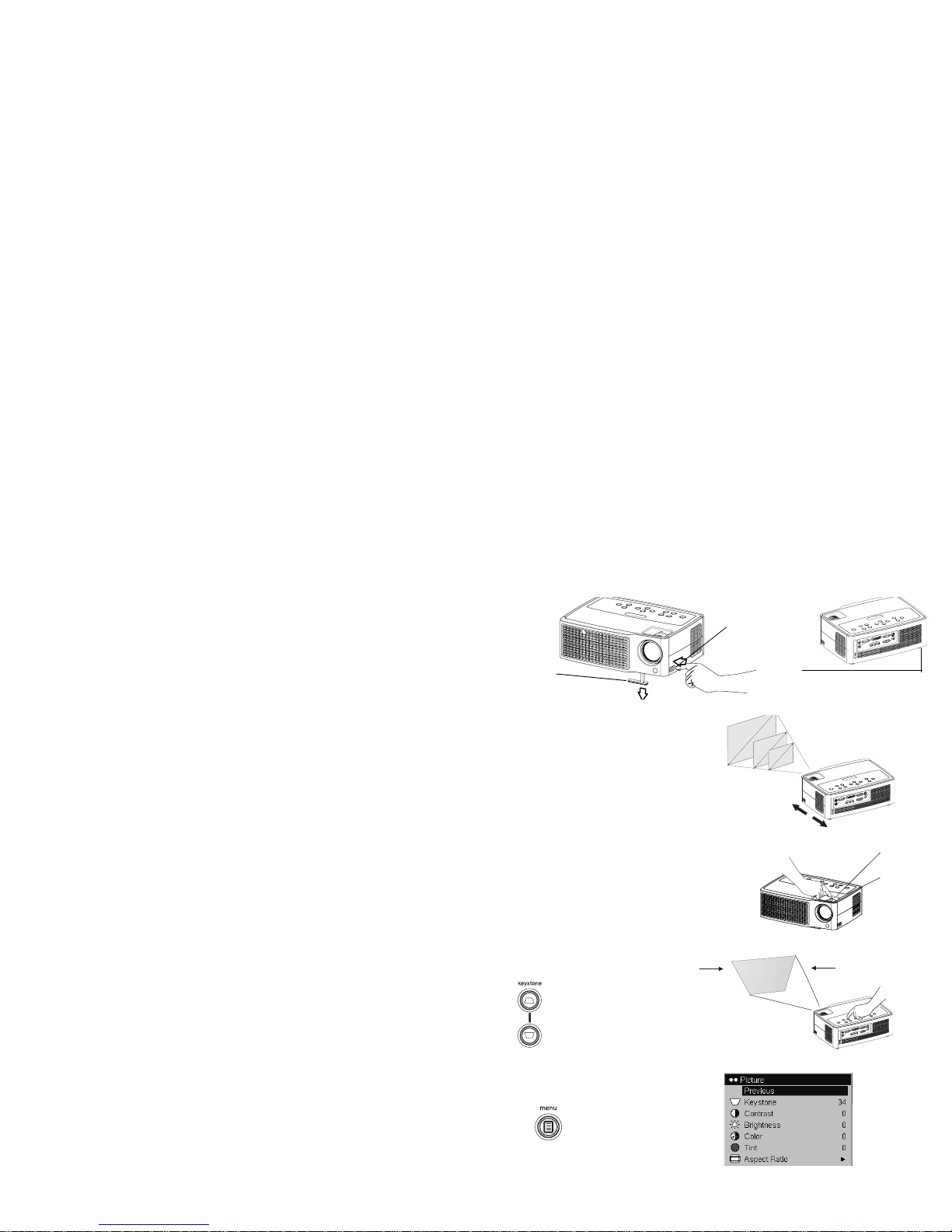

Adjusting the image

Adjust the height of the projector, if necessary, by pressing the release but-

ton to extend the elevator foot.

Rotate the leveling foot (located at the bottom back right corner), if neces-

sary.

Position the projector the desired distance from the screen, so that the lens is

perpendicular to the screen.

See page 35 for a table listing screen sizes and distances.

Adjust the zoom or focus rings by rotating them until the desired image size

and focus are produced.

If the image is not square, adjust the vertical digital keystone by using the

buttons on the keypad. Press the upper Keystone button to reduce the

upper part of the image, and press the lower Keystone button to reduce the

lower part.

You can also adjust the keystone via the menus. See page 25.

Adjust the Contrast or Brightness in the Picture menu.

See page 24 for help with the menus.

adjust height

rotate

leveling

foot

elevator

foot

release button

adjust distance

adjust zoom and focus

Focus

(front)

Zoom

(rear)

adjust keystone

adjust Contrast or Brightness

Connecting a video device

No video or audio cables are included with your projector.

If the video device uses a round, four-prong S-video connector, plug an

S-video cable into that connector on the video device and into the Video 2

connector on the projector. If the device uses a composite video connector,

plug a composite video cable into that connector on the video device and

into the Video 1 connector on the projector.

For audio, plug a mini-plug audio Y-cable into the Audio in connector on

the projector and into the video device’s left and right audio out connectors.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

NOTE: Always use the power cable that shipped with the projector.

To connect a progressive scan EDTV or HD source, use the Component to

M1 adapter (sold separately).

connect S-video and audio cables

connect video and audio cables

connect power cable

Autres manuels pour C350

Table des matières

Autres manuels Ask Proxima Projecteur

Ask Proxima

Ask Proxima DLP Projector Manuel utilisateur

Ask Proxima

Ask Proxima Impact 64 Manuel utilisateur

Ask Proxima

Ask Proxima C500 Manuel utilisateur

Ask Proxima

Ask Proxima M2+ Manuel utilisateur

Ask Proxima

Ask Proxima Impression 750 Manuel utilisateur

Ask Proxima

Ask Proxima C350 Manuel utilisateur

Ask Proxima

Ask Proxima C200 (DP6500x) Mode d’emploi

Ask Proxima

Ask Proxima Impression 960 Manuel utilisateur

Ask Proxima

Ask Proxima A3100 - Manuel utilisateur

Ask Proxima

Ask Proxima C1 Compact Manuel utilisateur

Ask Proxima

Ask Proxima C420 C420 C420 Manuel utilisateur

Ask Proxima

Ask Proxima C440/C450 Manuel utilisateur

Ask Proxima

Ask Proxima C105 (DP6155) Manuel utilisateur

Ask Proxima

Ask Proxima C410 Manuel utilisateur

Ask Proxima

Ask Proxima C500 Guide de configuration rapide

Ask Proxima

Ask Proxima Impression A10 Manuel utilisateur

Ask Proxima

Ask Proxima Impact 21 Manuel utilisateur

Ask Proxima

Ask Proxima M9 Manuel utilisateur

Ask Proxima

Ask Proxima E1655-A Manuel utilisateur

Ask Proxima

Ask Proxima Impression A4 Manuel utilisateur

Ask Proxima

Ask Proxima Impression A6+ Manuel utilisateur

Ask Proxima

Ask Proxima M1 Mode d’emploi

Ask Proxima

Ask Proxima C3000 Series Manuel utilisateur

Ask Proxima

Ask Proxima A1100 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
