LNX-0500-M12-67 Series User Manual V1.0

LNX-0500-M12-67 Series

5-Port M12 Industrial IP67 Waterproof Ethernet Switch,

with 5*10/100Tx with M12-connector

Version 1.0

(September 2018)

User Manual

Antaira Technologies - Industrial Ethernet Switches

LNX-0500-M12-67 Series User Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are

the trademarks of Microsoft Corp. All other brand and product names are trademarks or registered trademarks of

their respective owners.

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial Ethernet Switches

LNX-0500-M12-67 Series User Manual V1.0

iii

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

User Manual

This manual supports the following models:

•LNX-0500-M12-67

•LNX-0500-M12-67-T

Please check our website (www.antaira.com) for any updated manual or contact us by e-mail

([email protected]).

Antaira Technologies - Industrial Ethernet Switches

LNX-0500-M12-67 Series User Manual V1.0

Table of Contents

1. Overview...................................................................... 1

1.1Key Features...................................................... 1

1.2Package Contents.............................................. 1

1.3Safety Precaution............................................... 1

2. Hardware Description................................................. 3

2.1Physical Dimensions .......................................... 3

2.2 Front Panel ........................................................ 4

2.3 LED Indicators ................................................... 4

2.4 Grounding .......................................................... 5

2.5 Ethernet Ports.................................................... 5

2.6 Wiring the Power Inputs..................................... 6

3. Mounting Installation.................................................. 8

3.1 DIN-Rail Mounting.............................................. 8

3.2 Wall Mounting .................................................... 9

4. Hardware Installation................................................ 11

4.1 Installation Steps.............................................. 11

4.2 Maintenance and Service ................................ 12

5. Network Application ................................................. 13

6. Trouble Shooting ...................................................... 14

7. Technical Specifications.......................................... 15

Antaira Technologies - Industrial Ethernet Switches

LNX-0500-M12-67 Series User Manual V1.0

1.Overview

Antaira Technologies’ LNX-0500-M12-67 series is a 5-port 10/100Tx M12 IP67 industrial switch that

meets the high-reliability requirements demanded by industrial applications. The LNX-0500-M12-67

series features a wide operating temperature of -10° to 70°C in the standard model and -40° to 75°C in

the extended temperature model which allows this device to be used in various industrial environments.

Its M12 connectors ensure a tight, robust connection and guarantees reliable operation in applications

that are subject to high vibration and shock in environments containing dust, liquid or, laden with gas.

1.1 Key Features

◼System Interface/Performance

•All Copper ports support auto MDI/MDI-X function

•Embedded 5*10/100Tx Fast Ethernet ports

•Store-and-forward switching architecture

•1K MAC address table

•448Kbits memory buffer

◼Power Input

•Redundant power DC 12-48V through M12 5-Pin A-Coded male connector

•Max. current 0.1A

◼Operating Temperature

•Standard operating temperature model: -10°C ~ 70°C

•Extended operating temperature model (–T): -40°C ~ 75°C

◼Case/Installation

•Plastic case

•IP67 protection

•Installation in a Pollution Degree 2 industrial environment

•DIN-Rail and wall mount design

1.2 Package Contents

•1 –Quick Installation Guide

•1 –LNX-0500-M12-67(-T)

•1 –DIN-Rail kit with screws

•1 –Set of 6*M12 protective caps

•1 –Set of 6*port labels

1.3 Safety Precaution

Attention

If the DC voltage is supplied by an external circuit, please use a protection device on the power supply

input. Supply by UL listed industrial use power. The industrial media converter’s hardware specs, ports,

cabling information, and wiring installation will be described within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNX-0500-M12-67 Series User Manual V1.0

Warning Labels

The caution label means that you should check the certain information in the user manual when working

with the device. (Shown in Figure 1)

Figure 1: Caution Label

Antaira Technologies - Industrial Ethernet Switches

LNX-0500-M12-67 Series User Manual V1.0

2. Hardware Description

2.1 Physical Dimensions

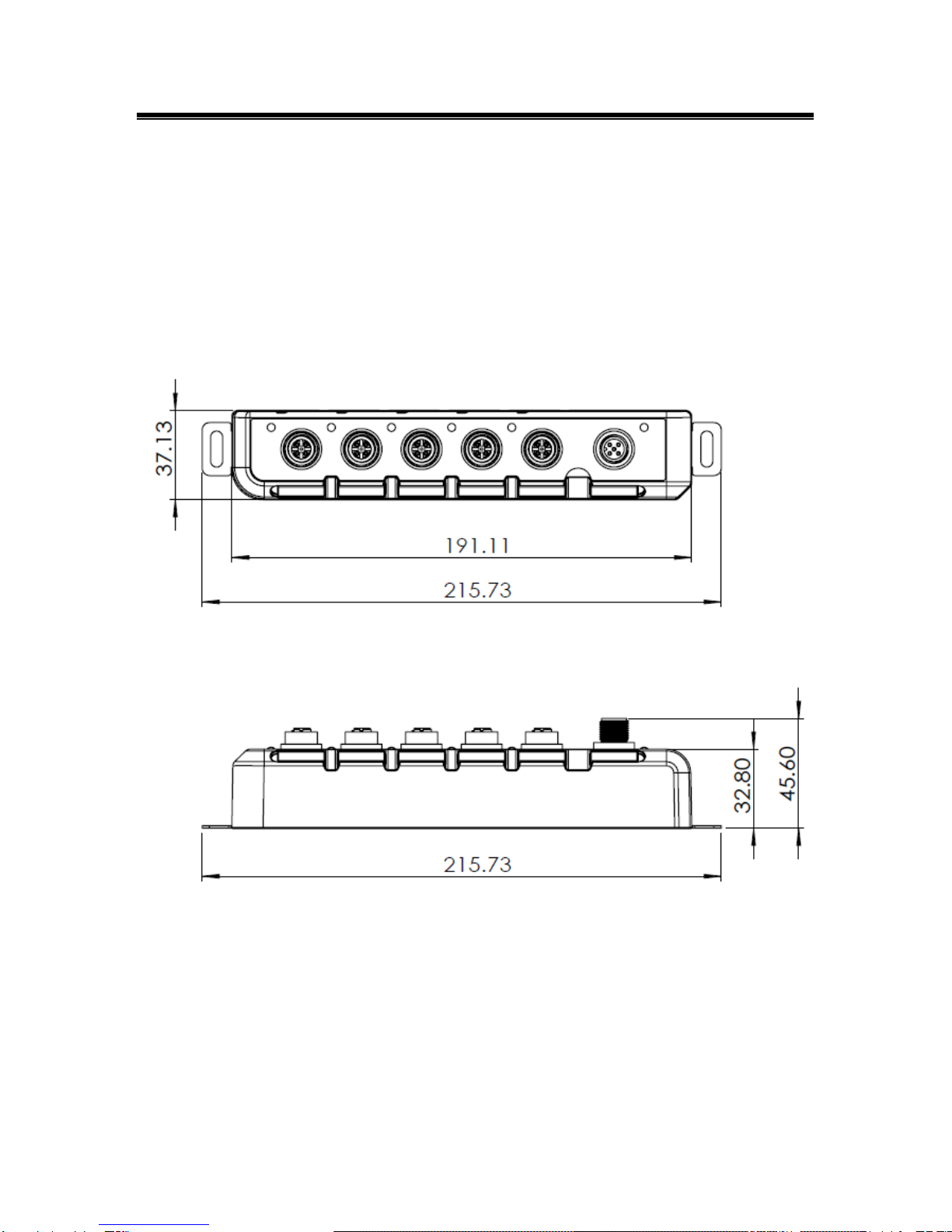

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-0500-M12-67

series:

(W x H x D) is 37.13mm x 215.73mm x 32.8mm

Figure 2.1

Antaira Technologies - Industrial Ethernet Switches

LNX-0500-M12-67 Series User Manual V1.0

2.2 Front Panel

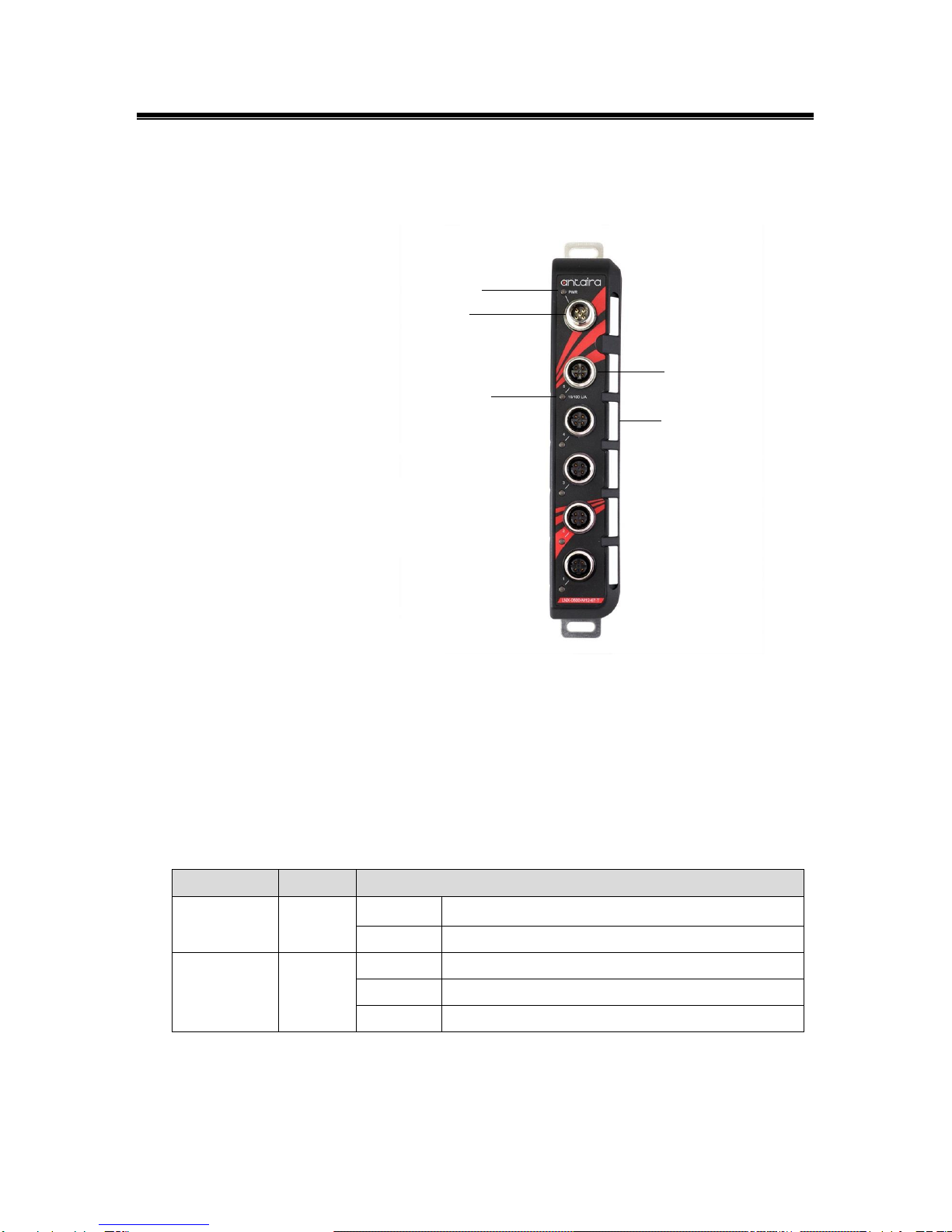

The front panel of the LNX-0500-M12-67 series can be seen below (Figure 2.2).

2.3 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

displays the power and network status. Each LED indicator has a different color and has its own

specific meaning, see below in Table 2.1.

LED

Color

Description

PWR

Green

Power input 1 is active

Off

Power input 1 is inactive

Ethernet Port

(1 to 5)

LINK/ACT

Green

Power input 2 is active

Flashing

Networking is active at 10/100 Mbps

Off

Power input 2 is inactive

NOTE: "PWR" is the abbreviation for "Power", "ACT" is for "Activity", and “L/A” is for

“Link/Activity”.

Figure 2.2

Table 2.1

M12 5-Pin A-Coded for Power Connection

Power LED

LED Link / Activity Status –10/100Tx

M12 4-Pin D-Coded for

Ethernet Connection

Ethernet Port Label

Antaira Technologies - Industrial Ethernet Switches

LNX-0500-M12-67 Series User Manual V1.0

2.4 Grounding

Grounding and wire routing help limit the effects of noise due to electromagnetic interference

(EMI). Run the ground connection from the ground screw to the grounding surface prior to

connecting devices. The industrial Ethernet switch provides two ground holes which are on the

top and bottom of the wall mounting metal plate which are the same as wall mounting holes. It is

recommended to use a M3 or M4 ground screw and grounding wire, and attach the wire to either

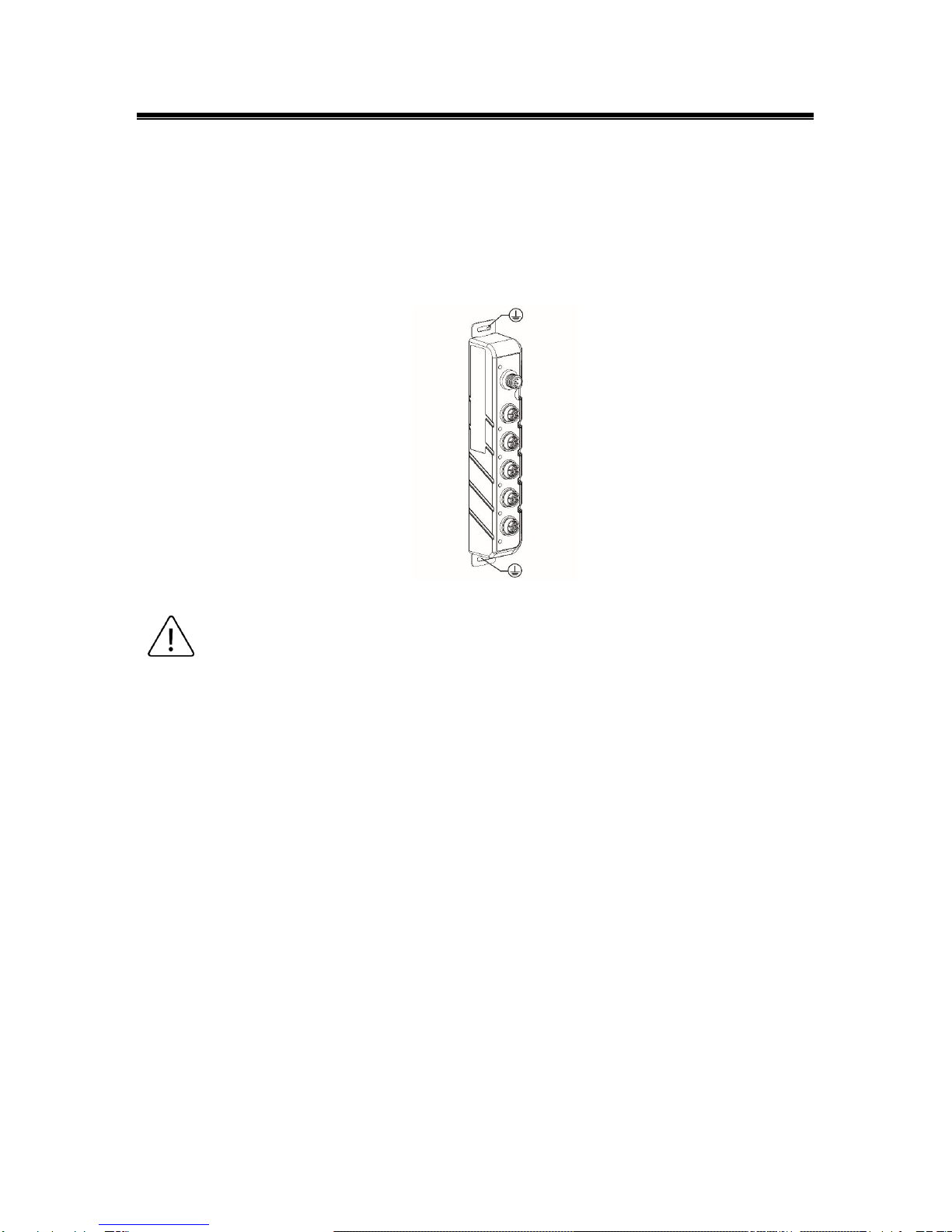

ground hole with the screw. The grounding holes are shown below in Figure 2.3.

Figure 2.3

Caution: Using a shielded cable achieves better electromagnetic compatibility.

2.5 Ethernet Ports

M12 Interface (Auto MDI/MDIX)

◼Connection Format: M12 4-Pin D-Coded Female Connector

◼Transmission Rate: 10 Mbit/s or 100 Mbit/s

Prepare the M12 4-Pin D-Coded Ethernet Port mating cable for Ethernet connection. The M12 D-

Coded Ethernet ports are auto-sensing for 10Base-T or 100Base-TX device connections. Auto

MDI/MDIX means that you can connect to another switch or workstation without changing straight-

through or crossover cabling. See pin assignment shown in Table 2.2.

Antaira Technologies - Industrial Ethernet Switches

LNX-0500-M12-67 Series User Manual V1.0

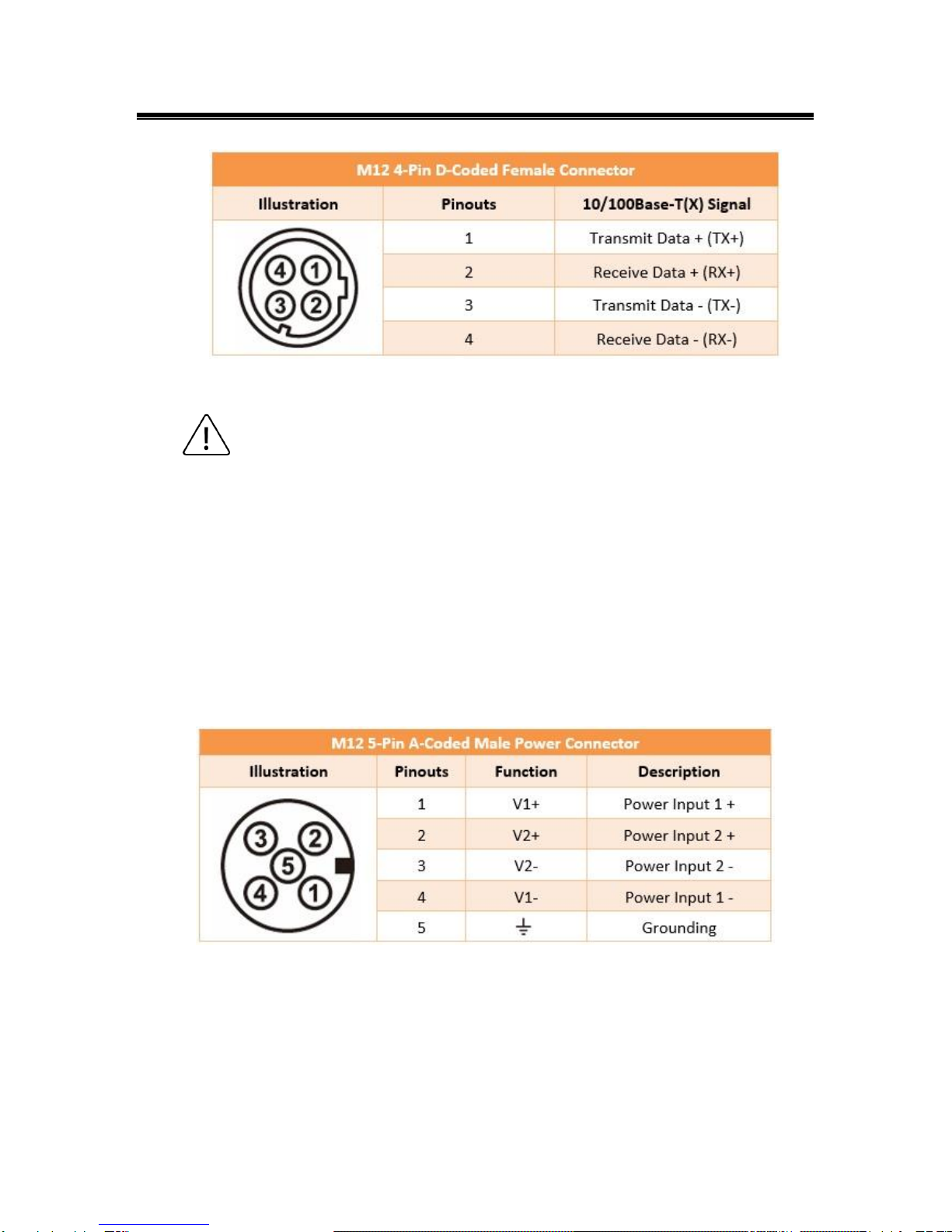

Table 2.2

NOTE: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

Caution:

1. Please use with copper conductors only.

2. Use conductors with insulation rated for at least 60/75°C.

3. Base the conductor Ampacity on a maximum termination temperature of 60/75°C.

2.6 Wiring the Power Inputs

This industrial Ethernet switch provides dual DC power inputs for redundancy through a M12 5-

Pin A-Coded male connector. Prepare the M12 5-Pin A-Coded cable for power connection. Table

2.3 shows the pin assignment.

NOTE: Recommended use the wire gauge between 18~24AWG.

Please follow the below steps to insert the power wire.

Table 2.3
