ANTAIRA LNP-0800-24 Series Manuel utilisateur
LNP-0800-24 series
8-port Industrial PoE+ Unmanaged Ethernet Switches
8*10/100Tx (30W/Port), 12~36VDC Power Input
User Manual
FCC Warning
This Equipment has been tested and found to comply with the limits for a
Class-A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio
communications if the equipment is not installed and used in accordance
with the instructions. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
Content
Introduction ................................................................ 1
Features ................................................................... 1
Package Contents .................................................... 2
Hardware Description ............................................... 3
Physical Dimension .................................................. 3
Front Panel .............................................................. 4
Top View .................................................................. 4
LED Indicators ......................................................... 5
Ports ......................................................................... 6
Cabling ..................................................................... 7
Wiring the Power Inputs ........................................... 8
Wiring the Fault Alarm Contact ................................ 9
DIP Switch Settings ................................................. 9
Mounting Installation .............................................. 10
DIN-Rail Mounting .................................................. 10
Wall Mounting ........................................................ 12
Hardware Installation .............................................. 13
Installation Steps .................................................... 13
Network Application ................................................ 14
Troubleshooting ...................................................... 15
Technical Specification ........................................... 16
1
Introduction
Antaira’s LNP-0800-24 series switches are smart 5-port Industrial Unmanaged Ethernet
Switches supporting IEEE-802.3at compliant (Power-over-Ethernet Plus) on ports 1 to 8.
The switches are classified as power source equipment (PSE), and when used in this
way, the LNP-0500-24 series switches enable centralization of the power supply and
provide up to 30 wa8ts of power per port. The switches can be used to power IEEE
802.3af or 802.3at compliant power devices (PD), eliminating the need for additional
wiring, and support IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex,
MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet
Network.
In addition, the Network Broadcast Storm Protection and built-in relay warning function
alerts network engineers when power failures or port breaks occur.
Features
System Interface/Performance
RJ-45 ports support Auto MDI/MDI-X Function
Embedded 8-port 10/100Tx w/PoE+
Store-and-Forward Switching Architecture
Broadcast Storm Protection
2K MAC Address Table
Port Break Alarm Mask
Power Supply
DC 12 ~ 36V Redundant Power
Operating Temperature
Standard Operating Temperature model: -10°C ~ 70°C
Extend Operating Temperature model with- T: -40°C ~ 75°C
Case/Installation
IP-30 Protection
Installation in Pollution Degree 2 Environment
DIN Rail and Wall Mount Design
Provides EFT protection 2,000 VDC for power line
Supports 6,000 VDC Ethernet ESD protection
2
Package Contents
Please refer to the package contents list below.
LNP-0800-24 series - 8-Port Industrial PoE+ Unmanaged Ethernet Switch w/DIN
Rail Bracket
User Manual
Removable Terminal Block
Wall-mount Kit (2 Wall-mount Plates with Screws)
Compare the contents of the industrial switch with the checklist above. If any item is
damaged or missing, please contact Antaira or Antaira’s authorized channel partners for
service.
3
Hardware Description
The Industrial switch’s hardware spec, port, cabling information, and wiring installation
will be described.

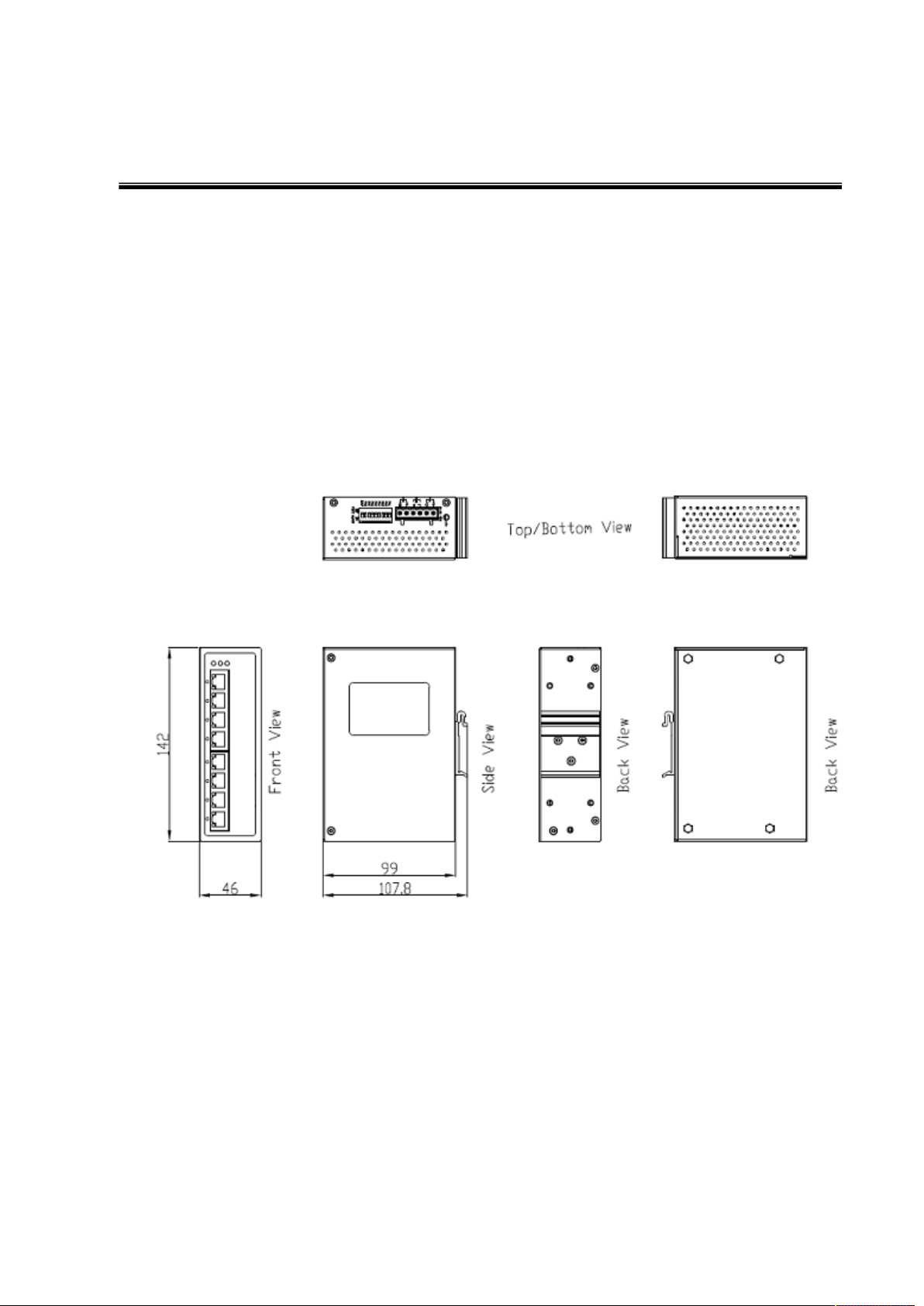

Physical Dimension
The LNP-0800-24 series - 8-Port Industrial PoE+ Unmanaged Ethernet Switch
dimension: (W x D x H) is 46mm x 99mm x 142mm
4

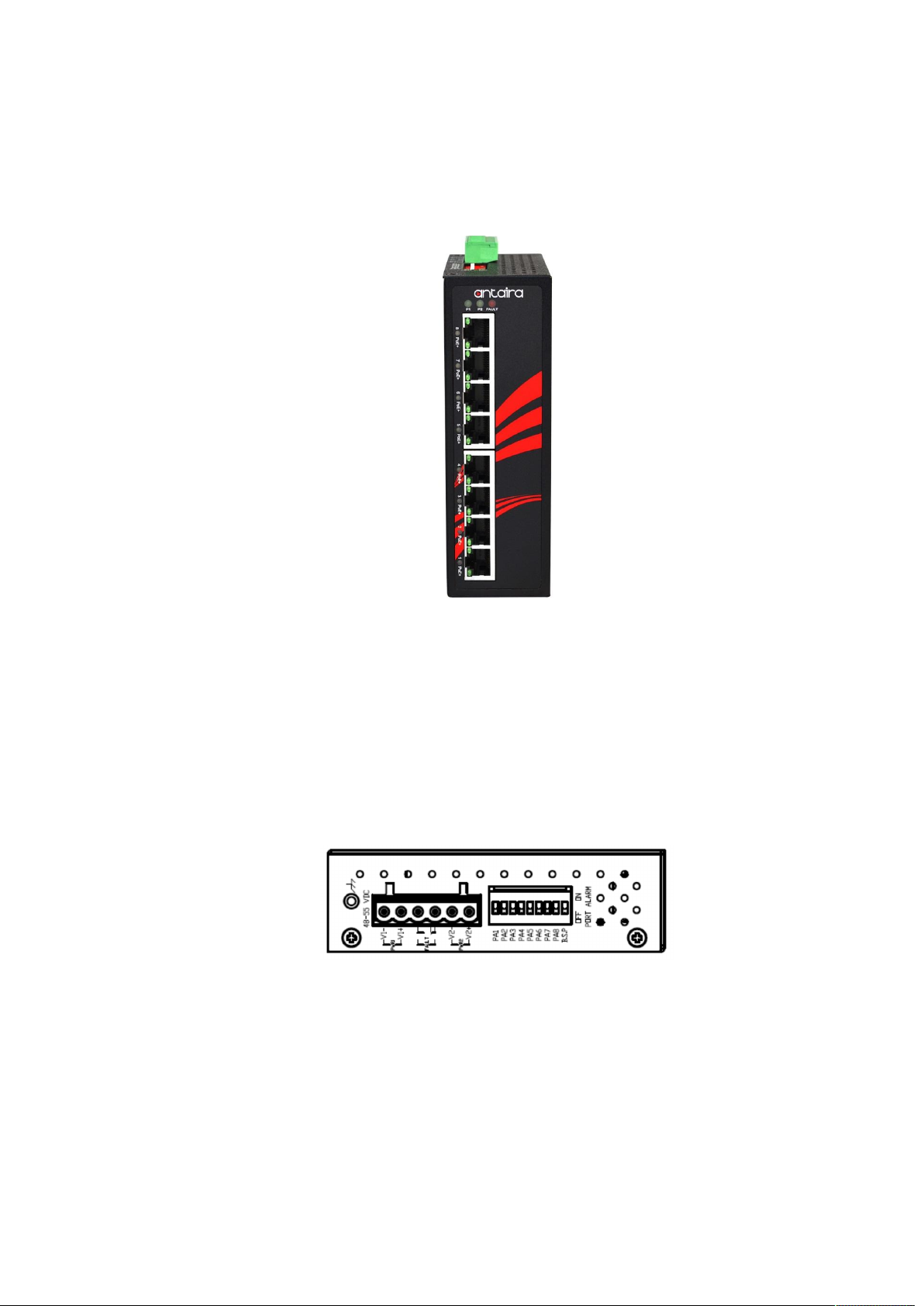

Front Panel
The Front Panel of the PoE Industrial Switch is shown below:
Front Panel of the PoE Industrial Switch
Top View
The top view of the PoE Industrial Switch has one terminal block connector of two DC
power inputs and relay circuit contact. One DIP switch for port break alarm mask and
broadcast storm protection.
Top View of the PoE Industrial Switch
5
LED Indicators
The diagnostic LEDs located on the front panel of the industrial switch provide real-time
information of the system and optional status. The following table provides the
description of the LED status.
LED
Color Description
P1 Green On Power input 1 is active
Off Power input 1 is inactive
P2 Green On Power input 2 is active
Off Power input 2 is inactive
Fault Red
On Power input 1 or 2 has failed, port link is inactive
Off Power input 1 and 2 are both functional, or no power
inputs/port’s link is active/port alarm is disabled
PoE Indicator
(Port 1 ~ 8) Green On The port is supplying power to the powered-device
Off No powered-device attached or power supplying fails
LAN Port 1 ~ 8
(RJ-45)
Green
On Connected to network, 100Mbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 10Mbps
Flashing Networking is active
Off Not connected to network
6
Ports
RJ-45 ports
The (RJ-45) Fast Ethernet ports will auto-sense for 10Base-T or 100Base-TX
connections. Auto MDI/MDIX means that the switch can connect to another switch or
workstation without changing straight through or crossover cabling. Please refer to the
table below for RJ-45 pin assignment.
RJ-45 Pin Assignments
Pin Number Assignment
1 Rx+
2 Rx-
3 Tx+
6 Tx-
Note “+” and “-” signs represent the polarity of the wires that make up each wire
pair.
All ports on this industrial switch supports automatic MDI/MDI-X operation, users can
use straight-through cables (See figure below) for all network connections to PCs or
servers, or to other switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at
one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other
end of the cable. The table below shows the 10BASE-T/100BASE-TX MDI and MDI-X
port pin outs.
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)
7

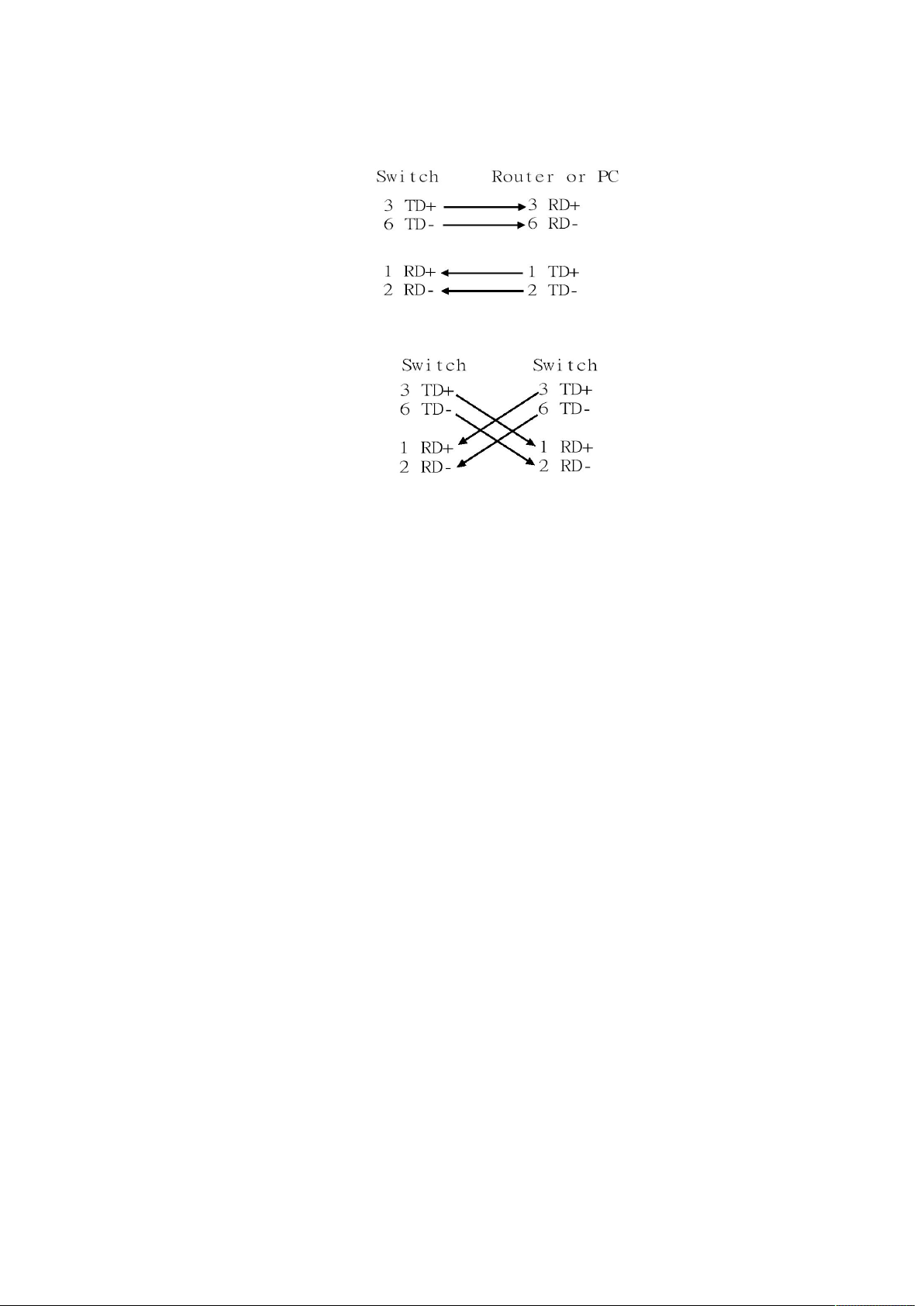

The following figures show the cable schematic for both straight-through type and
crossover type.
Straight Through Cable Schematic
Cross Over Cable Schematic
Cabling
Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or
shielded twisted pair (STP) cable. The cable must comply with the IEEE 802.3u
100Base TX standard (e.g. Category 5, 5e, or 6). The cable between the equipment
and the link partner (switch, hub, workstation, etc.) must be less than 100 meters
(328 ft.) long.
