ANTAIRA LMX-1204G-SFP-T-CC Manuel utilisateur

Antaira Technologies

- Industrial Ethernet Switches

LMX-1204G-SFP Series User Manual V1.1

LMX-1204G-SFP Series

12-Port Industrial Gigabit Managed Ethernet Switch

with 8*10/100/1000Tx and 4*100/1000 SFP Slots

Version 1.2

Hardware Manual

Antaira Technologies - Industrial Ethernet Switches

LMX-1204G-SFP Series Hardware Manual V1.2

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo

are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are

the registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including

but not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira

Technologies, LLC. may make improvements and/or changes to the product and/or specifications of the

product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any

technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the

information contained herein and will be incorporated into later versions of the manual. The information

contained is subject to change without prior notice.

Antaira Technologies - Industrial Ethernet Switches

LMX-1204G-SFP Series Hardware Manual V1.2

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to

Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy. It may cause harmful interference to radio communications if the equipment is not installed and used

in accordance with the instructions. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Gigabit Managed Ethernet Switches

Hardware Manual

Version 1.2 (February 2018)

This manual supports the following models:

•

LMX-1204G-SFP

•

LMX-1204G-SFP-T

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches

LMX-1204G-SFP Series Hardware Manual V1.2

Table of Contents

1. Introduction ......................................................... 1

1.1 Product Overview ..................................................................... 1

1.2 Product Software Features ....................................................... 1

1.3 Product Hardware Features...................................................... 2

1.4 Package Contents .................................................................... 3

1.5 Safety Precaution ..................................................................... 3

2. Hardware Description ......................................... 4

2.1 Physical Dimensions ................................................................. 4

2.2 Front Panel ............................................................................... 5

2.3 Top View ................................................................................... 5

2.4 LED Indicators .......................................................................... 6

2.5 Reset Button ............................................................................. 6

2.6 Ethernet Ports ........................................................................... 7

2.7 Cabling……………………………………………………………...8

2.8 Wiring the Power Inputs…………………………………………..8

2.9 Wiring the Fault Alarm Contact ................................................. 9

2.10 Grounding Note ...................................................................... 9

3. Mounting Installation ........................................ 10

3.1 DIN-Rail Mounting .................................................................. 10

3.2 Wall Mounting ......................................................................... 11

4. Hardware Installation ........................................ 12

4.1 Installation Steps .................................................................... 12

4.2 Maintenance and Service ....................................................... 12

5. Technical Specifications .................................. 13

Antaira Technologies - Industrial Ethernet Switches

LMX-1204G-SFP Series Hardware Manual V1.2

1. Introduction

All Antaira industrial managed switches come with a pre-installed “user-friendly” web console

interface, which allows users to easily configure and manage the units, whether one is using a

serial console and command line interface(CLI) commands like Telnet, SSH, HTTP (Web GUI) or

simple network management protocols (SNMP).

1.1 Product Overview

Antaira Technologies’ LMX-1204G-SFP series

is a 12-port industrial Gigabit managed Ethernet

switch embedded with 8*10/100/1000Tx Ethernet ports and 4*100/1000 dual rate SFP slots for

fiber connections. The LMX-1204G-SFP is a fully manageable Layer 2 Ethernet switch that is pre-

loaded with a user-friendly web management console design. It supports the ring network

redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring

Protection Switch) protocol that has a <50ms network recovery time. The advanced network

filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and

802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote

SCADA systems or control networks.

The LMX-1204G-SFP series is IP30 rated and DIN-rail mountable. There are also two wide

operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an

extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection

for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining,

factory automation, security surveillance, ITS and any other outdoor or harsh environment.

1.2 Product Software Features



Network Redundancy





STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS)

for network redundancy



Network Management





Web UI based management, SNMP v1/v2/v3, Serial Console



Qos, traffic classification QoS, Cos, bandwidth control for Ingress and

Egress, broadcast storm control, Diffserv



IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial Ethernet Switches

LMX-1204G-SFP Series Hardware Manual V1.2



IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group



Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS,

NTP/SNTP, HTTPS, SSH/SSL, TFTP



MODBUS TCP for SCADA system integration



Port Configuration





Status, statistics, mirroring, rate limiting, event syslog



Event Handling





Event notification by Email: Cold/Warm Start, Power Failure, Authentication,

SNMP trap and Fault Alarm Relay Output



Software Upgrade via TFTP and HTTP





Configuration Backup – USB Port



1.3 Product Hardware Features



System Interface and Performance



•

All RJ-45 ports support Auto MDI Function

•

Embedded 8*10/100/1000Tx RJ45 Ports and 4*100/1000 SFP slots for fiber

•

Store-and-forward switching architecture

•

8K MAC address table

•

Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC



Power Input



•

DC 12~48V redundant with a 6-pin removal terminal block

•

One user programmable alarm relay contact

•

The power input specification is complied with the requirements of SELV (Safety Extra

Low Voltage), and the power supply should be complied with UL 61010-1 & UL 61010-

2-201



Operating Temperature



•

Standard operating temperature models: -10°C to 70°C

•

Extended operating temperature models: -40°C to 75°C



Case/Installation



•

IP-30 protection metal housing

•

DIN-Rail and wall mount design

•

Installation in a Pollution Degree 2 industrial environment

Antaira Technologies - Industrial Ethernet Switches

LMX-1204G-SFP Series Hardware Manual V1.2

1.4 Package Contents



1– LMX-1204G-SFP series: 12-port industrial gigabit managed Ethernet switch,

with 8*10/100/1000Tx ports and 4*100/1000 SFP slots for fiber connectivity





1-Product CD





2-Wall mounting brackets and screws





1-RJ45 to DB9 Serial Console cable





1-DC cable –18 AWG & DC jack 5.5x2.1mm



1.5 Safety Precaution

Attention:

If the DC voltage is supplied by an external circuit, please use a

protection device on the power supply input. The industrial Ethernet

switch’s hardware specs, ports, cabling information, and wiring

installation will be described within this user manual.

Warning Labels

The caution label means that you should check the certain information on user manual when

working with the device. (Shown in Figure 1.1)

Figure 1.1 - Caution Label

This warning label is on the device, and means that the surface of the device is hot. (Shown

in Figure 1.2)

Figure 1.2 - Hot Surface Warning Label

Antaira Technologies - Industrial Ethernet Switches

LMX-1204G-SFP Series Hardware Manual V1.2

2. Hardware Description

2.1 Physical Dimensions

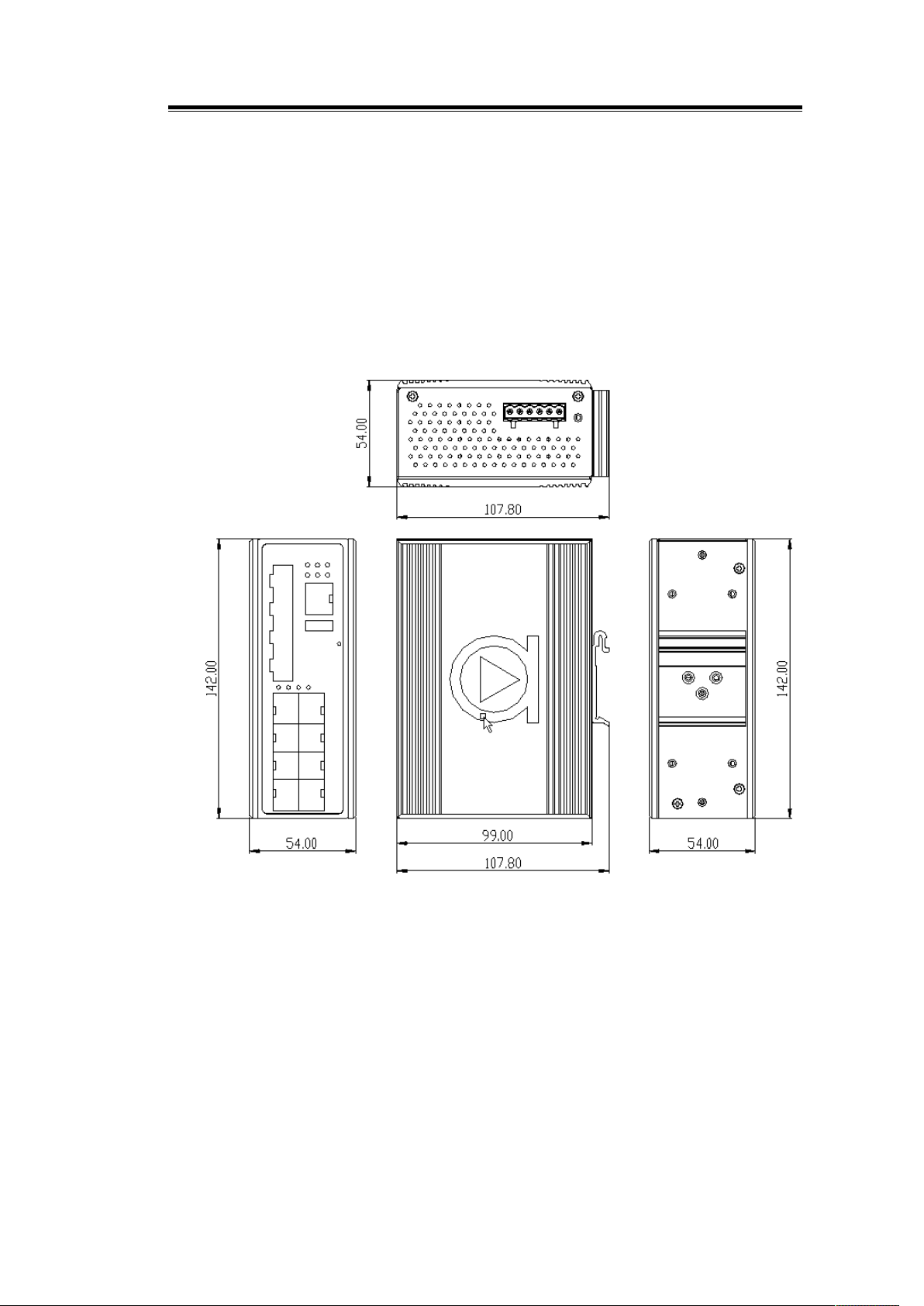

Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-1204G-SFP series: 12-port

industrial gigabit managed Ethernet switches with 8*10/100/1000Tx ports and 4*100/1000Fx

SFP slots.

(W x D x H) is

54mm x 99mm x 142mm

Figure 2.1

LMX-1204G-SFP Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches

LMX-1204G-SFP Series Hardware Manual V1.2

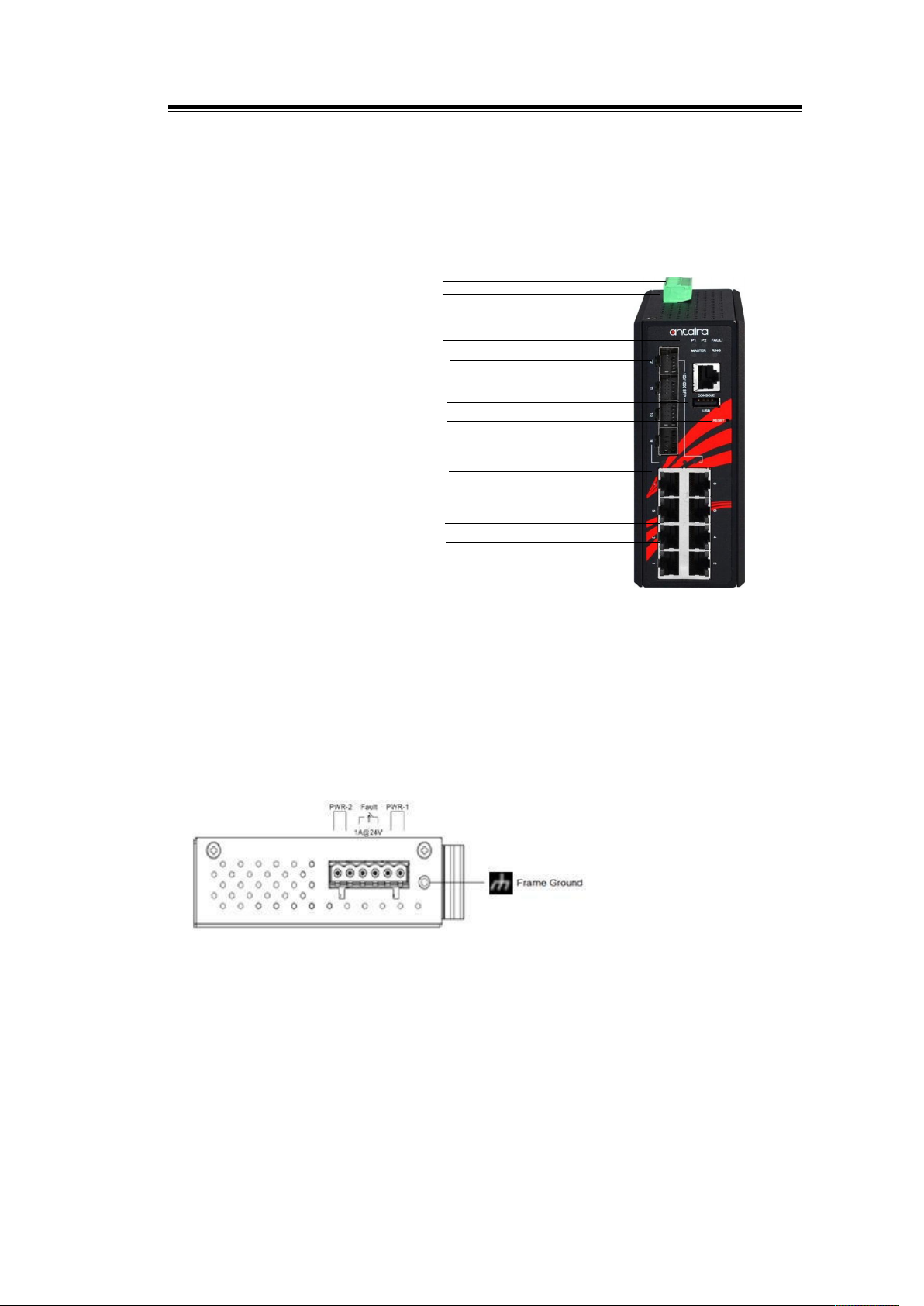

2.2 Front Panel

The front panel of the LMX-1204G-SFP series industrial gigabit managed Ethernet switch is

shown below in Figure 2.2.

6-Pin Removal Terminal Block (Power Input)

Grounding Screw

LED for PWR1, PWR2, and Fault

LAN Port # 9~12 – 100/1000 SFP Slots

Console Port

USB Backup

Hard (Physical) Reset Button

LAN Port (1~8) 10/100/1000Tx

LED for 1000Tx Network Speed Status

LED for 10/100Tx Network Speed Status

Figure 2.2

The Front Panel of LMX-1204G-SFP Series

2.3 Top View

Figure 2.3, below, shows the top panel of the LMX-1204G-SFP series switch

that is equipped with one 6-pin removal terminal block connector for dual DC

power inputs 12~48VDC.

Figure 2.3

Top Panel View of LMX-1204G-SFP Series

Antaira Technologies - Industrial Ethernet Switches

LMX-1204G-SFP Series Hardware Manual V1.2

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and

has its own specific meaning, see below in Table 2.1.

LED

Color

Description

Green

Power input 1 is active

Off

Power input 1 is inactive

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Green

Red

Green

Power input 1 or 2 is active

Red

An applied alarm (such as port disconnect) has been

triggered

Off

System is booting or down

Owner

Green

ERPS Owner Mode (Ring Master) is ready

Off

ERPS Owner Mode is not active

Ring

Green

Ring Network is active

Off

Ring Network is not active

LAN Port 9~12

Link/ACT

(SFP Port)

Green

Connected to Network

Flashing

Network is active

Off

Not Connected to Network

Amber

Connected to network, 100Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port 1 ~ 8

(Left LED)

Green

Connected to network, 1000Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port 1~ 8

(Right LED)

Green

Connected to network, 10/100Mbps

Flashing

Networking is active

Off

Not connected to network

Table 2.1 - LED Indicators for LMX-1204G-SFP Series

Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and

"ACT" is for "Activity".

2.5 Reset Button

There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that

helps users to reboot, restore default, or save running configurations by pressing the button

for different seconds. Please refer to Table 2.2 for the timing and function.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LMP-0600-24-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-C602G-SFP-bt-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-2602G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1002G-10G-SFP-24 Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1202G-10G-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0600-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0602 series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0800-T Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0702C-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0602-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C501G-SFP-bt Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-800AG Manuel utilisateur

ANTAIRA

ANTAIRA LNX-800AG Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0602-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0500-M12-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0501 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0501G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1002C-SFP-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0800G-24 Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0601G-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2012G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67-110 Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
