1. Overview
Antaira Technologies’ LNP-1002C-SFP industrial PoE+ Gigabit unmanaged Ethernet switch series
is IP30 rated and DIN-Rail mountable. Each unit is designed with 8*10/100TX Ethernet ports that
are IEEE 802.3at compliant (power-over-Ethernet plus) on ports 1-8 (30W/Port), and 2*Gigabit
combo ports (2*10/100/1000Tx RJ45 and 2* 100/1000 SFP slots for fiber). This series is ideal for
applications that demand high bandwidth and long distance communication.
This product series provides a high EFT and ESD protection to prevent any unregulated voltage
and is suitable for harsh environments. It supports the power redundancy feature using a dual
power input design with reverse polarity protection. In addition, the built-in relay warning function
alerts maintainers when power failures occur.
The LNP-1002C-SFP series includes two models: one with an operating temperature range of -10
to 70°C and the other with an extended operating temperature range of -40 to 75°C. This product
series has been designed to fulfill special needs for industrial automation and harsh outdoor
environment applications.
1.1 Key Features
System Interface/Performance
All RJ-45 ports support Auto MDI/MDI-X Function
Embedded 8*10/100Tx (PSE 30W/Port), 2*Gigabit Combo Ports (2*10/100/1000Tx
RJ45, and 2* 100/1000 SFP Slots)
Store-and-forward switching architecture
8K MAC address table
Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
Power Input
DC 48 ~ 55V redundant power
Operating Temperature
Standard operating temperature model: -10°C ~ 70°C
Extended operating temperature model (–T): -40°C ~ 75°C
Case/Installation
IP-30 protection
DIN-Rail and wall mount design
Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
2
1.2 Package Contents
1 - LNP-1002C-SFP (T): 10-Port industrial PoE+ unmanaged Ethernet switch, with
8*10/100Tx (30W/Port), 2*Gigabit combo ports (2*10/100/1000Tx RJ45, and 2*
100/1000 SFP Slots)
1 - User manual
1 - Product CD
2 - Wall mounting brackets and screws
1 - DC cable –18 AWG & DC jack 5.5x2.1mm
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s hardware
specs, ports, cabling information, and wiring installation will be described
within this user manual.
Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
3
2. Hardware Description
2.1 Physical Dimensions

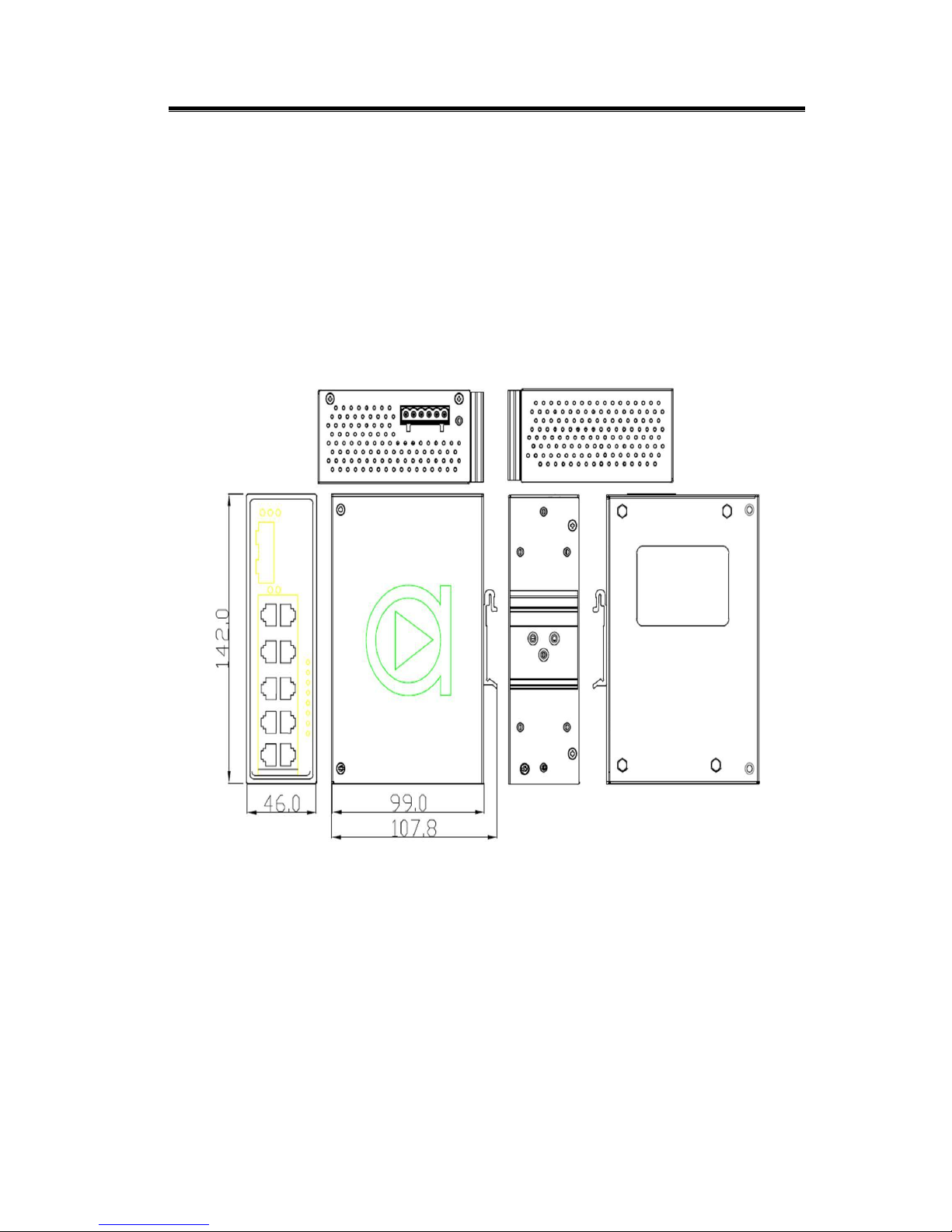

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-1002C-SFP series:
10-port industrial PoE+ Gigabit unmanaged Ethernet switch with 8*10/100Tx (30W/Port) and
2*Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots).
(W x D x H) is 46mm x 99mm x 142mm
Figure 2.1
LNP-1002C-SFP Series Physical Dimensions
Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
4
2.2 Front Panel
The front panel of the LNP-1002C-SFP series: 10-port industrial PoE+ Gigabit unmanaged Ethernet
switch with 8*10/100Tx (30W/Port) and 2*Gigabit combo ports (2*10/100/1000Tx RJ45, and 2*
100/1000 SFP slots) is shown below in Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the LNP-1002C-SFP series switch that is equipped
with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC).
Figure 2.2 - Front Panel of LNP-1002C-SFP Series
Figure 2.3
Top Panel View of LNP-1002C-SFP Series
6-Pin Removal Terminal Block
(Power Input)
LED for PWR1, PWR2, and Fault
Gigabit Combo Port G2 – 100/1000 SFP
Gigabit Combo Port G1 – 100/1000 SFP
LED for G1 & G2 SFP Fiber Ports
LED for Ethernet Port Status
Gigabit Combo Port G1 – 10/100/1000Tx
LED for Ethernet Port Status
LED for Ethernet Port Status
LAN Port (1~8) 10/100Tx
LED for Ethernet Port Status
LED for Ethernet Port Status
Gigabit Combo Port G2 – 10/100/1000Tx
LED for Ethernet Port Status
LED for LAN 8 PoE Status
LED for LAN 7 PoE Status
LED for LAN 6 PoE Status
LED for LAN 5 PoE Status
LED for LAN 4 PoE Status
LED for LAN 3 PoE Status
LED for LAN 2 PoE Status
LED for LAN 1 PoE Status
Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has its
own specific meaning, see below in Table 2.1.
LED Color Description
P1
Green On Power input 1 is active
Off Power input 1 is inactive
P2
Green On Power input 2 is active
Off Power input 2 is inactive
Fault
Red
On Power input 1 or 2 is inactive
Off Power input 1 and 2 are both functional, or no power,
inputs/ports link is active/port alarm is disabled
PoE Indicators
(Port 1~8) Green On The port is supplying PoE power
Off No powered-device attached or power supplying fails
LAN Port 1 ~ 8
(Upper LED)
Green
On Connected to network, 100Mbps
Flashing
Networking is active
Off Not connected to network
LAN Port 1 ~ 8
(Lower LED)
Green
On Connected to network, 10Mbps
Flashing Networking is active
Off Not connected to network
Gigabit Combo Port LED Indicators
LED Color Description
SFP Port
Combo G1~G2
LNK/ACT
Green
1000Mbps
On Connected to network
Flashing Networking is active
Amber
100Mbps
Off Not connected to network
LAN Port
Combo G1 ~G2
(Upper LED)
Green
On Connected to network, 1000Mbps
Flashing
Networking is active
Off Not connected to network
LAN Port
Combo G1 ~G2
(Lower LED)
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Table 2.1
LED Indicators for LNP-1002C-SFP Series
Antaira Technologies - Industrial Ethernet Switches
LNP-1002C-SFP Series User Manual V1.2
6
2.5 Ethernet Ports
RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~8) are auto-sensing for 10Base-T, or
100Base-Tx devices connections, and Gigabit combo RJ-45 ports (LAN G1~G2) are auto-sensing
for 10Base-T, 100Base-Tx, and 1000Base-T devices connections. Auto MDI/MDIX means that the
switch can connect to another switch or workstation without changing the straight-through or
crossover cabling. See the figures as below for straight-through and crossover cabling schematics.
RJ-45 Pin Assignments (Table 2.2)
Pin Number Assignment
1 Rx+
2 Rx-
3 Tx+
6 Tx-
All ports on this industrial Ethernet switch support automatic MDI/MDI-X operations. Users can use
straight-through cables (see figure below) for all network connections to PCs, servers, and other
switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI and MDI-X port pin outs.
Note
: The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)
Table 2.2
RJ45 Pin Assignments
Table 2.3
Ethernet Signal Pin Outs
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels ANTAIRA Changer
ANTAIRA
ANTAIRA LNP-0800-24 Series Manuel utilisateur
ANTAIRA
ANTAIRA LMP-1202M-SFP-24 Manuel utilisateur
ANTAIRA
ANTAIRA LMP-0601G-SFP Series Manuel utilisateur
ANTAIRA
ANTAIRA LMX-2012G-SFP Series Manuel utilisateur
ANTAIRA
ANTAIRA USB-HUB4K Manuel utilisateur
ANTAIRA
ANTAIRA LNP-0602 Series Manuel utilisateur
ANTAIRA
ANTAIRA LMX-1600G Series Manuel utilisateur
ANTAIRA
ANTAIRA LMX-0800-T Manuel utilisateur
ANTAIRA
ANTAIRA LMP-1802G-SFP Series Manuel utilisateur
ANTAIRA
ANTAIRA LNX-C500 Manuel utilisateur
ANTAIRA
ANTAIRA LMX-0501G-SFP-V2 Series Manuel utilisateur
ANTAIRA
ANTAIRA LMP-0600-24 Manuel utilisateur
ANTAIRA
ANTAIRA LMP-0702G-SFP-V2 Series Manuel utilisateur
ANTAIRA
ANTAIRA LNP-2602G-SFP Series Manuel utilisateur
ANTAIRA
ANTAIRA LMX-2004G-SFP Series Manuel utilisateur
ANTAIRA
ANTAIRA LNP-C800G Series Manuel utilisateur
ANTAIRA
ANTAIRA LMX-C602G-SFP-V2 Series Manuel utilisateur
ANTAIRA
ANTAIRA LNX-1802GN Manuel utilisateur
ANTAIRA
ANTAIRA LNP-1002C-SFP-24 Series Manuel utilisateur
ANTAIRA
ANTAIRA LNP-0500G Series Manuel utilisateur
