ANTAIRA LNX-0602 series Manuel utilisateur

LNX-0602 series

6-port Industrial Unmanaged Ethernet Switches

4*10/100Tx + 2*100Fx

User Manual

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if the equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

Content

Introduction................................................................ 1

Features................................................................... 1

Package Contents.................................................... 2

Hardware Description ............................................... 3

Physical Dimension.................................................. 3

Front Panel .............................................................. 4

Top View.................................................................. 4

LED Indicators ......................................................... 5

Ports......................................................................... 6

Cabling..................................................................... 8

Wiring the Power Inputs........................................... 9

Wiring the Fault Alarm Contact.............................. 10

DIP Switch Settings ............................................... 10

Mounting Installation .............................................. 11

DIN-Rail Mounting.................................................. 11

Wall Mounting ........................................................ 13

Hardware Installation .............................................. 14

Installation Steps.................................................... 14

Network Application................................................ 15

Troubleshooting ...................................................... 16

Technical Specification........................................... 17

Introduction

Antaira’s LNX-0602 series switches are smart 6-port Industrial Unmanaged Ethernet

Switches supporting 4-Port 10/100Tx Fast Ethernet and 2-Port 100Fx of SC or ST type

connector and support Multi-mode in 2Km, or Single-mode in 30Km.

The LNX-0602 series switches support 12~48VDC power inputs. This series switches

offer Extend Operating Temperature model (w/-T) supports -40°C ~ 75°C. It supports

IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing

to provide an economical solution for the Industrial Ethernet Network.

In addition, the Network Broadcast Storm Protection and built-in relay warning function

alerts network engineers when power failures or port breaks occur.

Features

System Interface/Performance

RJ-45 ports support Auto MDI/MDI-X Function

Embedded 4-port 10/100Tx and 2-port 100Fx SC/ST type connector (Multi /

Single mode)

Store-and-Forward Switching Architecture

Broadcast Storm Protection

2K MAC Address Table

Port Break Alarm Mask

Power Input

DC 12 ~ 48V Redundant Power

Operating Temperature

Standard Operating Temperature model: -10°C ~ 70°C

Extend Operating Temperature model with –T: -40°C ~ 75°C

Case/Installation

IP-30 Protection

Installation in Pollution Degree 2 Environment

DIN Rail and Wall Mount Design

Provides EFT protection 2,000 VDC for power line

Supports 6,000 VDC Ethernet ESD protection

Package Contents

Please refer to the package contents list below.

LNX-0602 series - 6-Port Industrial Unmanaged Switch with Fiber w/DIN Rail

Bracket

User Manual

Removable Terminal Block

Wall-mount Kit (2 Wall-mount Plates with Screws)

Compare the contents of the industrial switch with the checklist above. If any item is

damaged or missing, please contact Antaira or Antaira’s authorized channel partners for

service.

Hardware Description

The Industrial switch’s hardware spec, port, cabling information, and wiring installation

will be described.

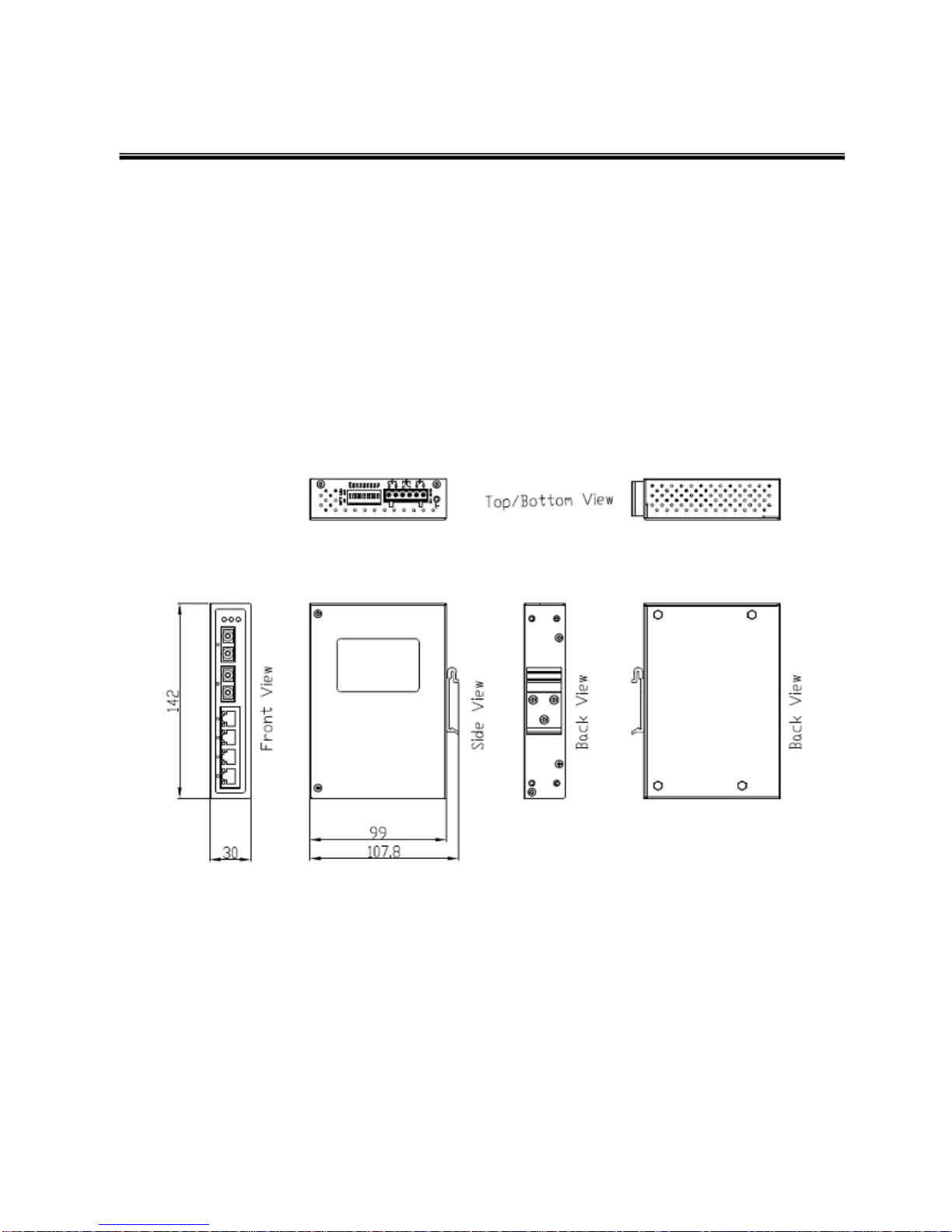

Physical Dimension

The LNX-0602 series - 6-Port Industrial Unmanaged Ethernet Switch with Fiber

dimension: (W x D x H) is 30mm x 99mm x 142mm

Front Panel

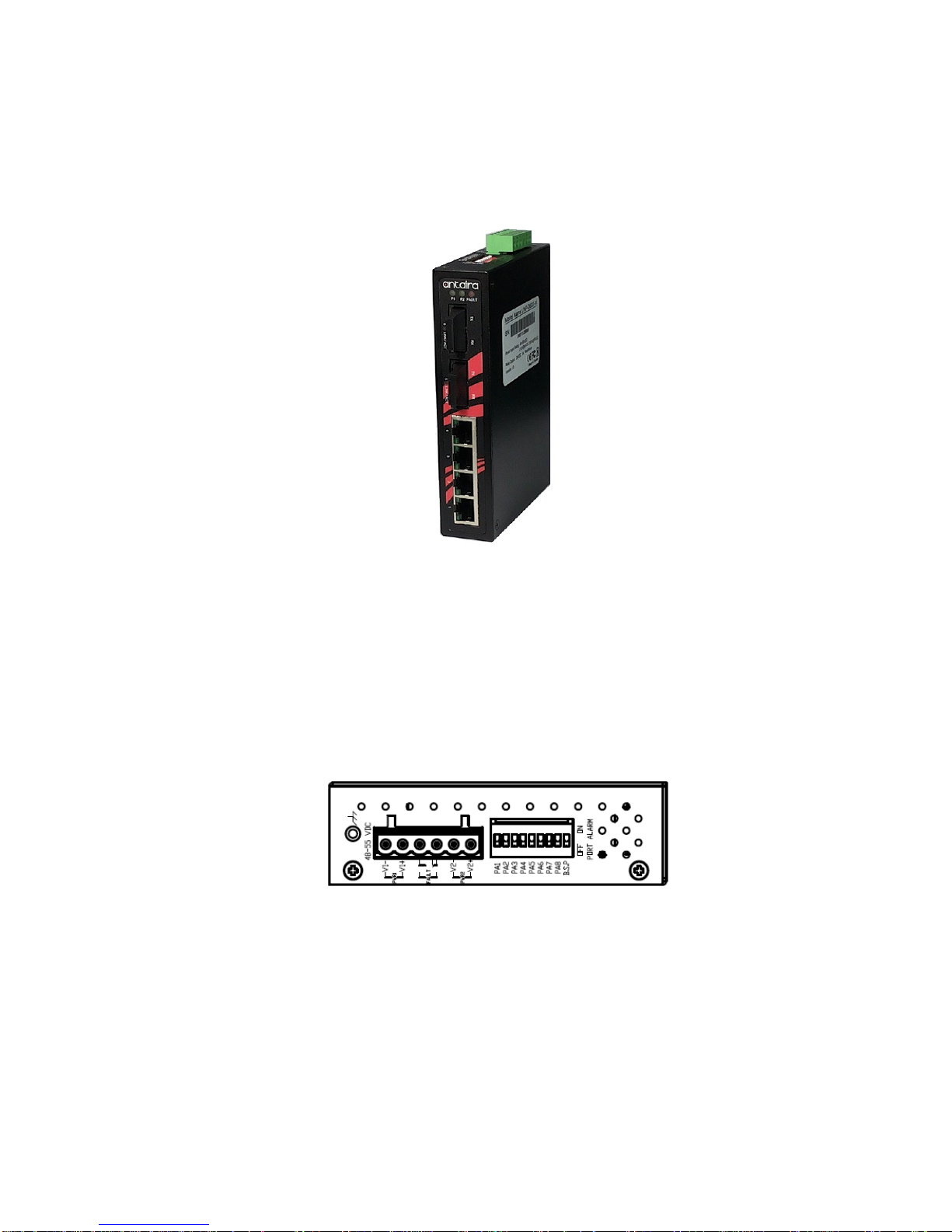

The Front Panel of the Industrial Switch is shown below:

Front Panel of the Industrial Switch

Top View

The top view of the Industrial Switch has one terminal block connector of two DC power

inputs and relay circuit contact.

Top View of the Industrial Switch

LED Indicators

The diagnostic LEDs located on the front panel of the industrial switch provide real-time

information of the system and optional status. The following table provides the

description of the LED status.

LED

Color

Description

Green

Power input 1 is active

Off

Power input 1 is inactive

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Red

Power input 1 or 2 has failed, port link is inactive

Off

Power input 1 and 2 are both functional, or no power

inputs/port’s link is active/port alarm is disabled

LAN Port 1 ~ 4

(RJ-45)

Green

Connected to network, 100Mbps

Flashing

Networking is active

Off

Not connected to network

Green

Connected to network, 10Mbps

Flashing

Networking is active

Off

Not connected to network

Fiber Port

Green

Connected to network, 100Mbps

Flashing

Networking is active

Off

Not connected to network

Ports

RJ-45 ports

The (RJ-45) Fast Ethernet ports will auto-sense for 10Base-T or 100Base-TX

connections. Auto MDI/MDIX means that the switch can connect to another switch or

workstation without changing straight through or crossover cabling. Please refer to the

table below for RJ-45 pin assignment.

RJ-45 Pin Assignments

Pin Number

Assignment

Rx+

Rx-

Tx+

Tx-

Note

“+” and “-” signs represent the polarity of the wires that make up each wire

pair.

All ports on this industrial switch supports automatic MDI/MDI-X operation, users can

use straight-through cables (See figure below) for all network connections to PCs or

servers, or to other switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at

one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other

end of the cable. The table below shows the 10BASE-T/100BASE-TX MDI and MDI-X

port pin outs.

Pin MDI-X

Signal Name

MDI Signal Name

Receive Data plus (RD+)

Transmit Data plus (TD+)

Receive Data minus (RD-)

Transmit Data minus (TD-)

Transmit Data plus (TD+)

Receive Data plus (RD+)

Transmit Data minus (TD-)

Receive Data minus (RD-)

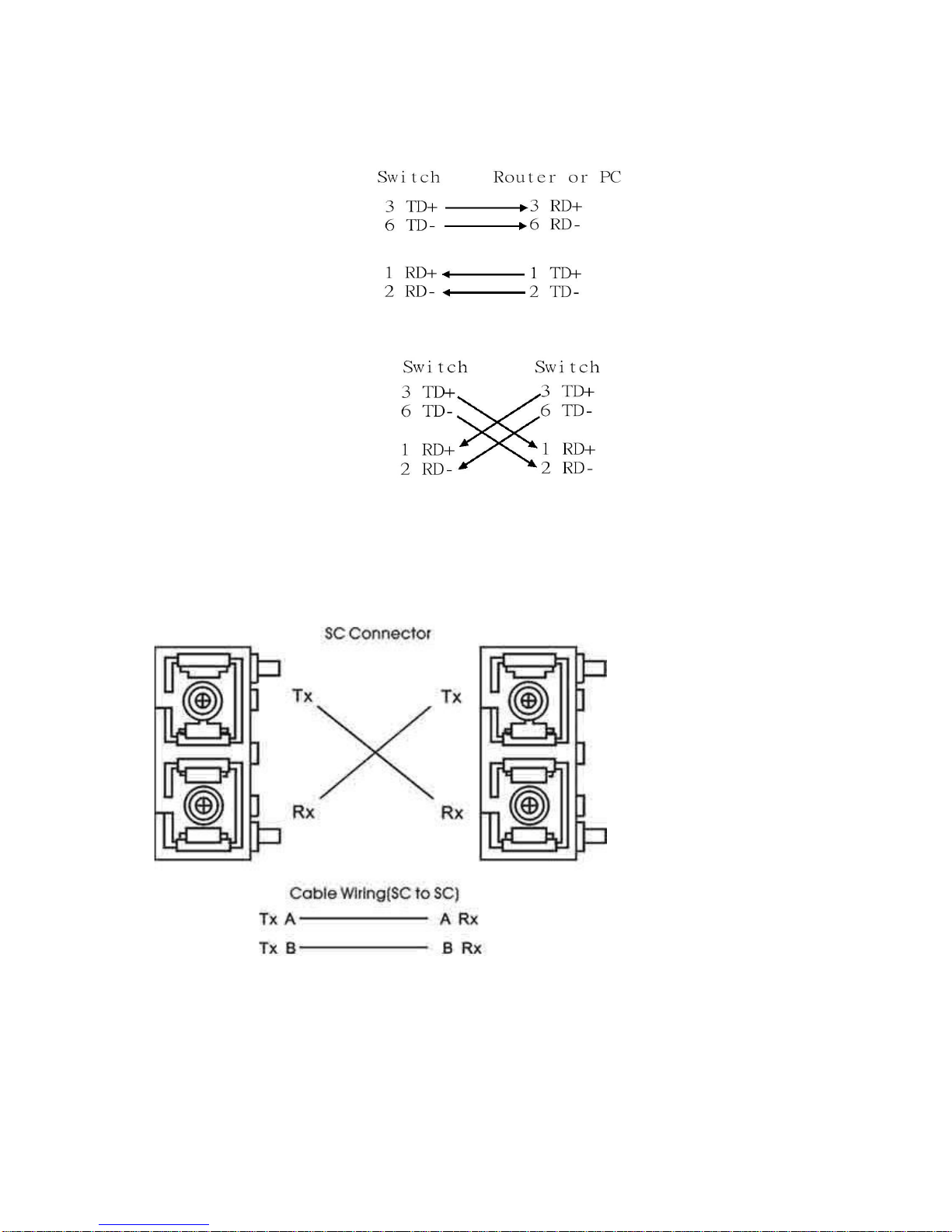

The following figures show the cable schematic for both straight-through type and

crossover type.

Straight Through Cable Schematic

Cross Over Cable Schematic

Fiber Port

The fiber port of SC type connector can work in multi mode or single mode. When you

connect the fiber port to another one, please follow the figure below to connect accordingly.

Wrong connection will cause the port cannot work normally.

ATTENTION

This is a Class 1 Laser/LED product. Don’t stare into the Laser/LED Beam.
