ANTAIRA LNP-0500G Series Manuel utilisateur

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

LNP-0500G Series

5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switches with

4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx

Version 1.0

User Manual

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

iii

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Unmanaged Ethernet Switches

User Manual

Version 1.0 (October 2015)

This manual supports the following models:

LNP-0500G

LNP-0500G-T

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

Table of Contents

1.Overview....................................................................... 1

1.1Key Features...................................................... 1

1.2Package Contents.............................................. 2

1.3 Safety Precaution............................................... 2

2.Hardware Description ................................................. 3

2.1Physical Dimensions .......................................... 3

2.2 Front Panel ........................................................ 4

2.3 Top View............................................................ 4

2.4LED Indicators.................................................... 5

2.5Ethernet Ports..................................................... 5

2.6 Cabling............................................................... 7

2.7 Wiring the Power Inputs..................................... 7

2.8Wiring the Fault Alarm Contact .......................... 8

3.Mounting Installation .................................................. 9

3.1DIN-Rail Mounting.............................................. 9

3.2Wall Mounting................................................... 11

4.Hardware Installation................................................ 12

4.1Installation Steps.............................................. 12

5. Network Application ................................................. 13

6.Trouble Shooting....................................................... 14

7. Technical Specifications.......................................... 15

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

1. Overview

Antaira Technologies’ LNP-0500G series is an industrial Gigabit PoE+ unmanaged Ethernet

switch featuring 4*10/100/1000Tx PoE RJ45 ports and 1*10/100/1000Tx RJ45 port. Each PoE

Ethernet port supports an IEEE 802.3at/af with a high power PoE+ output up to 30W per port,

making it ideal for applications that demand a high power PoE power source within any harsh or

outdoor environment.

The LNP-0500G series is IP30 rated and DIN-rail mountable with two wide operating

temperature models that support either a standard temperature range (STD: -10°C to 70°C) or

an extended temperature range (EOT: -40°C to 75°C). It also has a high EFT and ESD

protection to prevent against any unregulated voltage.

This product series provides a reliable hardened Ethernet connection with PoE functions for any

outdoor or harsh industrial application environment, such as, security surveillance, ITS-traffic

monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater

treatment plants, and lastly, automated production lines in factory automation.

1.1 Key Features

System Interface/Performance

All RJ-45 ports support the auto MDI function

Embedded 4*10/100/1000Tx (PSE 30W/Port), and 1*10/100/1000Tx

Store-and-forward switching architecture

8K MAC address table

Jumbo frame support up to 10.0K

Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

Power Input

DC 48~55V redundant power, with a 6-pin removal terminal block

Operating Temperature

Standard operating temperature model: -10°C ~ 70°C

Extended operating temperature model (–T): -40°C ~ 75°C

Case/Installation

IP-30 protection

DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

1.2 Package Contents

1 - LNP-0500G (-T): 5-port industrial Gigabit PoE+ unmanaged Ethernet switch with

4*10/100/1000Tx (30W/port), 1*10/100/1000Tx

1 - Product CD

2 - Wall mounting brackets and screws

1 - DC cable –18 AWG & DC jack 5.5x2.1mm

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

2. Hardware Description

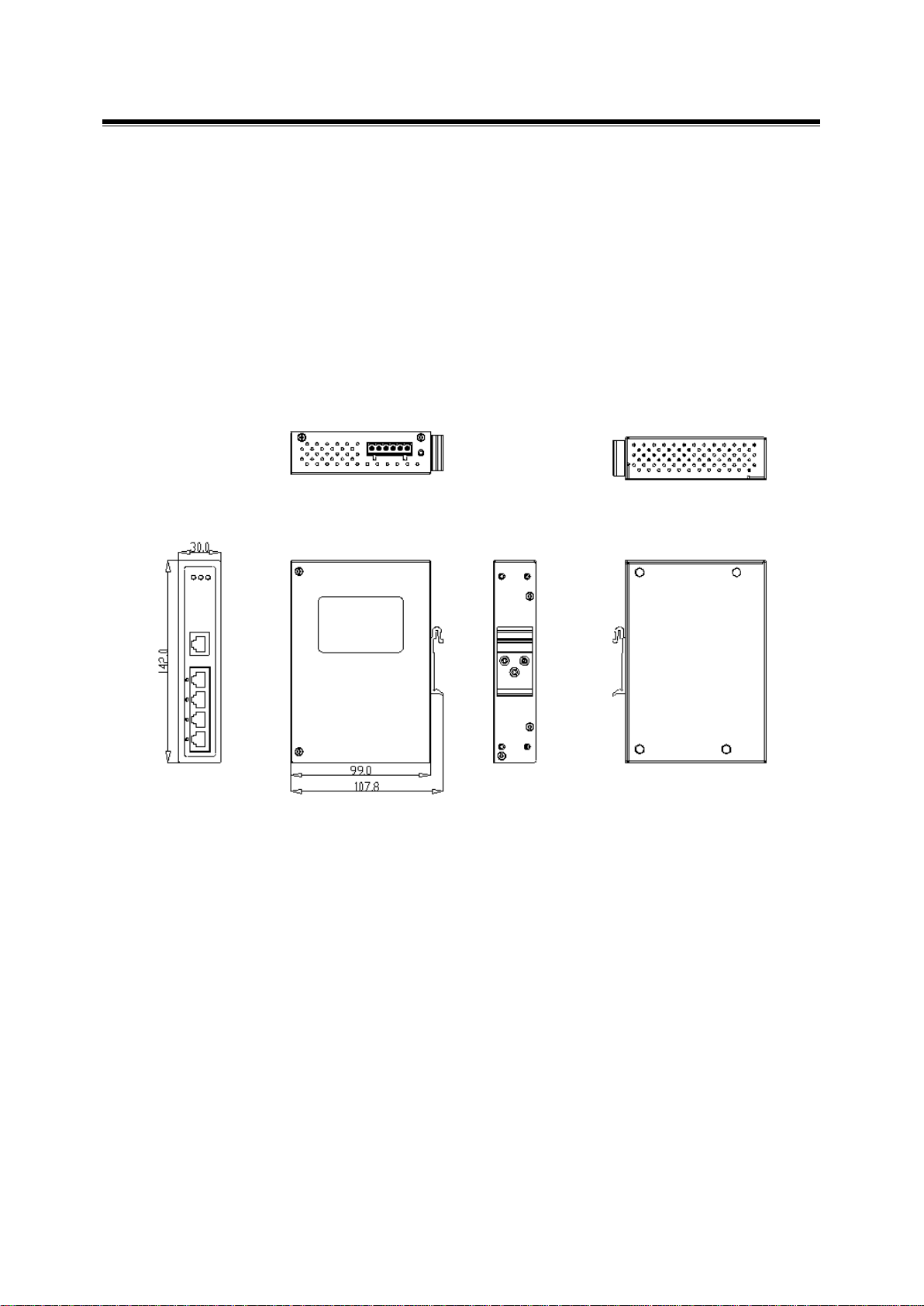

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0500G series: 5-

port industrial Gigabit PoE+ unmanaged Ethernet switch with 4*10/100/1000Tx (30W/port) and

1*10/100/1000Tx.

(W x D x H) is 30mm x 99mm x 142mm

Figure 2.1

LNP-0500G Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

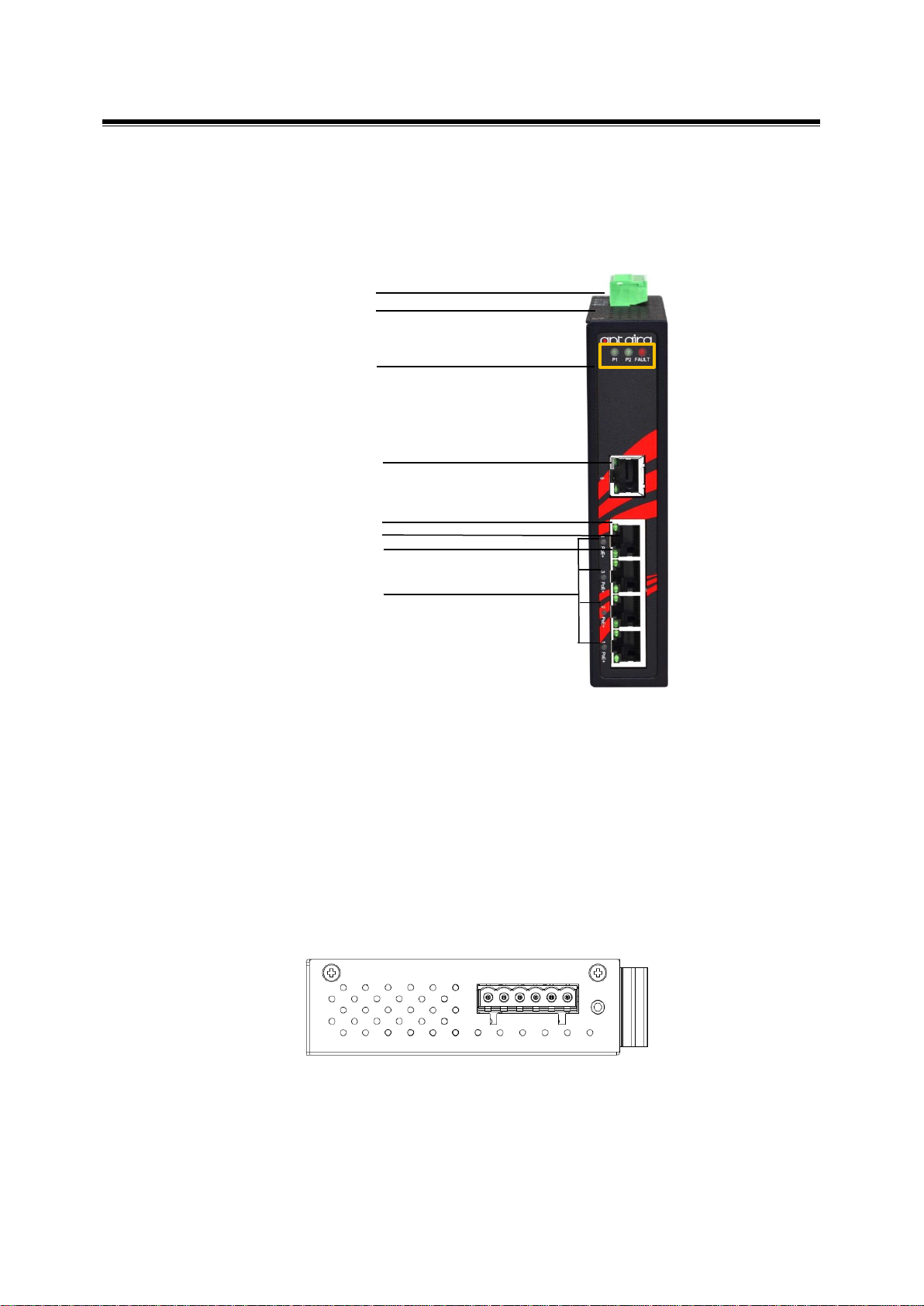

2.2 Front Panel

The front panel of the LNP-0500G series: 5-port Gigabit industrial PoE+ unmanaged Ethernet

switch with 4*10/100/1000Tx (30W/port) and 1*10/100/1000Tx. See Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LNP-0500G series switch that is equipped with

one 6-pin removal terminal block connector for dual DC power inputs (48-55 VDC).

Figure 2.2

Front Panel of the LNP-0500G Series

Figure 2.3

Top Panel View of LNP-0500G Series

6-Pin Removal Terminal Block (Power Input)

Grounding Screw

LED for PWR1, PWR2, and Fault

LAN Port #5 –10/100/1000Tx

LED for 1000Tx network speed status

LAN Port (1~4) 10/100Tx

LED for 10/100Tx network speed Status

LED for PoE Status

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has

its own specific meaning, see below in Table 2.1.

LED

Color

Description

Green

Power input 1 is active

Off

Power input 1 is inactive

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Red

Power input 1 or 2 is inactive

Off

Power input 1 and 2 are both functional, or no power

inputs

PoE Indicators

(Port 1~4)

Green

The port is supplying power to the powered device

powered-device

Off

No powered-device attached or power supplying fails

LNK/ACT

(SFP Port)

Green

Connected to network

Flashing

Networking is active

Off

Not connected to network

LAN Port 1 ~ 5

(Left LED)

Green

Connected to network, 1000Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port 1 ~ 5

(Right LED)

Green

Connected to network, 100Mbps/10Mbps

Flashing

Networking is active

Off

Not connected to network

2.5 Ethernet Ports

RJ-45 Ports

RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~5) are auto-sensing for

10/100/1000Base-T, or 100Base-Tx devices connections. Auto MDI/MDIX means that the switch

can connect to another switch or workstation without changing the straight-through or crossover

cabling. See the figures shown below for straight-through and crossover cabling schematics.

Table 2.1

LED Indicators for LNP-0500G Series

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G Series User Manual V1.0

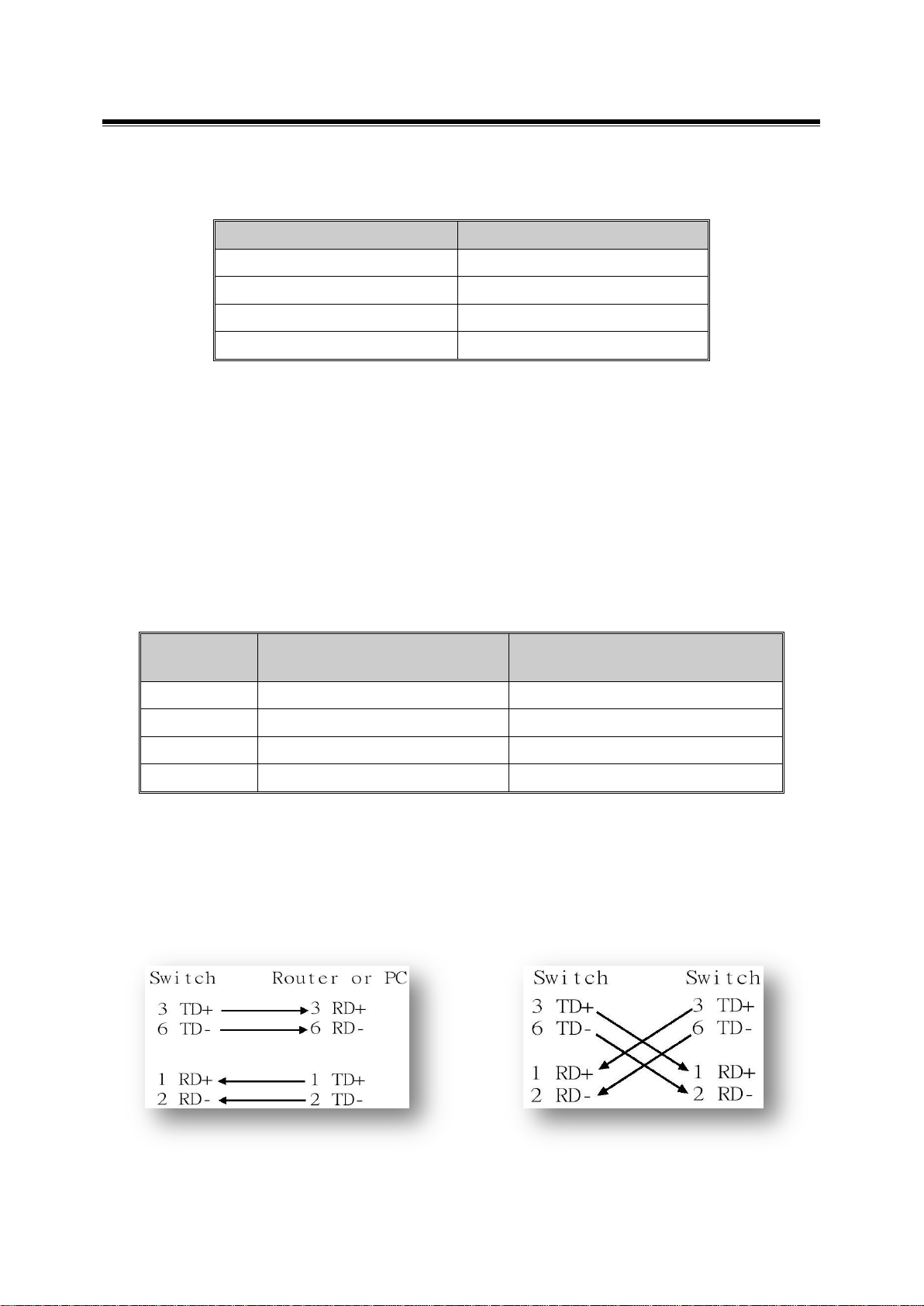

RJ-45 Pin Assignments (Table 2.2)

Pin Number

Assignment

Rx+

Rx-

Tx+

Tx-

All ports on this industrial Ethernet switch support automatic MDI operations. Users can use

straight-through cables (see figure below) for all network connections to PCs, servers, and other

switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are

connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below

(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI port pin outs.

The following figures show the cabling schematics for straight-through and crossover cables.

Note:

The “+” and “-” signs represent the polarity of the wires that make up each wire pair.

Pin MDI-X

Signal Name

MDI Signal Name

Receive Data plus (RD+)

Transmit Data plus (TD+)

Receive Data minus (RD-)

Transmit Data minus (TD-)

Transmit Data plus (TD+)

Receive Data plus (RD+)

Transmit Data minus (TD-)

Receive Data minus (RD-)

Table 2.2

RJ45 Pin Assignments

Table 2.3

Ethernet Signal Pin Outs

Figure 2.4 Figure 2.5

Straight-Through Cables Schematic Crossover Cables Schematic

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LNP-0501-M-24 Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0601G-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C800 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0500-M12-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0500G-bt-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA USB-HUB4K3 Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2012G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0500-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-800AG-E Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67-110 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1002C-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0600-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1204G-SFP-T-CC Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0500-M12-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0501-M-V2 Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1202M-SFP-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0500-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800-60-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1600G Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
