ANTAIRA LMP-0702G-SFP-V2 Series Manuel utilisateur

LMP-0702G-SFP-V2 Series

7-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch,

w/4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx, and 2*100/1000 SFP Slots;

Version 2 Hardware

Hardware Manual

Version 1.0

(June 2020)

Antaira Technologies - Industrial EthernetSwitches

LMP-0702G-SFP-V2 Series Hardware Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are

the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

iii

Antaira Technologies - Industrial EthernetSwitches

LMP-0702G-SFP-V2 Series Hardware Manual V1.0

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

Avertissement FCC

Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément

à la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les

interférences nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de

l'énergie radiofréquence. Cela peut provoquer des interférences nuisibles aux communications radio si

l'équipement n'est pas installé et utilisé conformément aux instructions. Cependant, il n'y a aucune garantie

qu'aucune interférence ne se produira dans une installation particulière. Si cet équipement provoque des

interférences nuisibles à la réception radio ou télévision, ce qui peut être déterminé en éteignant puis en

rallumant l'équipement, l'utilisateur est encouragé à essayer de corriger les interférences par une ou plusieurs

des mesures suivantes:

•

Réorientez ou déplacez l'antenne de réception.

•

Augmentez la distance entre l'équipement et le récepteur.

•

Connectez l'équipement à une prise sur un circuit différent de celui auquel le récepteur est connecté.

•

Consultez le revendeur ou un technicien radio / TV expérimenté pour obtenir de l'aide.

Attention: Tout changement ou modification non expressément approuvé par le bénéficiaire de cet appareil peut

annuler le droit de l'utilisateur à utiliser l'équipement.

Antaira Technologies - Industrial EthernetSwitches

LMP-0702G-SFP-V2 Series Hardware Manual V1.0

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Avertissement de marque CE

Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des

interférences radio, auquel cas l'utilisateur peut être amené à prendre des mesures adéquates.

Industrial Ethernet Switches

Industrial Grade Gigabit PoE+ Managed Ethernet Switches

Hardware Manual

Version 1.0 (June 2020)

This manual supports the following models:

•

LMP-0702G-SFP-V2

•

LMP-0702G-SFP-T-V2

v
Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-V2 Series Hardware Manual V1.0



Table of Contents
Introduction ...........................................................................1
1 Product Overview.............................................................................1
2 Product Software Features...............................................................1
3 Product Hardware Features .............................................................2
4 Package Contents............................................................................2
5 Safety Precaution .............................................................................3
Hardware Description............................................................4
1 Physical Dimensions ........................................................................4
2 Front Panel.......................................................................................5
3 Top View...........................................................................................5
4 LED Indicators..................................................................................6
5 Reset Button.....................................................................................7
6 Ethernet Ports...................................................................................7
7 Cabling .............................................................................................8
8 Wiring the Power Inputs ...................................................................9
9 Wiring the Fault Alarm Contact ......................................................10
10 Grounding Note..............................................................................11
Mounting Installation...........................................................12
1 DIN-Rail Mounting..........................................................................12
2 Wall Mounting.................................................................................13
Hardware Installation ..........................................................14
1 Installation Steps..............................................................................14
2 Maintenance and Service...............................................................15

 Technical Specifications.....................................................16

Antaira Technologies - Industrial EthernetSwitches

LMP-0702G-SFP-V2 Series Hardware Manual V1.0

1. Introduction

All Antaira industrial managed switches come with a pre-installed “user-friendly” web console

interface, which allows users to easily configure and manage the units, whether one is using a serial

console and Command Line Interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or Simple

Network Management Protocols (SNMP).

1.1 Product Overview

Antaira Technologies’ LMP-0702G-SFP-V2 series is a 7-port industrial Gigabit PoE+ managed

Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a

maximum of 30W/port, 1*10/100/1000Tx Ethernet port, and 2*100/1000Fx fiber connection. The

LMP-0702G-SFP-V2 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a

user-friendly web management console design. It supports the ring network redundancy function

using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol

that has a <50ms network recovery time. The advanced network filtering and security functions, such

as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase

determinism and improve network management for remote SCADA systems or control networks.

The LMP-0702G-SFP-V2 series is IP30 rated and DIN-rail mountable. There are also two wide

operating temperature models for either a standard temperature range (STD: -10°C to 65°C) or an

extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for

industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory

automation, security surveillance, ITS and any other outdoor or harsh environment.

1.2 Product Software Features

◼Network Redundancy

•

STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for

network redundancy

◼Network Management

•

Web UI based management, SNMP v1/v2/v3, Serial Console

•

Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,

broadcast storm control, Diffserv

•

IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial EthernetSwitches

LMP-0702G-SFP-V2 Series Hardware Manual V1.0

•

IGMP snooping v1/v2/v3, IGMP filtering / throttling, IGMP query up to 1024group

•

Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP, HTTPS,

SSH/SSL, TFTP

•

MODBUS TCP for SCADA system integration

◼Port Configuration

•

Status, statistics, mirroring, rate limiting, event syslog

◼Event Handling

•

Event notification: Cold/Warm Start, Power Failure, Authentication, SNMP trap and

Fault Alarm Relay Output

◼Software Upgrade via TFTP and HTTP

◼Configuration Backup –USB Port

1.3 Product Hardware Features

◼System Interface and Performance

•

All RJ45 ports support Auto MDI/MDI-X Function

•

Embedded 4*10/100/1000Tx (PSE: 30W/Port) RJ45 ports, 1*10/100/1000Tx RJ45 port,

and 2*100/1000 SFP slots

•

Store-and-forward switching architecture

•

8K MAC address table

•

Supports 9.6Kbytes Jumbo Frame

•

4Mbits memory buffer

◼Power Input

•

DC 48~55V redundant, with a 6-pin removal terminal block, with SELV output certified by

UL61010-2-201

•

It is recommended to use a UL listed industrial power supply

◼Operating Temperature

•

Standard operating temperature model: -10°C to65°C

•

Extended operating temperature model: -40°C to 75°C

◼Case/Installation

•

IP30 protection

•

DIN-Rail and wall mount design

•

Installation in pollution degree 2 environment

1.4 Package Contents

➢

1 –LMP-0702G-SFP(-T)-V2

➢

1 –Quick Installation Guide

Antaira Technologies - Industrial EthernetSwitches

LMP-0702G-SFP-V2 Series Hardware Manual V1.0

➢

1 –Wall mounting bracket set with screws

➢

1 –DC cable –18 AWG & DC jack 5.5 x 2.1mm

➢

1 –RJ45 to DB9 serial console cable

1.5 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un

dispositif de protection sur l'entrée d'alimentation. Les spécifications

matérielles, les ports, les informations de câblage et l'installation du

câblage du commutateur Ethernet industriel seront décrits dans ce

manuel d'utilisation.

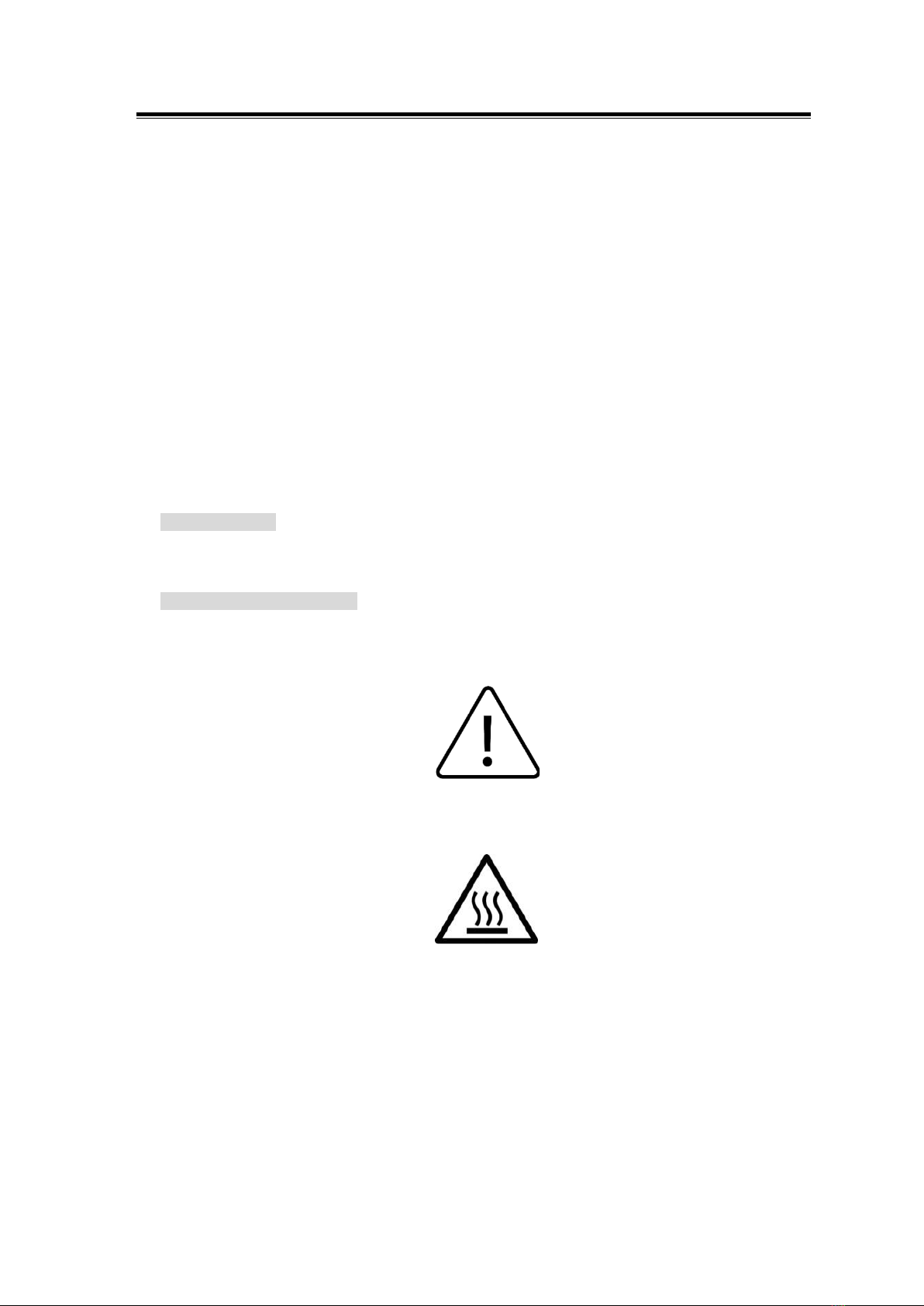

Warning Labels

The caution label means that you should check the certain information on user manual when working with

the device. (Shown in Figure 1.1)

Étiquettes d'avertissement

L'étiquette d'avertissement signifie que vous devez vérifier certaines informations sur le manuel

d'utilisation lorsque vous travaillez avec l'appareil. (Montré dans la figure 1.1)

Figure 1.1 - Caution Label

Figure 1.1 - Étiquette de mise en garde

Figure 1.2 - Hot Surface Warning Label

Figure 1.2 - Étiquette d'avertissement de surface chaude

Antaira Technologies - Industrial EthernetSwitches

LMP-0702G-SFP-V2 Series Hardware Manual V1.0

2. Hardware Description

2.1 Physical Dimensions

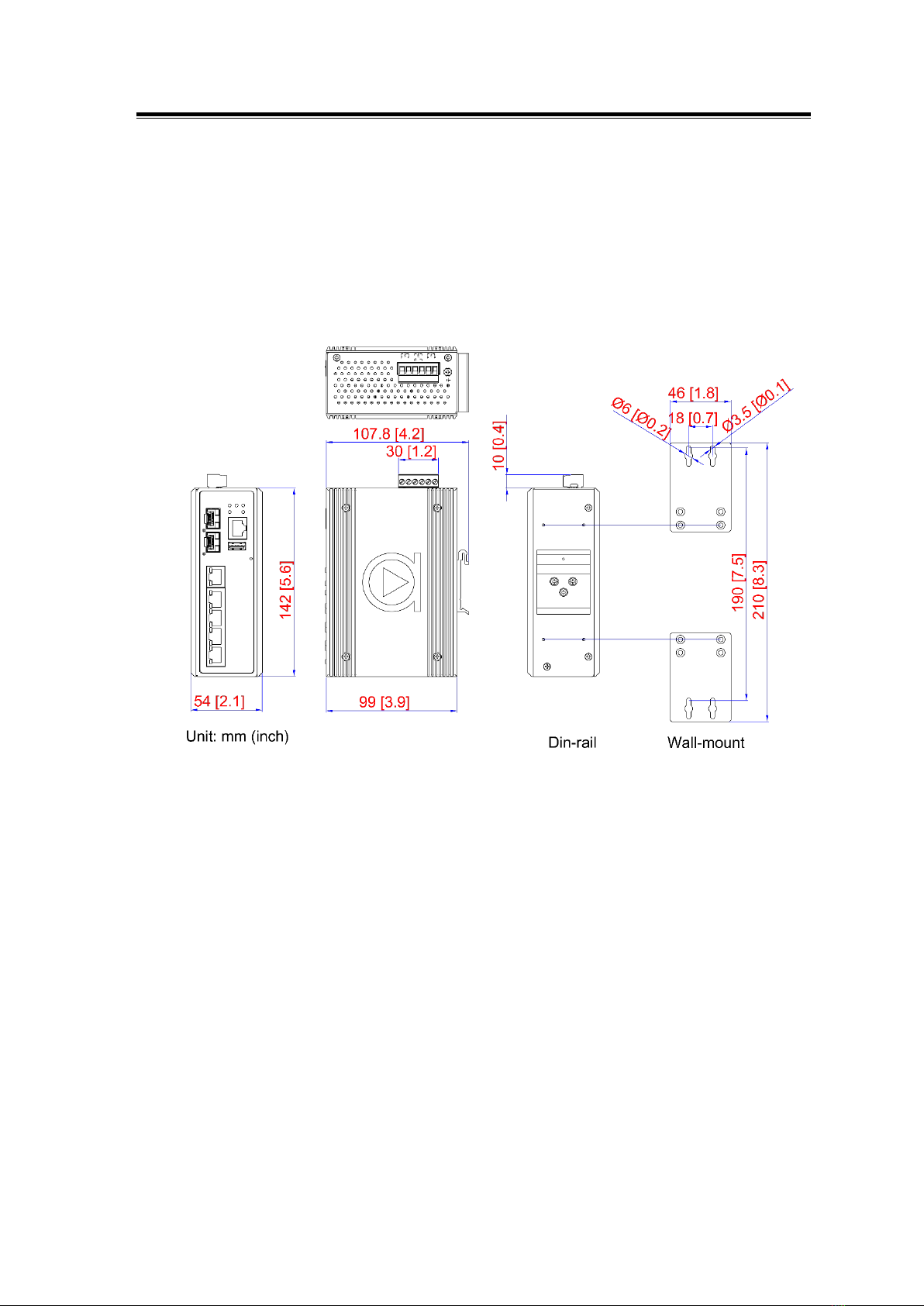

Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0702G-SFP-V2 series:

(W x D x H) is 54mm x 99mm x 142mm

Figure 2.1

LMP-0702G-SFP-V2 Series Physical Dimensions

Antaira Technologies - Industrial EthernetSwitches

LMP-0702G-SFP-V2 Series Hardware Manual V1.0

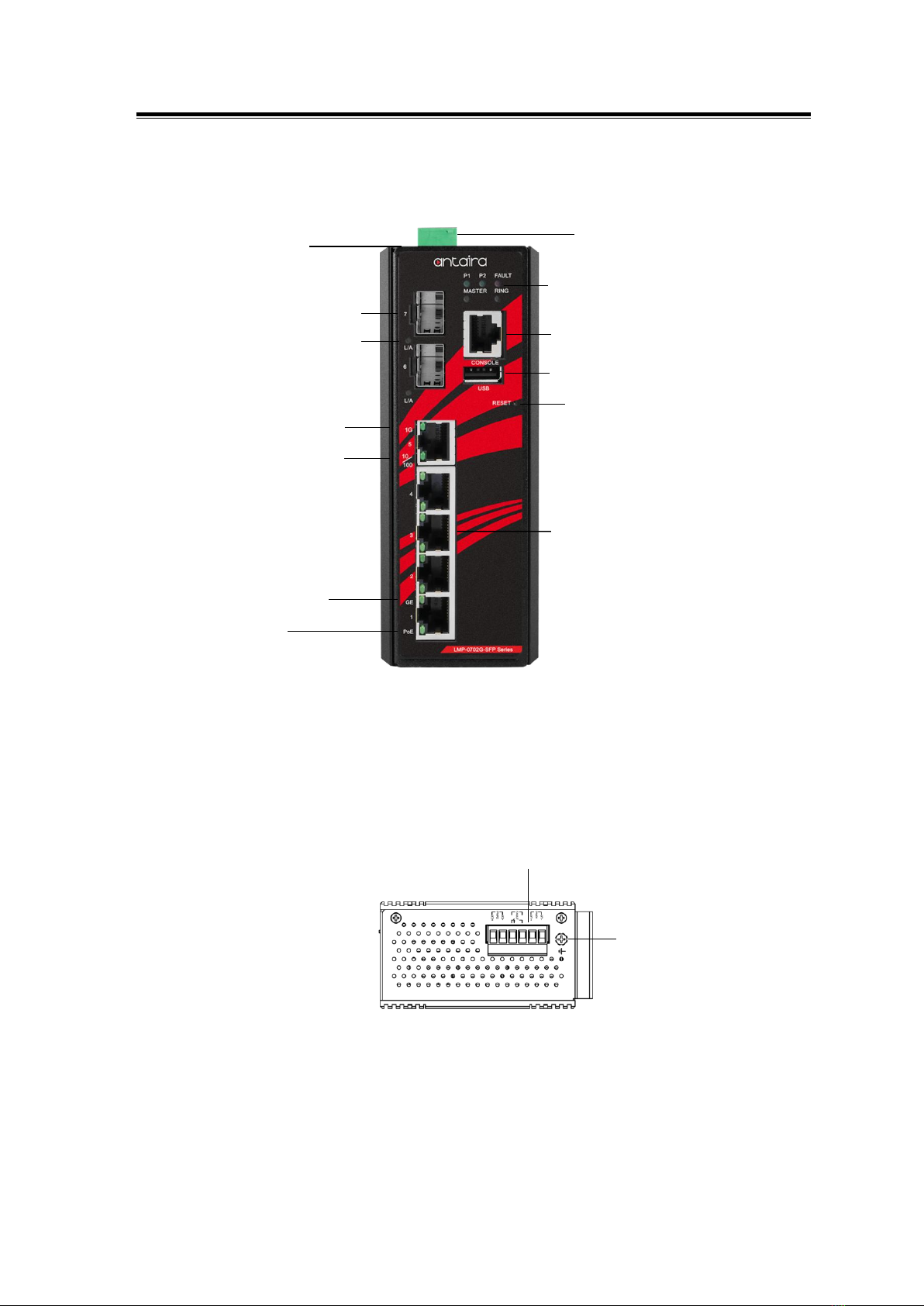

2.2 Front Panel

The front panel of the LMP-0702G-SFP-V2 series industrial gigabit PoE+ managed Ethernet

switch is shown below in Figure 2.2.

Figure 2.2 - The Front Panel of LMP-0702G-SFP-V2 Series

2.3 Top View

Figure 2.3, below, shows the top panel of the LMP-0702G-SFP-V2 series switch that is equipped

with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC).

Figure2.3

Top Panel View of LMP-0702G-SFP-V2 Series

Reset Button

LED for Power 1, Power 2, Fault, Master,

and Ring

Console Port

USB for Configuration

6-Pin Removal Terminal Block

Grounding Screw

LAN Port# 5 LED for Link/Activity Status

10/100

LAN Port# 5 LED for Link/Activity Status

1000

6-Pin Removal Terminal Block

Grounding Screw

SFP Port# 6~7 –100/1000

SFP Port# 6~7 LED for

Link/Activity Status 100/1000

LAN# 1~5 –10/100/1000Tx RJ45

LAN# 1~4 LED for Link/Activity Status

10/100/1000Mbps

LAN# 1~4 LED for PoE Status

Autres manuels pour LMP-0702G-SFP-V2 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LNP-0800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0602 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1802G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-500AG Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1002G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0600-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1202M-SFP-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1202M-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-800AG Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1202G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1002G-10G-SFP-24 Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0601G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-C602G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0501 Series Manuel utilisateur

ANTAIRA

ANTAIRA USB-HUB4K Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67-110 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0602-24-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0702G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1002G-10G-SFP-24 Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800 Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
