ANTAIRA LNP-0802C-SFP Series Manuel utilisateur

Antaira Industrial Ethernet Switches

LNP-0802C-SFP series User Manual V1.2

LNP-0802C-SFP Series

8-Port Industrial PoE+ Unmanaged Ethernet Switches, with

6*10/100Tx (30W/Port), 2* Gigabit Combo Ports (2*10/100/1000Tx

RJ45, and 2* 100/1000 SFP Slots)

User Manual

Version 1.2

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC may make improvements and/or changes to the product and/or specifications of the product described in this

manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

iii

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Gigabit Unmanaged Ethernet Switches

User Manual

Version 1.2 (April 2018)

This manual supports the following models:

 LNP-0802C-SFP

 LNP-0802C-SFP-T

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

Table of Contents

1. Overview ....................................................................... 1

1.1 Key Features ...................................................... 1

1.2 Package Contents .............................................. 2

1.3 Safety Precaution ............................................... 2

2. Hardware Description ................................................. 3

2.1 Physical Dimensions .......................................... 3

2.2 Front Panel ........................................................ 4

2.3 Top View ............................................................ 4

2.4 LED Indicators .................................................... 5

2.5 Ethernet Ports..................................................... 6

2.6 Cabling ............................................................... 8

2.6.1 Gigabit Combo Port - Copper/SFP (mini-GBIC) ....... 8

2.7 Wiring the Power Inputs ................................... 11

2.8 Wiring the Fault Alarm Contact ........................ 12

3. Mounting Installation ................................................ 13

3.1 DIN-Rail Mounting ............................................ 13

3.2 Wall Mounting ................................................... 15

4. Hardware Installation ................................................ 16

4.1 Installation Steps .............................................. 16

5. Network Application ................................................. 17

6. Trouble Shooting ....................................................... 18

7. Technical Specifications .......................................... 19

Antaira Industrial Ethernet Switches

LNP-0802C-SFP series User Manual V1.2

1. Overview

Antaira Technologies’ LNP-0802C-SFP industrial PoE+ Gigabit unmanaged Ethernet switch series

is IP30 rated and DIN-Rail mountable. It comes with 6*10/100Tx which support IEEE802.3at with

high power PoE up to 30W/port, and 2*GigE combo ports (2*10/100/1000Tx RJ45, and 2*100/100

SFP slots for fiber), making it ideal for applications that demand a high bandwidth and long

distance communication.

This product series provides a high EFT and ESD protection to prevent any unregulated voltage

and is suitable for harsh environments. It supports the power redundancy feature by having a dual

power input design and a reverse power polarity protection. In addition, the built-in relay warning

function alerts maintainers when power failures occur.

The LNP-0802C-SFP series includes two models: one with an operating temperature range of -10

to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a

perfectly designed product to fulfill any special needs for industrial automation, outdoor

applications and harsh weather environments.

1.1 Key Features

 System Interface/Performance

 All RJ-45 ports support auto MDI/MDI-X function

 Embedded 6*10/100Tx (PSE 30W/Port), 2*Gigabit combo ports (2*10/100/1000Tx

RJ45, and 2* 100/1000 SFP slots)

 Store-and-forward switching architecture

 8K MAC address table

 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

 Power Input

 DC 48 ~ 55V redundant power

 Operating Temperature

 Standard operating temperature model: -10°C ~ 70°C

 Extended operating temperature model (–T): -40°C ~ 75°C

 Case/Installation

 IP-30 protection

 DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

1.2 Package Contents

 1 - LNP-0802C-SFP (T): 8-port industrial PoE+ unmanaged Ethernet switch, with

6*10/100Tx (30W/port), 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2*

100/1000 SFP slots)

 1 - User manual

 1 - Product CD

 2 - Wall mounting brackets and screws

 1 - DC cable –18 AWG & DC jack 5.5x2.1mm

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

2. Hardware Description

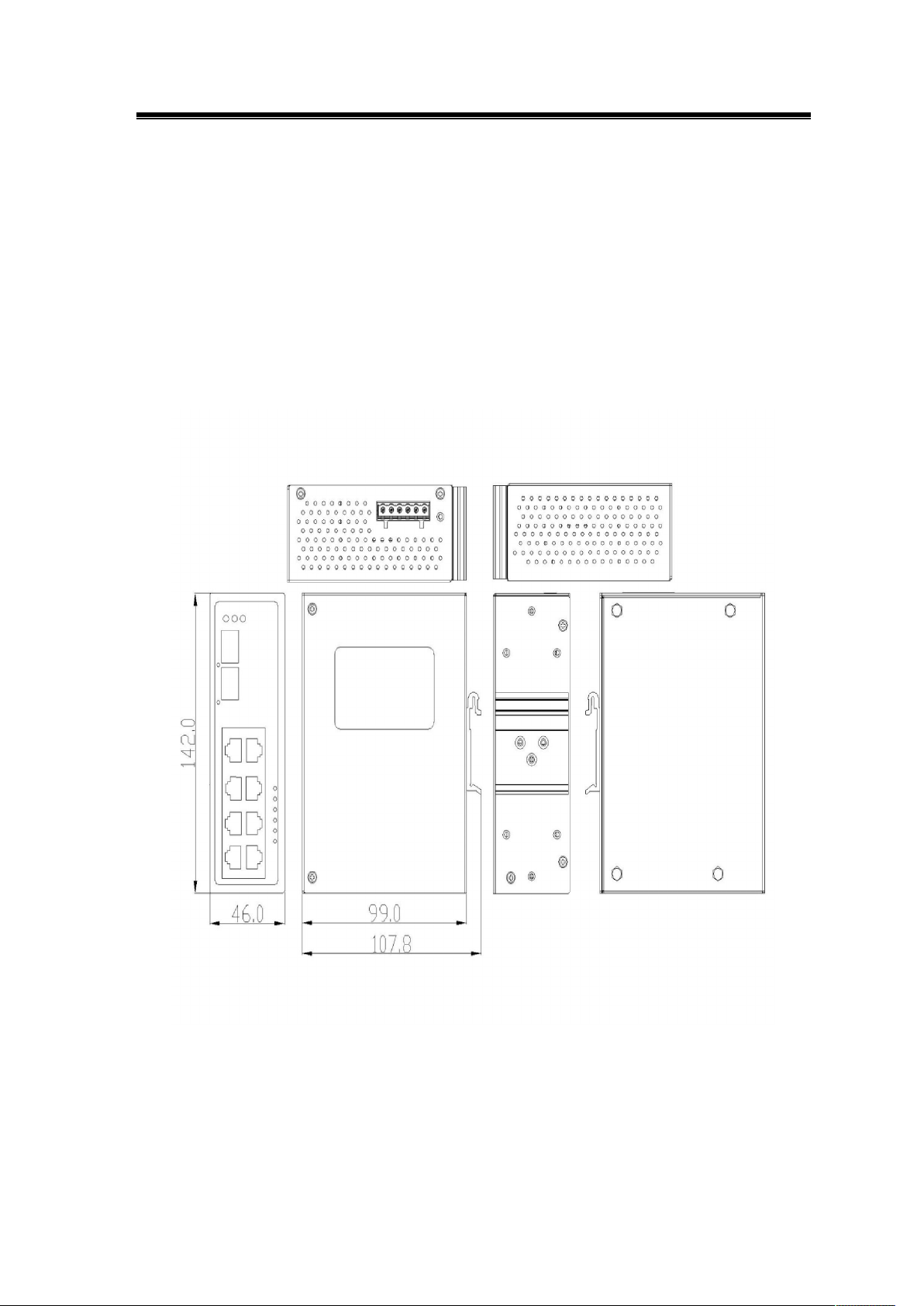

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0802C-SFP series:

8-port industrial PoE+ unmanaged switches, with 6*10/100Tx (30W/port), 2* Gigabit combo ports

(2*10/100/1000Tx RJ45, and 2* 100/1000 SFP slots)

(W x D x H) is 46mm x 99mm x 142mm

Figure 2.1

LNP-0802C-SFP Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

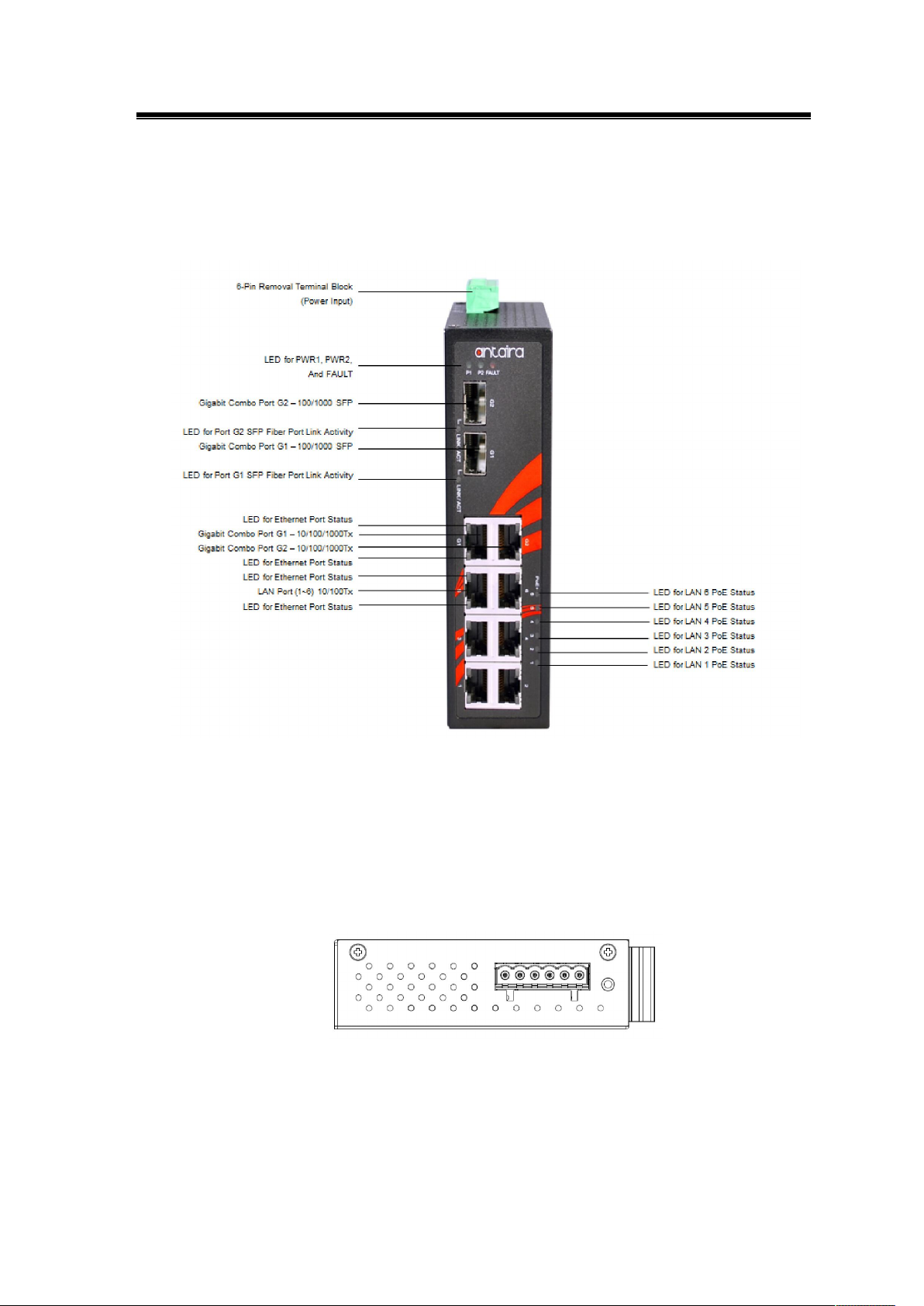

2.2 Front Panel

The front panel of the LNP-0802C-SFP series: 8-port industrial PoE+ unmanaged switches, with

6*10/100Tx (30W/Port), 2* Gigabit combo ports (2*10/100/1000Tx RJ45, and 2* 100/1000 SFP

slots) is shown below in Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LNP-0802C-SFP series switch that is equipped

with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC).

Figure 2.2 - The Front Panel of the LNP-0802C-SFP Series

Figure 2.3

Top Panel View of LNP-0802C-SFP Series

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has

its own specific meaning, see below in Table 2.1.

LED Color Description

Green On Power input 1 is active

Off Power input 1 is inactive

Green On Power input 2 is active

Off Power input 2 is inactive

Fault

Red

On Power input 1 or 2 is inactive

Off Power input 1 and 2 are both functional, or no power,

inputs/ports link is active/port alarm is disabled

PoE Indicators

(Port 1~6) Green On The port is supplying PoE power

Off No powered-device attached or power supplying fails

LAN Port 1 ~ 6

(Upper LED)

Green

On Connected to network, 100Mbps

Flashing

Networking is active

Off Not connected to network

LAN Port 1 ~ 6

(Lower LED)

Green

On Connected to network, 10Mbps

Flashing Networking is active

Off Not connected to network

Gigabit Combo Port LED Indicators

LED Color Description

SFP Port

Combo G1~G2

LNK/ACT

Green

On Connected to network

Flashing Networking is active

Off Not connected to network

LAN Port

Combo G1 ~G2

(Upper LED)

Green

On Connected to network, 1000Mbps

Flashing

Networking is active

Off Not connected to network

LAN Port

Combo G1 ~G2

(Lower LED)

Green

On Connected to network, 10/100Mbps

Flashing Networking is active

Off Not connected to network

Table 2.1

LED Indicators for LNP-0802C-SFP Series

Antaira Technologies - Industrial Ethernet Switches

LNP-0802C-SFP Series User Manual V1.2

2.5 Ethernet Ports

 RJ-45 Ports

RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports (LAN 1~6) are auto-sensing for 10Base-T or

100Base-Tx device connections. The Gigabit combo RJ-45 ports (LAN G1~G2) are auto-sensing

for 10Base-T, 100Base-Tx, and 1000Base-T device connections. Auto MDI/MDIX means that the

switch can connect to another switch or workstation without changing the straight-through or

crossover cabling. See the figures below for straight-through and crossover cabling schematics.

 RJ-45 Pin Assignments (Table 2.2)

Pin Number Assignment

1 Rx+

2 Rx-

3 Tx+

6 Tx-

All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can use

straight-through cables (see figure below) for all network connections to PCs, servers, other

switches or hubs. With straight-through cable, pins 1, 2, 3, and 6 are at one end of the cable, and

are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below

(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI and MDI-X port pin outs.

Note

“+” and “-” signs represent the polarity of the wires that make up each wire pair.

Pin MDI-X Signal Name MDI Signal Name

1 Receive Data Plus (RD+) Transmit Data Plus (TD+)

2 Receive Data Minus (RD-) Transmit Data Minus (TD-)

3 Transmit Data Plus (TD+) Receive Data Plus (RD+)

6 Transmit Data Minus (TD-) Receive Data Minus (RD-)

Table 2.2

RJ45 Pin Assignments

Table 2.3

Ethernet Signal Pin Outs

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LMP-0501-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1802G-M12-10G-SFP-67-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA STW-611C Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0600 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0601G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA USB-HUB4K3 Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2602G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0600-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0602-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0702C-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1204G-SFP-bt Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1202M-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1002G-10G-SFP-24 Manuel utilisateur

ANTAIRA

ANTAIRA LNP-800-M12-T Manuel utilisateur

ANTAIRA

ANTAIRA LMX-C602G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-800AGH Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C501G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2828G-10G-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LNX-800-M12-T Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0601G-SFP-24-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1802G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0702G-SFP-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0500G-BT Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
