LMP-1204G-SFP Series User Manual V2.1

LMP-1002G-10G-SFP-24

10-PortIndustrialPoE+Light Layer 3ManagedEthernetSwitch, with 8*10/100/1000Tx

Ports(30W/Port) and 2*1G/10G SFP+ Slots; 12~55VDC Power Input

Hardware Manual

Version 1.0

(February 2020)

Antaira Technologies - Industrial EthernetSwitches

LMP-1002G-10G-SFP-24 Hardware Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are

the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial EthernetSwitches

LMP-1002G-10G-SFP-24 Hardware Manual V1.0

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment andreceiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switch

Industrial Grade PoE+ Managed Ethernet Switch

Hardware Manual

Version 1.0 (February 2020)

This manual supports the following model:

•

LMP-1002G-10G-SFP-24

Antaira Technologies - Industrial EthernetSwitches

LMP-1002G-10G-SFP-24 Hardware Manual V1.0

iv



Table of Contents
Introduction .................................................................1
1 Product Overview 1
2 Product Software Features 1
3 Product Hardware Features 2
4 Package Contents 3
5 Safety Precaution 3
Hardware Description .................................................4
1 Physical Dimensions 4
2 Front Panel 5
3 Top View 5
4 LED Indicators 6
5 Reset Button 7
6 Ethernet Ports 7
7 Cabling 8
8 Wiring the Power Inputs 8
9 Wiring the Fault Alarm Contact 9
10 Grounding Note 9
Mounting Installation.................................................10
1 DIN-Rail Mounting 10
2 Wall Mounting 11
Hardware Installation.................................................12
1 Installation Steps 12
2 Maintenance and Service 13
Technical Specifications ..........................................14

Antaira Technologies - Industrial EthernetSwitches

LMP-1002G-10G-SFP-24 Hardware Manual V1.0

1. Introduction

All Antaira industrial managed switches come with a pre-installed “user-friendly” web console

interface, which allows users to easily configure and manage the units, whether one is using a serial

console and Command Line Interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or Simple

Network Management Protocols (SNMP).

1.1 Product Overview

Antaira Technologies’ LMP-1002G-10G-SFP-24

is a 10-port industrial Gigabit PoE+ light layer 3

managed Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports that support

IEEE802.3at/af for a maximum of 30W/port and 2*1G/10G dual rate SFP+ slots for fiber connections.

The LMP-1002G-10G-SFP is a fully manageable light layer 3 Ethernet switch that is pre-loaded with

a user-friendly web management console design. It supports the ring network redundancy function

using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol

that has a <50ms network recovery time. The advanced network filtering and security functions, such

as, IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase

determinism and improve network management for remote SCADA systems or control networks.

The LMP-1002G-10G-SFP-24 is IP30 rated and DIN-rail mountable. It also provides high EFT and

ESD protection for industrial networking applications, such as power/utility, water wastewater,

oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh

environment.

1.2 Product Software Features



Network Redundancy

➢

STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for

network redundancy



Network Management

➢

Web UI based management, SNMP v1/v2/v3, Serial Console

➢

Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,

broadcast storm control, DiffServ

➢

IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial EthernetSwitches

LMP-1002G-10G-SFP-24 Hardware Manual V1.0

➢

IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256group

➢

Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP,

HTTPS, SSH/SSL, TFTP

➢

MODBUS TCP for SCADA system integration



Port Configuration

➢

Status, statistics, mirroring, rate limiting, event syslog



Event Handling

➢

Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP

trap and Fault Alarm Relay Output



Software Upgrade via TFTP and HTTP



Configuration Backup –USB Port

1.3 Product Hardware Features



System Interface and Performance

•

All RJ-45 ports support Auto MDI Function

•

Embedded 8*10/100/1000Tx (PSE: 30W/Port) RJ45 Ports and 2*1G/10G SFP+ slots

•

Store-and-forward switching architecture

•

8K MAC address table

•

Power line EFT Protection: 2,000VDC; Ethernet ESD Protection:6,000VDC



Power Input

•

DC 12~55V redundant, with a 6-pin removal terminal block

•

The power input specification is compliant with the requirements of SELV (Safety Extra Low

Voltage), and the power supply should be complied with UL 61010-1 & UL 61010-2-201



Operating Temperature

•

-40°C to60°C



Case/Installation

•

IP-30 protection metal housing

•

DIN-Rail and wall mount design

Antaira Technologies - Industrial EthernetSwitches

LMP-1002G-10G-SFP-24 Hardware Manual V1.0

1.4 Package Contents



1 –LMP-1002G-10G-SFP-24



1 –Quick Installation Guide



1 –Wall mounting bracket set with screws



1 –DC cable –18 AWG & DC jack 5.5 x 2.1mm



1 –RJ45 dust cover set



1 –RJ45 to DB9 serial console cable

1.5 Safety Precaution

Attention:

If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Warning Labels

The caution label means that you should check the certain information on user manual when working

with the device. (Shown in Figure 1.1)

Figure 1.1 - Caution Label

This warning label is on the device, and means that the surface of the device is hot. (Shown

in Figure 1.2)

Figure 1.2 - Hot Surface Warning Label

Antaira Technologies - Industrial EthernetSwitches

LMP-1002G-10G-SFP-24 Hardware Manual V1.0

2. Hardware Description

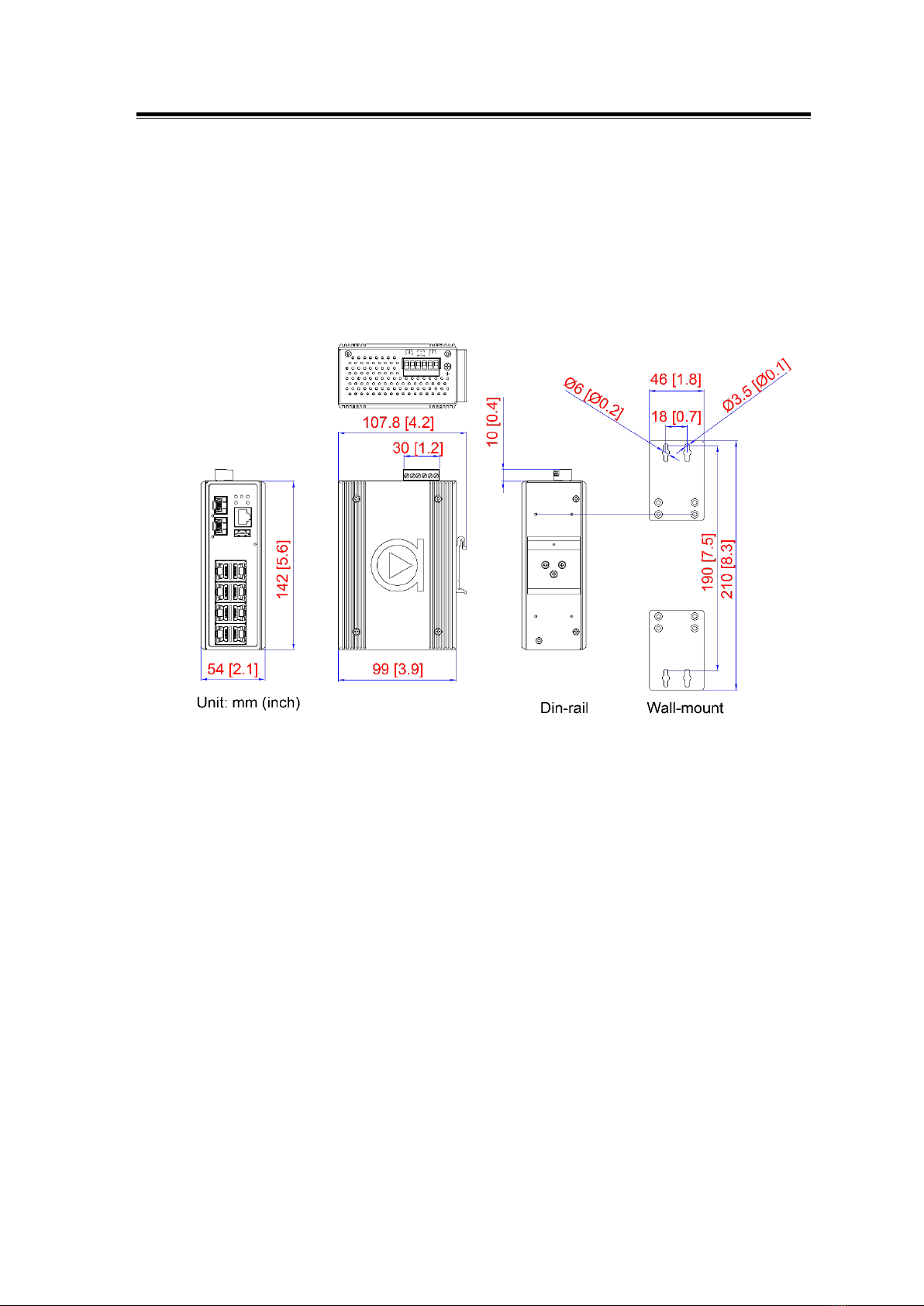

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1002G-10G-SFP-24:

54 x 142 x 99 mm

Figure 2.1

LMP-1002G-10G-SFP-24 Physical Dimensions

Antaira Technologies - Industrial EthernetSwitches

LMP-1002G-10G-SFP-24 Hardware Manual V1.0

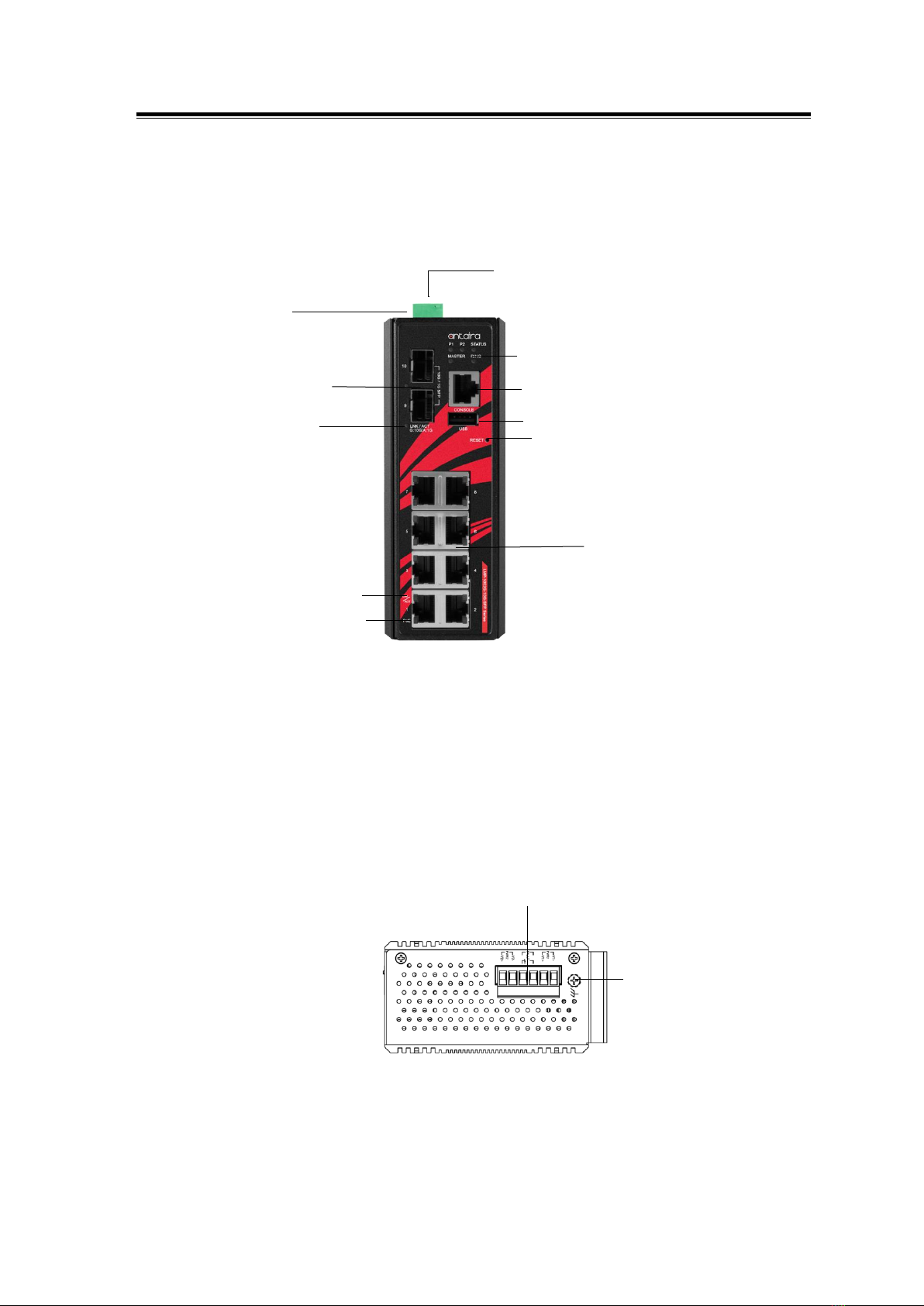

2.2 Front Panel

The front panel of the LMP-1002G-10G-SFP-24 industrial gigabit PoE+ light layer 3 Ethernet

switch is shown below in Figure 2.2.

Figure2.2

The Front Panel of LMP-1002G-10G-SFP-24

2.3 Top View

Figure 2.3, below, shows the top panel of the LMP-1002G-10G-SFP-24 switch that is equipped

with one 6-pin removal terminal block connector (12~55VDC).

Figure2.3

Top Panel View of LMP-1002G-10G-SFP-24

6-Pin Removal Terminal Block

Grounding Screw

Reset Button

LAN# 1~8 LED for

Link/Activity Status

10/100/1000Mbps

LAN# 1~8 LED for

PoE Status

LED for Power 1, Power 2, Fault, Master, and Ring

Console Port

USB for Configuration

SFP Port# 9~10 LED for

Link/Activity Status

1G/10G

LAN# 1~8 –10/100/1000Tx RJ45

SFP Port# 9~10 –1G/10G

Grounding Screw

6-Pin Removal Terminal Block

Antaira Technologies - Industrial EthernetSwitches

LMP-1002G-10G-SFP-24 Hardware Manual V1.0

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch

that display the power status and network status. Each LED indicator has a different color

and has its own specific meaning, see below in Table 2.1.

LED

Color

Description

Power 1

Green

Power input 1 is active

Off

Power input 1 is inactive

Power 2

Green

Power input 2 is active

Off

Power input 2 is inactive

Status

Green

The system ready and work fine, and

there are no events occur

Red

System booting or an applied alarm (such

as port disconnect) has been triggered

Master

Green

ERPS Owner Mode (Ring Master) is ready

Off

ERPS Owner Mode is not active

Ring

Green

Ring Network is active

Off

Ring Network is not active

LAN Port

1~8

(Upper LED)

Green

Connected to network, 10/100/1000Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port

1~8

(Lower LED)

Green

The port is supplying power to the

powered-device

Off

No powered-device attached or power

supplying fails

LINK/ACT

(SFP Port

9~10)

Green

Connected to network, 10Gbps

Flashing

Networking is active

Off

Not connected to network

Amber

Connected to network, 1Gbps

Flashing

Networking is active

Off

Not connected to network

Table 2.1 - LED Indicators for LMP-1002G-10G-SFP-24

Caution: "P1" is the abbreviation for "Power 1", “P2”is for “Power 2”, “LNK”is for “Link”,

and "ACT" is for "Activity".

2.5 Reset Button

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LMP-1002C-SFP-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1802G Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1002G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C501G-SFP-bt-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0800 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0501-M-V2 Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0501-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA USB-HUB4K Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1202G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1802G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C500G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1202M-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-2602G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0804G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA USB-HUB4K Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1600G-M12-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0804G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1600G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1002G-SFP-T-CC Manuel utilisateur

ANTAIRA

ANTAIRA LNX-500AG Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0602-24-V2 Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
