ANTAIRA LMX-1202M-SFP Series Manuel utilisateur

Antaira Industrial Ethernet Switches

LMX

-1002C-SFPeries User Manual V1.0

LMX-1202M-SFP Series

(LMX-1202M-SFP / LMX-1202M-SFP-T)

12-Port Industrial Gigabit Managed Ethernet Switch, with 8*10/100Tx,

2*10/100/1000Tx, and 2*100/1000 SFP Slots

Hardware Manual

Version 1.1

Antaira Technologies - Industrial Ethernet Switches

LMX-1202M-SFP Series Hardware Manual V1.1

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC may make improvements and/or changes to the product and/or specifications of the product described in this

manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial Ethernet Switches

LMX-1202M-SFP Series Hardware Manual V1.1

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.

•Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Gigabit Managed Ethernet Switches

Hardware Manual

Version 1.1 (June 2019)

This manual supports the following models:

•LMX-1202M-SFP

•LMX-1202M-SFP-T

Antaira Technologies - Industrial Ethernet Switches

LMX-1202M-SFP Series Hardware Manual V1.1

Table of Contents

Introduction ................................................................. 1

1.1 Product Overview 1

1.2 Product Software Features 1

1.3 Product Hardware Features 2

1.4 Package Contents 3

1.5 Safety Precaution 3

Hardware Description................................................. 4

2.1 Physical Dimensions 4

2.2 Front Panel 5

2.3 Top View 5

2.4 LED Indicators 6

2.5 Reset Button 7

2.6 Ethernet Ports 7

2.7 Cabling 8

2.8 Wiring the Power Inputs 11

2.9 Wiring the Fault Alarm Contact 11

2.10 Grounding Note 12

Mounting Installation ................................................ 12

3.1 DIN-Rail Mounting 12

3.2 Wall Mounting 14

Hardware Installation ................................................ 15

4.1 Installation Steps 15

4.2 Maintenance and Service 15

Technical Specifications .......................................... 16

Antaira Industrial Ethernet Switches

LMX-1202M-SFP Series Hardware Manual V1.1

Introduction

All Antaira industrial managed switches come with a pre-installed “user-friendly” web console

interface, which allows users to easily configure and manage the units, whether one is using a serial

console and command line interface(CLI) commands like Telnet, SSH, HTTP (Web GUI) or simple

network management protocols (SNMP).

1.1

Product Overview

Antaira’s LMX-1202M-SFP series is a 12-port industrial gigabit managed Ethernet switch that is

embedded with eight fast Ethernet ports, two gigabit Ethernet ports and two dual rate (100/1000)

SFP slots for fiber connection. It is a fully manageable Layer 2 Ethernet switch that is pre-loaded

with a user- friendly web management console design. It supports the ring network redundancy

function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch)

protocol that has a

<50ms network recovery time. The advanced network filtering and security functions, such as, IGMP,

VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and

improve network management for remote SCADA systems or control networks.

The LMX-1202M-SFP series is compact, IP30 rated, and DIN-rail or wall mountable. There are also

two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C)

or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD

protection for industrial networking applications, such as, power/utility, water wastewater,

oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh

environment.

1.2

Product Software Features



Network Redundancy



STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for

network redundancy



Network Management



Web UI based management, SNMP v1/v2/v3, Serial Console



Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,

broadcast storm control, Diffserv



IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial Ethernet Switches

LMX-1202M-SFP Series Hardware Manual V1.1



IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group



Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP,

HTTPS, SSH/SSL, TFTP



MODBUS TCP for SCADA system integration



Port Configuration



Status, statistics, mirroring, rate limiting, event syslog



Event Handling



Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP

trap and Fault Alarm Relay Output



Software Upgrade via TFTP and HTTP



Configuration Backup – USB Port

1.3

Product Hardware Features



System Interface and Performance

•

All RJ-45 ports support Auto MDI/MDI-X Function

•

Embedded 8*10/100Tx Fast Ethernet RJ45 Ports, 2*10/100/1000Tx RJ45 Ports,

and 2*100/1000 SFP Slots for fiber

•

Store-and-forward switching architecture

•

8K MAC address table

•

Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC



Power Input

•

DC 12~48V 3.5A redundant with a 6-pin removal terminal block

•

One user programmable alarm relay contact 24 VDC, 1A resistive

•

The power input specification is complied with the requirements of SELV (Safety Extra Low

Voltage), and the power supply should be complied with UL 61010-1 & UL 61010-2-201



Operating Temperature

•

LMX-1202M-SFP: -10°C to 70°C

•

LMX-1202M-SFP-T: -40°C to 75°C



Case/Installation

•

IP-30 protection metal housing

•

DIN-Rail and wall mount design

•

Installation in a Pollution Degree 2 industrial environment

Antaira Technologies - Industrial Ethernet Switches

LMX-1202M-SFP Series Hardware Manual V1.1

1.4

Package Contents

1– LMX-1202M-SFP series: 12-port industrial gigabit managed Ethernet switch, with

8*10/100Tx, 2*10/100/1000Tx and 2*100/1000 SFP Slots

1-Quick Installation Guide

2-Wall mounting brackets and screws

1-RJ45 to DB9 Serial Console cable

1-DC cable –18 AWG & DC jack 5.5x2.1mm

1.5

Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Warning Labels

The caution label means that you should check the certain information on user manual when working with

the device. (Shown in Figure 1.1)

Figure 1.1 - Caution Label

This warning label is on the device, and means that the surface of the device is hot. (Shown in Figure 1.2)

Figure 1.2 - Hot Surface Warning Label

Antaira Technologies - Industrial Ethernet Switches

LMX-1202M-SFP Series Hardware Manual V1.1

Hardware Description

2.1

Physical Dimensions

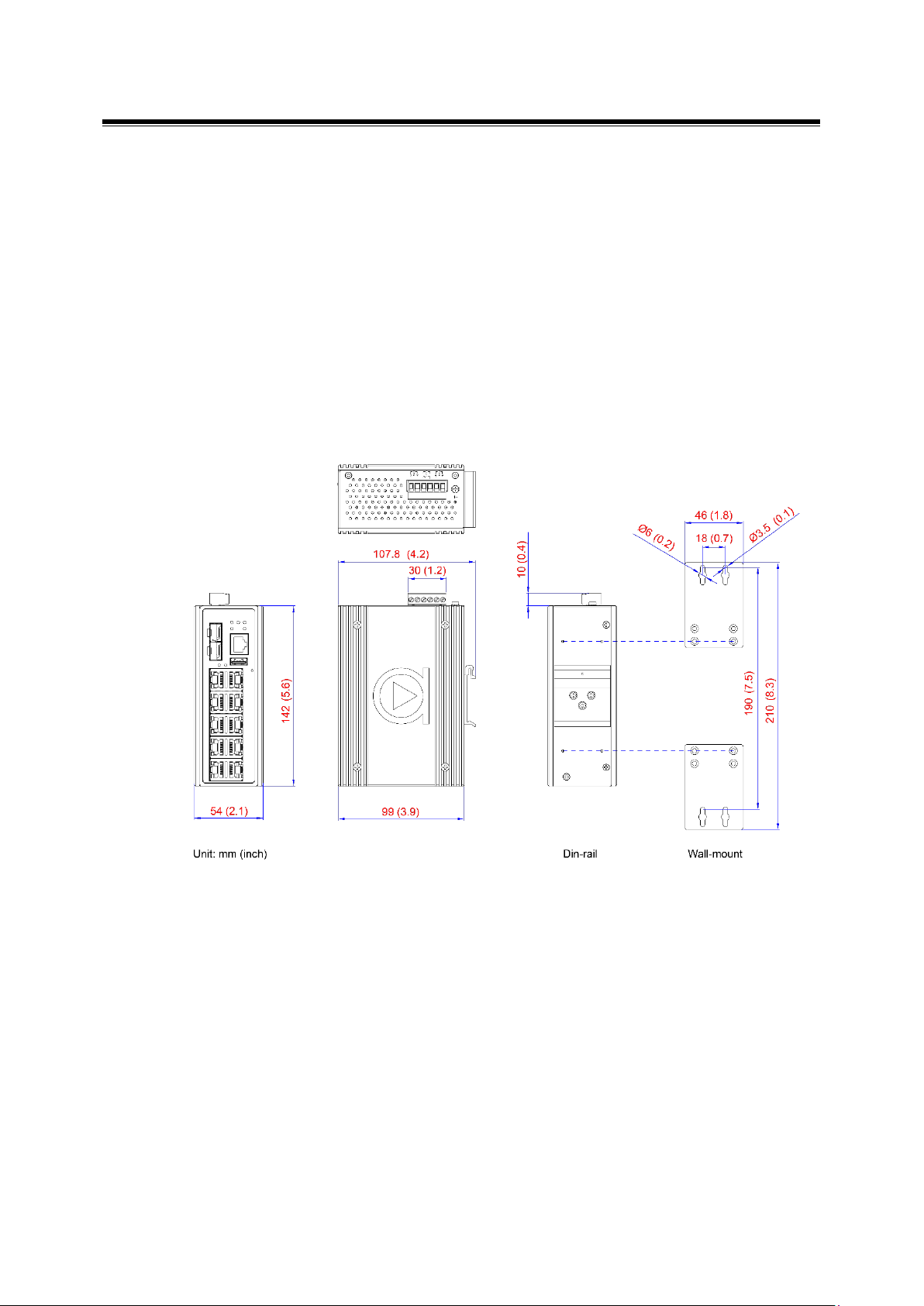

Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-1202M-SFP series: 12-

port industrial gigabit managed Ethernet switches with 8*10/100Tx, 2*10/100/1000Tx RJ45

and 2*100/1000 SFP slots.

(W x D x H) is 54mm x 99mm x 142mm

Figure2.1

LMX-1202M-SFP Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches

LMX-1202M-SFP Series Hardware Manual V1.1

2.2

Front Panel

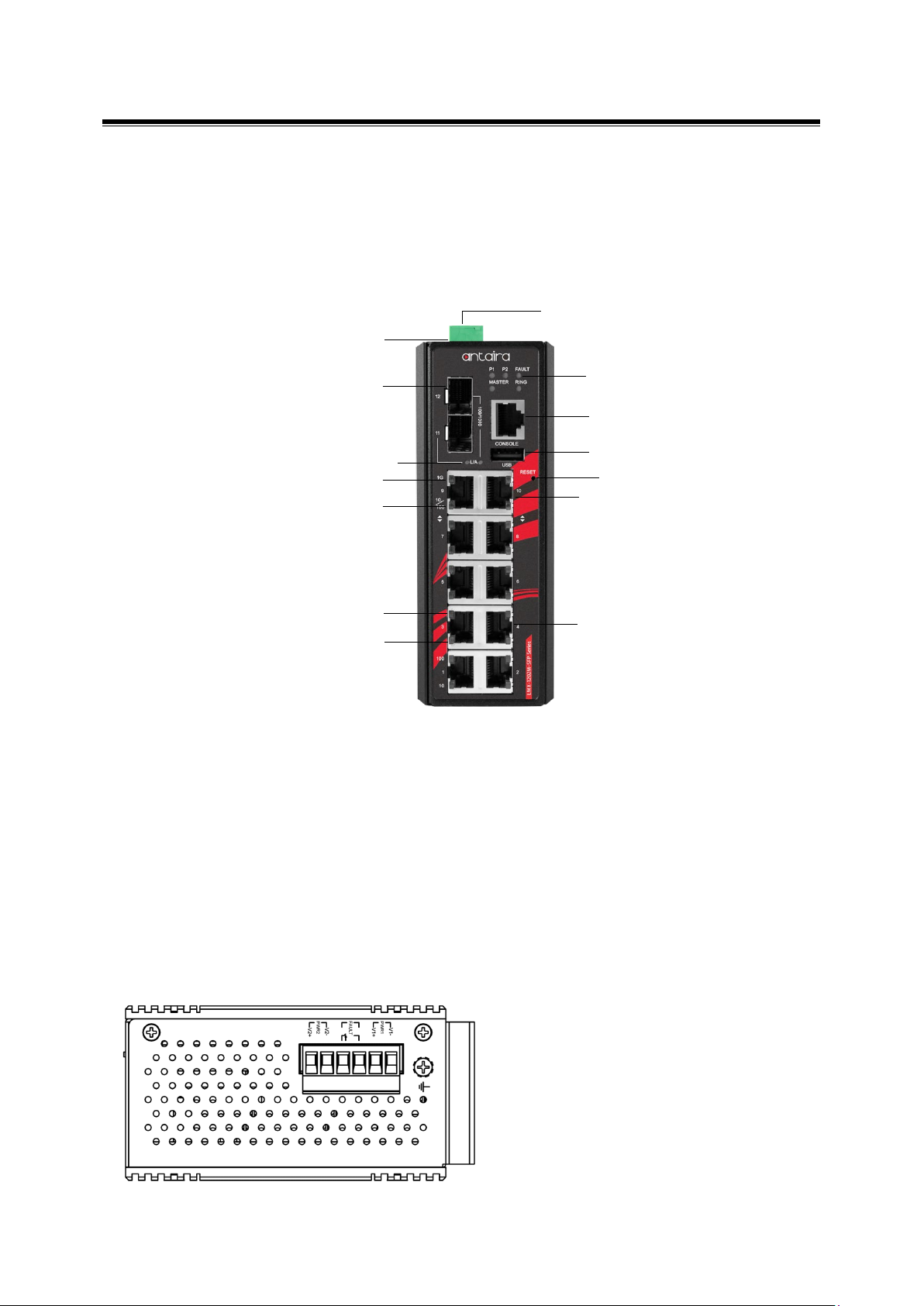

The front panel of the LMX-1202M-SFP series industrial gigabit managed Ethernet switch is

shown below in Figure 2.2.

2.3

Top View

Figure2.2

The Front Panel of LMX-1202M-SFP Series

Figure 2.3, below, shows the top panel of the LMX-1202M-SFP series switch that is

equipped with one 6-pin removal terminal block connector for dual DC power inputs

12~48VDC.

Figure 2.3- Top Panel View of LMX-1202M-SFP Series

LAN# 9~10 – LED for Link/Activity Status

10/100Mbps

LAN# 9~10 – LED for Link/Activity Status

1000Mbps

LAN# 11~12 – LED for Link/Activity Status

LAN# 1~8 – LED for Link/Activity Status

100Mbps

LAN# 1~8 – LED for Link/Activity Status

10Mbps

6-Pin Removal Terminal Block (Power Input)

Grounding Screw

SFP# 11~12 – 10/100

LED for Power 1, Power 2,

Fault, Master, and Ring

Console Port

USB for Configuration Back-up

Reset Button

LAN# 9~10 – 10/100Tx RJ45

LAN# 1~8 – 10/100Tx RJ45

Antaira Technologies - Industrial Ethernet Switches

LMX-1202M-SFP Series Hardware Manual V1.1

2.4

LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has

its own specific meaning, see below in Table 2.1.

LED Color Description

Green On Power input 1 is active

Off Power input 1 is inactive

Green

On Power input 2 is active

Off Power input 2 is inactive

Fault

Green/

Red

Green Preconfigured alarms are not detecting failure

Red Preconfigured alarms are detecting failure

Flashing

Switch is in the process of booting

Master

Green

ERPS Owner Mode (Ring Master) is ready

Off

ERPS Owner Mode is not active

Ring

Green

Ring Network is active

Off

Ring Network is not active

LAN Port 1 ~ 8

(Left LED)

Green

On Connected to network, 100Mbps

Flashing

Networking is active

Off Not connected to network

LAN Port 1~ 8

(Right LED)

Green

On Connected to network, 10Mbps

Flashing

Networking is active

Off Not connected to network

Gigabit Ports LED Indicators

LED Color Description

SFP Port

11~12

LNK/ACT

Green

1000Mbps

On Connected to network

Flashing

Networking is active

Amber

100Mbps Off Not connected to network

LAN Port

9~10

(Upper LED)

Green

On Connected to network, 1000Mbps

Flashing

Networking is active

Off Not connected to network

LAN Port

9~10

(Lower LED)

Green

On Connected to network, 10/100Mbps

Flashing

Networking is active

Off Not connected to network

Table 2.1 - LED Indicators for LMX-1202M-SFP Series

Caution:"P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is

for "Activity".

Autres manuels pour LMX-1202M-SFP Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LMX-1600G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1802G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1604G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1202G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1002G-10G-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LNX-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67-110 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0501 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1002G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800G-M12-67-24 Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0602-24-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0602-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1600G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1604G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0501-M-V2 Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0702G-SFP-bt-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C501G-SFP-bt Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C800 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-800AG-E Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0501G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0802-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2004G-SFP Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
