ANTAIRA USB-HUB4K3 Manuel utilisateur

Thank you for purchasing this high-speed 4-port USB3.0 hub. It provides

an ideal solution to expand 4 USB3.0 ports from one single USB3.0 host

port. It provides metal case with Screw Lock feature for upstream and

downstream USB ports. It provides excellent reliability and

performance for most of the applications.

Features:

Compliant with USB3.0 Specification Revision 1.0

Rigid and Wall-mountable Metal Case

Provides 4 Downstream Facing Ports

Supports Screw Lock Mechanism for Upstream and Downstream

Connectors to Enhance Reliability

Supports Super Speed, High-speed and or Full-speed Packet

Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed

Supports Self-powered and Bus-powered Mode

Supports 900mA Bus Power for Each Downstream Ports

Port #1

Port#4

4-Port USB3.0 Metal Hub

with Screw Lock Mechanism

Installation Guide

1. Introduction

2. Connector Layout

4 Downstream USB3.0

Ports

Power LED

+12V DC Jack

Upstream USB3.0 Port

+7~24V DC Power

Input Terminal Block

Front View

Unit

Rear View

Unit

4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case

Front Side Connection w/ Screw Lock USB Cable:

+12V DC Jack Power Connector: A DC12V AC adapter is

supplied with this product. The AC adapter’s output has to

be connected to here.

USB3.0 Upstream Connector (w/ Screw Lock): Type-B

connector from upstream USB3.0 port. It is connected from

host or another USB3.0 hub. The connector is compatible

with either non-Screw-Lock or Screw-Lock (optional) type

cables.

USB3.0 Downstream Connectors (w/ Screw Lock): There are

4 Type-A downstream USB3.0 connectors. They should be

connected to the USB devices with non-Screw-Lock or

Screw-Lock (optional) cables.

1. Use static electricity discharge precautions.

Remove possible static discharge potential from any

objects that the hub may come in contact with before

installation. This can be accomplished by touching a bare

metal chassis rail after you have turned off the power.

3. Hardware Installation

Downstream USB3.0 Port w/

Screw Lock Cable

4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case

2. Attaching the AC power adapter.

3. Connecting USB Host cable: The host cable is a standard

A-to-B USB3.0 cable (or an optional Screw-Lock type cable).

Please connect the type-A end connector of the cable to

your upstream USB port, then connect the type-B end

connector to this hub. Since the USB hub is plug-and-play,

you don’t have to turn off your host computer when

installing the hub.

Note: In some cases, you will see an error message said

that the USB Hub caused the USB bus power over the current limit,

please ignore this message since the hub is hot plug and its power

capacitor will cause a very short period of current. It will NOT affect

your USB function.

4. Connect the USB devices to the downstream ports of this

hub. You can use either non-Screw-Lock or Screw-Lock

type (optional) cables.

This hub supports both USB3.0 and USB2.0 devices. Since the

USB3.0 connectors are capable of plugging in the

standard USB2.0 or USB3.0 cable, it supports both devices

directly.

5. Mount your hub on the wall if required.

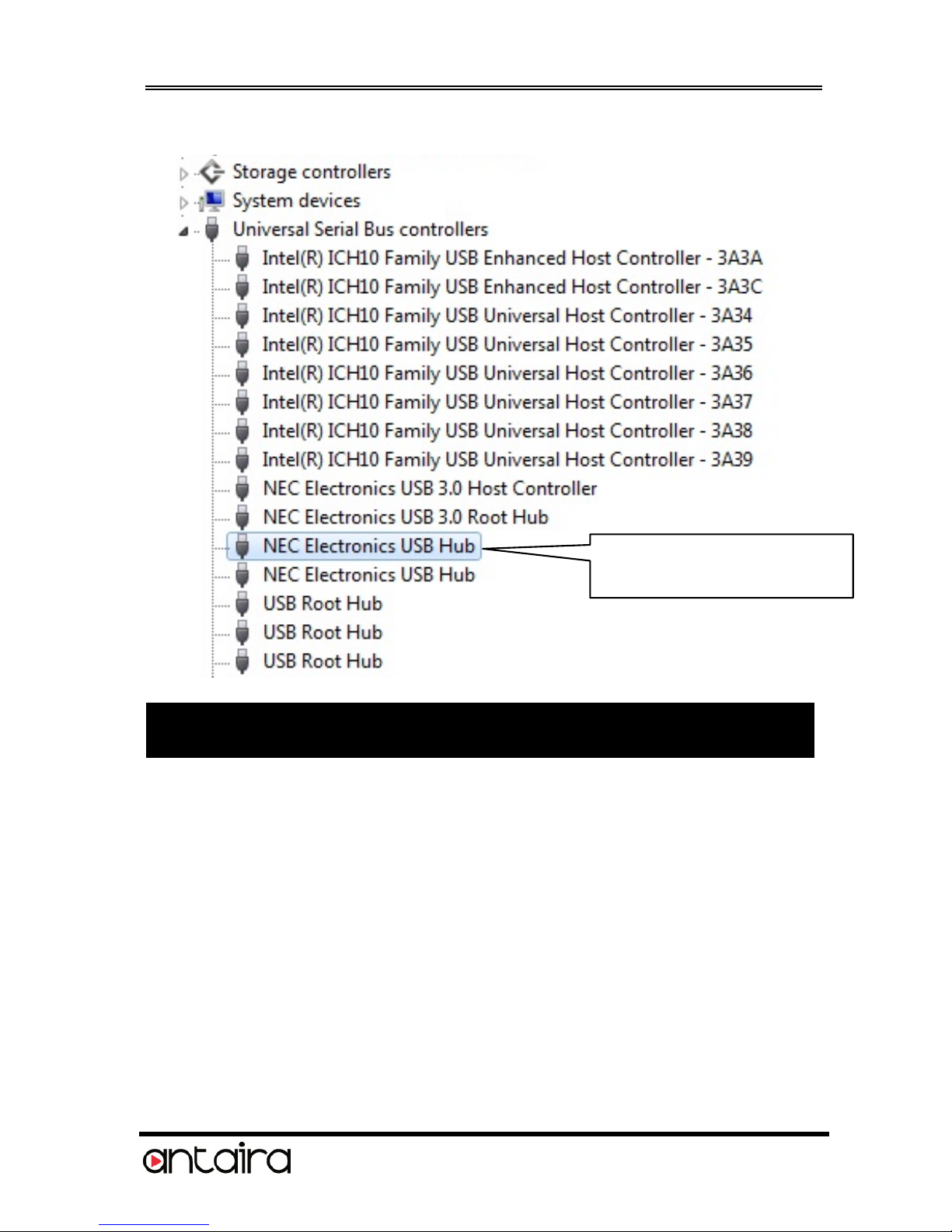

To check the USB hub installation in Windows Device Manager, please

follow the following steps:

1. Click Start

2. Click Control Panel

3. Click System

4. Click Device Manager button

5. Double click Universal Serial Bus Controller

6. Double click Generic USB Hub, the message will show that this

device is working properly.

4. Checking the Hub Installation

4S/8S RS232 to USB Multi Serial Adapter w/ Metal Case

Operating temp.: 0 to 55°C (32 to 131°F)

Operating humidity: 5 to 95% RH

Dimensions (LxWxH): 7.03”(L)x2.43”(W)x0.92”(H)

(17.85 x 6.16 x 2.34 cm)

5. Environmental Specifications

Here is your USB3.0 Hub
