ANTAIRA LNX-800-M12-T Manuel utilisateur

8-Port M12 IP40

Unmanaged Industrial Switch

User’s Manual

Version 1.1

Content

Overview............................................................1

Introduction .............................................................. 1

Features................................................................... 2

Technical Specification ............................................ 3

Packing List.............................................................. 5

Safety Precaution..................................................... 5

Hardware Description.........................................6

Physical Dimensions................................................ 6

Front Panel............................................................... 7

LED Indicators.......................................................... 8

Fast Ethernet Ports .................................................. 9

Pinouts of the Power Connector ............................10

Installation........................................................11

Wall Mounting ........................................................ 11

DIN-Rail Mounting.................................................. 12

Grounding the Ethernet Switch.............................. 13

Troubleshooting ...............................................14

Overview

Introduction

The 8-port M12 IP40 unmanaged industrial switch is a rugged device to

be deployed in various environments. The Ethernet switch conforms to

EN50155, EN50121-3-2, EN50121-4 railway applications standards.

Heavy Duty

Designed with circular M12 connectors and constructed with metallic

housing, the Ethernet switch provides the rugged Fast Ethernet

interface to withstand vibration and shock.

Dual Power Inputs

The redundant power input design for the Ethernet switch gives a

backup power solution. With both the power inputs supplied, if either

one fails the other one will be activated to keep the system operating

continually.

Flexible Mounting

The Ethernet switch is compact and can be mounted on the wall, and it

is suitable for any space-constrained environment.

Bypass Function

The equipment is designed with the function known as Bypass. When

the power failure occurs, a shorted circuit between two Ethernet ports

(P1 and P2) is formed to have the equipment being a bypassed device

to prevent the network from disconnecting.

Features

Back-plane (switching fabric) : 1.6Gbps

M12 connectors and IP40 metal housing

Wide range redundant power design

Wide operating temperature (-40~75ºC)

EN50155/50121-3-2/50121-4

Technical Specification

Communications

Standard IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3x Flow control and back pressure

LAN 10/100Base-TX

Transmission Speed Up to 100 Mbps

Switch Architecture Back-plane: 1.6Gbps

Packet Buffer 448Kbits

MAC Address Table 2K-entry

Interface

Connectors 8 x M12, 4-pole D-coded, female (10/100TX)

with the bypass function (P1 and P2)

1 x M12, 5-pole A-coded, male (Power)

LED Indicators System: PWR1, PWR2

10/100Base-TX port: LNK/ACT

Power

Power Consumption 3.36 Watts max. @ 48 VDC

Power Input 12 ~ 48 VDC

Mechanism

Dimensions (WxHxD) 92 x 180 x 42 mm

Enclosure IP40 protection, metal housing

Mounting DIN-rail, Wall

Environment

Operating Temperature -40 ~ 75oC (-40 ~ 167oF)

Operating Humidity 5% ~ 95% (non-condensing)

Storage Temperature -40 ~ 85oC (-40 ~ 185oF)

Storage Humidity 5% ~ 95% (non-condensing)

MTBF 391, 306 hours

Certifications

Safety UL, cUL 60950

EMC CE, FCC Class A

CE EN61000-4-2 (ESD)

CE EN61000-4-3 (RS)

CE EN61000-4-4 (EFT)

CE EN61000-4-5 (Surge)

CE EN61000-4-6 (CS)

CE EN61000-4-8 (Magnetic Field)

CE EN61000-6-2

CE EN61000-6-4

Railway Traffic EN50155, EN50121-3-2, EN50121-4

Free Fall IEC60068-2-32

Shock IEC61373

Vibration IEC61373

Packing List

1 x 8-port M12 IP40 Unmanaged Industrial Switch

2 x Wall-mount plates with screws

1 x DIN-rail clip with screws

1 x User Manual (CD-ROM)

Compare the contents of the Ethernet switch with the standard checklist

above. If any item is damaged or missing, please contact the local dealer

for service.

Safety Precaution

IF DC voltage is supplied by an external circuit, please use a

protection device on the power supply input.

ATTENTION

Hardware Description

This section is intended to introduce the Ethernet switch’s dimensions, definitions of

LED indicators, and connector pinouts.

Physical Dimensions

The figure below illustrates the dimensions for the Ethernet Switch.

Mechanical Dimensions

Front Panel

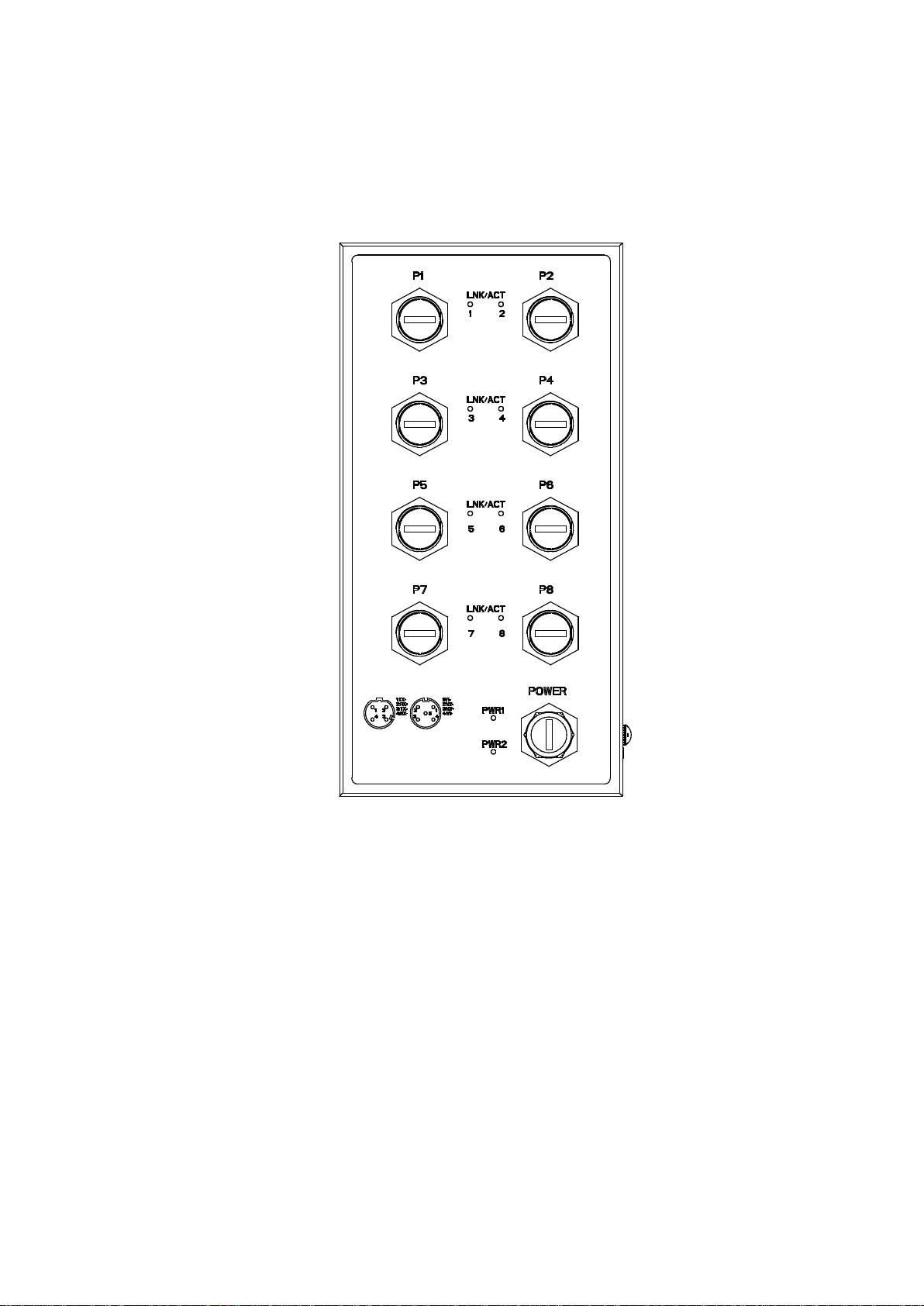

The figure shown below is the Front Panel of the Ethernet switch.

Front Panel

LED Indicators

LED indicators located on the front panel display the status of system power,

networking and power feeding over Ethernet of the Ethernet switch. Please refer to the

following table for further details.

LED

Color Description

PWR1 Green On Power input 1 is active

Off Power input 1 is inactive

PWR2 Green On Power input 2 is active

Off Power input 2 is inactive

LNK/ACT Green

On Connected to network

Blinks Data is transmitting/receiving

Off Not connected to network

Definition of LED indicators
