ANTAIRA LMX-2828G-10G-SFP Manuel utilisateur

Antaira Technologies - Industrial Ethernet Switches

LMX-2828G-10G-SFP Hardware Manual V1.0

LMX-2828G-10G-SFP

28-Port Industrial Gigabit Managed Ethernet Switch, with

16*100/1000 SFP Slots, 8*Gigabit Combo Ports (8*10/100/1000Tx

RJ45 and 8*100/1000 SFP Slots), and 4*1000/10G SFP+ Slots

(1 AC Power Supply Included)

Version 1.0

(August 2019)

Hardware Manual

Antaira Technologies - Industrial Ethernet Switches

LMX-2828G-10G-SFP Hardware Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or

translation without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC. Microsoft Windows and the Windows

logo are the trademarks of Microsoft Corp. All other brand and product names are trademarks or

registered trademarks of their respective owners.

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied,

including but not limited to the implied warranties of merchantability and fitness for a particular

purpose. Antaira Technologies, LLC. may make improvements and/or changes to the product and/or

specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC.

will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes

are periodically made to the information contained herein and will be incorporated into later versions

of the manual. The information contained is subject to change without prior notice.

Antaira Technologies - Industrial Ethernet Switches

LMX-2828G-10G-SFP Hardware Manual V1.0

iii

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio communications if the

equipment is not installed and used in accordance with the instructions. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could

void the user's authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment, this product may cause radio interference in

which case the user may be required to take adequate measures.

Industrial Ethernet Switches

This manual supports the following models:

•LMX-2828G-10G-SFP

Please check our website (www.antaira.com) for any updated manual or contact us by e-mail

([email protected]).

Antaira Technologies - Industrial Ethernet Switches
LMX-2828G-10G-SFP Hardware Manual V1.0

iv

Table of Contents

Overview....................................................................... 1
1 Key Features...................................................... 1
2 Package Contents.............................................. 1
3 Safety Precaution............................................... 2
Hardware Description ................................................. 3
1 Physical Dimensions.......................................... 3
2 Front Panel ........................................................ 4
3 Rear Panel......................................................... 4
4LED Indicators.................................................... 5
5 Ethernet Ports.................................................... 6
6 Cabling............................................................... 7
7 Connecting the Power Input............................... 8
Mounting Installation .................................................. 9
1 Rack Mounting................................................... 9
Hardware Installation................................................ 10
1 Installation Steps.............................................. 10
Trouble Shooting ...................................................... 11
Technical Specifications.......................................... 12


Antaira Technologies - Industrial Ethernet Switches

LMX-2828G-10G-SFP Hardware Manual V1.0

1. Overview

Antaira Technologies’ LMX-2828G-10G-SFP is a 28-port industrial managed Ethernet switch

embedded with 16*gigabit SFP slots, 8*gigabit combo ports (8*10/100/1000Tx RJ45 and

8*100/1000 SFP slots), and 4*10G SFP+ slots. This switch supports layer 3 routing protocols

like RIP and OSPF, along with a static routing table. The LMX-2828G-10G-SFP has other

functions like RSTP for network redundancy, IGMP, VLAN, QoS, and SNMP features.

The LMX-2828G-10G-SFP is designed for rack-mount installation. It is suitable as a backbone

fiber aggregation switch. This product is ideal for supporting applications that require high-

density port connections, such as, security surveillance, traffic monitoring systems, facility

management in power/utility, water wastewater treatment plants and oil/gas/mining.

1.1 Key Features

◼System Interface & Performance

•All Copper ports support auto MDI function

•Embedded 16*100/1000 SFP Slots, 8*gigabit Ethernet combo ports

(8*10/100/1000Tx RJ45 and 8*100/1000 SFP slots), and 4*10G SFP+ slots

•16K MAC Address Table

•Supports 9Kbytes Jumbo Frame

◼Power Input

•Redundant power input design: 100 to 240VAC

◼Operating Temperature

•Standard operating temperature model: -10°C to 50°C

◼Case/Installation

•Rackmount rugged metal case design

1.2 Package Contents

➢1 –LMX-2828G-10G-SFP

➢1 –AC Power Supply

➢1 –Set of rack mounting brackets and screws

Antaira Technologies - Industrial Ethernet Switches

LMX-2828G-10G-SFP Hardware Manual V1.0

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LMX-2828G-10G-SFP Hardware Manual V1.0

2. Hardware Description

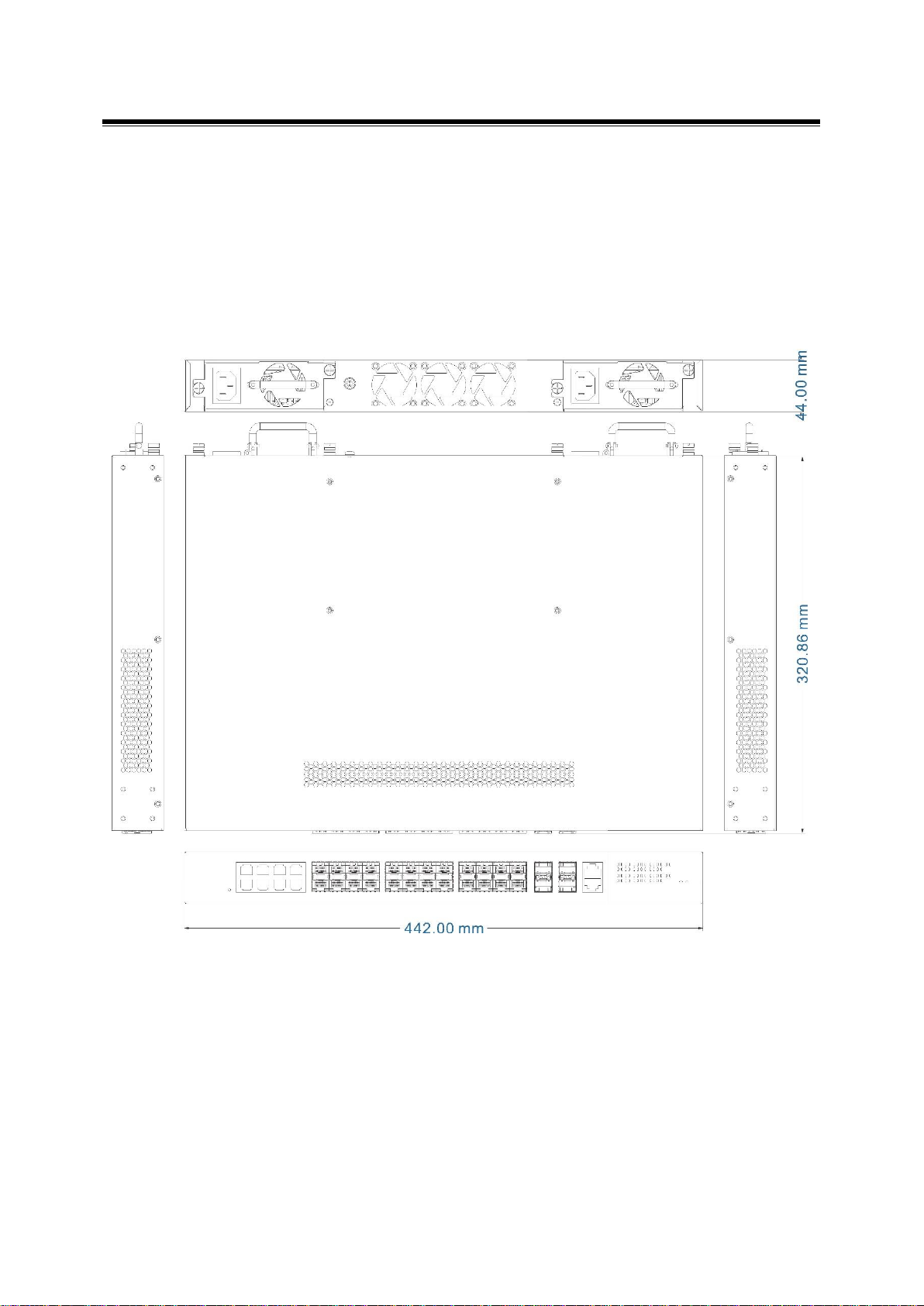

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LMX-2828G-10G-SFP:

(W x D x H) is 442mm x 44mm x 320mm

Figure 2.1

Antaira Technologies - Industrial Ethernet Switches

LMX-2828G-10G-SFP Hardware Manual V1.0

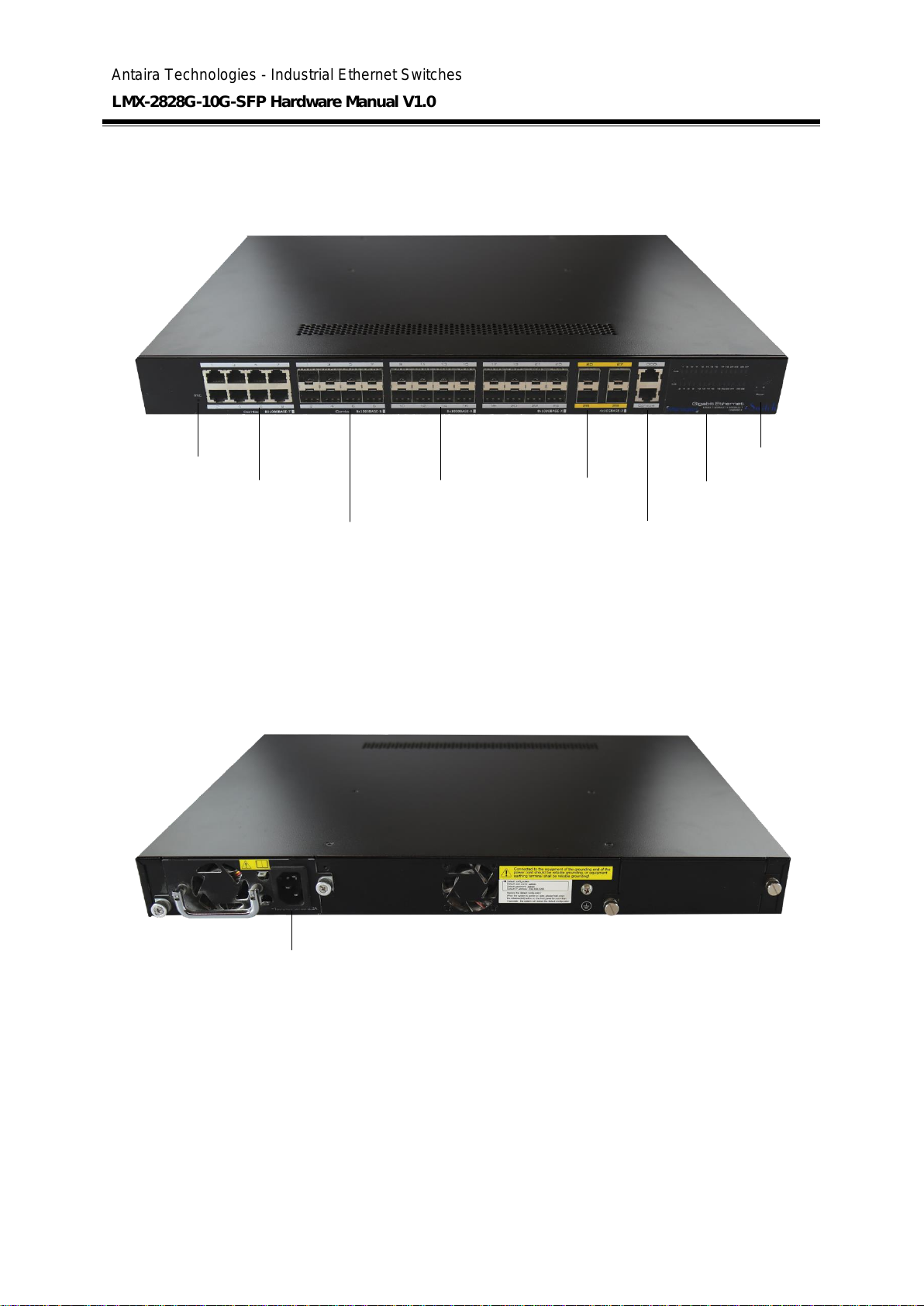

2.2 Front Panel

The front panel of the LMX-2828G-10G-SFP. See Figure 2.2.

2.3 Rear Panel

Figure 2.3, below, shows the rear panel of the LMX-2828G-10G-SFP switch that is equipped

with an AC power port.

Figure 2.2

Figure 2.3

Init Key

Combo Gigabit RJ45

Gigabit SFP

LED for Port Link Activity

10G SFP+

Combo Gigabit SFP

LED for Power

Power Module 1

AC Power Input

OOB Console

Antaira Technologies - Industrial Ethernet Switches

LMX-2828G-10G-SFP Hardware Manual V1.0

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has

its own specific meaning, see below in Table 2.1.

LED

Color

Description

Power 1

Green

Power input 1 is active

Off

Power input 1 is inactive

Power 2

(Optional)

Green

Power input 2 is active

Off

Power input 2 is inactive

Port 1~28

Green

Connected to network

Off

Not connected to network

Table 2.1

Antaira Technologies - Industrial Ethernet Switches

LMX-2828G-10G-SFP Hardware Manual V1.0

2.5 Ethernet Ports

◼RJ45 Ports (Auto MDI/MDIX):

The RJ45 ports are auto-sensing for 10/100/1000Base-Tx device connections. Auto MDI/MDIX

means that the switch can connect to another switch or workstation without changing the straight-

through or crossover cabling. See the figures shown below for straight-through and crossover

cabling schematics.

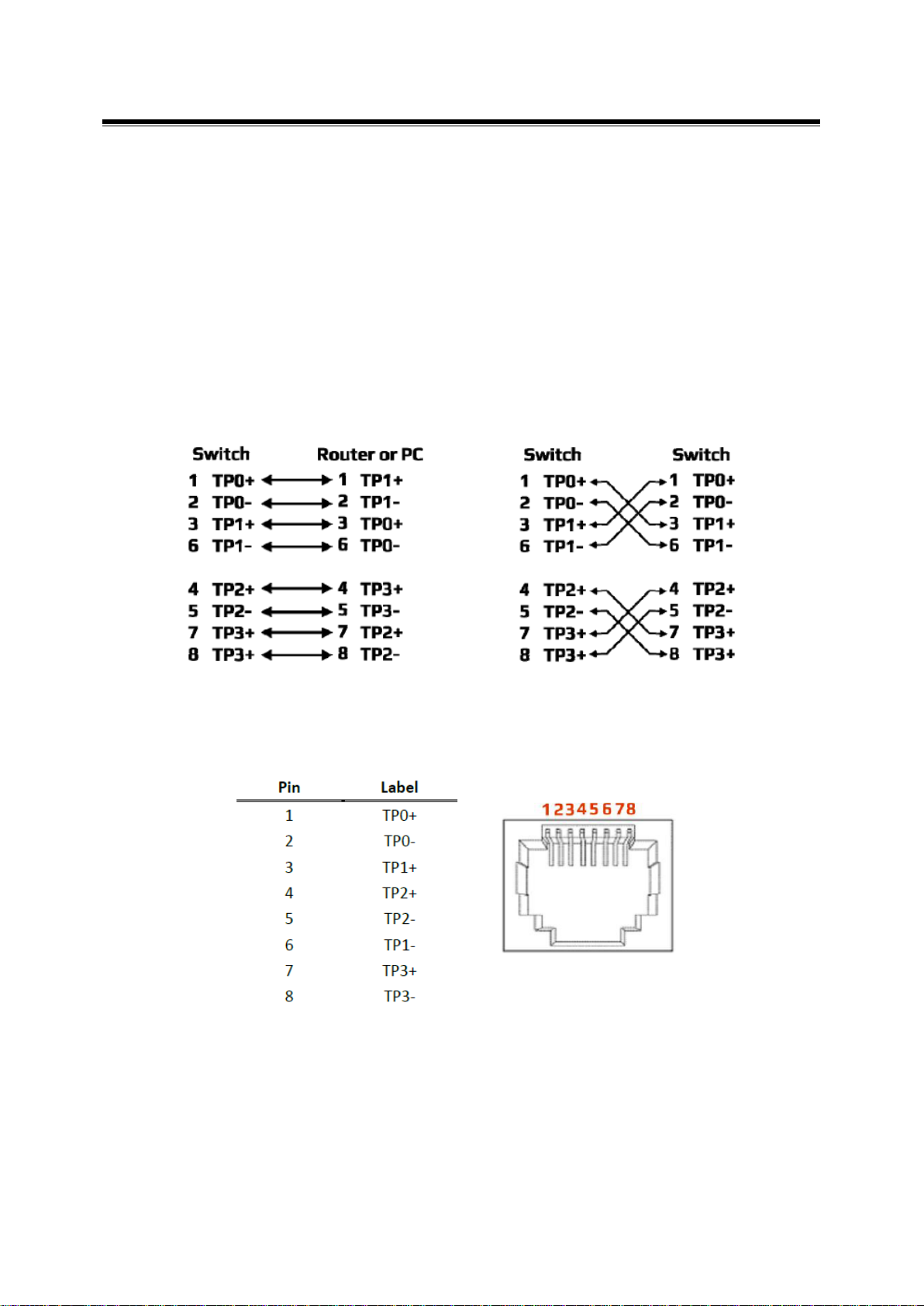

◼RJ45 Pin Assignments (Figure 2.2 & 2.3)

The following figures show the cabling schematics for straight-through and crossover cables.

The following figures show the 10,100, and 1000 Ethernet RJ‐45 pin outs.

Figure 2.4 - RJ45 Ethernet Port Pin Outs

Figure 2.2 Figure 2.3

Straight-Through Cables Schematic Crossover Cables Schematic
