Ameriwood HOME 8612222COM Manuel utilisateur

8612222COM

4 Drawer Dresser

B348612222COM00MP

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help ﬁrst.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Diﬃculty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from g furniture.

WARNING: Manufacturer assumes no liability

for improper on or excessive loads

placed on screws or bracket. This wall anchor

is not a subs tute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy li ing.

- Iden y, sort and count the parts before a em g assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(le forproper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 2 HOURS

ameriwoodhome.com

Before You Start



Quick

Tip

Assembly



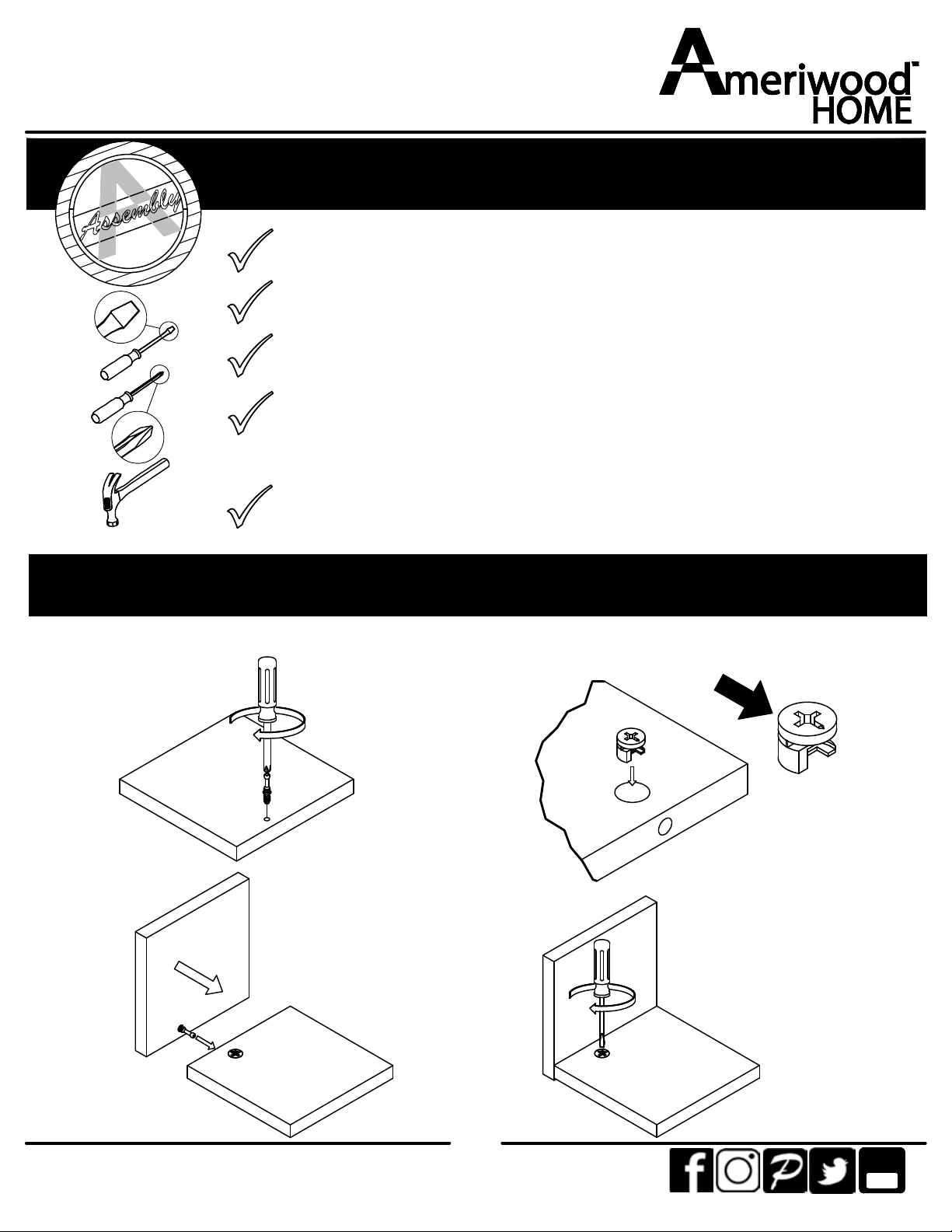

Cam Lock Fastening System

This Cam Lock FasteningSystem will be used throughout theassembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.



ameriwoodhome.com

Not actual size

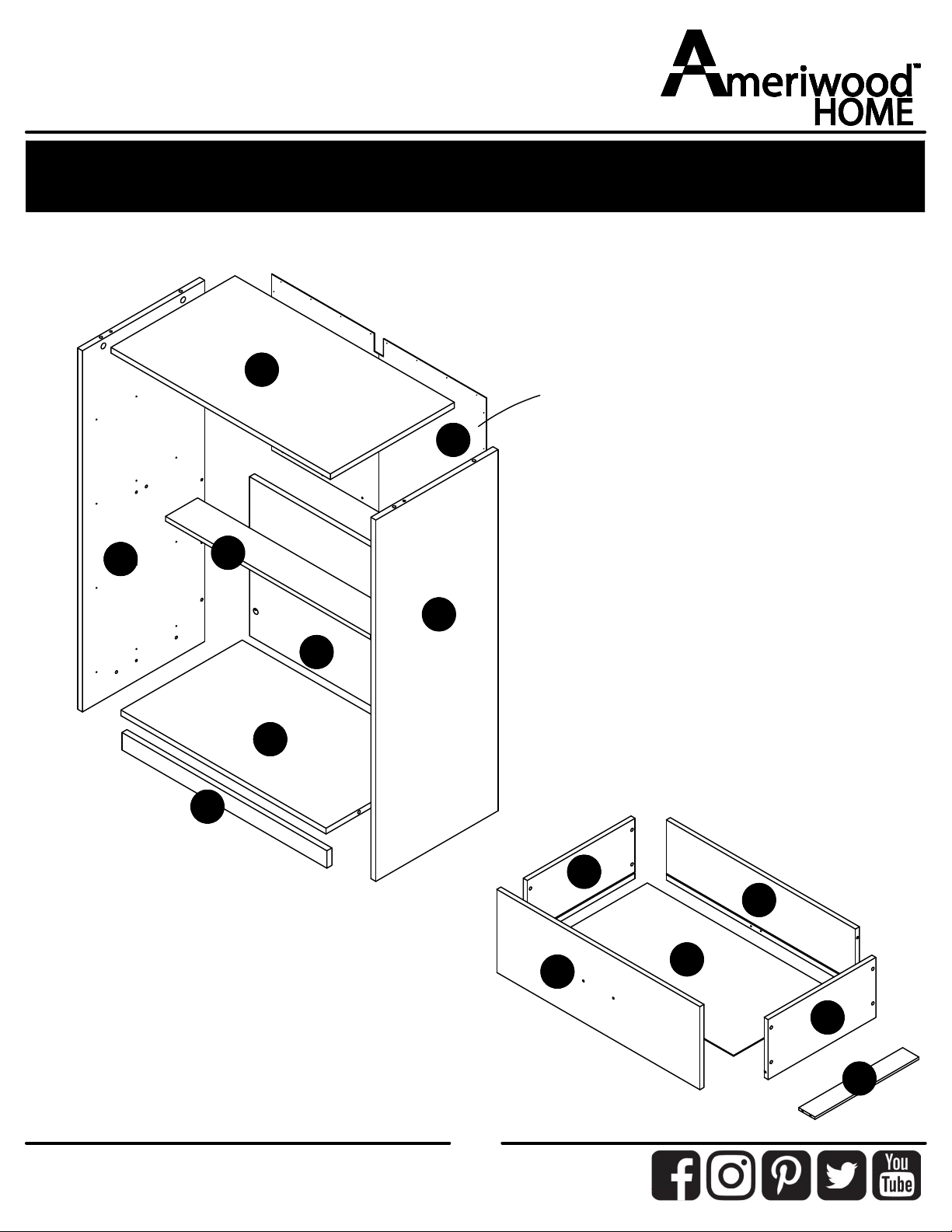

Le Panel

T8612222010MP

Right Panel

Back

Support

Top

(x4)

Drawer Back

(x4)

Drawer Front

(x4)

Drawe m

Back Panel

This part is paperboard

construction. It is not made from

wood, but is required for the

assembly of your unit.

(x8)

Drawer Side

Kick

Drawer Support

(x4)

T8612222020MP

T8612222030MPT8612222050MP

T8612222040MPT8612222060MP

T8612222070MPT8612222080MPT8612222090MP T8612222100MP

T8612222120MP T8612222130MP

T8612222110MP

ameriwoodhome.com

Board Idenﬁcaon

Not actual size

This part is paperboard

construcon. It is not made

from wood, but is required

for the assembly of your unit.

ameriwoodhome.com

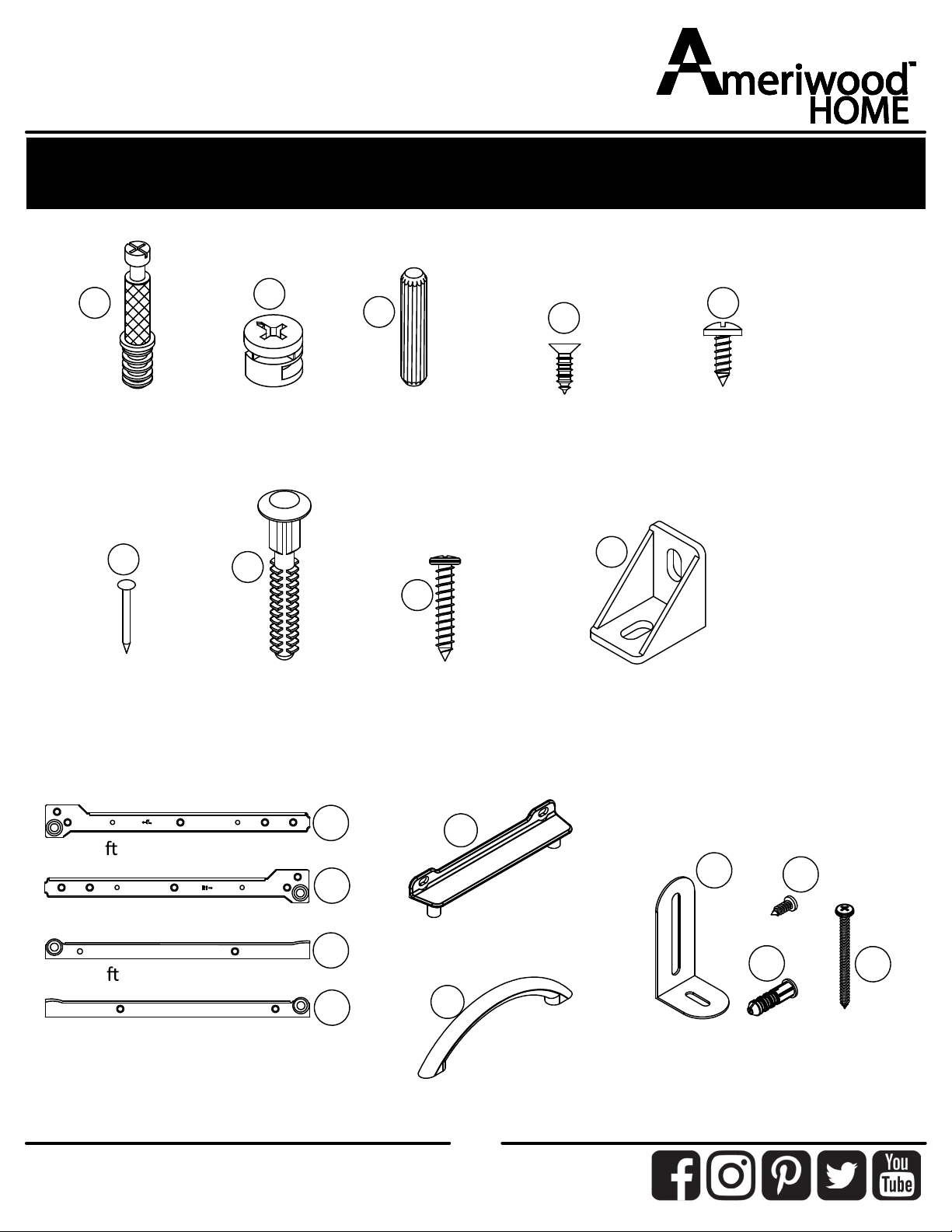

Part List

Actual Size

Not Actual Size

12a 12b

12c 12d

(x12)

TMP5101

cam bolt

(x12)

TMP5007

cam lock

(x24)

wood dowel

(x56)

TMP11080

7/16" ﬂat screw

(x46)

7/16" pan screw

(x18)

TMP4703

nail

(x16)

TMP21970

drive fastener

(x8)

7/8" pan screw

le cabinet member

right cabinet member

le drawer member

right drawer member

(x4)

TMP56740

drawer slide pkg.

(x8)

drawer bracket

(x4)

handle

(x1)

TMP84050

safety bracket kit

(x4)

TMP53600

angle bracket

10a

10b

10c

10d

TMP8002 TMP12120

TMP12700

TMP54520

TMP50680

Hardware Bag Reference number :

28612222COM0MP

ameriwoodhome.com

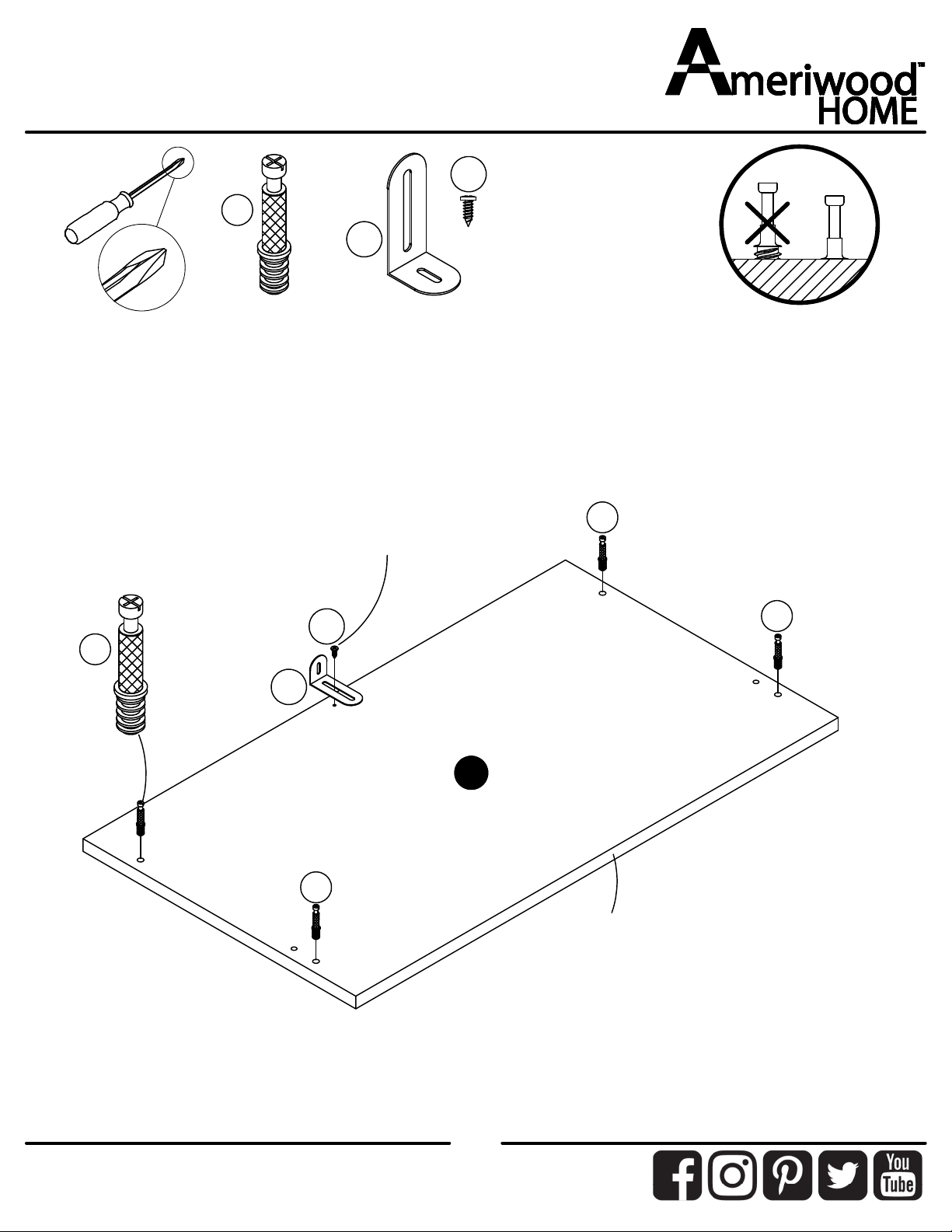

STEP 1

12b

12a

Do not fully tighten this screw.

ﬁnished edge

(x4)

TMP5101

(x1)

TMP84050

12a

12b

ameriwoodhome.com

STEP2

(x22)

TMP8002

(x8)

TMP5007

(x8)

TMP12120

(x4)

TMP53600

ameriwoodhome.com

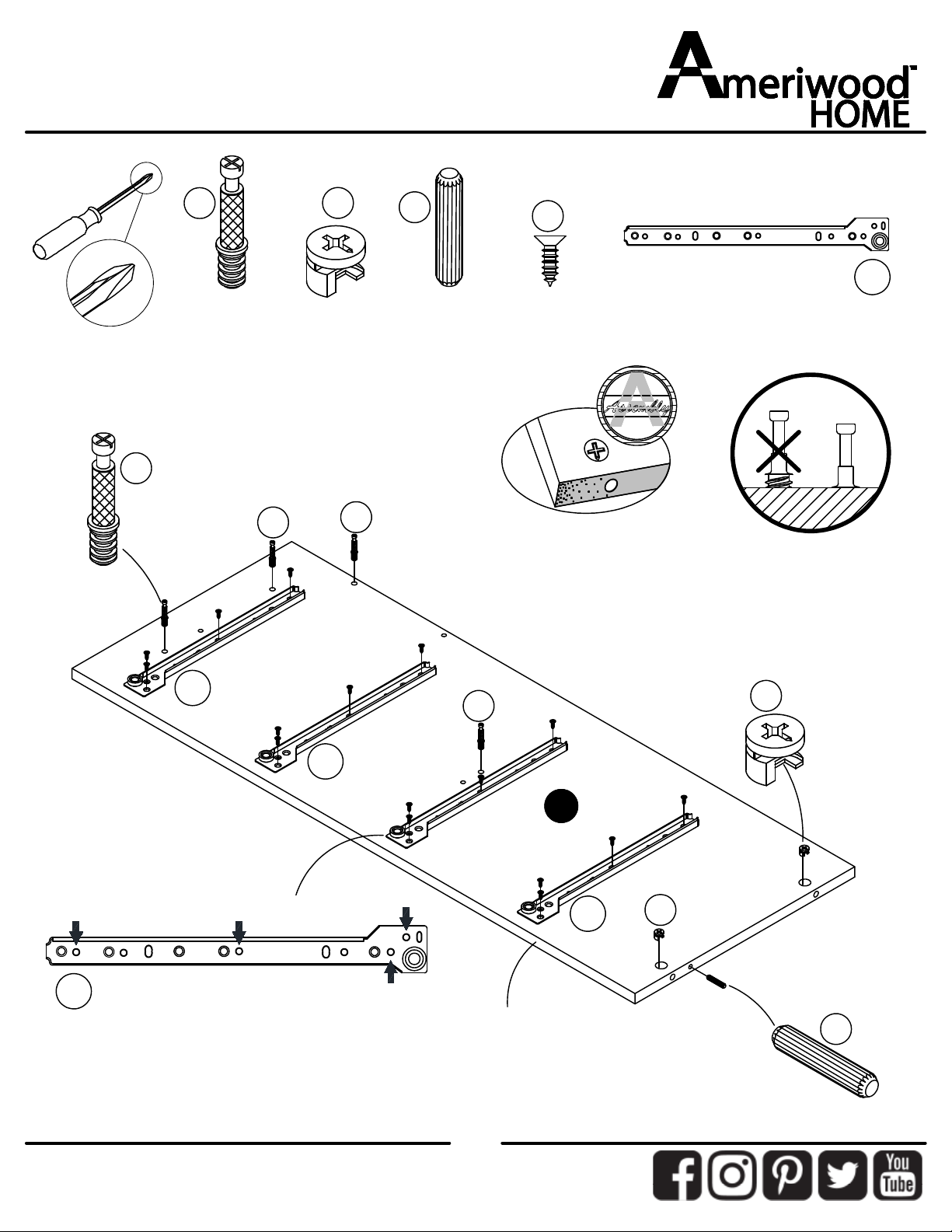

STEP3

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x4) (x2)

TMP5007

(x1) (x16)

TMP11080

(x4)

TMP56740

le et member

mark with a "CL"

ﬁnished edge

10a

TMP5101 TMP8002

10a

ameriwoodhome.com

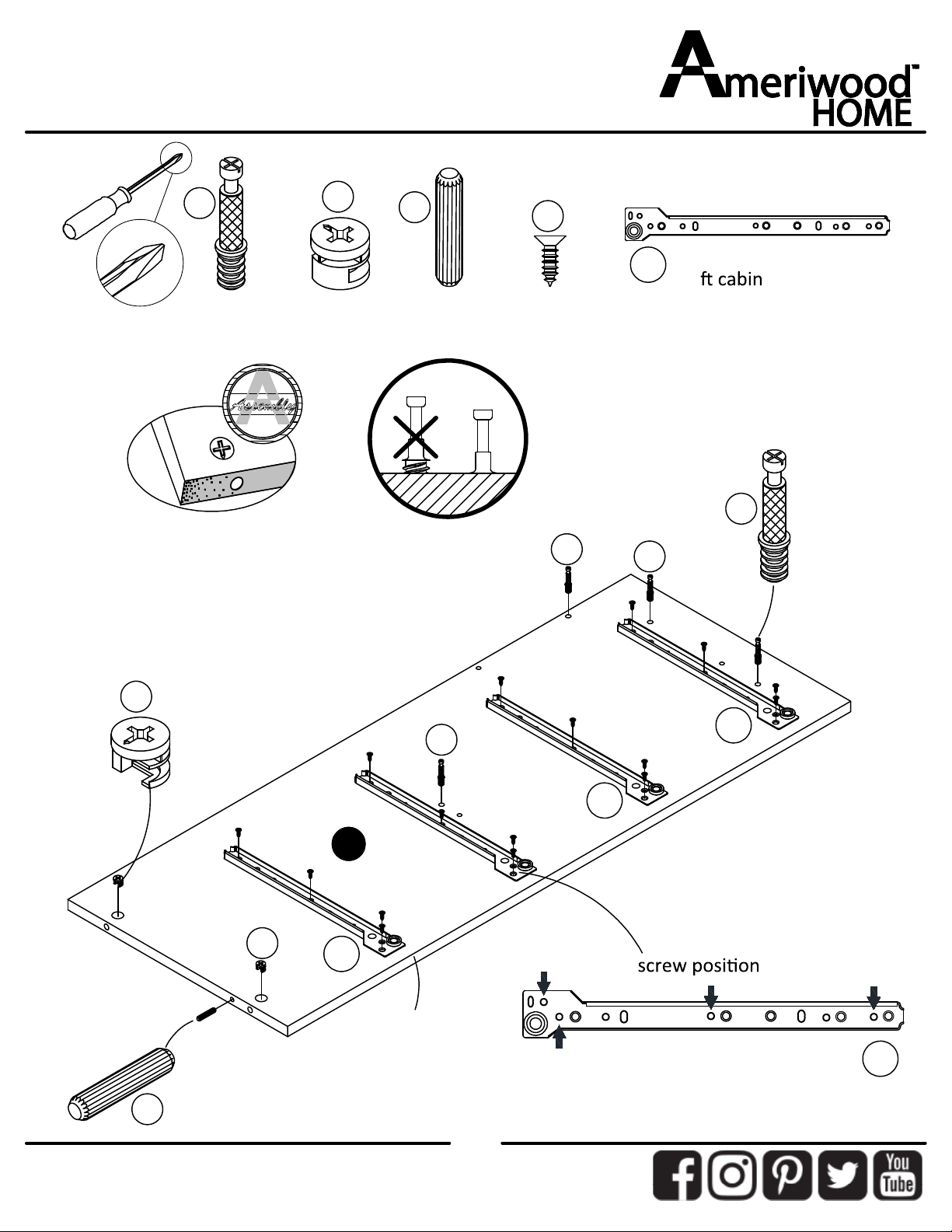

STEP 4

124

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x4)

TMP5101

(x2)

TMP5007

(x1)

TMP8002

(x16)

TMP11080

(x4)

TMP56740

right cabinet member

mark with a "CR"

ﬁnished edge

10b

screw posion
