Ameriwood HOME 5206412COM Manuel utilisateur

5206412COM

Microwave Cart

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B345206412COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

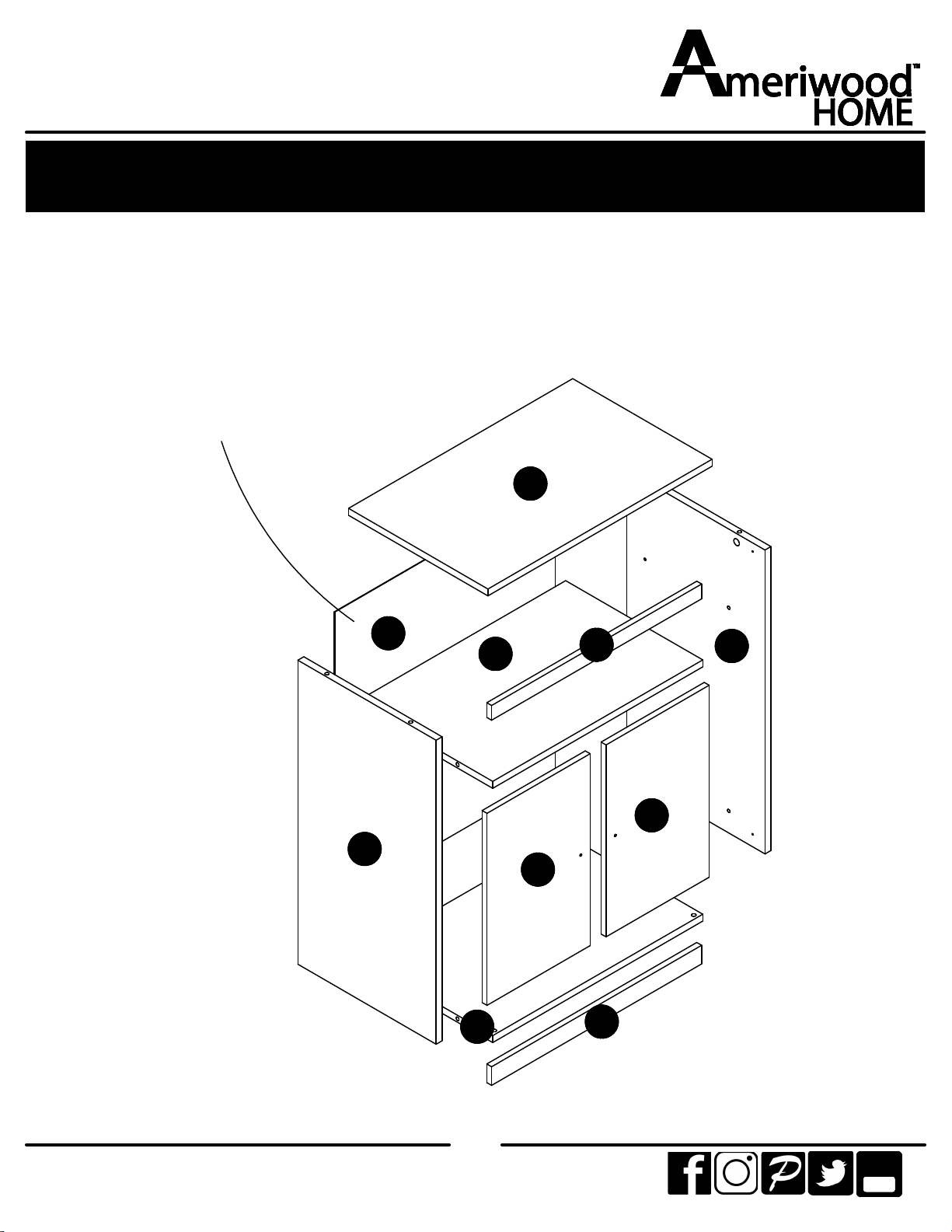

Assembly

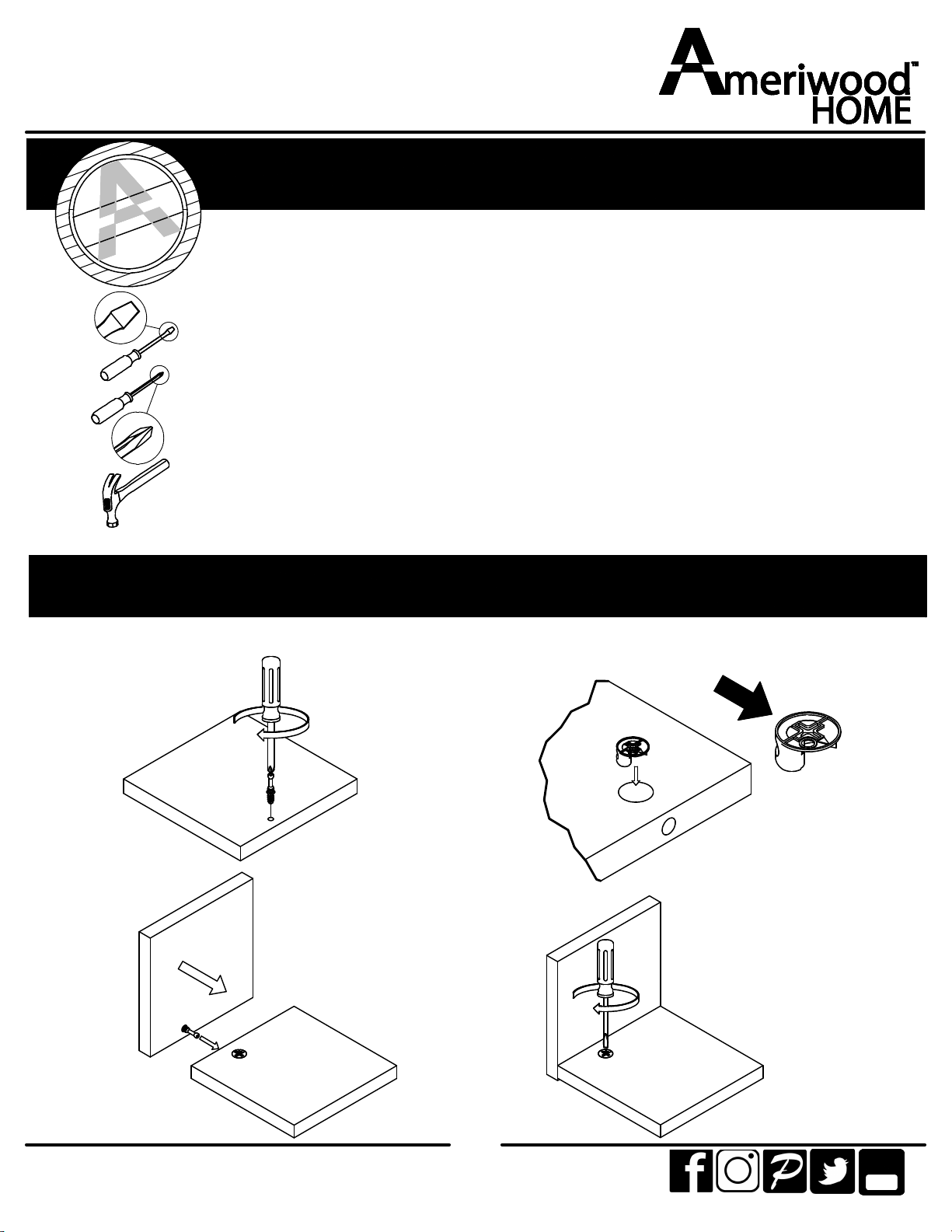

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

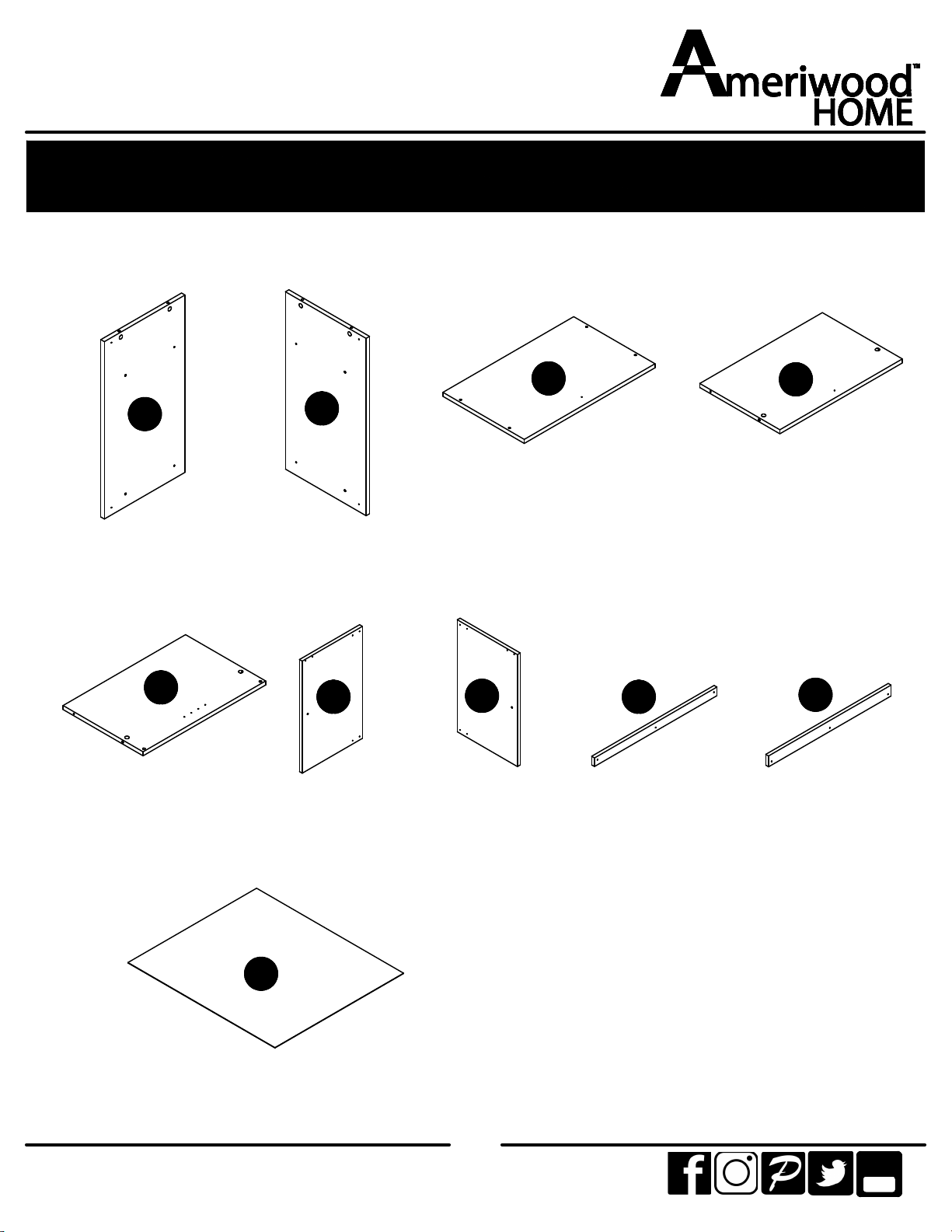

Board Identification

Not actual size

Tube

You

Left Panel

35206412011

Right Panel

35206412021

Top

35206412031

Bottom

35206412040

Left Door

35206412060

Right Door

35206412070

Shelf

35206412050

Top Rail

35206412080

Kick

35206412090

EFGH

Back Panel

K520641200

This piece is paperboard construction.

It is not made from wood, but is

required for the assembly of your unit.

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

This piece is paperboard construction.

It is not made from wood, but is

required for the assembly of your unit.

ameriwoodhome.com

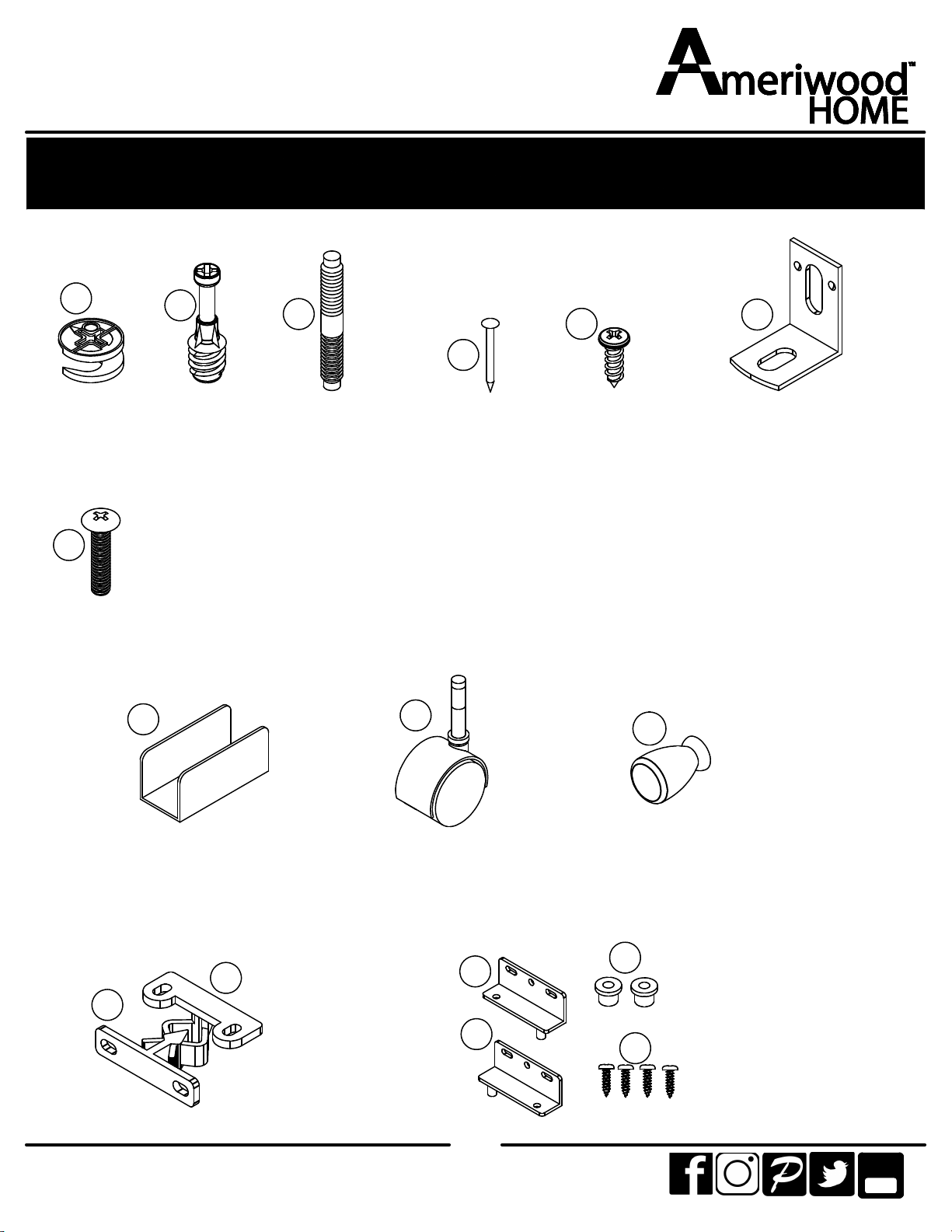

Part List

Actual Size

Tube

You

Not Actual Size

(x4)

#A21520

compression dowel

(x8)

#A22610

cam bolt

(x8)

#A22620

cam lock

(x22)

#A21110

nail

(x20)

#A12210

1/2" screw

(x6)

A53600

angle bracket

123

(x2)

#A17300

3/4" bolt

11b

11a

12b

12a

(x4)

#A42850

caster clip

(x4)

#A42000

caster

(x2)

#A52370

knob

(x2)

#A30030

catch

12c

12d

(x2)

#A61000

hinge kit

8910

ameriwoodhome.com

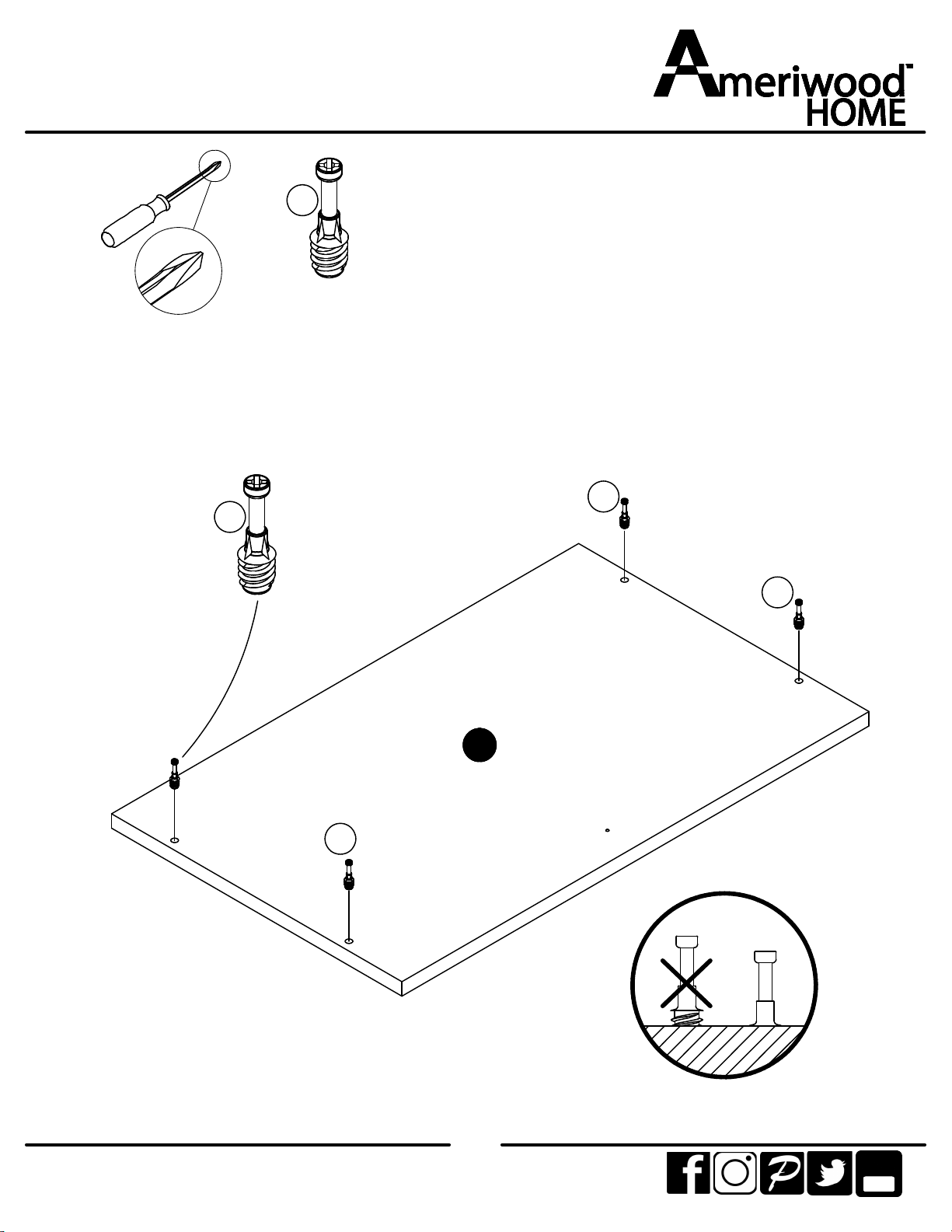

STEP1

Tube

You

(x4)

#A22620

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x4)

#A22610

finished edge

ameriwoodhome.com

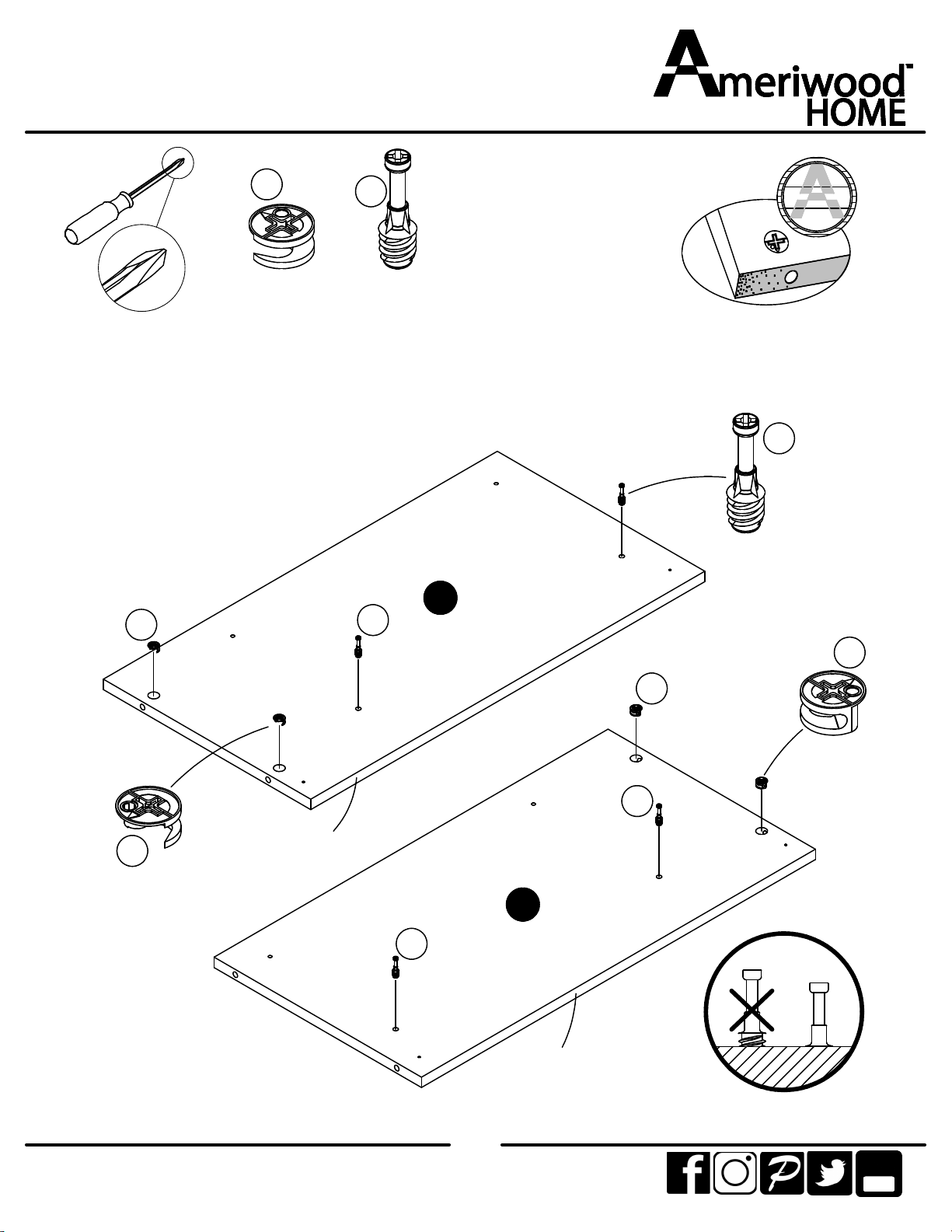

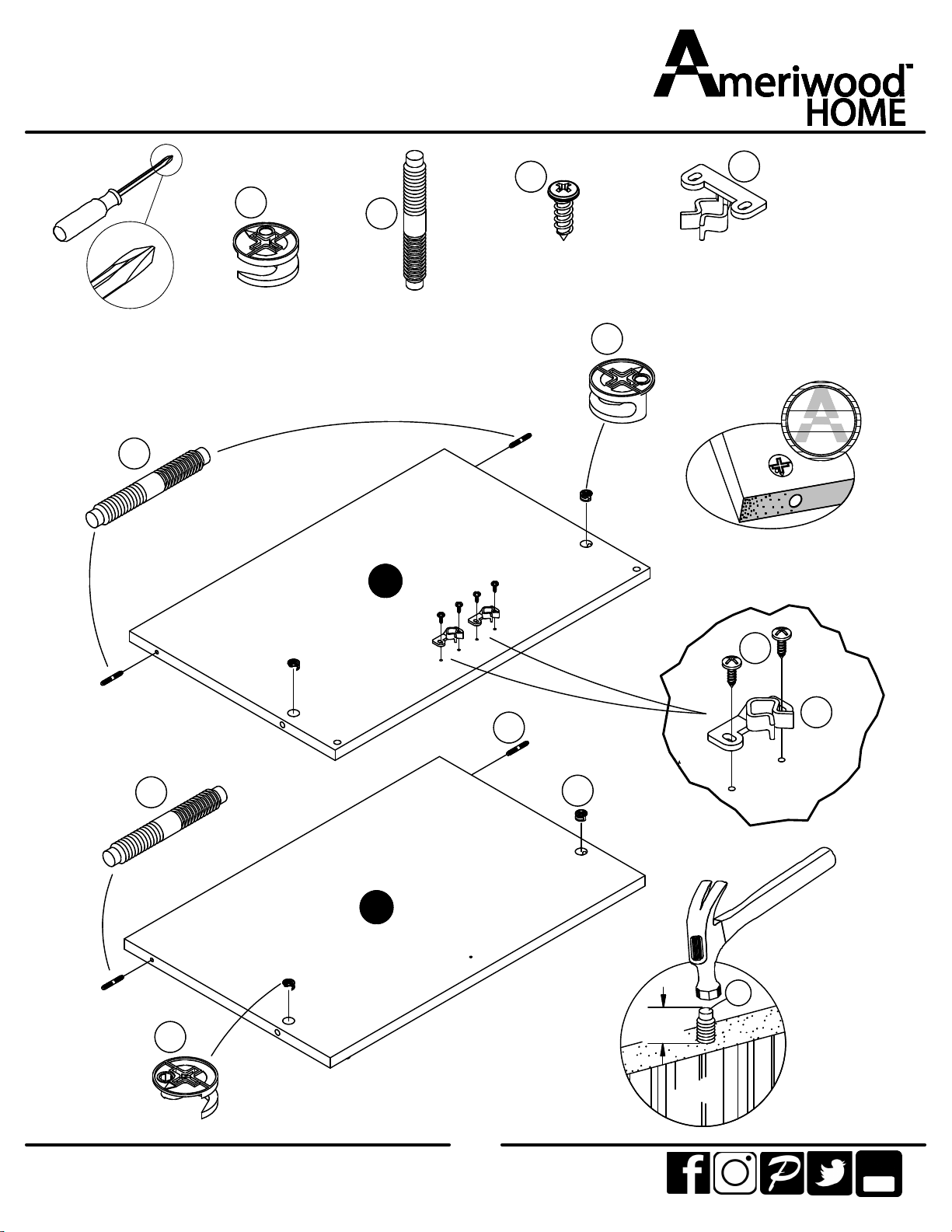

STEP2

Tube

You

11a

(x4)

#A22620

(x4)

#A21520

(x4)

#A12210

(x2)

#A30030

11a

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Approx.

7/16"

ameriwoodhome.com

STEP3

Tube

You

(x4)

#A22610

ameriwoodhome.com

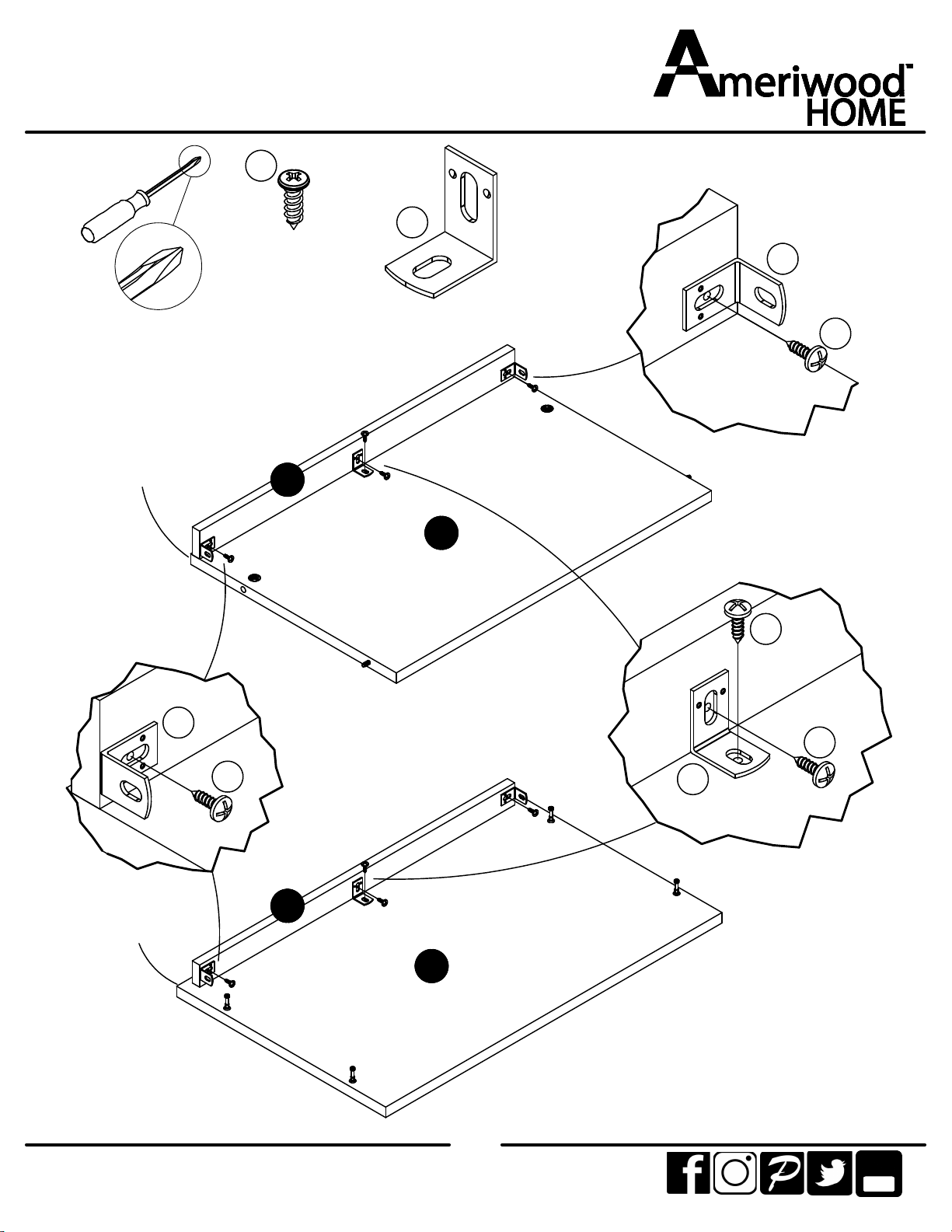

STEP4

Tube

You

(x8)

#A12210

(x6)

A53600

finished edge
