Ameriwood HOME 5894325COM Manuel utilisateur

- Anchor unit to stud in wall

- Do Not allow children to climb on unit

- Put heavy items on lower shelves or drawers

- Two people required for assembly

Unit can p over causing severe injury or death.

Keep this Assembly Manual for future reference ameriwoodhome.com

WARNING

Follow Ameriwood Home

Tube

You

B345894325COM00

5894325COM

River Layne Nightstand

Warning

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help.

Call us!

1-800-489-3351

Monday-Friday

9am- 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R(right) andL (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Tube

You

Tube

You

ameriwoodhome.com

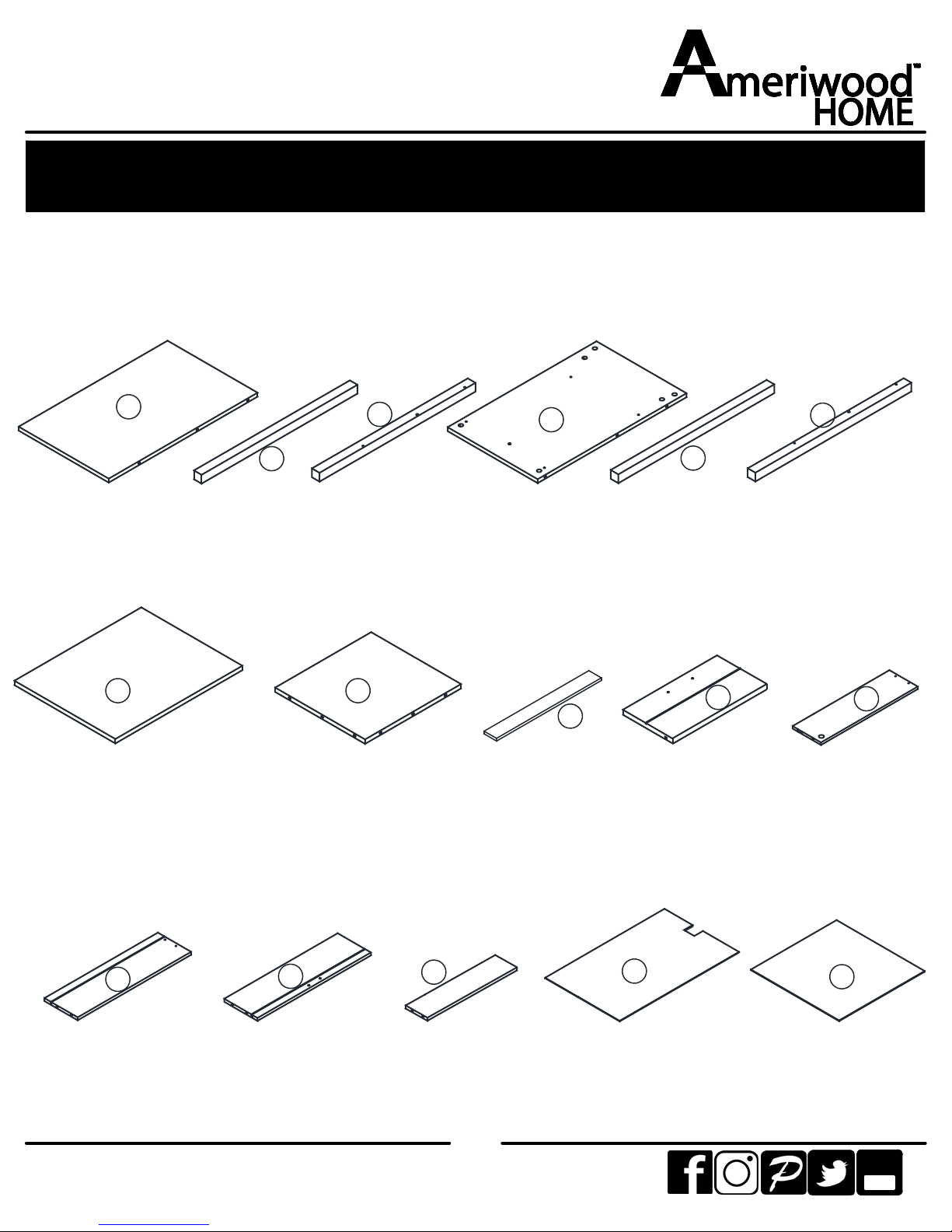

Board Idenﬁcaon

Not actual size

Tube

You

Side Panel Le

T5894325010

Front Le Proﬁle

T5894325020

Back Le Proﬁle

T5894325030

Side Panel Right

T5894325040

Front Right Proﬁle

T5894325050

Back Right Proﬁle

T5894325060

Top Panel

Drawer Side Right

T5894325070

Boom Panel

T5894325080

Boom Front Bar

T5894325090

Drawer Front

T5894325100

Drawer Side Le

T5894325110

T5894325120

Drawer Back Drawer Support Back Panel

T5894325130 T5894325140 T5894325150

Drawer Boom

T5894325160

A1 B1

EFG

5894325COM

River Layne Nightstand

ameriwoodhome.com

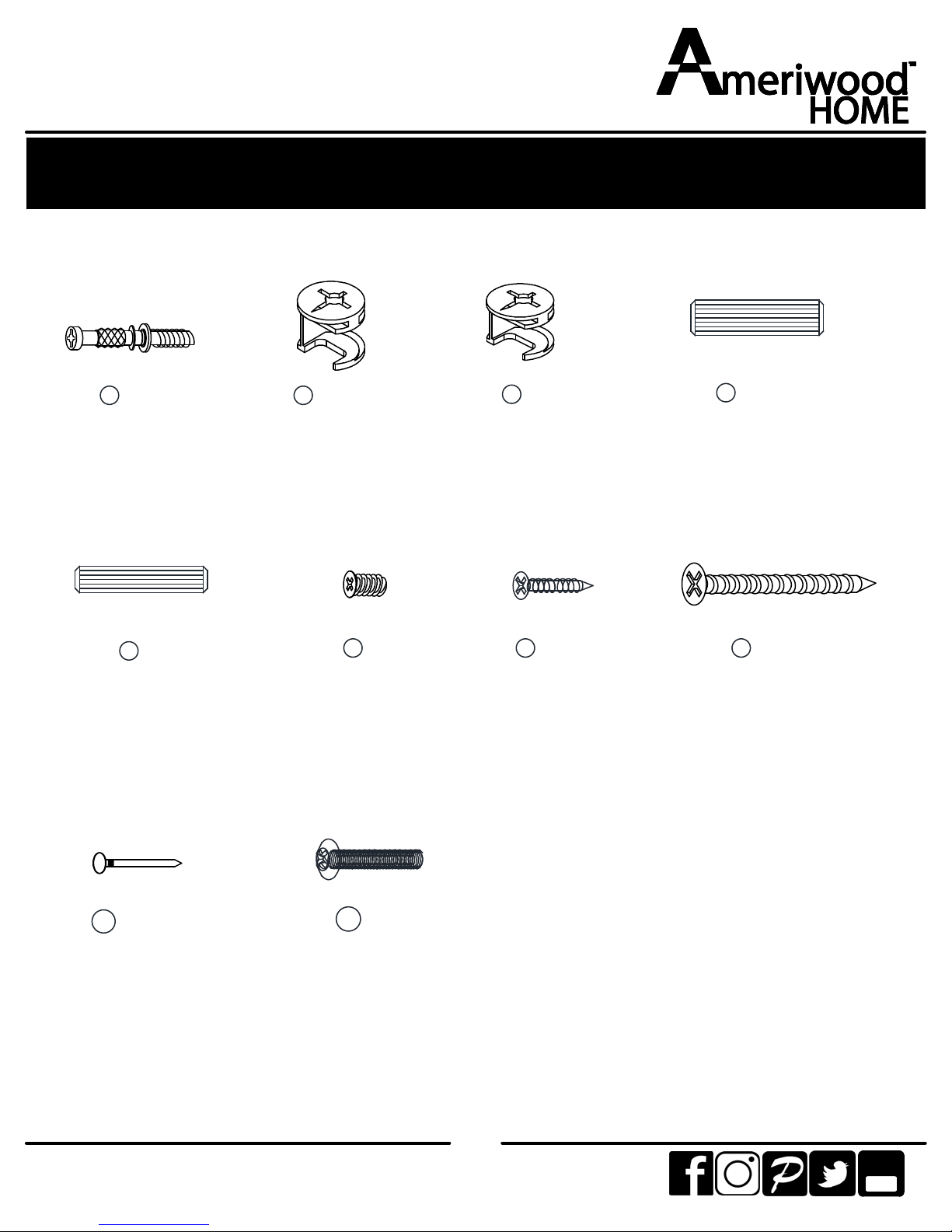

Part List

Actual Size

Tube

You

Miniﬁx Bolt

TPB0001

Cam (13/15)

TPB0002

1 x20

2 x18

Cam (9/12)

TPB0003

3 x2

Ø8x30mm

Wood Dowel

TPB0004

4 x9

Ø6x30mm

Wood Dowel

TPB0005

5 x6

Euro Screw

TPB0006

6 x4

Csk Screw

TPB0007

7 x8

Ø4.7x38mm

Csk Screw

TPB0008

8 x4

Nail Pin

TPB0010

10 x20

Ø6x9mm Ø3.5x15mm

5894325COM

River Layne Nightstand

handle Screw

TPB0024

24 x2

ameriwoodhome.com

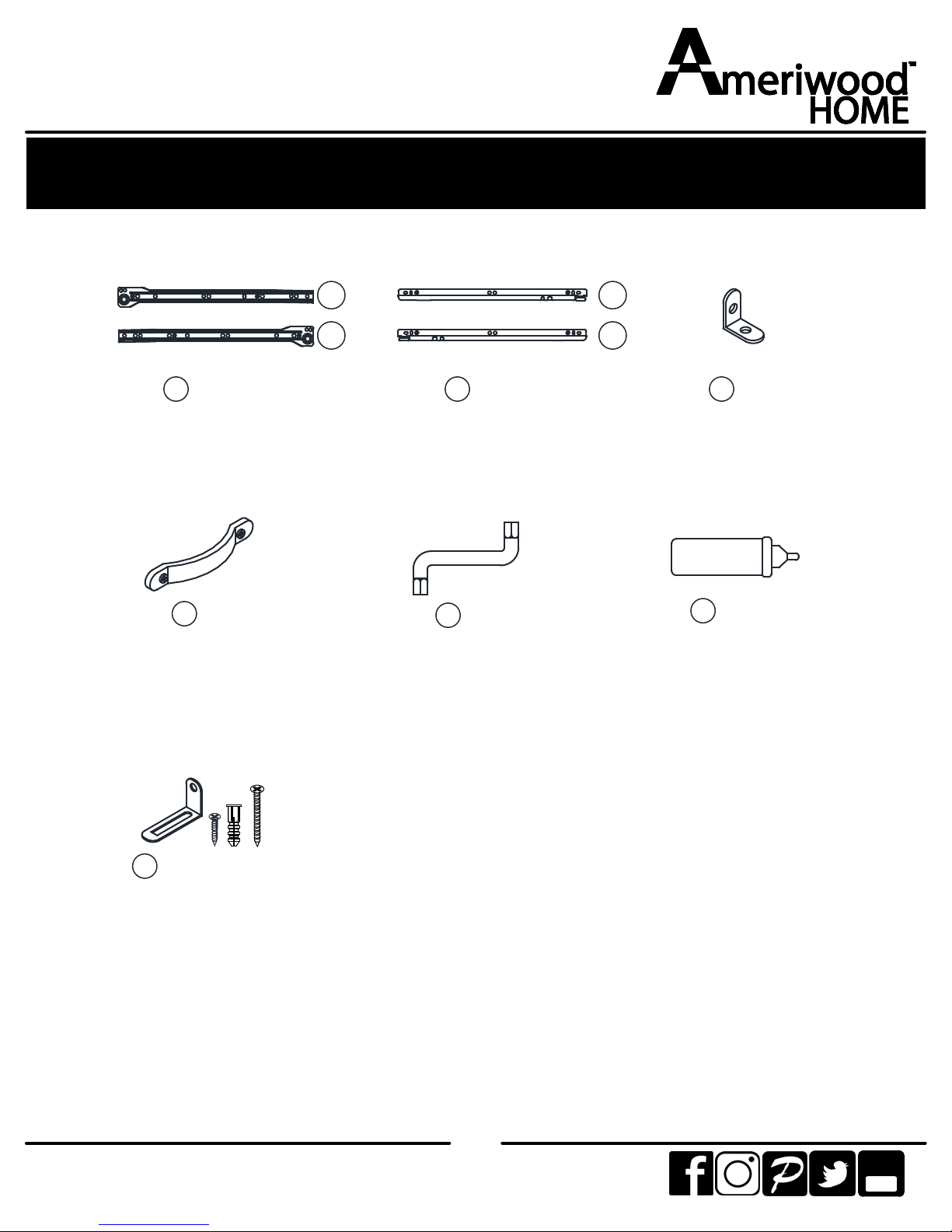

Part List

Tube

You

Not Actual Size

Drawer Slide (350mm)

TPB0011

11 x1set

(350mm)

Drawer Slide (350mm)

TPB0012

12 x1set

(350mm)

Metal L-Bracket

TPB0013

13 x2

(2mm)

Handle

TPB0023

23 x1

Allen Key

TPB0015

15 x1

Glue

TPB0016

16 x1

L-Mounng Bracket

TPB0017

17 x1set

5894325COM

River Layne Nightstand

ameriwoodhome.com

Before You Start



Quick

Tip

Assembly



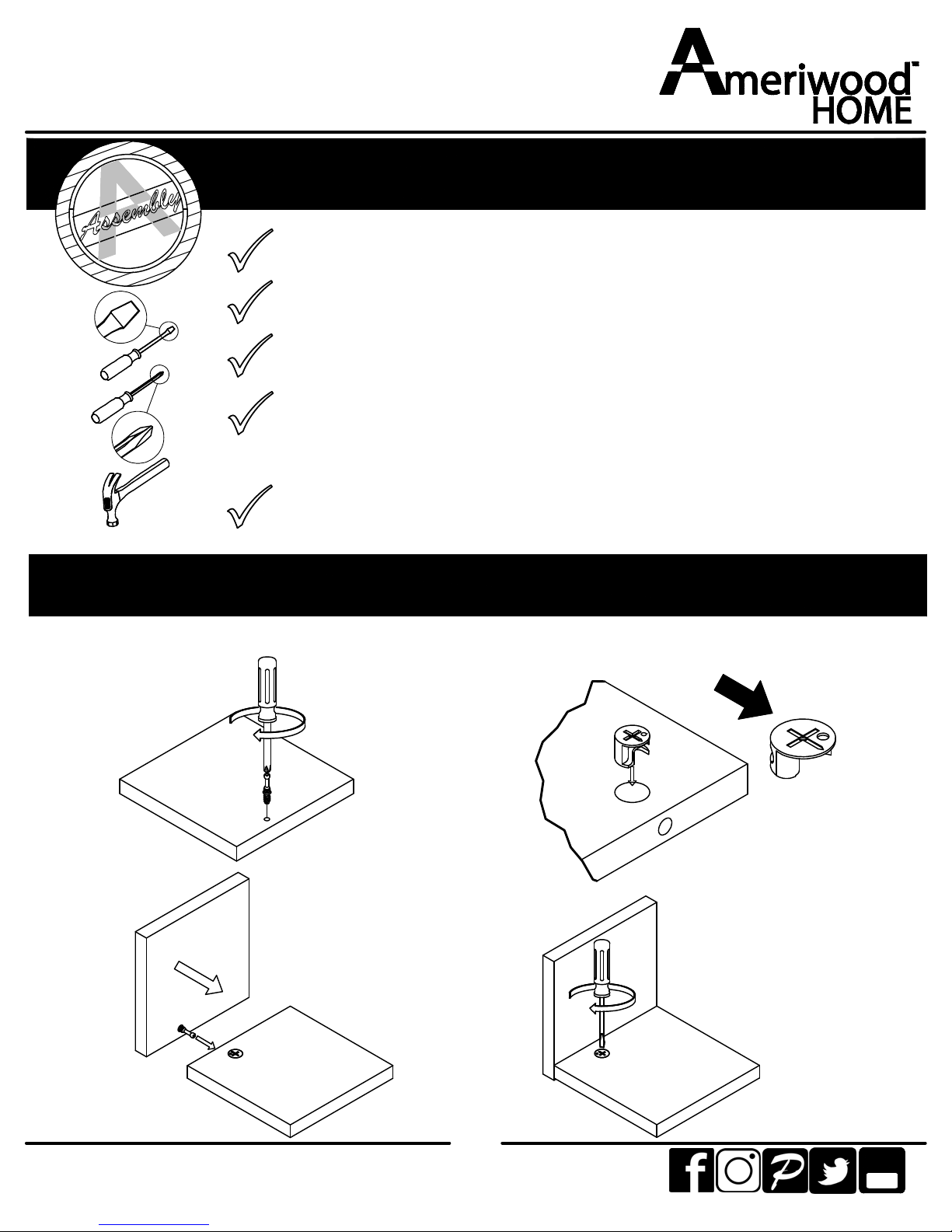

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.



5894325COM

River Layne Nightstand

ameriwoodhome.com

* Raw edges are shaded

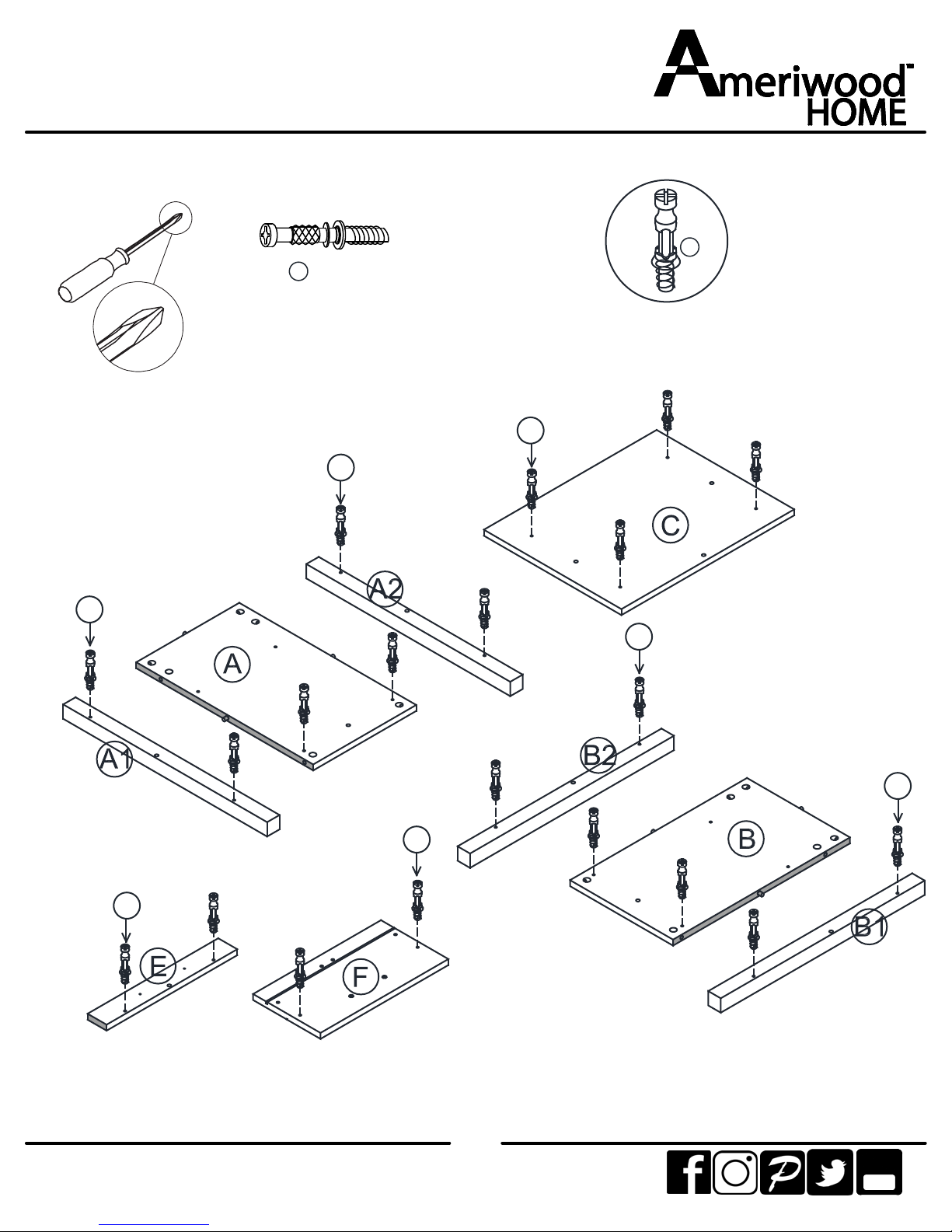

Step 1

Tube

You

Ø8x30

TPB0004

4 x9

5894325COM

River Layne Nightstand

Glue

Pegamento

Colle

ameriwoodhome.com

* Raw edges are shaded

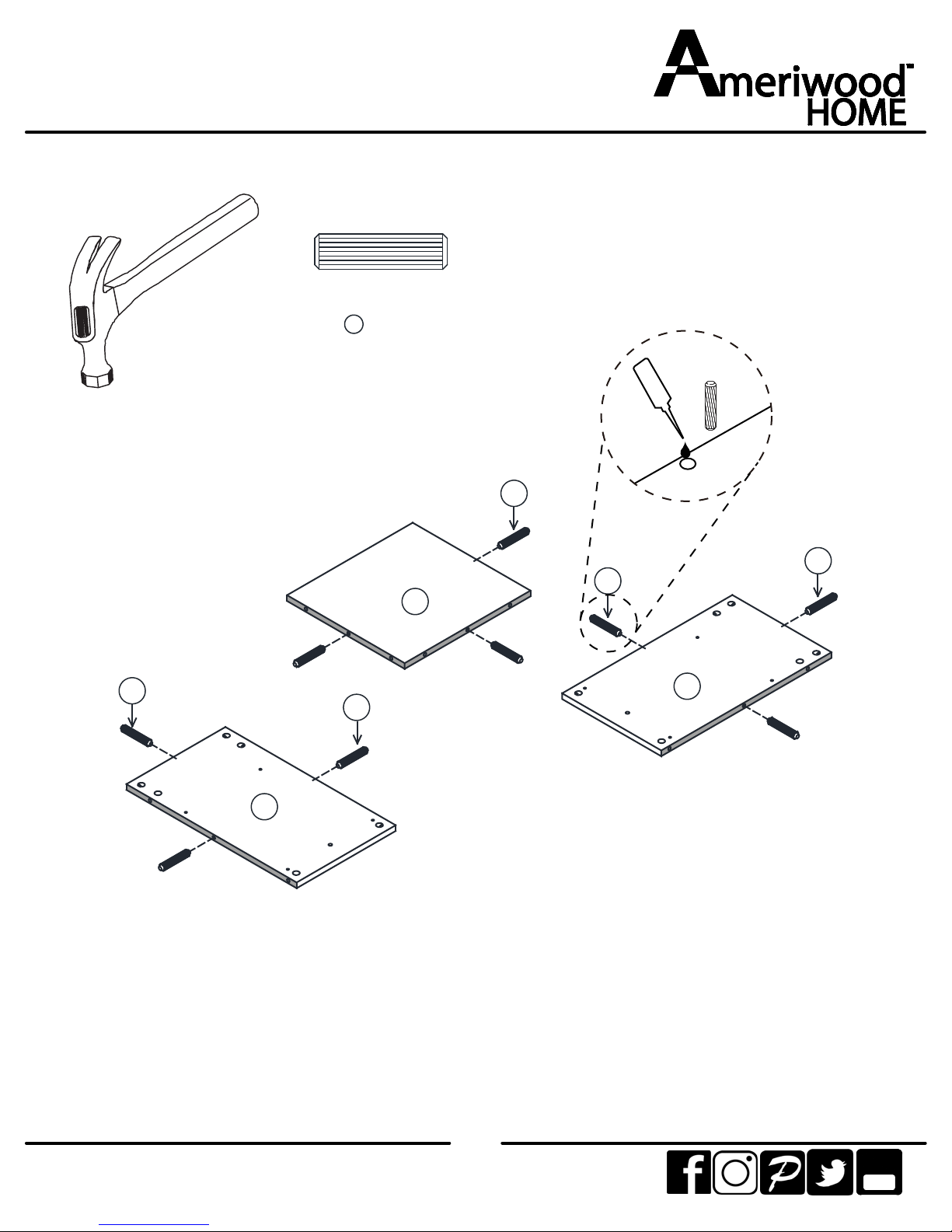

Step 2

Tube

You

Ø6x30

TPB0005

5 x6

5894325COM

River Layne Nightstand

Glue

Pegamento

Colle

ameriwoodhome.com

* Raw edges are shaded

Step 3

Tube

You

TPB0001

1 x20

5894325COM

River Layne Nightstand

Do not over ghten

No lo presione tanto

ne pas serrer excesslvement

ameriwoodhome.com

* Raw edges are shaded

Step 4

Tube

You

5894325COM

River Layne Nightstand

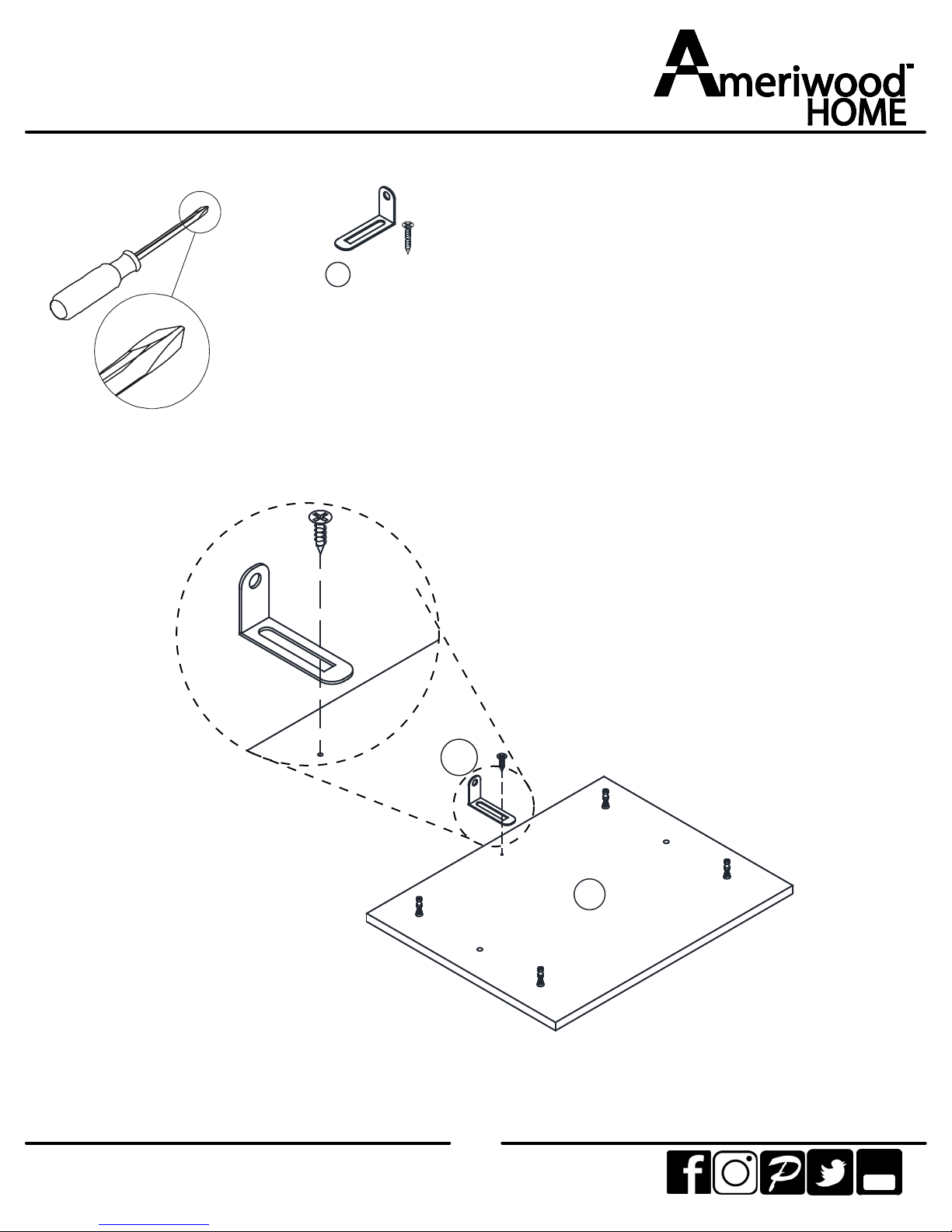

TPB0017

17 x1

Do not fully tighten screw.
