Ameriwood HOME Hall Tree 4516213COM Manuel utilisateur

4516213COM

Hall Tree

B344516213COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Assembly Difficulty Meter

Easy Tough

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 2+ HOURS

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not actual size

Hutch Front Apron

34516213050

Hutch Left Back Panel

34516213060

Hutch Left Panel

34516213020

MNOP

Hutch Top

34516213010

Hutch Right Panel

34516213030

Hutch Hook Panel

34516213040

Hutch Right Back Panel

34516213070

Hutch Rail

34516213080

Hutch Stile (2)

34516213090

Hutch Stile Center

34516213100 Hutch Angle Rail A

34516213110

Hutch Angle Rail B

34516213120

Bench Top

34516213130

Bench Bottom

34516213140

Left Panel

34516213150

Right Panel

34516213160

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Front Leg Left

34516213170

Front Leg Right

34516213180

Rear Leg Left

34516213190

Rear Leg Right

34516213200

Bench Front Molding

34516213210

Bench Upper Side Molding (2)

34516213220

Bench Lower Side Molding (2)

34516213230

Bench Angle Rail Left

34516213240

Bench Angle Rail Right

34516213250

Partition

34516213260

Bench Back Panel

K541621300

This piece is paperboard construction.

It is not made from wood, but is

required for the assembly of your unit.

Partition

34516213270

ameriwoodhome.com

Board Identification

Not actual size

This piece is paperboard

construction. It is not made

from wood, but is required for

the assembly of your unit.

ameriwoodhome.com

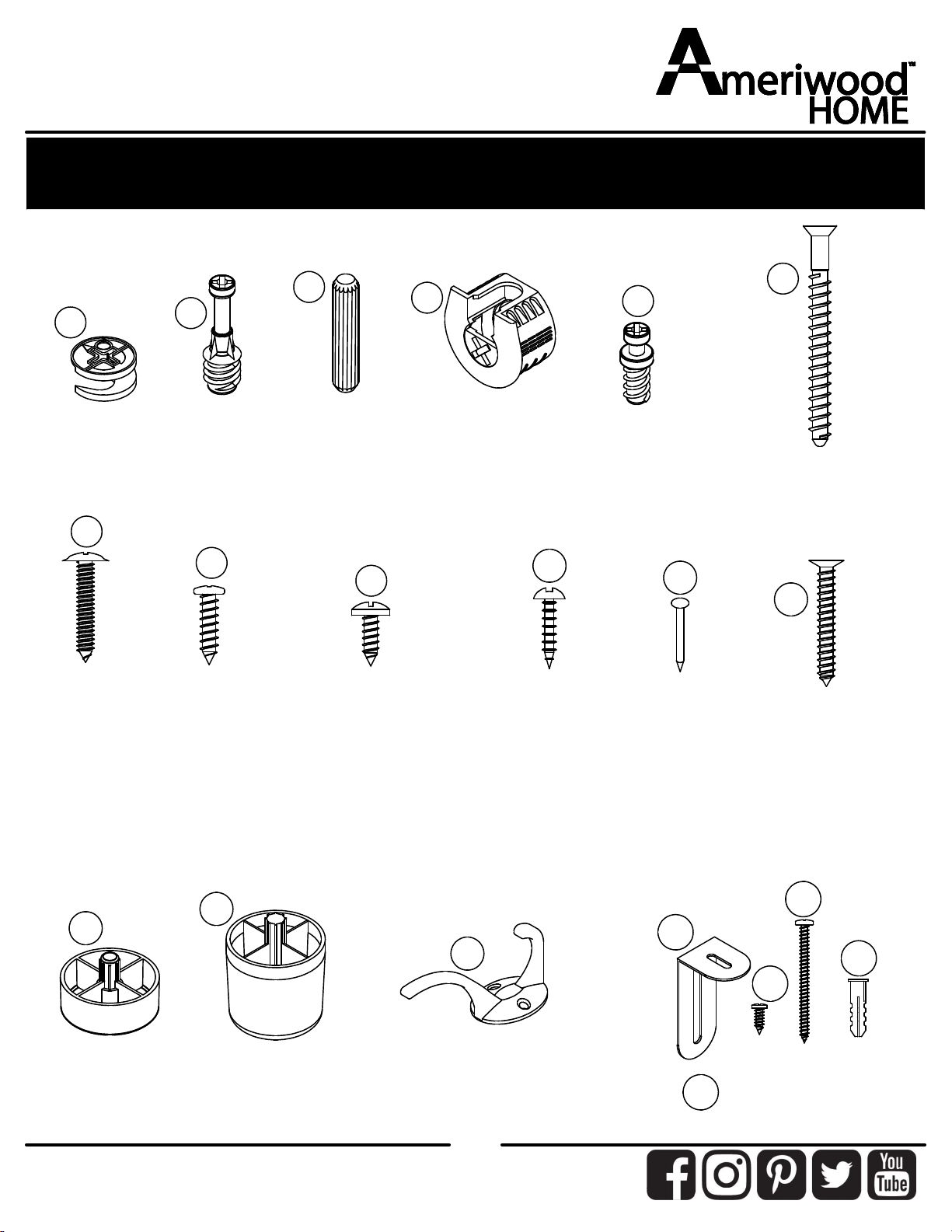

Part List

Actual Size

(x18)

#A22620

cam lock

910

(x18)

#A22610

cam bol8

(x13)

#A21660

wood dowel

(x14)

#A22910

connector bolt

(x8)

#A12120

#8 x 7/16 screw

(x14)

#A22920

connector

(x6)

#A23030

confirmat screw

(x12)

#A12840

#8 x 1 screw

(x38)

#A12420

#8 x 5/8 screw

(x8)

#A11170

#6 x 5/8 screw

14d

14a

14b

14c

#A84050

safety bracket kit

(x4)

#A83140

double hook

(x1)

#A43105

foot

(x1)

#A43490

spacer

Not Actual Size

11 12

14a

(x14)

#A21110

nail

(x4)

#A12950

#8 x 1-1/8 screw

ameriwoodhome.com

STEP1

(x2)

#A22620

(x2)

#A22610

(x2)

#A21660

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP2

(x2)

#A22620

(x2)

#A22610

(x2)

#A21660

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP3

(x4)

#A22620 (x2)

#A21660

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x4)

#A12950

finished edge

end view
