Ameriwood HOME 1816296COM Manuel utilisateur

1816296COM

Fireplace / TV Stand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B341816296COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

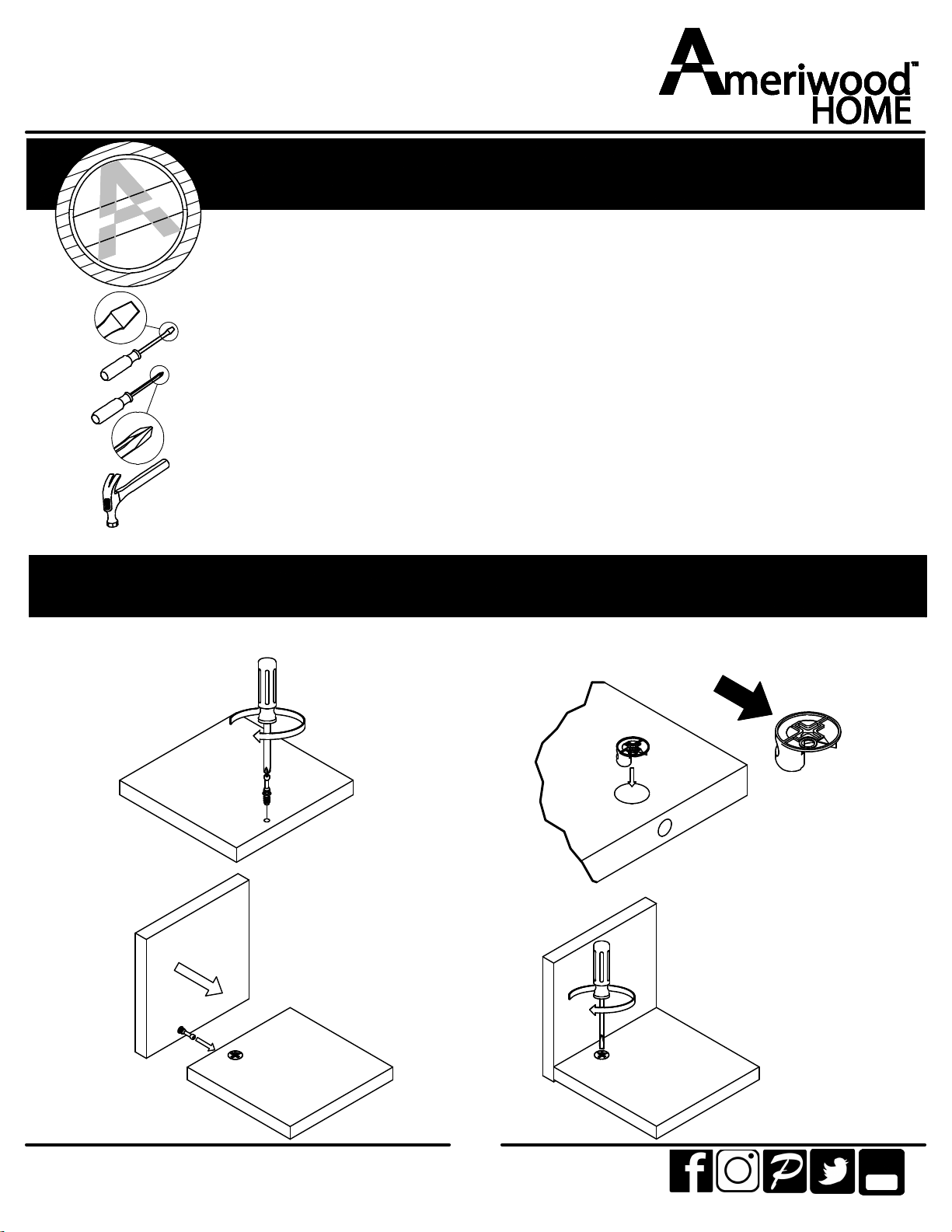

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

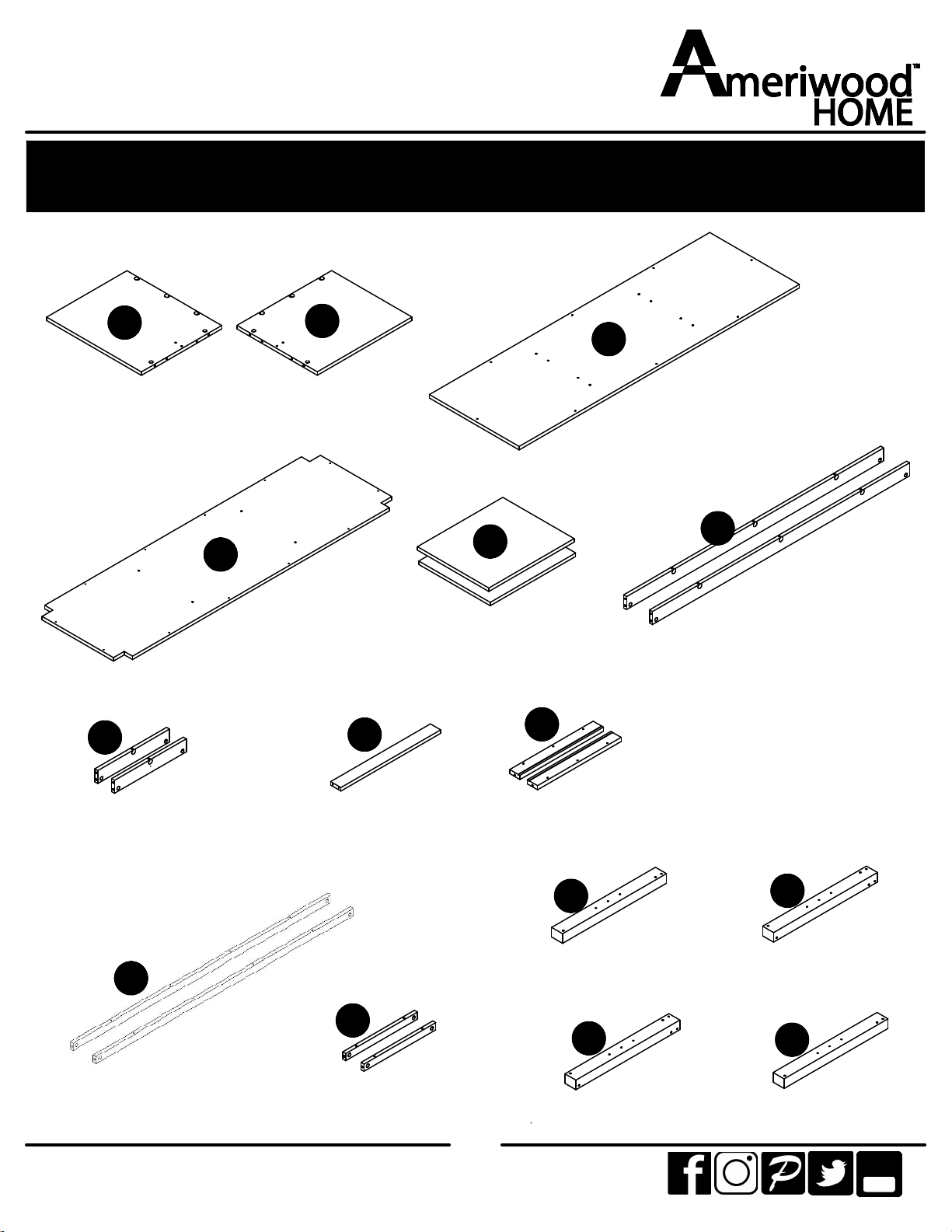

Board Identification

Not actual size

Tube

You

Left Partition

31816015010 Right Partition

31816015020 Top

31816015030

Bottom

31816015040

Adjustable Shelf (2)

31816015050

Upper Support (2)

31816015060

Upper Side Support (2)

31816015070

Center Support

31816015080

Vertical Rail (2)

31816015090

Bottom Rail (2)

31816015100

Bottom Side Rail (2)

31816015110

Left Front Leg

31816015120

Left Rear Leg

318163015130

ABC

DEF

Right Front Leg

31816015140

Right Rear Leg

31816015150

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

ameriwoodhome.com

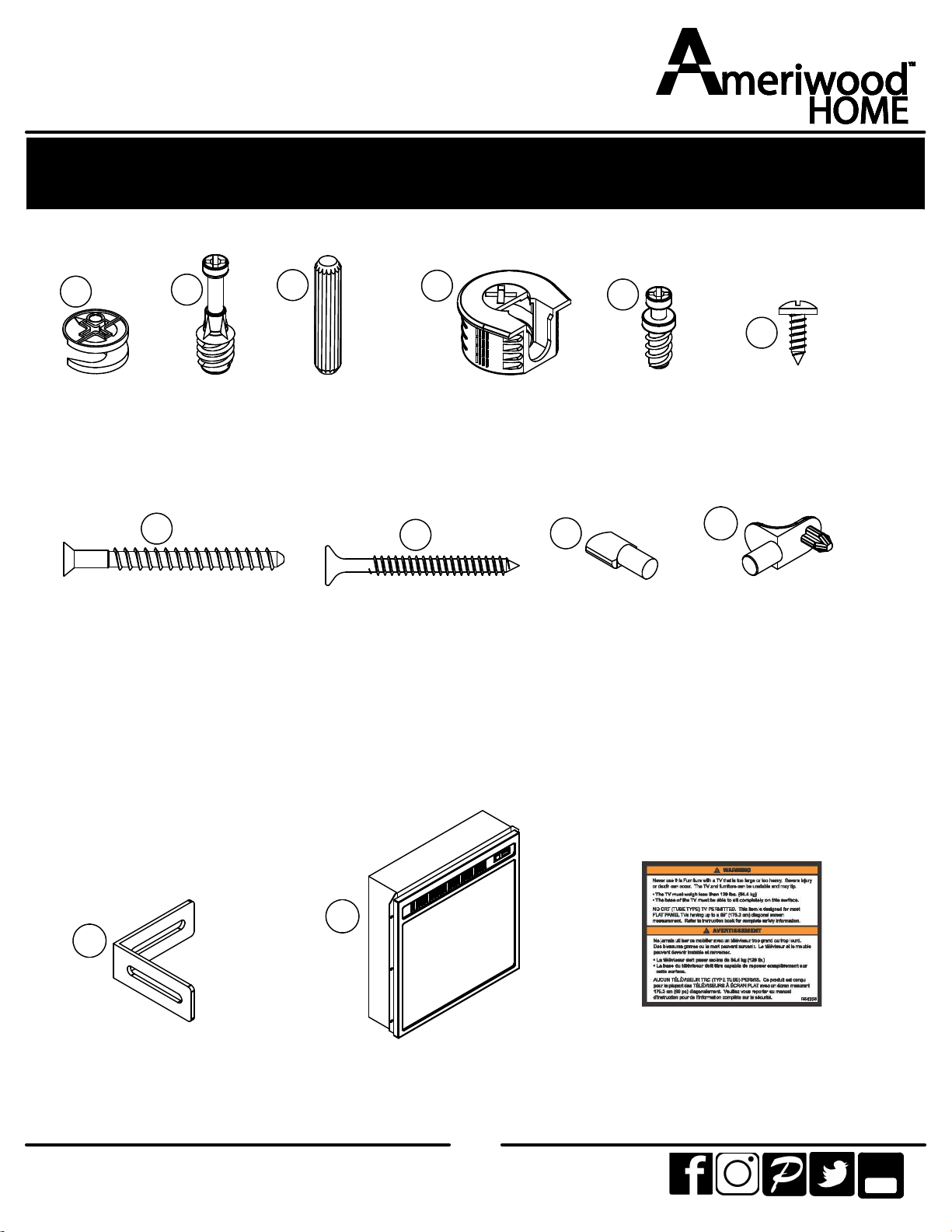

Part List

Actual Size

Tube

You

Not Actual Size

12345

(x20)

#A22620

cam lock

(x20)

#A22610

cam bolt

(x14)

#A21660

wood dowel

(x14)

#A22920

connector

(x14)

#A22910

connector bolt

(x7)

#A12120

7/16" screw

(x4)

#A80250

shelf support

(x8)

#A23030

confirmat screw

(x1)

#A53655

bracket

(x1)

#A95020

fireplace insert

(x12)

#A13410

1-3/4" screw

(x1)

#A64358

TV Warning Label

(x4)

#A80480

shelf support with pin

ameriwoodhome.com

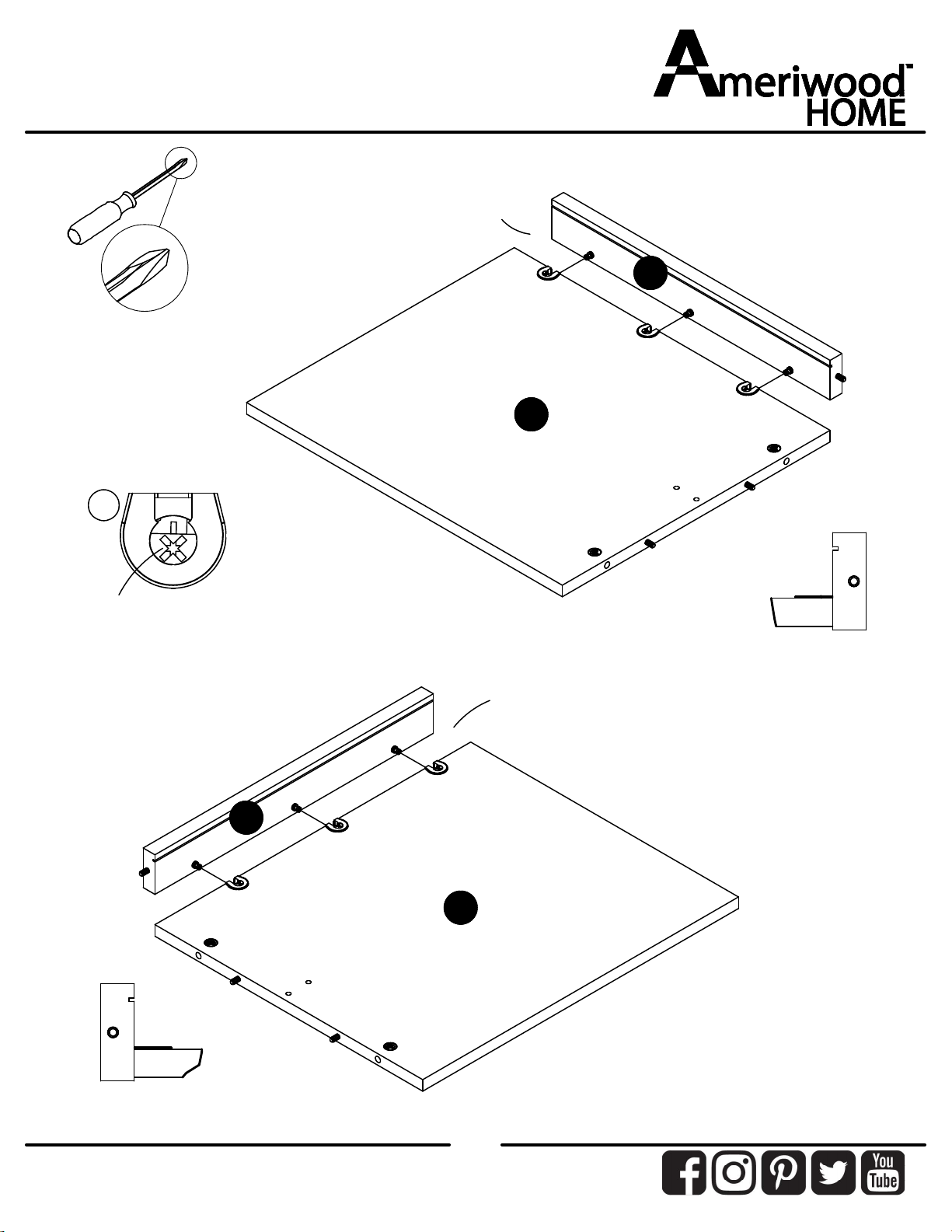

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

134

(x2)

#A22620

(x2)

#A21660 (x3)

#A22920

You will need to tap the connector (4)

with a hammer to fully insert. Be sure

the connector is positioned as shown

before tapping into hole.

ameriwoodhome.com

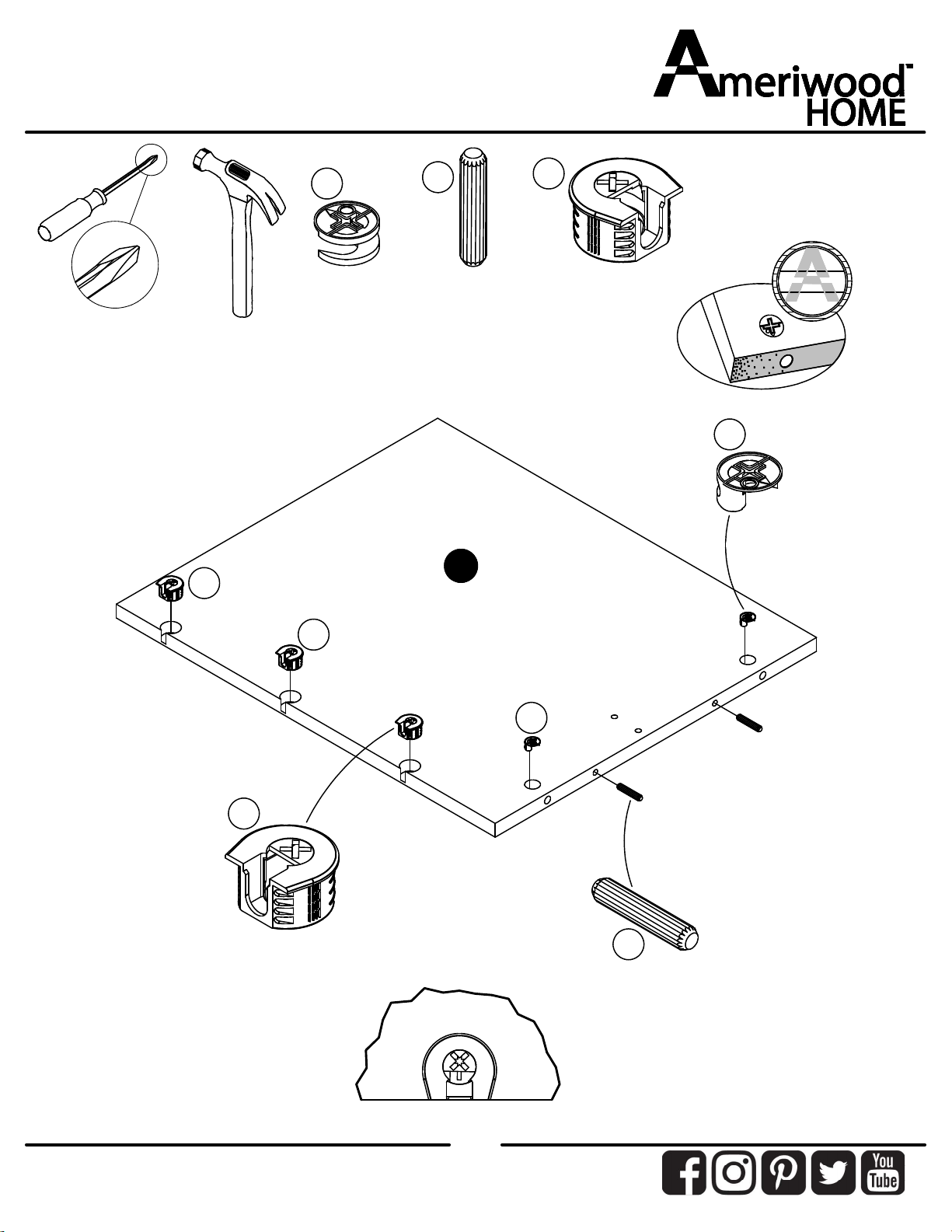

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

134

(x2)

#A22620

(x2)

#A21660 (x3)

#A22920

You will need to tap the connector (4)

with a hammer to fully insert. Be sure

the connector is positioned as shown

before tapping into hole.

ameriwoodhome.com

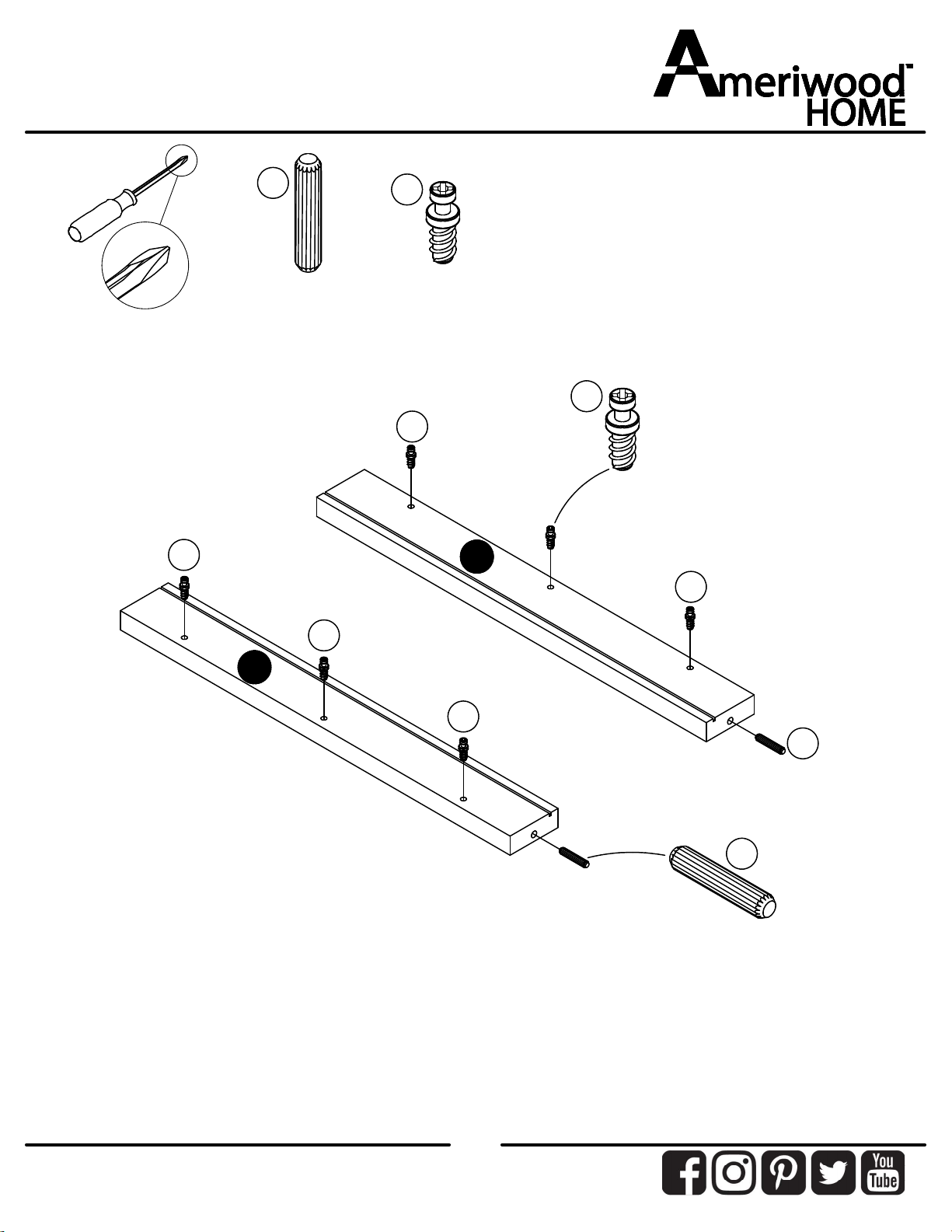

STEP3

(x2)

#A21660

(x6)

#A22910

ameriwoodhome.com

STEP4

Ends will be flush.

end view

Ends will be flush.

Turn screw clockwise

to lock in place.
