Ameriwood HOME 2595342COM Manuel utilisateur

2595342COM

Storage Cabinet

B342595342COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press parts together so CAM BOLT inserts

into edge hole.

Press CAM BOLT into hole. Press CAM LOCK into hole.

End hole

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Arrow to point towards end

hole in edge of part.

ameriwoodhome.com

Before You Start

Quick

Assembly

Tip

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

ameriwoodhome.com

Board Identification

Not actual size

Left Panel

32595342010

Right Panel

32595342020

Top

32595342030

Bottom

32595342040

Adjustable Shelf

32595342050

Shelf Rail (x2)

32595342060

Lower Rail (x2)

32595342070

Side Rail (x2)

32595342080

Left Front Leg

32595342090 Left Rear Leg

32595342100

ameriwoodhome.com

Board Identification

Not actual size

Right Front Leg

32595342110

Right Rear Leg

32595342120

Door Assembly (x2)

32595342130

This piece is paperboard

construction. It is not made

from wood, but is required for

the assembly of your unit.

Back Panel

K259534200

ameriwoodhome.com

Part List

Actual Size

(x8)

#A22700

cam lock

(x8)

#A22710

cam bolt

(x12)

#A21670

wood dowel

(x4)

#A80250

shelf support

(x12)

#A12120

#8 x 7/16" pan

(x4)

#A17400

7/8" bolt

(x14)

#A22760

quick lock

(x16)

#A21110

nail

(x2)

#A11170

#6 x 5/8" pan

(x2)

#A89020

support pin

(x12)

#A22790

locking bolt

For this unit we provide extra hardware.

Please be aware that you will not use all the hardware provided.

(x12)

#A22795

locking sleeve

(x1)

#A84050

safety kit

13 14

(x1)

#A23220

torx hex key

ameriwoodhome.com

(x4)

#A65640

euro hinge

(x2)

#A51715

handle

Not Actual Size

This piece is paperboard

construction. It is not made

from wood, but is required for

the assembly of your unit.

Hammer Block

(Piece of wood to use

to attach legs)

Part List

ameriwoodhome.com

STEP1

(x12)

(x1)

ameriwoodhome.com

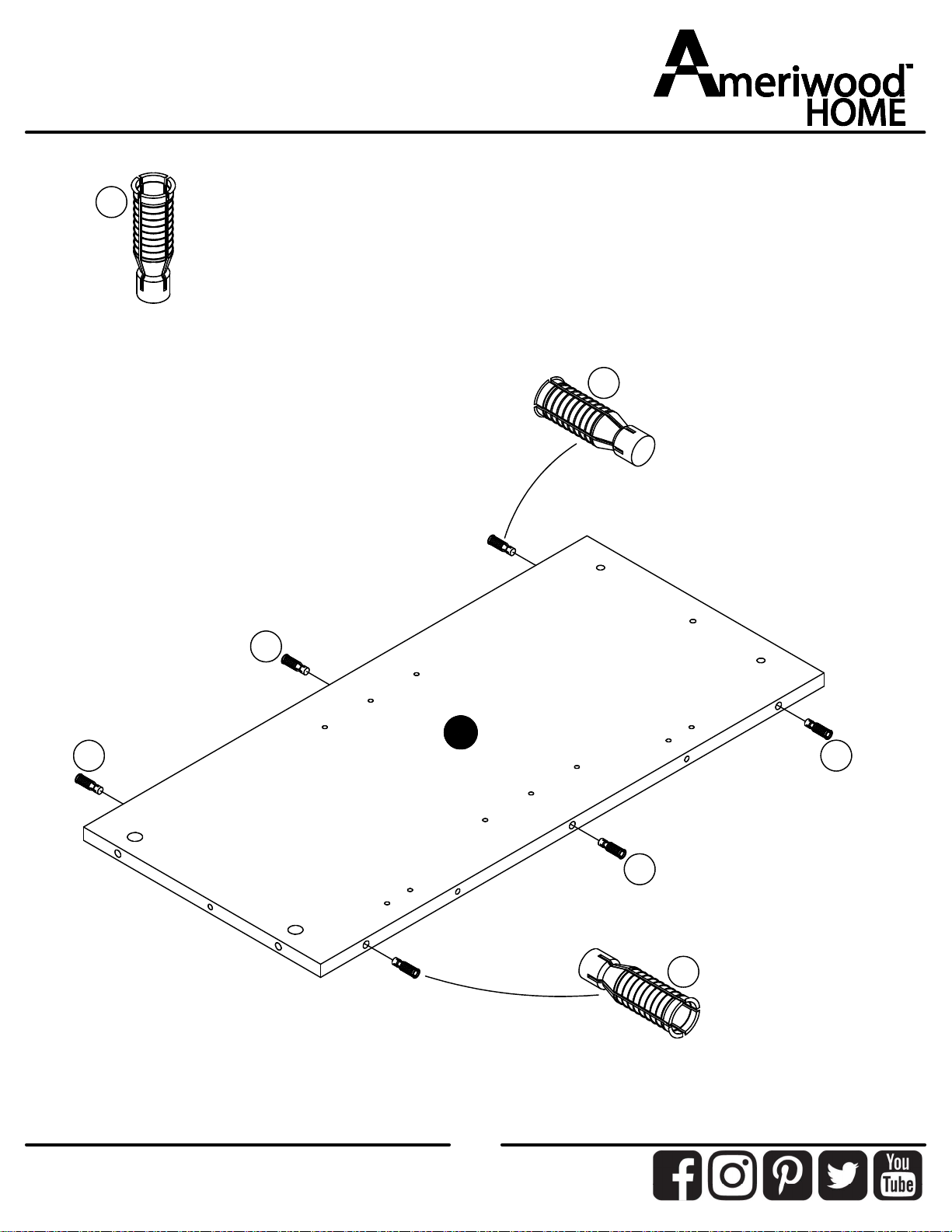

STEP2

(x6)

Press locking sleeves (8) into edge holes as shown.
