Ameriwood HOME 9985013COM Manuel utilisateur

9985013COM

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B349985013COM00MHT

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Accent Cabinet w/Glass - White

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 0.5-1.0 HOUR

Helpful Hints

ameriwoodhome.com

Quick

Tip

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

Tube

You

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Cam Lock Fastening System

Board Identification

Tube

You

Table top

T9985013010MHT

ameriwoodhome.com

Bottom panel

T9985013020MHT

Door

T9985013030MHT

Lefl side panel

T9985013040MHT

Back panel

T9985013060MHT

Adjustable shelf

T9985013070MHT

Leg

T9985013080MHT

X 2

X 4

Right side panel

T9985013050MHT

Board Identification

Tube

You

ameriwoodhome.com

Part List

ameriwoodhome.com

Tube

You

Hardware Bag Reference Number:

29985013COM0MHT

6 X 35 mm

Cam Bolt

TMHT0001

15 X 11 mm

TMHT0002

Cam Lock

8 X 30 mm

Wood Dowel

TMHT0003

X 8 X 8 X 8

3 X 15 mm

8X 6

4 X 15 mm

7X 20

4 X 15 mm

Wood Screw

TMHT0021

X 24 10

Hinges

TMHT0022

TMHT0024

Metal Knob

Magnet catcher

TMHT0023

X 4 X 2X 1

4 X 57 mm

Allen Wrench

TMHT0004

X 1

7 X 16 mm

6X 4

Bolt

TMHT0007

X 2

Not Actual Size

Shelf pin

TMHT0010

Wood screw

TMHT0016

Wood screw

TMHT0020

ameriwoodhome.com

STEP

Tube

You

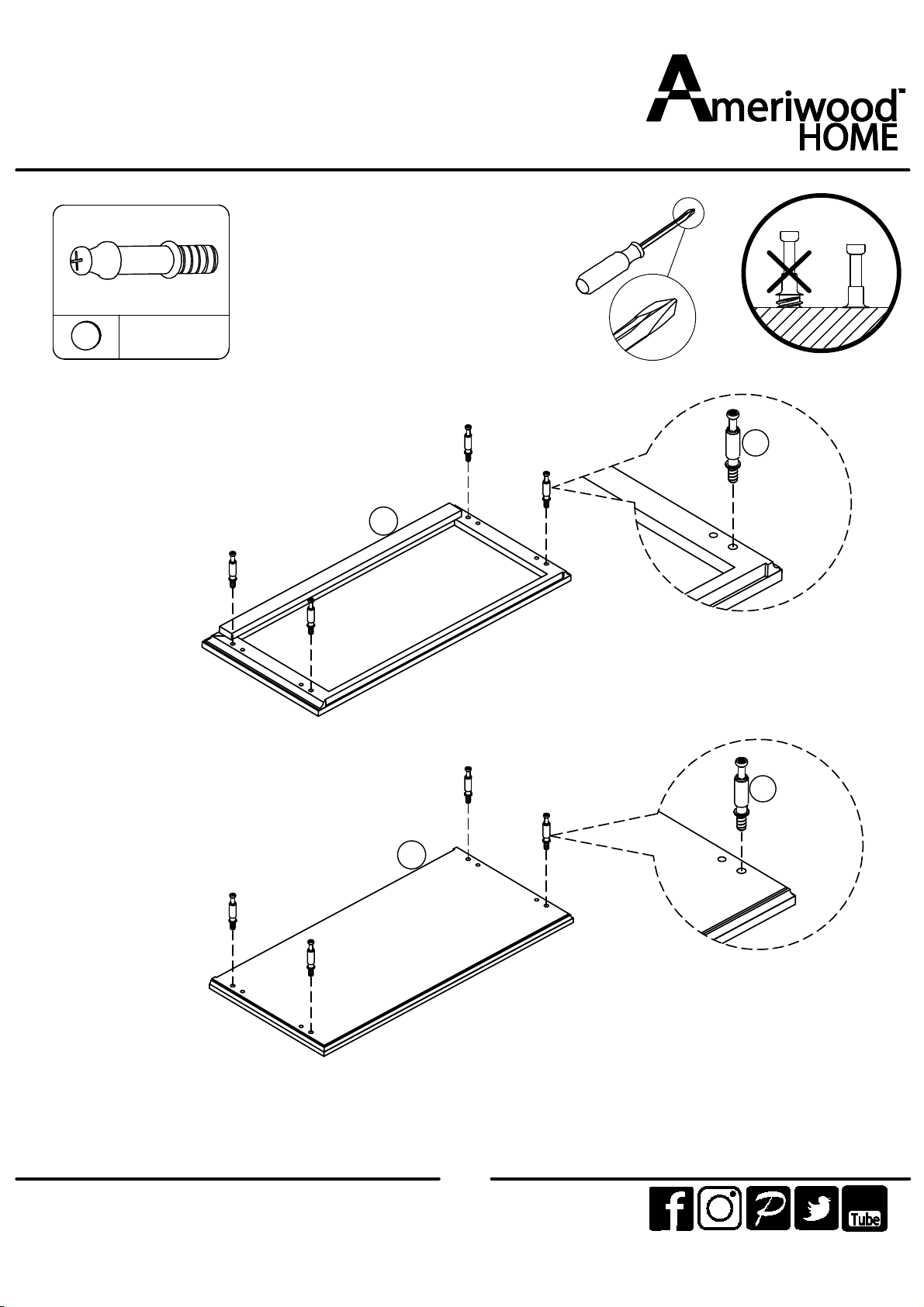

1.1 Attach (1) to (A), (B) as illustrated.

× 8

STEP 1

ameriwoodhome.com

STEP 2

Tube

You

× 8

3× 8

2.1 Attach (D) & (E) to (A), (B) with (2), (3) as illustrated.

ameriwoodhome.com

STEP

Tube

You

3.1 Attach (H) to (B) as illustrated.

Caution: Do NOT over tighten!

ameriwoodhome.com

STEP

Tube

You

× 20

4.1 Attach (F) to sample from previous step with (7) as illustrated.

* Important:

- Before attaching the back panel be sure that the unit is square.

- Distance from corner to corner must be equal as shown.

Please make sure that the backs are attached securely.

All screws must be driven into the parts straight and tightened

firmly. Failure to do so could cause instability, product

collapse, and/or serious injury.

WARNING
