Ameriwood HOME 5994096COM Manuel utilisateur

B345994096COM0Date of Purchase ___ / ___ / ___

Lot Number:

ameriwoodhome.com

Vaughn 5 Drawer Dresser

5994096COM

- Unit can over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

Do Not Return This Product!

Contact our customer service team for help

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Tube

You

Assembly Meter

Easy Tough

UPC for Wal-Mart

models.

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

ameriwoodhome.com

- Open your item in the area you plan to keep it to avoid excessive heavy liing.

- Idenfy, sort and count the parts before aempng assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (le) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Before You Start

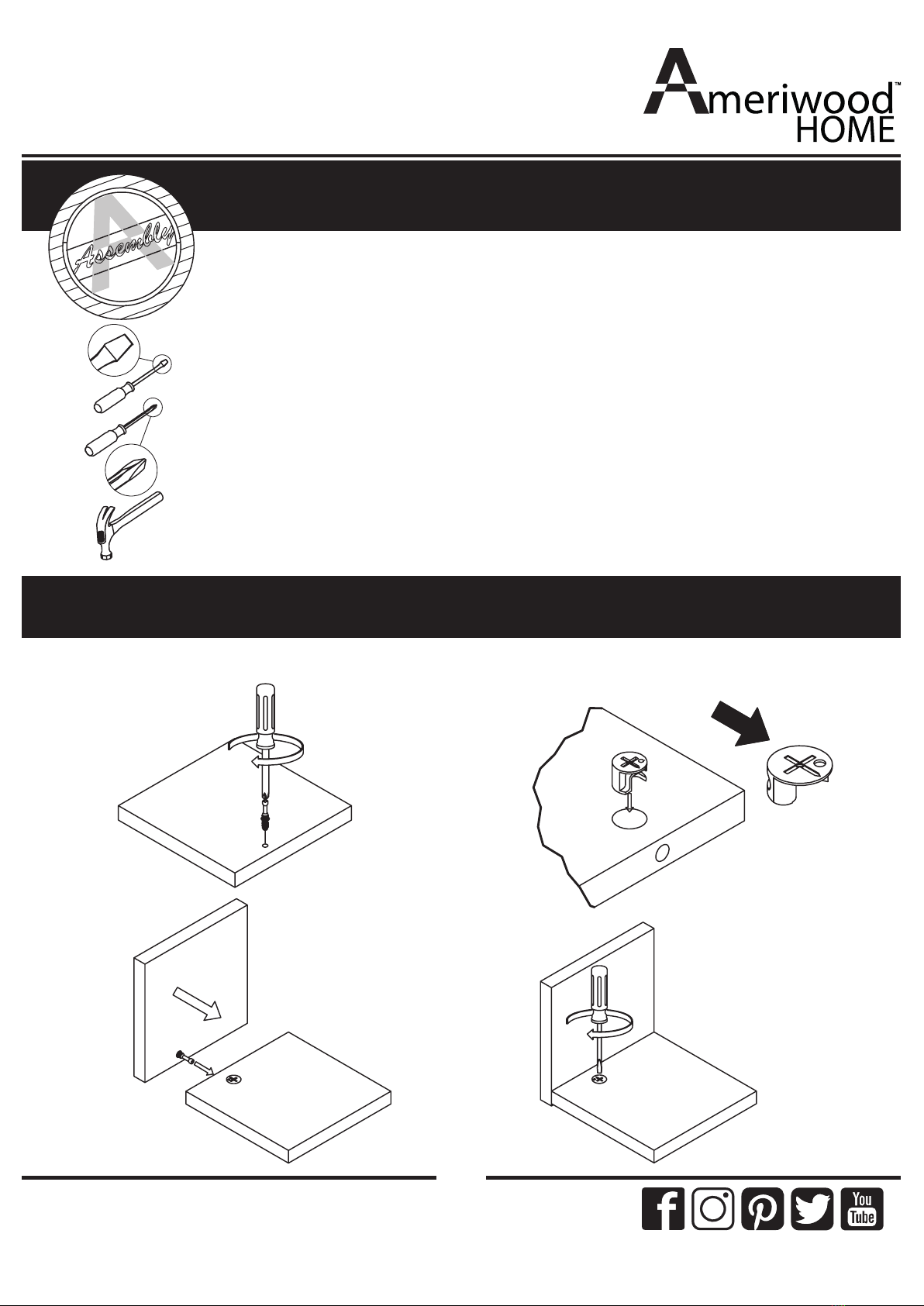

Cam Lock Fastening System

5994096COM

Vaughn 5 Drawer Dresser

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

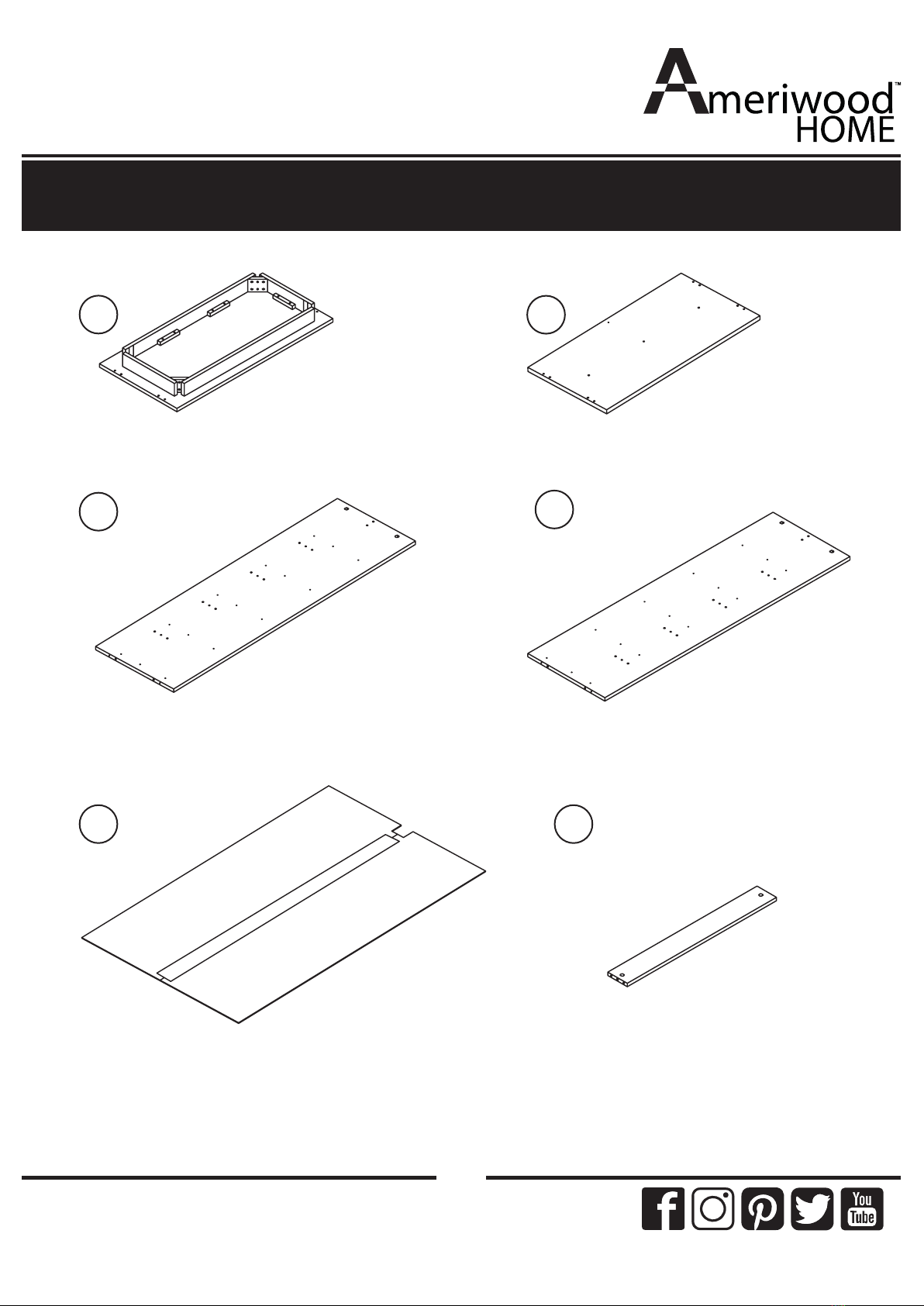

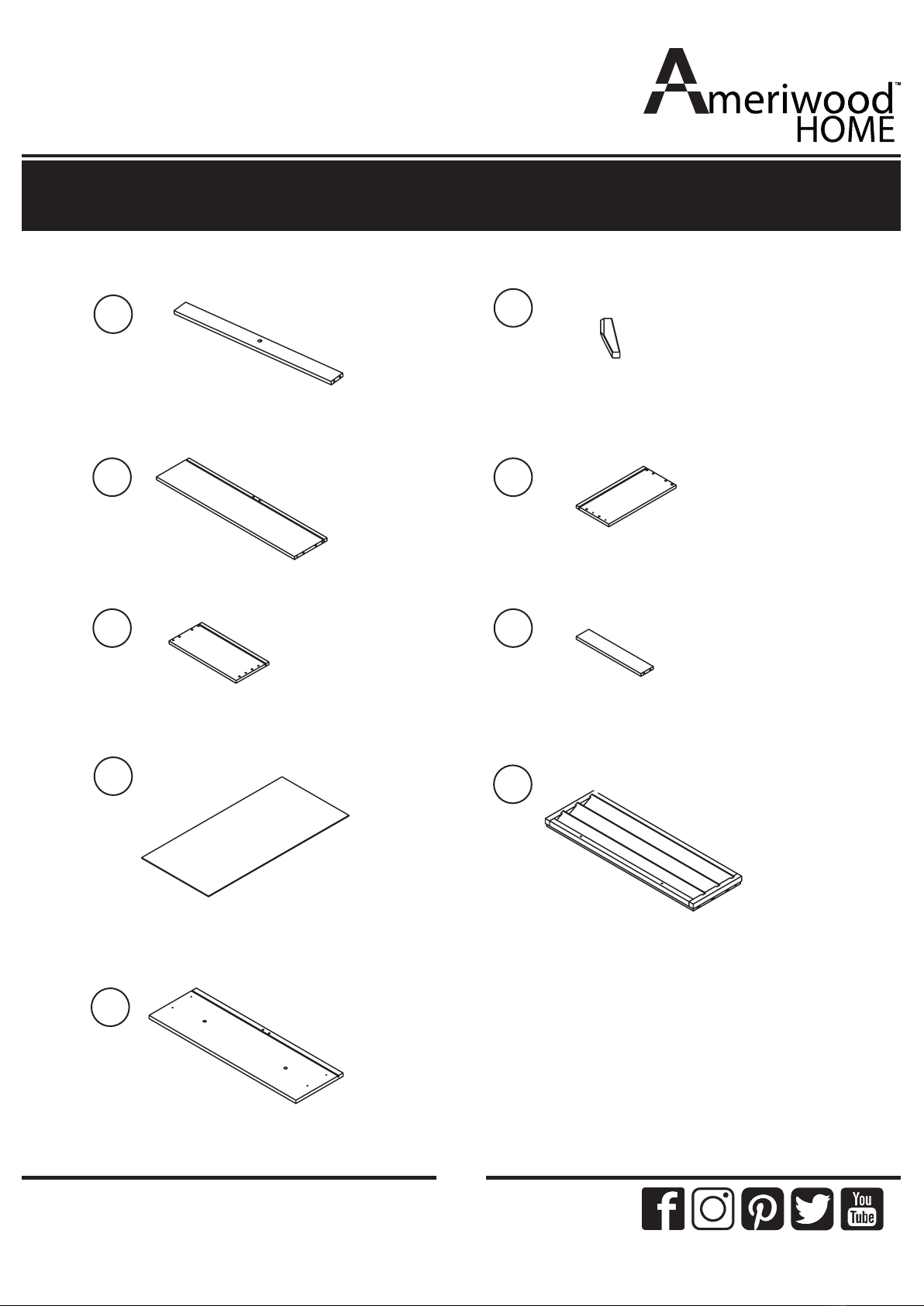

Board Idencaon

Not actual size

5994096COM

Vaughn 5 Drawer Dresser

ameriwoodhome.com

T5994096010

BOTTOM PANEL

T5994096020

TOP PANEL

T5994096030

SIDE LEFT PANEL

T5994096040

SIDE RIGHT PANEL

T5994096050

BACK PANEL

T5994096060

STRETCHER PANEL

E F

Board Idencaon

Not actual size

5994096COM

Vaughn 5 Drawer Dresser

ameriwoodhome.com

T5994096150

LOWER DRAWER FRONT

T5994096130

DRAWER BOTTOM

T5994096140

UPPER DRAWER LOUVER

FRONT

T5994096070

UPPER STRETCHER

PANEL

T5994096080

WOOD LEG

T5994096090

DRAWER BOX BACK

T5994096100

DRAWER BOX RIGHT

T5994096110

DRAWER BOX LEFT

T5994096120

DRAWER SUPPORT

Part List

Actual Size

5994096COM

Vaughn 5 Drawer Dresser

ameriwoodhome.com

x15

TTA0001

Cam Bolt

x15

TTA0003

Cam Lock

15-11.5

x70

TTA0005

CBS 3.5 x 12 (RB)

TTA0046

SCREW JCBC

M6 X 50 (BLK)

x10

TTA0014

PHM 4 X 20 (RB)

x74

TTA0016

DOWEL 6 X 30

x24

TTA0018

NAILS 6/8“

POWER PIN

Not Actual Size

x5 Sets

TTA0048

DRAWER SLIDE Q-FIT

350 MML (BLK)

x5 Sets

TTA0030

DRW BRACKET AMERI-

WOOD A54223-116MM

x24

TTA0011

CBS (BLK) M4 X 38

x20

TTA0013

SCREW PHCB

4 X 12 MM (RB)

TTA0047

SPRING WASHER M6 (BLK)

x10

TTA0050

METAL KNOB VAUGHN

8G (BLK)

TTA0053 (BLK)

FLAT WASHER -

6 X 20 X 1

x1 Set

TTA0026

AMERIWOOD ANTI-TIPPING

BLACK 19 X 30 X 2 mm

1 2 3 4

5 6 7 8

9 10 11

12 13 14 15 16

5994096COM

Vaughn 5 Drawer Dresser

ameriwoodhome.com

*raw edges are shaded

TTA0003

Cam Lock

15-11.5

TTA0016

DOWEL 6 X 30

x20

TTA0005

CBS 3.5 x 12

(RB)

TTA0001

Cam Bolt

TTA0048

Drawer Slide Q-Fit

350 BLK

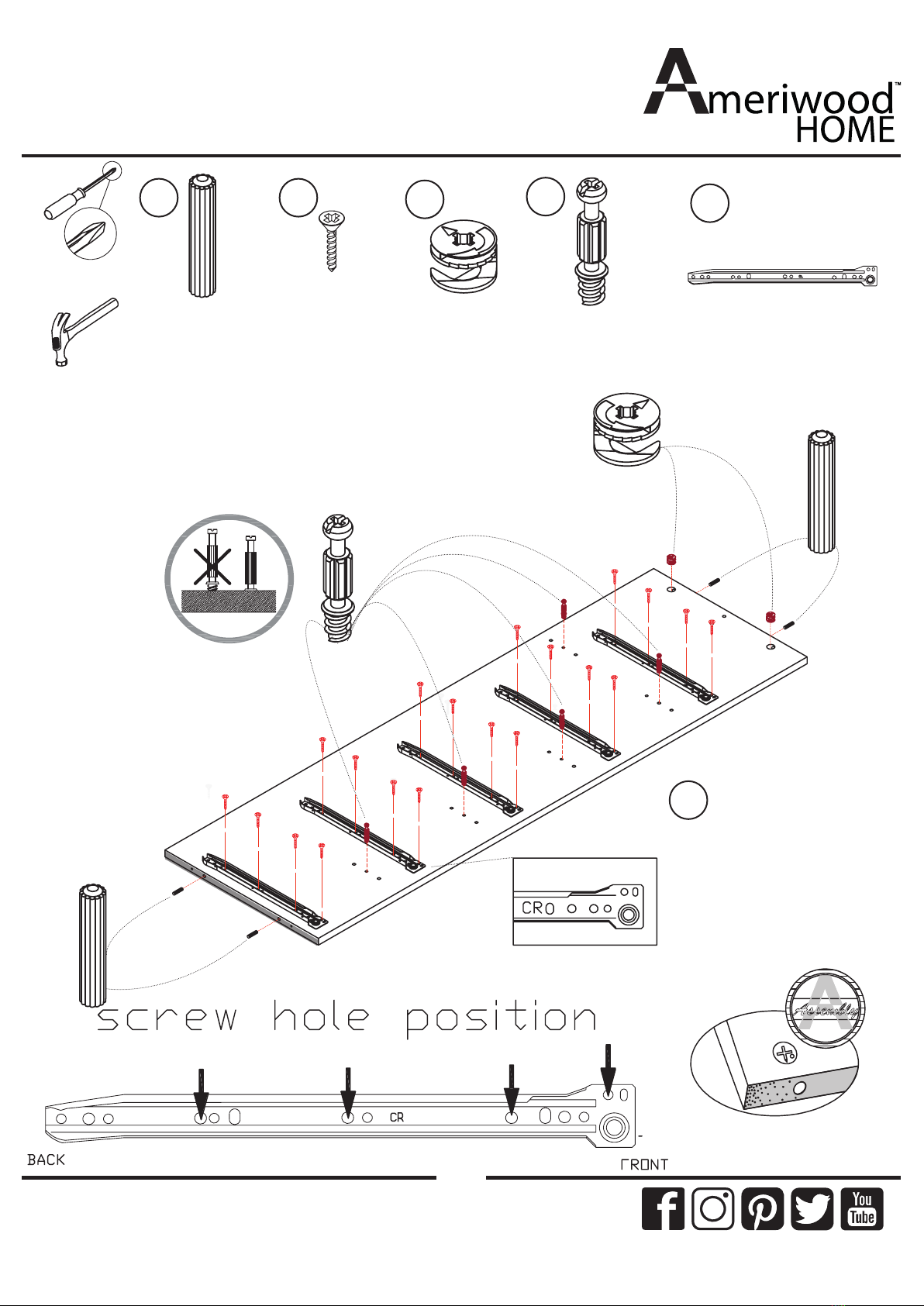

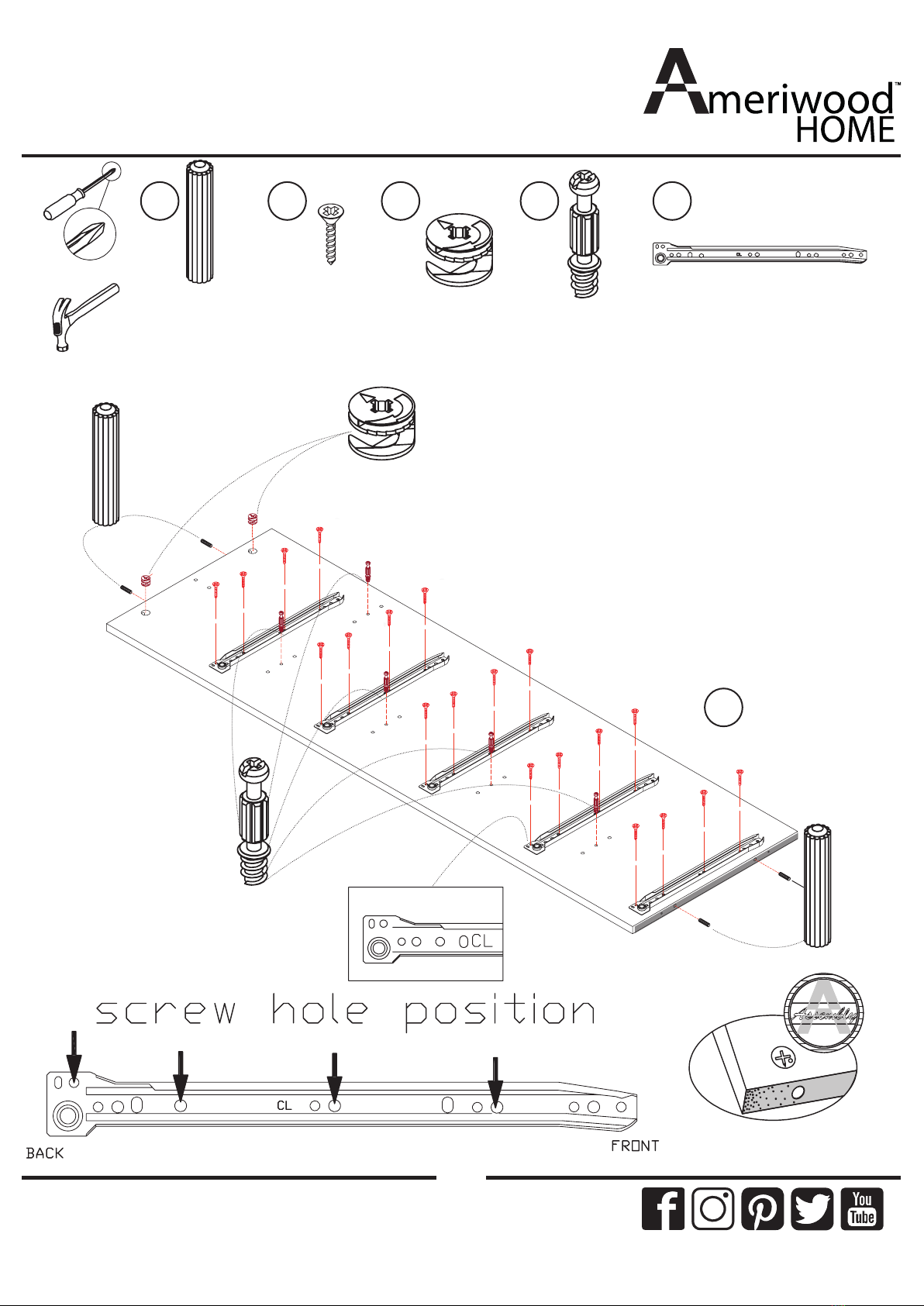

Step 1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Insert two cam lock, ve screw cam bolt,

and four dowel into the panel as shown.

Aach drawer slide to the side panel as

shown.

10 3 2 1 14

5994096COM

Vaughn 5 Drawer Dresser

ameriwoodhome.com

*raw edges are shaded

Step 2

TTA0003

Cam Lock

15-11.5

TTA0016

DOWEL 6 X 30

x20

TTA0005

CBS 3.5 x 12

(RB)

TTA0001

Cam Bolt

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Insert two cam lock, ve screw cam bolt,

and four dowel into the panel as shown.

Aach drawer slide to the side panel as

shown.

TTA0048

Drawer Slide Q-Fit

350 BLK

10 3 2114

5994096COM

Vaughn 5 Drawer Dresser

ameriwoodhome.com

*raw edges are shaded

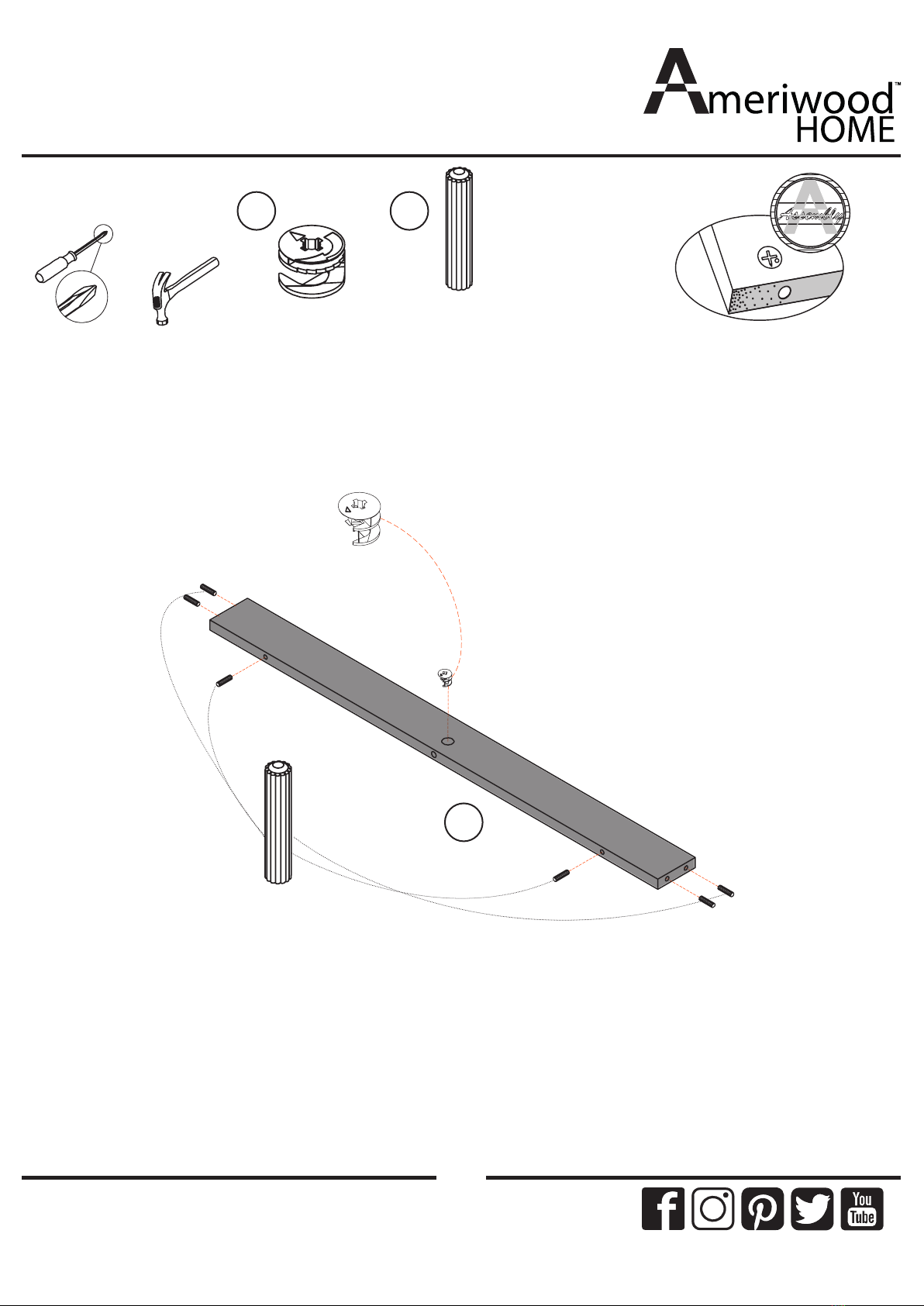

Step 3

TTA0003

Cam Lock

15-11.5

TTA0016

DOWEL 6 X 30

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Insert one cam lock, and six dowel into the

panel as shown.

2 10

5994096COM

Vaughn 5 Drawer Dresser

ameriwoodhome.com

*raw edges are shaded

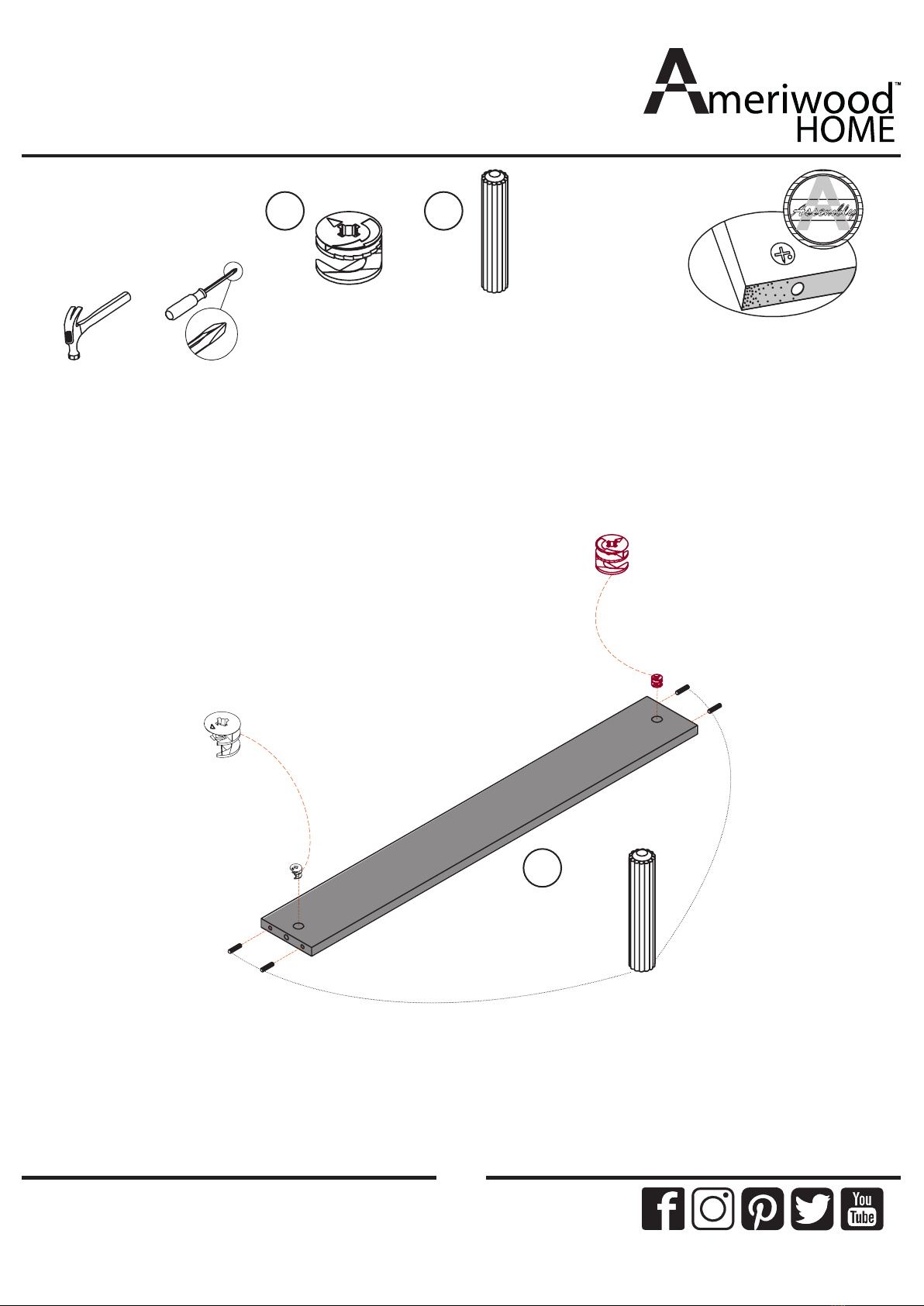

Step 4

x10

TTA0003

Cam Lock

15-11.5

x20

TTA0016

DOWEL 6 X 30

x5 Set

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Insert two cam lock, and four dowel into

the panel as shown.

102
