AJAX FireProtect Manuel utilisateur
FireProtect / FireProtect Plus User Manual
Updated June 24, 2020

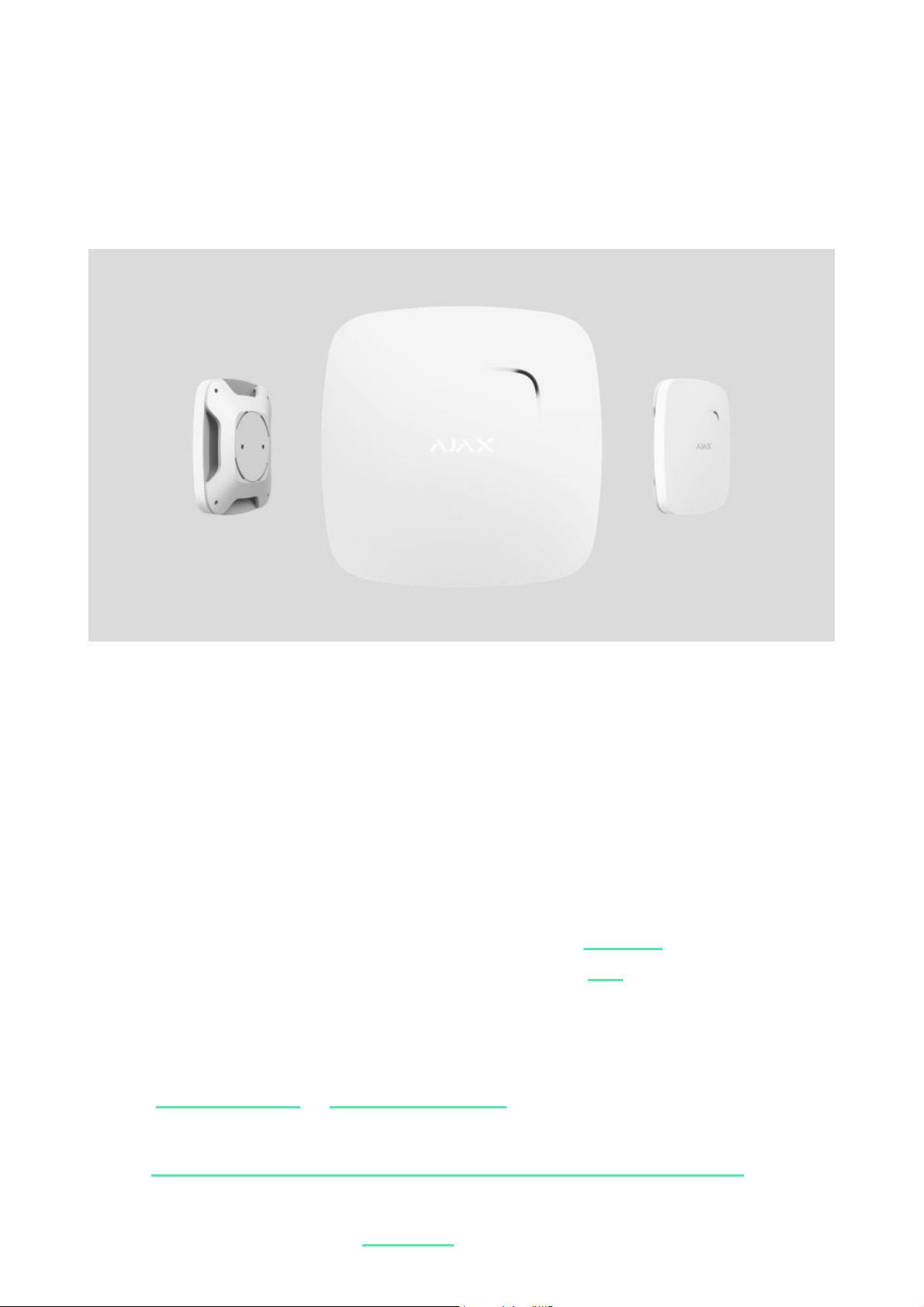

FireProtect (FireProtect Plus) is a wireless indoor re detector with an in-built
buzzer and a battery, ensuring up to 4 years of autonomous operation.
FireProtect can detect smoke and rapid temperature increase.
Aside from these functions, FireProtect Plus additionally can alert of dangerous
CO level. Both detectors can function independently from the hub.
Connecting to the Ajax security system via a secured radio protocol,
FireProtect (FireProtect Plus) communicates with the at a distance of up to
1,300 m in line of sight.
The detector can be a part of third-party security systems, connecting to them
via the or integration module.
The detector is set up via the for iOS, Android, macOS, and Windows.
The system noties the user of all events through push notications, SMS, and
Jeweller
hub
Ajax uartBridge Ajax ocBridge Plus
Buy re detector with carbon monoxide sensor FireProtect Plus
Ajax apps
calls (if activated).
The Ajax security system can be connected to a central monitoring station of a
security company.
Functional Elements
Operating Principle
When smoke penetrates the detector chamber, it distorts infrared light between
the emitter and photoelectric receiver. This distortion triggers a smoke alarm.
When the temperature exceeds 60°С or rises by 30°С during 30 minutes (not
Buy re detector FireProtect
1. Siren hole
2. Light indicator (acts as the sensor and Test button)
3. Smoke chamber hole with the temperature detector behind the net
4. SmartBracket attachment panel
5. Power button
6. Tamper button
7. QR code
necessary to reach 60°С), the detector registers temperature increase, which
triggers a re alarm.
FireProtectPlus has an additional sensor to detect a dangerous CO level. If the
concentration of CO in the air exceeds a certain level, the detector generates an
alarm.
The detector is triggered:
In case of alarm, the detector activates the built-in buzzer (the siren sound can
be heard from afar) and blinks with the light indicator. When connected to a
security system, both the user and the security company are notied of the
alarm.
The siren can be turned off by pressing the touch button (the center of the light
indicator) or in the Ajax app. If smoke and temperature levels do not restore to
normal values, in 10 minutes, the detector turns on the siren again.
Connecting the Detector to the Ajax Security System
Connecting to the hub
Before starting connection:
within 60–90 min at carbon oxide concentration 50 ppm / 0.005%
within 10–40 min at CO concentration 100 ppm / 0.01%
within 3 min at carbon oxide concentration 300 ppm / 0.03%.
1. Following the hub user guide, install the . Create the account, add
the hub, and create at least one room.
Ajax app
2. Switch on the hub and check the internet connection (via Ethernet cable
and/or GSM network).
3. Make sure that the hub is disarmed and does not update by checking its
status in the Ajax app.
Only users with administrator rights can add the device to the hub
Pairing the detector with hub:
1. Select Add Device in the Ajax app.
2. Name the device, scan or type the QR Code (located on the detector body
and packaging), and select the location room.
3. Tap Add — the countdown will start.
4. Switch on the device.
To make sure that the detector is on, press the on/off button — the logo will light
up red for a second.
For detection and pairing to occur, the detector should be located within the
coverage area of the wireless network of the hub (at a single protected object).
The connection request is transmitted for a short time: at the moment of
switching on the device.
If pairing with the hub fails, the detector operates autonomously; switch off the
detector for 5 seconds and retry.
The detector connected to the hub is displayed in the list of devices in the app.
The update of the detector status in the list depends on the device inquiry time
set in the hub settings (the default value is 36 seconds).
Connecting to Third Party Security Systems
To connect the detector to a third party security central unit using the
or integration module, follow the
recommendations in the manual of the respective device.
The smoke detector always operates in the active mode. When connecting
FireProtect to third party security systems, it is appropriate to place it in a
permanently active protection zone.
Ajax
uartBridge Ajax ocBridge Plus
States
Parameter State
Temperature Temperature of the device. Measures on the
device processor and changes gradually
Jeweller Signal Strength Signal strength between the hub and the
detector
1. Devices
2. FireProtect | FireProtect Plus
Connection Connection status between the hub and the
device
Battery Charge Primary battery level of the device
Lid The tamper state of the device — reacts to the
detachment
Routed Through ReX Displays the status of using the ReX range
extender
Smoke Shows if smoke is detected
Temperature threshold exceeded The state of temperature threshold exceeded
alarm
Rapid temperature rise The state of rapid temperature increase alarm
High CO Level (FireProtect Plus only) The state of dangerous CO level alarm
Backup Battery Charge Backup battery level of the device
Smoke sensor The state of the smoke detector
Smoke sensor dust level The dust level in the smoke chamber
Firmware Detector rmware version
Device ID Device identier
Setting
1. Devices
2. FireProtect | FireProtect Plus
3. Settings
Setting Value
First eld Device name, can be edited
Room Selecting the virtual room to which the device is
assigned
Dangerous CO Level Alarm (FireProtect Plus
only)
If active, the detector alerts of exceeding the
limits of carbon monoxide concentration
High temperature alarm If active, the detector reacts when the
temperature is 60°C and higher
Rapid temperature rise alarm
If active, the detector reacts to rapid
temperature increase (30°С for 30 minutes or
less)
Alert with a siren if smoke is detected If active, and are
activated in case of smoke alarm
Alert with a siren if temperature threshold
exceeded
If active, HomeSiren and StreetSiren are
activated in case if temperature threshold
exceeded
Alert with a siren if rapid temperature rise
detected
If active, HomeSiren and StreetSiren are
activated in case if rapid temperature rise
detected
Alert with a siren if CO detected (FireProtect
Plus only)
When turned on, HomeSiren and StreetSiren are
activated in case if CO concentration is
dangerous
Jeweller Signal Strength Test Switches the device to the signal strength test
mode
FireProtect Self Test Starts FireProtect selftest
HomeSiren StreetSiren
User Guide Opens the detector User Guide
Unpair Device Deletes device and its settings
Interconnected FireProtect Alarms Setup
Interconnected Alarm activates the built-in sirens of all FireProtect/FireProtect
Plus detectors installed on the facility if at least one of them raises an alarm.
To enable Interconnected Alarms:
Interconnected alarms are supported by FireProtect and FireProtect Plus detectors with
rmware versions 3.42 and higher. Please note that when you turn on the Interconnected
Alarms, you cannot set the hub-detector ping interval (Jeweller settings) of more than 48
seconds.
Indication
Event Indication
Detector switching on The logo lights up green for 1 second
Detector switching off The logo blinks red three times and the device
switches off
Registration failed The logo blinks green for a minute, then the
device switches to the autonomous mode
Smoke or temperature increase detected The siren switches on, the logo lights red during
the re/smoke alarm
1. Open the Devices tab in the Ajax app
2. Select a hub
3. Go to its Settings by pressing
4. Select the Service item and enable the Interconnected FireProtect Alarms
option
Learn more
Battery low
Performance testing
The Ajax security system allows conducting tests for checking the functionality
of connected devices.
The tests do not start straight away but within a period of 36 seconds when
using the standard settings. The test time start depends on the settings of the
detector scanning period (the paragraph on “Jeweller” settings in hub settings).
According to the requirements of EN50131 standard, the level of the radio signal
sent by wireless devices is decreased during the test mode.
Detector Testing
Before installing the detector, check the smoke sensor. To test it, switch on the
detector and press the sensor button (the logo center) for a few seconds – the
detector will test the smoke chamber with electronic simulation of smoke
generation and then will switch on the siren for 6 seconds.
You will receive the notication in the Ajax app regarding the test result and
detector status.
Installation
One short sound signal per 90 sec — main
batteries low (CR2)
Two short sound signals per 90 sec — backup
battery low (CR2032)
Three short sound signals per 90 sec — both
batteries low
Jeweller Signal Strength Test
FireProtect Self Test
Attenuation Test
