Agilent Technologies

16753/54/55/56A and 16950A

Logic Analyzers

Service Guide

Publication number 16753-97003

December 2005

For Safety and Regulatory information, see the pages at the end of the book.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Agilent 16753/54/55/56A and 16950A Logic Analyzers—At a

Glance

The 16753A, 16754A, 16755A, and 16756A are 600 MHz logic analyzer modules

for the 16700-series or 16900-series logic analysis system.

The 16950A is 600 MHz logic analyzer module for the 16900-series logic analysis

system.

The 16753/54/55/56A and 16950A logic analyzer modules offer high performance

measurement capability.

Features

Some of the main features of the 16753/54/55/56A and 16950A are as follows:

• 64 data channels

• 4 clock/data channels

• 1 M to 64 M memory depth per channel (depends upon model or option chosen)

• 600 MHz maximum state acquisition speed

• 1.2 GHz, 128 M deep timing analysis on half channels

• “Eye scan” feature

• 4 GHz timing zoom with 64 k memory depth

• Expandable to 340 channels

Service Strategy

The service strategy for this instrument is the replacement of defective

assemblies. This service guide contains information for finding a defective

assembly by testing and servicing the 16753/54/55/56A or 16950A state and

timing analyzer module.

The modules can be returned to Agilent Technologies for all service work,

including troubleshooting. Contact your nearest Agilent Technologies Sales

Office for more details.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Application

This service guide applies to 16753/54/55/56A logic analyzer modules installed in

16700-series or 16900-series logic analysis system mainframes or to 16950A logic

analyzer modules in a 16900-series logic analysis system mainframe.

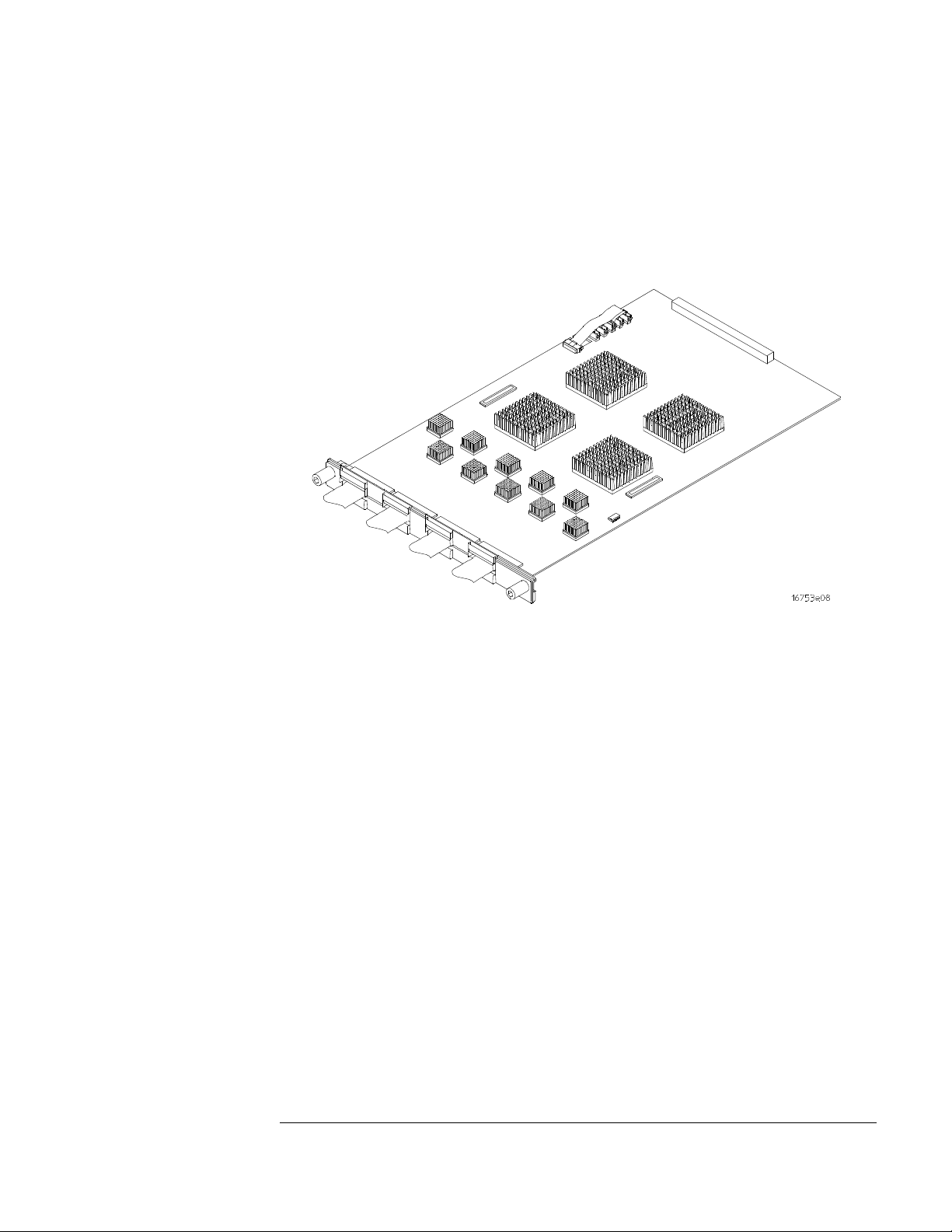

The 16753/54/55/56A or 16950A Logic Analyzer

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

In This Book

This book is the service guide for the 16753/54/55/56A and 16950A 600 MHz logic

analyzer modules.

This service guide has eight chapters.

Chapter 1, “General Information,” beginning on page 9 contains information

about the module, lists accessories for the module, gives specifications and

characteristics of the module, and provides a list of the equipment required for

servicing the module.

Chapter 2, “Preparing for Use,” beginning on page 15 tells how to prepare the

module for use.

Chapter 3, “Testing Logic Analyzer Performance,” beginning on page 19 gives

instructions on how to verify that the module meets its specifications.

Chapter 4, “Calibrating,” beginning on page 87 contains calibration instructions

for the module (if required).

Chapter 5, “Troubleshooting,” beginning on page 89 contains explanations of self-

tests and flowcharts for troubleshooting the module.

Chapter 6, “Replacing Assemblies,” beginning on page 113 explains how to

replace the module and assemblies of the module and how to return them to

Agilent Technologies.

Chapter 7, “Replaceable Parts,” beginning on page 121 lists replaceable parts,

shows an exploded view, and gives ordering information.

Chapter 8, “Theory of Operation,” beginning on page 127 explains how the logic

analyzer module works.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents

1General Information

Accessories 10

Mainframe and Operating System 10

Specifications 11

Characteristics 12

Environmental Characteristics 13

Recommended Test Equipment 14

2Preparing for Use

Power Requirements 16

Operating Environment 16

Storage 16

To inspect the module 16

To configure and install the module 17

To test the module 17

To clean the module 17

3Testing Logic Analyzer Performance

Equipment Required 22

Assemble the SMA/Flying Lead Test Connectors 23

Set Up the Test Equipment 28

Connect the Test Equipment 30

Verify and adjust the 8133A pulse generator DC offset 32

Deskew the oscilloscope 33

Set the 8133A pulse width 35

Testing the Module Using a 16900-Series Mainframe 37

Do a self-test on the 16900-series logic analysis system 38

Configure the 16900-Series Logic Analysis System 39

Adjust sampling positions using Eye Finder 43

To re-align a stray channel 45

Test Pod 1 in 300 Mb/s Mode 46

Determine PASS/FAIL (1 of 2 tests) 46

Close the Eye Finder and Analyzer Setup Windows 46

Configure the markers 46

Determine PASS/FAIL (2 of 2 tests) 48

Test the complement of the bits (300 Mb/s mode) 49

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents

Test Pod 2 in 300 Mb/s Mode 51

Test the complement of the bits (Pod 2, 300 Mb/s mode) 52

Test Pods 3 and 4 in 300 Mb/s Mode 53

Test Pod 1 in 600 Mb/s Mode 53

Determine and set Eye Finder Position (600 Mb/s mode) 54

Test the complement of the bits (Pod 1, 600 Mb/s mode) 55

Test Pod 2 in 600 Mb/s Mode 56

Test the complement of the bits (Pod 2, 600 Mb/s mode) 58

Test Pods 3 and 4 in 600 Mb/s Mode 58

Conclude the State Mode Tests 59

Performance Test Record 60

Testing the module using a 16700-series Mainframe 61

Do a self-test on the 16700-series logic analysis system 62

Configure the 16700-Series Logic Analysis System 63

Adjust sampling positions using Eye Finder 68

To re-align a stray channel 69

Test Pod 1 in 300 Mb/s Mode 71

Determine PASS/FAIL (1 of 2 tests) 71

Open and configure the Listing window. 71

Determine PASS/FAIL (2 of 2 tests) 73

Test the complement of the bits (300 Mb/s mode) 75

Test Pod 2 in 300 Mb/s Mode 77

Test the complement of the bits (Pod 2, 300 Mb/s mode) 78

Test Pods 3 and 4 in 300 Mb/s Mode 79

Test Pod 1 in 600 Mb/s Mode 79

Determine and set Eye Finder Position (600 Mb/s mode) 80

Test the complement of the bits (Pod 1, 600 Mb/s mode) 82

Test Pod 2 in 600 Mb/s Mode 83

Test the complement of the bits (Pod 2, 600 Mb/s mode) 84

Test Pods 3 and 4 in 600 Mb/s Mode 85

Conclude the State Mode Tests 85

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents

Performance Test Record 86

4Calibrating

Calibration Strategy 88

5Troubleshooting

To use the flowcharts 90

To run the self tests (16900-series mainframe) 93

To run the self-tests (16700-series mainframe) 93

Self-Test Descriptions 94

To exit the test system (16900-series mainframe) 98

To exit the test system (16700-series mainframe) 98

To test the cables (16900-series Mainframe) 99

To test the cables (16700-series Mainframe) 104

6Replacing Assemblies

Tools Required 114

To remove the module 114

To remove the logic analyzer cable 115

To install the logic analyzer cable 117

To replace the circuit board 119

To return assemblies 120

7Replaceable Parts

Replaceable Parts Ordering 122

Replaceable Parts List 123

Exploded View 126

8Theory of Operation

Block-Level Theory 128

Index

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

General Information

This chapter lists the accessories, some of the specifications and characteristics,

and the recommended test equipment.
