Agilent G9542A RapidFire 400 System Temperature

Control Unit

Installation Checklist

Thank you for purchasing an Agilent G9542A RapidFire 400 System Temperature Control Unit.

This checklist is used by the installing engineer to ensure that the instrument and associated

systems are correctly installed, upgraded, and functioning as designed in your facility. This

checklist will be completed at the end of the service and provided to you as a record of the

installation.

Introduction

Customer Responsibilities

Customers should leave the instrument shipment for the engineer to unpack.

Customers should provide all necessary operating supplies upon request of the engineer.

A customer representative should be available to the engineer while performing the

installation.

Some installation tasks will be beneficial to you if you are present – refer to sections in this

checklist.

Important Customer Web Links

Videos about specific preparation requirements for your instrument can be found by

searching the Agilent YouTube channel at https://www.youtube.com/user/agilent

To access Agilent University, visit http://www.agilent.com/crosslab/university/ to learn about

training options, which include online, classroom and onsite delivery.

A training specialist can work directly with you to help determine your best options.

A useful Agilent Resource Center web page is available, which includes short videos on

maintenance, quick lists of consumables for new instruments, and other valuable information.

Check out the Resource Page here: https://www.agilent.com/en-us/agilentresources

Need technical support, FAQs, supplies? – visit our Support Home page at

http://www.agilent.com/search/support

Instrument Installation Checklist

Revision: A.00, Issued: January 17, 2021

Document part number: D0007550 Page ____ of ____

Get answers. Share insights. Build connections:

Join the Agilent Community at https://community.agilent.com/welcome

Service Engineer’s Responsibilities

Only complete/printout pages that relate to the system being installed.

Complete empty fields with the relevant information.

Complete the relevant checkboxes in the checklist using a “X” or tick mark “”.

Check “Section not applicable” check boxes to indicate services/tasks not delivered, as

appropriate.

Complete the Service Review section together with the customer.

Complete the fields for page numbers at the foot of each selected page

Complete the total number of pages field in the Service Completion section

Ask the customer to sign the Service Completion section including the customer’s and your

signature.

Additional Instruction Notes

This checklist is valid for G9532A and G9532AA RapidFire 400 Systems.

Instrument Installation Checklist

Revision: A.00, Issued: January 17, 2021

Document part number: D0007550 Page ____ of ____

Temperature Control Unit Installation

System Information

Check this box if an instrument configuration report is attached instead of completing the

table.

Instrument System Name and ID

Instrument System Site and

Location

List System Component Product Numbers List the Serial Numbers of each

Component

10.

Preparation

¡Unpack/verify the condition and completeness of shipment.

For discrepancies, use the following table:

Product or Part Description

Observation

Action

Instrument Installation Checklist

Revision: A.00, Issued: January 17, 2021

Document part number: D0007550 Page ____ of ____

Discuss any specific questions or issues with the customer before starting.

Discuss any configuration options with the customer before starting.

Check for required service note applicability and firmware updates if connecting to

instruments.

Upgrades only – Ensure with the customer that instrument control settings, data, methods

etc. have been properly saved or archived before starting any installation procedures.

Obtain the sample plates the customer will be using.

Installation Procedure

Unpacking and inventorying the shipped contents

Section not applicable

Unpack and inspect the components for the temperature control unit. You should have the

following items:

Chiller control box

Chiller installation kit

Chiller enclosure box

Rear panel (to replace existing rear panel)

Cooling unit (TEC) control

Required tools

6-point screwdrivers, T-10, T-20, T-25

Hex wrench set

Small, thin bladed flat-head screwdriver

Instrument Installation Checklist

Revision: A.00, Issued: January 17, 2021

Document part number: D0007550 Page ____ of ____

Before you start

Ensure the power is turned off and the elevator stacks are empty.

Remove the rear and side panels using a 4-mm hex wrench to loosen the captive screws

holding the panels to the frame.

Remove the right-front door by compressing the hinge fingers and rotating them into the

locked position.

Removing the cables, drawer, and elevator base

1Remove the door handle M4 x 18-mm screws on the drawer with a T-20 driver and set aside

to reinstall later.

2Disconnect the three ribbon cables from the back of the robot control box for the front,

middle, and rear elevator stacks.

3Remove the ferrites on the cables with the ferrite key and set aside for reinstallation later.

4Using a T-10 driver, remove the three M3 screws on the rear cover over the arm bracket and

remove the M3 screw holding the cable arm bracket to the elevator mounting plate. Set the

cover and fasteners aside for reinstallation later.

5Feed the ribbon cables up through the access hole in the deck and tie the ribbon cables and

the cable arm to the rear elevator stack, using the long cable ties included in the installation

kit, such that the cable arm bracket is tucked out of the way when the drawer is opened.

6Using a T-20 driver, remove the drawer handle. Set the handle and fastener aside for

reinstallation later.

7Clear a space to set the drawer while installing the temperature enclosure and remove the

drawer:

aStanding in front of the instrument, open the drawer fully.

bLocate the slide member release tabs in the middle of the slide.

cWith the drawer at its extended position, push the right-slide tab upwards and pull the left-

slide tab downwards to release the drawer.

dPull the drawer fully out, supporting the weight as it falls from the end of the slides.

8Using a T-20 driver, remove the four M4 screws holding the elevator mounting plate to the

base plate.

9Remove the elevator mounting plate and the O-ring cups and O-rings that were under the

attachment screws and set them aside to be used when reinstalling the elevator mounting

plate.

Instrument Installation Checklist

Revision: A.00, Issued: January 17, 2021

Document part number: D0007550 Page ____ of ____

Installing the temperature control unit enclosure box, elevator mounting plate, and

elevator drawer

CAUTION To avoid damage to the temperature control unit enclosure, do not lift it

by the sliding door cover.

1Locate the polyethylene sheet (P/N 4114-1593) from the installation kit and fold one end

about 10-mm to make a lip.

2Lay the sheet on the base plate so that the folded edge covers the lip of the base plate to

protect the underside of the cooling enclosure.

3Unpack the enclosure and holding the enclosure by the sides, lift the unit and place it on the

deck, centering it left and right in the cutout on the base plate. The front edge of the enclosure

should align with the front edge of the base plate.

4Remove the plastic sheet.

5Align all four enclosure mounting holes with the threaded holes in the base plate:

aStart by inserting a thin hex wrench into the holes.

Figure 1 Aligning enclosure box mounting holes

bOnce you are sure the hex wrench is inserted into the threaded hole in the base plate (for

all four attachment holes), replace with a larger hex wrench.

cFinally, test the alignment by attaching the mounting screws, without the mounting plate.

Remove the screws once you are sure the holes are aligned.

6Assemble the elevator mounting plate:

aUsing a T-20 driver, remove the hard-stop bumper from the end of the elevator mounting

plate and set aside for reinstallation later.

Instrument Installation Checklist

Revision: A.00, Issued: January 17, 2021

Document part number: D0007550 Page ____ of ____

Figure 2 Elevator mounting plate with bumper

bInsert the four longer M4 x 18-mm mounting screws from the installation kit into the

mounting holes and slide the O-ring cups followed by the O-rings onto the mounting

screws.

Figure 3 Mounting plate with mounting screws and O-ring cups

7Install the elevator mounting plate and drawer:

aPlace the elevator mounting plate into the enclosure aligning the mounting screws to the

holes in the enclosure and base plate.

bUsing a 3-mm hex wrench, tighten the screws until you feel a hard stop.

cWith the slides in their closed position, pull the bearing retainers forward in the slides of

the elevator mounting plate.

dLift the drawer and align the lead-ins on the drawer and the mounted slides in the

enclosure and slide the drawer most of the way in.

eFrom the opening in the back of the enclosure, cut the cable ties holding the cables to the

cable arm and feed the cables and cable arm through the mounting hole of the cooling

unit.

fFrom the front of the instrument, push the drawer into the closed position with enough

force to set the auto-close mechanism on the slides.

gOpen the drawer as needed and re-attach the bumper with the M4 screw and T-20 driver.

Instrument Installation Checklist

Revision: A.00, Issued: January 17, 2021

Document part number: D0007550 Page ____ of ____

8Verify the installed drawer and sides of the enclosure are aligned and parallel and adjust, if

necessary.

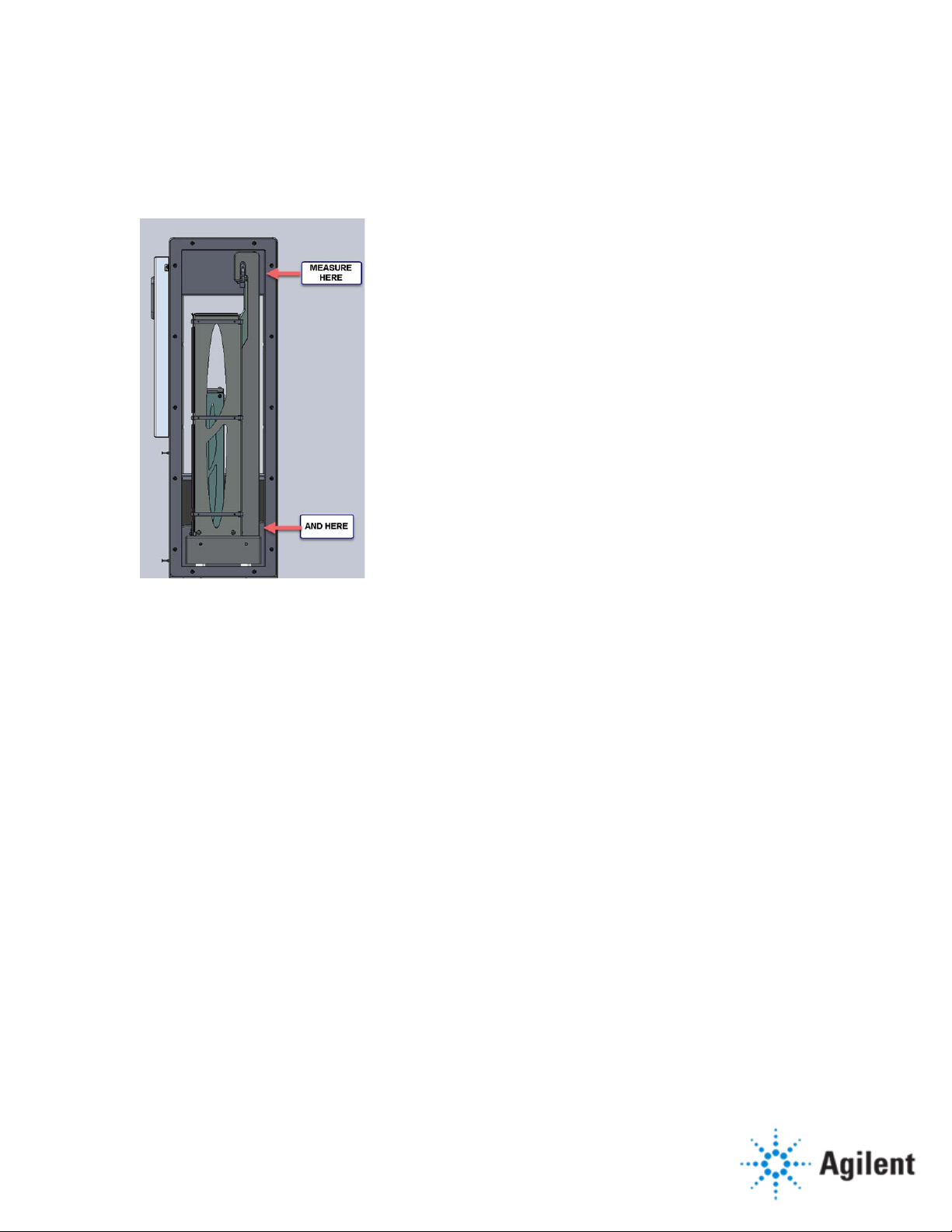

aMeasure the gap between the front motor cover and the enclosure internal wall at the

bottom of the cover and at the top at the upper mounting screws.

bIf the difference between the top and bottom measurements is greater than 3-mm, the tilt

of the drawer will need to be adjusted using spacers. If the drawer does not need to be

adjusted, go to Routing and connecting enclosure cables to continue with the installation.

Adjusting the tilt, if necessary

1Determine which correction size spacer to use:

If the drawer tilt is 3-5-mm, use the 3-mm side of the correction spacers.

If the drawer tilt is >5-mm, use the 6-mm side of the correction spacers.

2Determine which side of the enclosure to insert the spacers:

If the drawer leans to the left (the gap is smaller at the top on the left side) as you face the

front of the enclosure, you will replace the left two white O-ring cups (underneath the

elevator mounting screws) with the lean correction spacers, provided in the installation kit.

If the drawer leans to the right (the gap is smaller at the top on the right side) as you face

the front of the enclosure, you will replace the right two O-ring cups (underneath the

elevator mounting screws) with the lean correction spacers, provided in the installation kit.

3Adjust the tilt:

aLocate the correction spacers (P/N G9532-20167, G9532-20168) and the adjuster screw

(P/N 0515-0436).

Instrument Installation Checklist

Revision: A.00, Issued: January 17, 2021

Document part number: D0007550 Page ____ of ____

bOpen the drawer enough to access the front mounting screws and from the opening in the

rear, remove the left or right front screw, depending on which way the drawer is leaning

(see previous step).

cInsert the adjuster screw in the adjustment hole (located near the mounting hole) and

tighten the screw until it touches the plate underneath.

Figure 4 Adjustment hole for the right-front mount

Instrument Installation Checklist

Revision: A.00, Issued: January 17, 2021

Document part number: D0007550 Page ____ of ____

dTo increase the gap by 3-mm, turn the adjuster screw (1) three turns (six turns for a 6-mm

gap) and remove the existing O-ring and O-ring cup by corralling the cup with the L of a

hex wrench (2).

Figure 5 Adjuster screw and O-ring cup on the front-right side, viewed from the rear

eSlide the lean correction spacer under the mounting plate, ensuring that the 3-mm (or

6-mm, if using) correction side is under the mounting plate. When the tab on the spacer is

biased against the cutout on the mounting plate, the spacer hole and the mounting plate

hole will be aligned.

Figure 6 Positioning correction spacer under the mounting plate

Autres manuels pour CrossLab RapidFire 400

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Agilent Technologies Unité de contrôle

Agilent Technologies

Agilent Technologies 8494A Manuel de service

Agilent Technologies

Agilent Technologies 1200 series Manuel utilisateur

Agilent Technologies

Agilent Technologies Turbo-V Manuel utilisateur

Agilent Technologies

Agilent Technologies 4890 Manuel utilisateur

Agilent Technologies

Agilent Technologies 83487A Manuel utilisateur

Agilent Technologies

Agilent Technologies VXI 75000 C Series Manuel utilisateur

Agilent Technologies

Agilent Technologies E8361AU-016 Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies G7050A Instructions de montage

Agilent Technologies

Agilent Technologies 6850 GC Manuel utilisateur

Agilent Technologies

Agilent Technologies 81570A Manuel utilisateur

Agilent Technologies

Agilent Technologies 70341A Manuel utilisateur

Agilent Technologies

Agilent Technologies NW16 Manuel utilisateur

Agilent Technologies

Agilent Technologies 8495D Manuel de service

Agilent Technologies

Agilent Technologies 81618A Manuel utilisateur

Agilent Technologies

Agilent Technologies E2259A Mode d'emploi

Agilent Technologies

Agilent Technologies G4239C Manuel utilisateur

Agilent Technologies

Agilent Technologies 81610A Manuel utilisateur

Agilent Technologies

Agilent Technologies InfinityLab G4237A Manuel utilisateur

Agilent Technologies

Agilent Technologies 81662A Manuel utilisateur

Agilent Technologies

Agilent Technologies 83482A Manuel utilisateur

Agilent Technologies

Agilent Technologies 355C Manuel de service

Agilent Technologies

Agilent Technologies LC Series Manuel utilisateur

Agilent Technologies

Agilent Technologies VME VXI 75000 B Series Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies N5532A Manuel

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
