Valve Box and Valve

Accessories G4315A, G4316A, G4317A

Installation Guide

The G4315A, G4316A, and G4317A accessories consist of

separate kits depending on the custom configuration ordered.

These kits may include one or more of the following:

•Heated valve box kit

•Valve hardware installation kit

•Valve(s)

Table 1 and Figure 1 list and show the contents of the heated

valve box kit.

Tab le 1 Heated valve box kit contents

Description

G4315A

G4316A G4317A

Screw, M4 x 12 mm, Torx T-20 2 2

Screw, M4, Torx T-20, chrome-plated 4 4

Nut plate 2 2

Valve box, 1 heated zone 1

Valve box, 2 heated zones 1

≾ࠊো

2 Installation Guide: Valve Box and Valve

Figure 1 Heated valve box kit contents

Screws

Hex wrenches

Standoffs

Nut plates

Valve box with actuator(s)

Solenoid(s) with air tubes

Heater/sensor wiring

(1 or 2)

(G4316A)

NOTE The solenoids and valve actuators are assembled and tested at the factory.

Do not disassemble them or break any electrical or air connections.

Installation Guide: Valve Box and Valve 3

Table 2, Figure 2, and Figure 3 list and show the contents of the

valve hardware installation kits.

Tab le 2 Valve hardware installation kit contents

Description

Kit G2739A

(Liquid sample)

Kit G2740A

(Gas sample)

Metering valve 1/16-inch 1

Screw, M3 x 8 mm 2 1

Screw, M3 x 30 mm, chrome-plated 2 1

Label 1 1

Screw, thread-cutting 4

Screw, M4 x 12 mm, Torx™ T-20 4

Fitting, column bulkhead 1 4

Nut, 5/16-inch 1 4

Restrictor bracket 1

1/16-inch SS tube, 102 mm long 1 1

1/16-inch SS tube, 203 mm long 1

1/16-inch SS tube, 360 mm long 1 2

1/16-inch SS tube, 400 mm long 1 1

1/16-inch SS tube, 560 mm long 1 5

1/8-inch nut and ferrule set 1 1

Filter union, reducing 1

Reducer/restrictor, SS 1

Actuator limiter, 36 degrees 0 1

4 Installation Guide: Valve Box and Valve

Figure 2 Kit G2739A, liquid sample valve

Figure 3 Kit G2740A, gas sample valve

Tubing

Nut and ferrule set

Screws

Restrictor bracket

Metering valve

Nut

Tubing

Reducer/restrictor

Nut and ferrule set

Actuator

Screws

Filter

olumn bulkhead fittings

Nuts

limiter

union

Installation Guide: Valve Box and Valve 5

Tools needed

Torx T-10 and T-20 drivers

Flat blade screwdriver

Needle-nose pliers

3 mm hex key wrench

6 Installation Guide: Valve Box and Valve

Installing the Heated Valve Box

Install the valve box

1Install two chrome-plated screws about halfway into each of

the two nut plates as shown in Figure 4.

2Inside the oven, locate the pair of T–shaped cutouts on the

left wall and match them with the two tabs on the nut plate

(see Figure 5). Slide the tabs on the nut plate into the oven

cutouts so that the screws rest on the bottom of the T. Repeat

on the right side of the oven. Tighten the screws.

WARNING The oven, inlet, and detector may be very hot. Before proceeding,

turn off the oven and all other heated zones and let them cool down.

Harmful gases may be present. Hydrogen (if used) can present an

explosion hazard. Before proceeding, turn off all supply gases at

their sources.

Shock hazard. Before proceeding, turn off the GC and disconnect the

power cord.

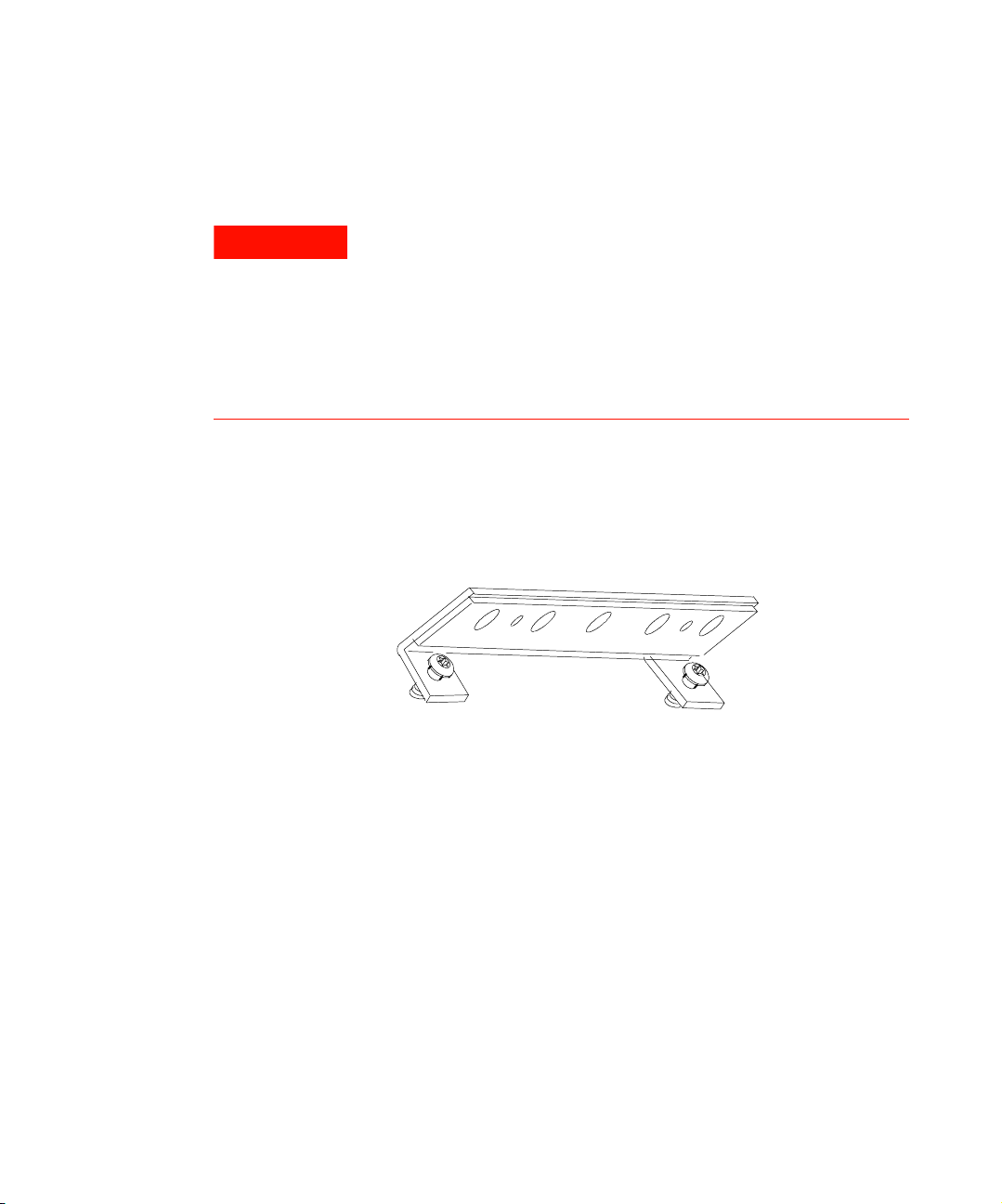

Figure 4 Install the nut plate screws

Installation Guide: Valve Box and Valve 7

3Clip the notches holding the rectangular cover plate on top of

the oven with diagonal cutters (see Figure 6). Hold the

cutters with the flat face to the outside to remove as much of

the nibs as possible. Remove the plate.

Figure 5 Attach the nut plates

8 Installation Guide: Valve Box and Valve

4Install one screw where shown in Figure 6. Do not tighten.

5Place the valve box on the oven top and move it to the rear so

that it slides under the screw.

6Install another screw at the front of the box (see Figure 6).

Tighten both screws.

Figure 6 Valve box location

Install screw

Cover plate

(Step 4)

Install screw

(Step 6)

Installation Guide: Valve Box and Valve 9

Install and wire the solenoids

The internal valve wiring is located near the top center of the

main board. To access it, you must remove the right side panel.

1Attach the solenoid assembly to the main board.

2Place the tubing and cables in the slots in the chassis just

above the solenoids.

WARNING Removing the side panel exposes dangerous voltages. Turn the

instrument off and disconnect it from its power source before

proceeding.

Tab le 3 2×8 connector location

2×8connector

10 Installation Guide: Valve Box and Valve

3Uncoil the air supply tubing and pass it through the hole in

the back of the GC as shown in Figure 7.

Figure 7 Valve actuator air tubing

Valve air

supply tubing
