Zte MF91D Manuel utilisateur
ZTE MF91D
Let’s go
Getting started with your device.
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
2
LEGAL INFORMATION
Copyright © 2013 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated
or utilized in any form or by any means, electronic or mechanical, in-
cluding photocopying and microlm, without the prior written permis-
sion of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right
to make modications on print errors or update specications without
prior notice.
Version No. : R1.0
Edition Time : 2013.3
Manual No. : 079584505467
NOTE:
Do not use the device in an enclosed environment or where heat dis-
sipation is poor. Prolonged work in such space may cause excessive
heat and raise ambient temperature, which may lead to automatic
shutdown of the device for your safety. In the case of such event, cool
the device in a well-ventilated place before turning on for normal use.
3
Getting to Know Your Device
Appearance
The following figure is only for your reference. The actual product
may be different.
1. External Antenna Connector
2. WPS Button
3. OLED Screen
4. RESET Button Power Switch
5. microSD Card Slot
6. Micro USB Port
4
NOTES:
• microSD logo is a trademark of SD Card Association.
• Please use the original external antenna if necessary.
Indicators
When the device is powered on, the following icons will appear on
the OLED screen, with the corresponding indicates listed in the table
below:
Icon Indication
Network signal strength.
2G / 3G / 4G
Network type. 2G, 3G or 4G icon will appear on
the OLED screen according to the network being
connected.
Connect to the Internet automatically.
Connect to the Internet manually.
Wi-Fi Status and number of the connected users.
Battery power indication.
Connected/
Disconnected The device connects / disconnects to the Internet.
5
Installing Your Device
1. Remove the back cover.
2. Insert the SIM card.
IMPORTANT:
Your device does not support Micro/Nano or any ohter nonstandard
SIM cards. To avoid device damage, please do not use them.
3. Insert the battery.
6
4. Close the back cover.
5. Insert the microSD card.
1) Open the microSD card cover.
NOTE:
Do not pull the cover rudely, as it is connected with the device.
2) Insert the microSD card into the microSD slot. The following
picture shows the correct inserting direction. You will hear a click
when the microSD card locks in place.
3) Close the microSD card cover.
7
Connecting to Your Device
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initial-
ize.
2. Use your normal Wi-Fi application on the client to search for the
available wireless networks.
NOTE:
Please set the client to obtain an IP address automatically referring to
the chapter “Conguring your PC”, and then the client will get an IP
address like “192.168.1.101”.
3. Select the SSID of your device, and then click Connect.
8
NOTE:
Please check the label on your device to get the default SSID and Wi-
Fi keys.
4. Input the password, and then click Connect.
NOTE:
You may need to input the password for Wi-Fi connection. Please
check the label on your device to get the default.
5. Wait a moment, and then the client will connect to your device
successfully.
9
Via USB Cable
1. Connect to the device.
2. Power on your device.
3. Follow the system prompts to complete the software installation.
4. Wait a moment, and then the client will connect to your device
successfully.
10
Accessing the Internet
After successfully establishing the connection, the device will always
connect to the Internet.
Notes:
If you want to modify the detailed parameters of your device, please
login the webGUI conguration page by visiting http://192.168.1.1 or
http://m.home.
Your device supports multi-clients for surng on the Internet at the
same time. The following gure is only for your reference.

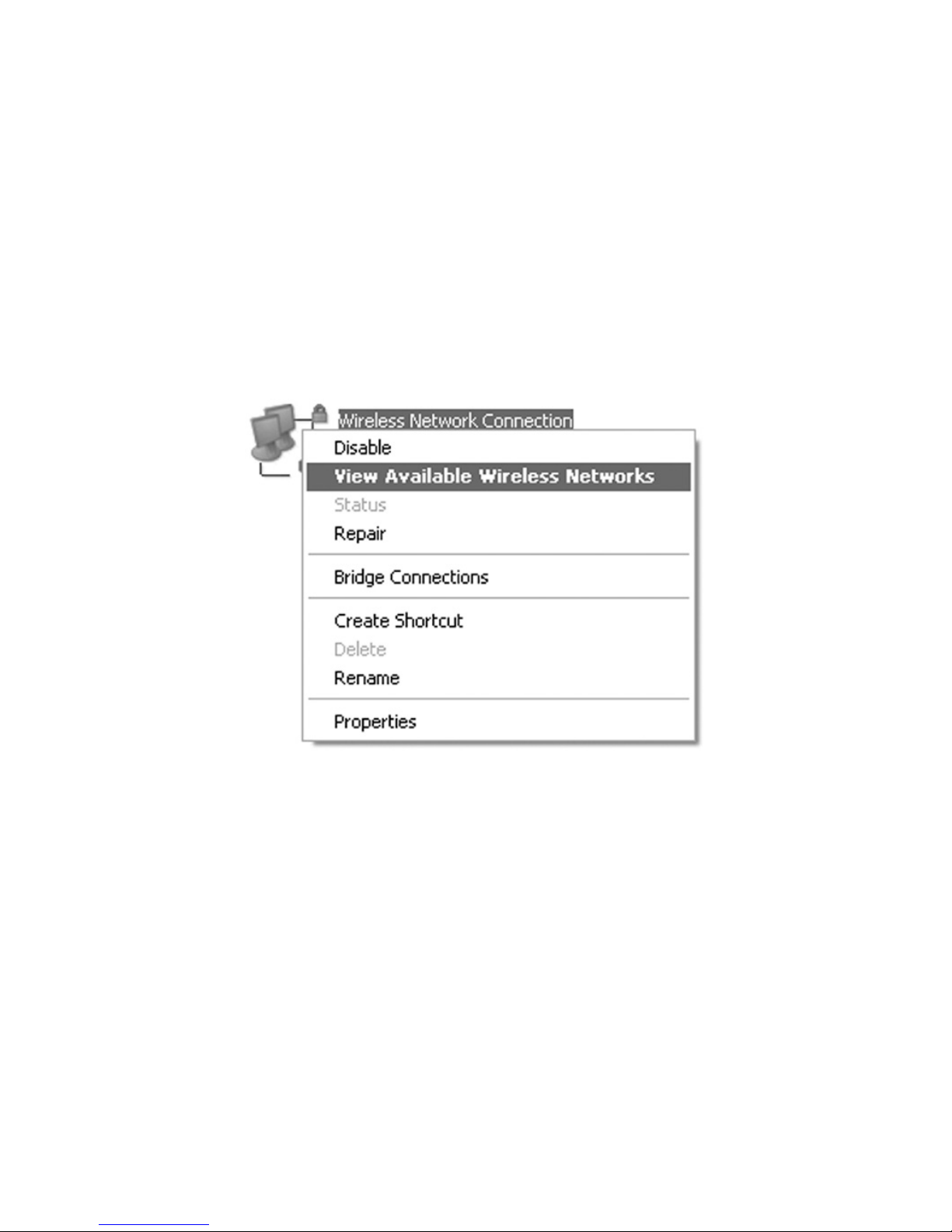

Conguring Your PC
Follow the following steps and gures for Windows XP to congure
the Internet Protocol for your Wi-Fi connection. .
