D-Link DIR-506L Manuel utilisateur

Quick Installation Guide

DIR-506L

Pocket Cloud Router

Version 1.20 | August 23, 2012

Краткое руководство по установке

Guía de Instalación Rápida

Guia de Instalação Rápida

Petunjuk Pemasangan Cepat

DIR-506L

ENGLISH

Package Contents

1. The battery must be installed for the device to operate. Slide o

the cover and insert the battery. Make sure the gold contacts

align with the gold terminals. Slide the cover back on.

2. Connect the USB cable to the DIR-506L and then connect to a

USB port on your computer.

Note: Charge the device using the USB cable for at least 4 hours or

until it is fully charged before usage.

LAN

OFF

LAN

OFF

Insert and Charge the Battery

USB Cable (for power and charging battery only)

Rechargeable Battery

Pocket Cloud Router

DIR-506L

ENGLISH

SharePort Mobile - Sharing Made Easy

Stream movies, music, photos, and documents from a USB drive

plugged into the DIR-506L right to your iPhone, iPad, or Android

device, or to a PC; you don’t even need to be connected to the

Internet!

SharePort Mobile transforms any USB drive into your own personal

shared le space that you can access with all your devices.

Supported File Formats for iOS and Android:

• Video: .mp4, .mov

• Music: .mp3, .wav

• Image: .bmp, .gif, .jpg, .png

•

Document: .doc, .xls, .ppt, .pdf, .pages, .numbers, .key, .txt, .html, .ref

Download the SharePort Mobile App

Use a barcode scanner app such as Bakodo or RedLaser on your iOS

or Android device to scan the corresponding code for your device

below. If you do not have a scanning app, just search for SharePort

Mobile in the App Store or Google Play. Please make sure you have a

working Internet connection before downloading the app.

DIR-506L

ENGLISH

Plug In a USB Flash Drive and Turn On

the DIR-506L

Insert your USB drive into the USB port on the DIR-506L. Slide the

power switch to the ON position and wait until the power, USB, and

wireless LEDs turn green. Please allow 3-4 minutes for the boot-up

process to complete.

Connect to the DIR-506L Wirelessly

Use the following information to connect to your DIR-506L wirelessly:

• Default WiFi SSID: dlink_DIR-506L

• Default Password: (leave this blank)

LAN

OFF

DIR-506L

ENGLISH

Using The SharePort Mobile App

1. Open the SharePort Mobile app.

2. Make sure the Wireless icon at the

bottom of the screen is blue, then

you’re ready to use SharePort Mobile!

If you set the device password for the DIR-506L, or if you want to use

a specic user account, tap on the gear icon in the top right corner of

the screen to open the settings page, then tap Edit to enter your User

Name and Password. By default, the User Name is admin, and the

Password should be left blank. When you’re nished, tap Done.

Using a PC with SharePort Mobile

You can use a PC to access les on a USB drive plugged into the DIR-506L

by opening a web browser and going to http://dlinkrouter.local:8181

By default, the User Name is admin, and the Password should be left

blank. When you’re nished, tap Done.

If you want to use a specic user account, enter your User Name and

Password for that account.

DIR-506L

ENGLISH

Getting Connected to the Internet

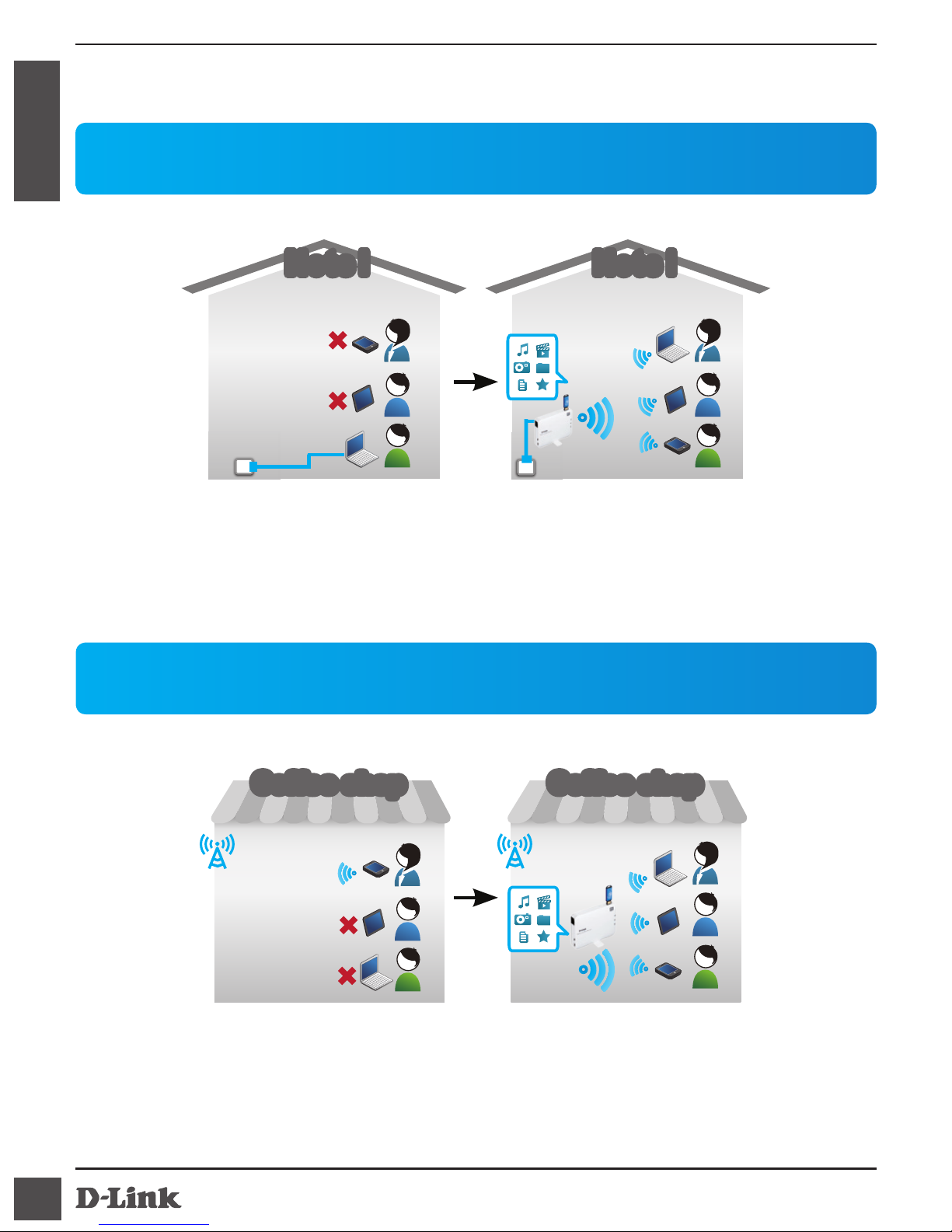

Whether you’re at home or at a hotel, the Pocket Cloud Router makes

it easy to share your Internet connection with all your devices. Just

plug your modem or Internet connection cable into the Ethernet port

on the Pocket Cloud Router to share your connection wirelessly.

Wireless Router Mode

Share a wired Internet connection

At a café or at the airport, you can share access to a wireless hotspot

with all your friends and devices with the Pocket Cloud Router’s WiFi

Hotspot Mode. The Pocket Cloud Router connects to the hotspot, then

shares access through a private wireless network you control.

WiFi Hotspot Mode

Share a hotspot connection with friends

Hote lHote l

Coffee shopCoffee shop Coffee shopCoffee shop

WIFLY

Hinet

WIFLY

Hinet

TPE-Free TPE-Free

DIR-506L

ENGLISH

Connection Setup with QRS Mobile

If you wish to use Wireless Router Mode, you can congure your

DIR-506L with the handy QRS Mobile app for iOS and Android mobile

devices.

Use a barcode scanner app such as Bakodo or RedLaser on your iOS

or Android device to scan the corresponding code for your device

below. If you do not have a scanning app, just search for QRS Mobile

in the App Store or Google Play. Please make sure you have a working

Internet connection before downloading the app.

After downloading the app, connect to the DIR-506L wirelessly

using the following information:

• Default WiFi SSID: dlink_DIR-506L

• Default Password: (leave this blank)

You can now open the QRS Mobile app and follow the on-screen

instructions to congure your DIR-506L.

DIR-506L

ENGLISH

Connection Setup Through a Browser

You can use a web browser on your PC or mobile device to

congure your DIR-506L for Wireless Router and WiFi Hotspot mode,

as well as all of the other modes and settings.

1. Connect to the DIR-506L wirelessly using the following

information:

• Default WiFi SSID: dlink_DIR-506L

• Default Password: (leave this blank)

2. Open a web browser, and go to http://dlinkrouter.local. By

default, the User Name is admin, and the Password should be

left blank.

3. After logging in, click on Setup at the top, then click on Internet

Connection Setup Wizard and follow the on-screen instructions.

Further Information

For further information on how to use, congure, and enjoy your

DIR-506L, you can refer to the User Manual, which is available on the

D-Link website.

For the D-Link website for your region, refer to the following

Technical Support pages.

DIR-506L
