Zte MF910 Manuel utilisateur

Page 1 of 32

TELSTRA 4GX WI-FI PLUS (MF910)

USER MANUAL

No part of this publication may be excerpted, reproduced, translated or

utilized in any form or by any means, electronic or mechanical, including

photocopying and microfilm, without the prior written permission of ZTE

Corporation.

The manual is published by ZTE Corporation. We reserve the right to make

modifications on errors or update specifications without prior notice.

Version 3.0 October 2015

CHECK YOUR SYSTEM REQUIREMENTS

Your Pre-Paid 4GX Wi-Fi Plus will connect to any Wi-Fi enabled device that

supports Wi-Fi 802.11 b/g/n

A web browser is required to log in to your Wi-Fi hotspot if you wish to make any

configuration changes.

USB driverless connection is also supported for Windows (not RT), and MAC

operating systems:

•Windows 10, 8 (not including RT) / 7 / XP / Vista

•MAC OS X 10.7 and above

Using the USB connection requires administrator rights to install and run the

software.

We suggest you switch off your anti-virus software before connecting the hotspot

- In some cases protection software can prevent automatic installation.

It is possible to start the installation process manually by clicking the Autorun icon

when it appears.

Page 2 of 32

GET TO KNOW YOUR DEVICE

NOTE: The MF910 is available in Black or White.

Page 3 of 32

INSERT YOUR STANDARD SIZED SIM CARD

This device supports a Standard sized SIM card ONLY. Do not use a microSIM or

SIM card adaptor which may damage your device.

The SIM card is pre-installed and needs to be activated. You may need this

information if you need to replace or check your SIM card.

1. Locate the SIM slot on the side of the device as shown above.

2. Open the SIM slot cover.

3. Insert your SIM card carefully as shown. The gold contacts must be facing up

towards the screen with the cut corner towards the middle of the device.

4. Push the SIM fully home until it clicks into place.

5. For reference the Reset button is also located under the SIM slot cover.

6. Note: If you replace the SIM card with the device powered On, it will restart to

read the new SIM card.

IMPORTANT

This device supports a standard SIM or 2FF size.

Do not insert a micro SIM (3FF) or use a micro to mini SIM adaptor.

Use of 3rd party adaptors or non approved SIM card can damage your device.

Physical damage to the SIM card slot is not covered by warranty and will make

your device unusable.

TIPS

Remember to keep your Security Card handy and in a safe place. You will need it to

log onto your device.

Remember to keep your plastic SIM card holder. It has a record of your SIM card

details which you should keep handy.

The Reset button is located under the SIM slot cover. With the device switched on,

press the Reset button until the LED’s go out. A reset will restore all settings to

Page 4 of 32

factory default.

Use the default Wi-Fi SSID and Password shown on the device sticker to log in via

Wi-Fi.

You can also connect directly to a computer using the USB lead provided, log into

the web interface and access the Wi-Fi SSID and Password from the Wi-Fi Settings

menu.

See Connect Devices via Wi-Fi (below) for more instructions.

CHARGE YOUR 4G WI-FI HOTSPOT

Connect your charger as shown. Take care to check the orientation of the charger

lead and insert carefully into the charging port on the device.

•Only use the genuine charger and USB lead provided. Use of third party

adaptors can damage your device.

Page 5 of 32

•Typical charging time is 3-4 hours using the standard charger. Charging from a

USB source (ie laptop) will take longer.

•During periods of high continuous activity with multiple users, high download

rates or low network signal, charging by USB will not have sufficient current to

charge the device. In this situation the battery will discharge so it is preferable

to use the mains charger.

•Always insert and remove the charging lead with care and take care not to trip

or pull on the lead harshly which could damage your device.

•Physical damage to the charging port is not covered by warranty.

•If the device is off while charging, press the power key as normal to switch on

the device.

•The device can be left always on and connected to the charger if required.

•During periods of high continuous activity, high download rates or low network

signal it is normal for the device to get hot.

•If the internal temperature of the device exceeds 45C then the battery cannot

be charged due to safety limitations with Li-ion batteries.

POWER UP YOUR 4G WI-FI HOTSPOT

Press and hold the Power key for 1-2 seconds until the display lights up.

The Wi-Fi hotspot will be available after about 20 seconds.

Check the condition of your Wi-Fi hotspot as shown by the display.

To switch your device Off, press and hold the power key for 5 seconds until the

display starts to shut down.

Page 6 of 32

DISPLAY LAYOUT AND ICONS

During periods of inactivity it is normal for the display to go out to preserve

battery life. Press the power key briefly to confirm the device status if required.

CONNECT DEVICES BY WI-FI

Your Wi-Fi hotspot can connect up to ten devices via Wi-Fi providing internet

access for all your devices on the go.

•On the devices you wish to connect make sure Wi-Fi is switched on, then search

for Wi-Fi devices.

•The Wi-Fi hotspot will show up as TPW4G_xxxxxx, click on this device to

connect.

•Consult your device display and enter the default Password which is case

sensitive. Any letters entered must be in upper case (capitals).

Connection example for Windows 7 computer:

1. On your task bar, next to the clock, click on the Network Interface icon

2. Click on the Wireless device called TPW4G_xxxxxx

3. Enter the password exactly as shown on the display observing the correct case

for all letters

4. With Connect Automatically enabled your computer will remember the

password and connect to your Wi-Fi device when it is on and in range.

TIP

If you cannot log on via Wi-Fi, connect using the USB connection where you can

check your Wi-Fi settings, or update your password. See later for details.

Page 7 of 32

QUICK REFERENCES

Browser home page

http://192.168.0.1

Administrator login

password

Default SSID

TPW4G_xxxx

This is displayed on the screen when the device is

powered up. This can be switched off via the

Settings > Wi-Fi menu

Default Wi-Fi Key

10 characters which are case sensitive.

This is displayed on the screen when the device is

powered up. This can be switched off via the

Settings > Wi-Fi menu

Restore defaults

From the powered up state:

Open the SIM slot on the device. Locate the Reset

button and use a small object such as a pin or

paperclip to press the button.

Hold the Reset button for five seconds until the

display shows ‘Resetting’

All passwords and settings will be restored to

defaults and the hotspot will reboot.

Use the default credentials on the screen to log

back onto your device.

Page 8 of 32

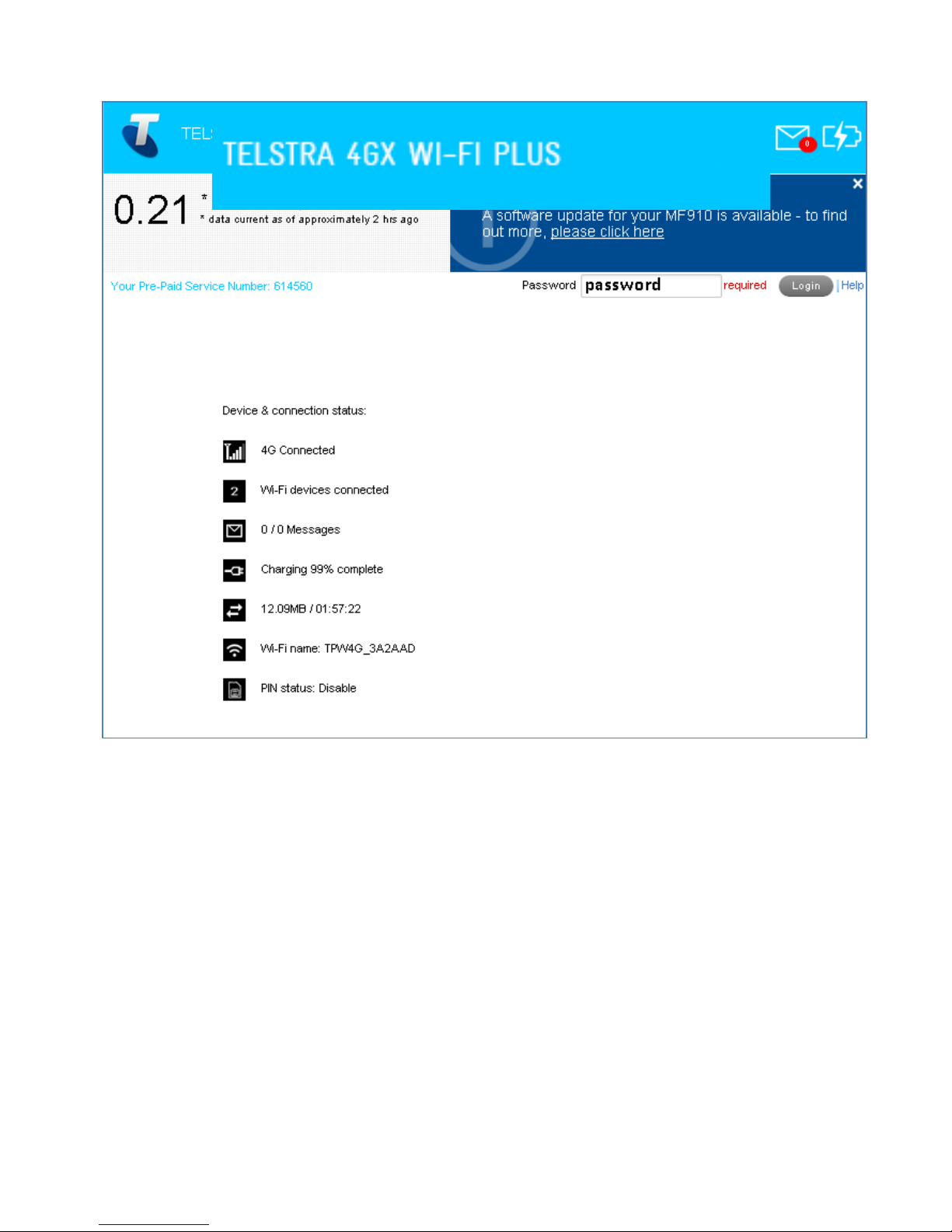

WEB INTERFACE, MODEM HOMEPAGE

•The default login password is ‘password’

•The home page shows a brief summary of the device status and your remaining

data from Telstra.

•Software update notifications (if applicable) will be shown on this page as per

the example above.

Page 9 of 32

STATUS ICONS – WEB INTERFACE

NO NETWORK ACCESS

•No Network Access can be any of the following conditions:

•A missing, faulty or incorrectly inserted SIM. Check you have inserted your SIM

card the right way and pushed it fully home until it clicks into place.

•A Non-Telstra SIM card. This device is Network Locked to Telstra, contact Telstra

to unlock your device.

•A PIN locked SIM card. Log into the web interface then enter the PIN code for

your SIM card.

•A PUK locked SIM card. You may have entered the wrong PIN code too many

times. Contact Telstra to obtain your PIN Unlocking Key (PUK) code. Log into the

web interface to enter your PUK and PIN code

•A PUK blocked SIM card. If you enter the wrong PUK code too many times the

SIM card is permanently blocked. Contact your dealer to obtain a replacement

SIM card.

•No Service, you are out of network coverage.

INTERNATIONAL ROAMING

•The Roaming icon indicates you are connected to a foreign network.

•If Roaming is enabled on your data plan then roaming data charges will apply

when connected via a roaming network.

•Contact your carrier to determine your data charges.

Page 10 of 32

NETWORK LOCKED DEVICE

•This device is network locked to Telstra. If you use an alternate carrier SIM you

need to contact Telstra for the unlocking code. An unlocking fee may apply.

INSTALLATION NOTES

•If you choose to install the device via the USB connection then a CDROM drive

will pop up on first installation.

•Double-click Setup.exe to install the software.

•The installation will create a new shortcut on your desktop and a new program

listing under Start-Programs.

•If you have problems with the installation please contact your supplier or see

our website, ztemobiles.com.au for more assistance and FAQ’s or call our hotline

on 1300 789 475

(ZTE Support hotline is available during normal business hours, AEST 9am to

5pm)

•If you can’t connect to the internet check your SIM card is inserted correctly,

contact your service provider and check your account is active.

•To uninstall the application:

Windows users: Start > All Programs > TELSTRA 4GX WIFI PLUS > Uninstall.

MAC Users:

•Double click the Telstra Modem CDROM on the desktop to install the modem.

•To uninstall, go to Applications and run Uninstall TELSTRA 4GX WIFI PLUS.
