ZKTeco ProMA Series Manuel utilisateur
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.
Quick Start Guide
ProMA Series
Version: 2.0
1
1 Product Overview
Note: ProMA-QR has an additional QR code recognition function than ProMA-RF, ProMA has an
additional fingerprint recognition function than ProMA -RF, and the rest are the same.
ProMA
Camera & Palm
2" Display Screen
Microphone
Fingerprint Sensor
Flash
Doorbell Button
Card Reading Area
ProMA-QR
Camera & Palm
2" Display Screen
Microphone
QR Code Scanner
Flash
Doorbell Button
Card Reading Area
ProMA-RF
Camera & Palm
2" Display Screen
Microphone
Flash
Doorbell Button
Card Reading Area
Reset
Speaker
2
Please refer to the following recommendations for installation.
INSTALL INDOORS
ONLY
AVOID INSTALLATION
NEAR
GLASS WINDOWS
AVOID DIRECT
SUNLIGHT
AND EXPOSURE
AVOID USE OF ANY
HEAT SOURCE
NEAR THE DEVICE
3 Installation Environment
2 Terminal Block
Terminal Block
GND
IWD01
IWD0
485A
485B
WD0-OUT
WD1-OUT
GND
12V-OUT
BELL+
AL+
BELL-
AL-
BUT1
SEN1
AUX1
NC1
COM1
NO1
GND
12VIN
PGND
TX+
RX+
TX-
RX-
3
4 Device Installation
① Attach the mounting template sticker to the wall, and drill holes according to the mounting paper.
② Fix the backplate on the wall using wall mounting screws.
③ Attach the device to the backplate.
④ Fasten the device to the backplate with a security screw.
1 2
43
1.38m
②
①
ProMA series installation are the same, the following is an example of ProMA.
4
5 Standalone Installation
Alarm Smoke
Detector
Lock TCP/IP
Exit Button
Door Sensor
Reader
PC
6 Power Connection
Recommended power supply
Rating of 12V and 3A
To share the device’s power supply with other devices, use a power supply with higher current ratings.
12V
5
7 Door Sensor, Exit Button, Alarm and Auxiliary Connection
NO
COM
Smoke Detector
-
Detector
Power
Door
Sensor
ExitButton
Alarm
Alarm Power
8 Lock Relay Connection
1) Device not sharing power with the lock
NC Lock
2) Device sharing power with the lock
+12V
GND
DC12V
FR107
NC Lock
DC12V
+12V
GND
Lock Power
The system supports both Normally Opened Lock and Normally Closed Lock. The NO Lock
(normally opened when powered) is connected with ‘NO’ and ‘COM’ terminals, and the NC Lock
(normally closed when powered) is connected with ‘NC’ and ‘COM’ terminals. The power can be
shared with the lock or can be used separately for the lock, as shown in the example with NC Lock
below:
GND
NO1
COM1
NC1
AUX1
SEN1
BUT1
AL-
AL+
BELL-
BELL+
-
-
-
-
-
-
-
-
GND
NO1
COM1
NC1
AUX1
SEN1
BUT1
AL-
AL+
GND
NO1
COM1
NC1
AUX1
SEN1
BUT1
AL-
AL+
DC12V
FR107
6
9 Wiegand Connection
10 RS485 Connection
Wiegand card reader connects to the top 4 pins of the wiegand terminal and the last two pins are
used by the Access Controller, as shown in the following figure. It sends the credentials to the
device via wiegand communication.
The RS485 lets user connect to multiple readers to the device. RS485 can be connected to the
terminal, as shown in the figure below.
Wiegand Reader
GND
+12V
WD1
WD0
Access
Controller
WD1
WD0
GND
IWD0
IWD1
485A
485B
12V-OUT
GND
WD0-OUT
WD1-OUT
485+
485-
485 Reader
Access
Controller
WD1
WD0
GND
IWD0
IWD1
485A
485B
12V-OUT
GND
WD0-OUT
WD1-OUT
GND
+12V
QR600
Note: The QR600 reader is a feature unique to ProMA-QR. For details, please refer to QR600 Code Reader
Quick Start Guide.
QR600
11 Ethernet Connection
7
Connect the device and computer software over an Ethernet cable. An example is shown below:
: 192.168.1.201Default IP address
: 255.255.255.0 Subnet mask
: 192.168.1.130IP address
: 255.255.255.0 Subnet mask
ZKBio CVSecurity
12 Login WebServer
All operations such as device information, communication settings, user management and system
settings are operated and set up on WebServer.
Note: In LAN, IP addresses of the server (PC) and the device must be in the same network segment
when connecting to ZKBio CVSecurity software.
Press and hold the Doorbell button of the device until the IP pops up.
1.
Ser ial IP Ad dress
192.168.1.201
OK
Serial IP Address
192.168.1.201
OK
Enter the account ID and password, the default account ID is: admin, password: admin@123.
3.
https：//192.168.1.201:1443/lo
https：//192.168.1.201:1443/login.html
User Name
Password
Login
https：//192.168.1.201:1443/lo
https：//192.168.1.201:1443
https：//192.168.1.201:1443
https：//192.168.1.201:1443 - Goolge - Search
https：//192.168.1.201:1443/login.html - https：//192.168.1.201:1443/start.html
https：//192.168.1.201:1443/login.html - https：//192.168.1.201:1443/login.html
After logging in for the first time, users need to reset their original password and log in again before
they can use it.
8
Open a browser to enter the address to log in the WebServer, the address is the https:// Serial IP
Address:1443, for example: https://192.168.1.201:1443.
2.
admin
Login
...............
Note:
1.
In order to retrieve the password easily, please register a super admin first.
2.

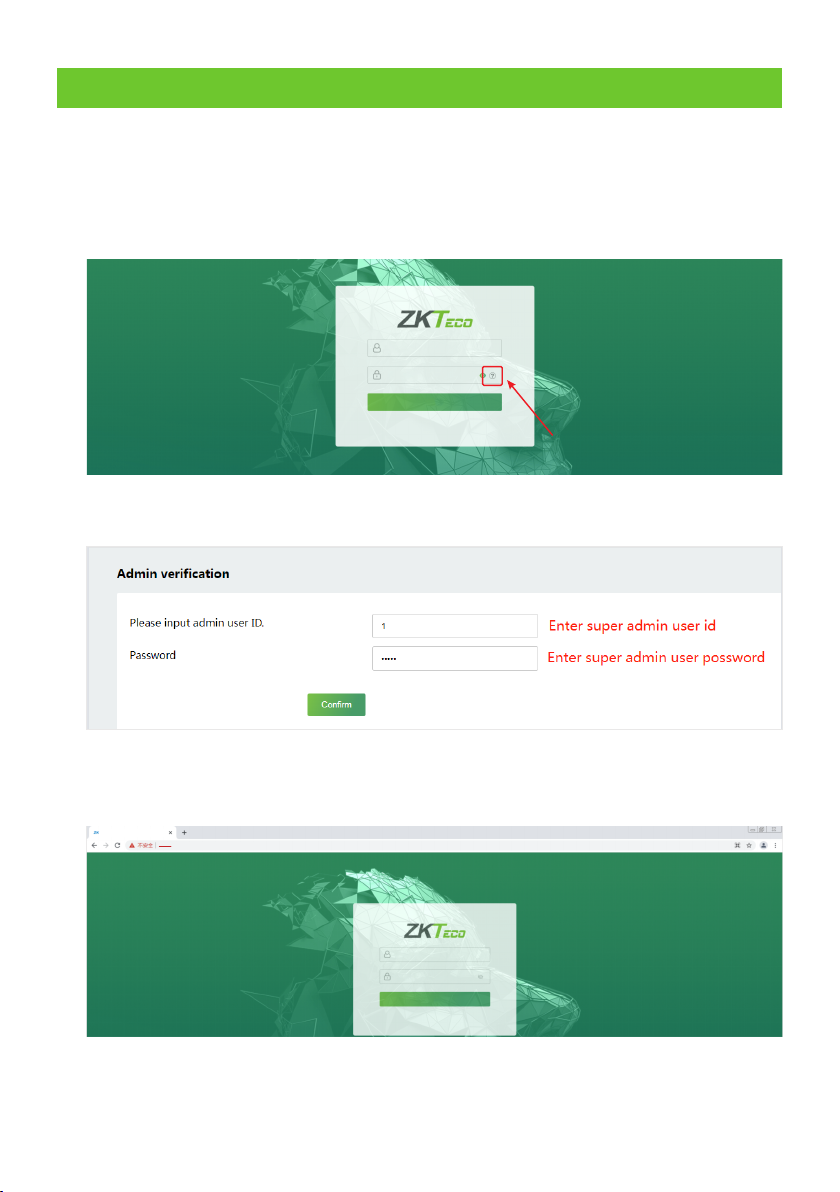

13 Forgot Password
9
Forgot Password
Method 1 (When there is a super admin):
If you forgot the password of WebServer, the registered super admin can reset it for you.
Click the icon on the login interface.
1.
Login
On the pop-up page, enter the relevant information of the super admin user as prompted.
2.
After a successful reset, enter the default account and password (account: admin, password:
admin@123) on the login interface to log in.
3.
https：//192.168.1.201:1443/lo
https：//192.168.1.201:1443/login.html
admin
admin@123
Login
