ZKTeco IN710 Manuel utilisateur

Quick Start Guide

IN710

Version: 1.2

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the

actual product and the written information in this manual.

1

Overview

167.00mm

23.50mm

135.00mm

Front Rear

Side

Top

Bottom

Microphone

Card Reading Area

Fingerprint Sensor

Speaker

5-inch HD Touchscreen

Reset

Indicator

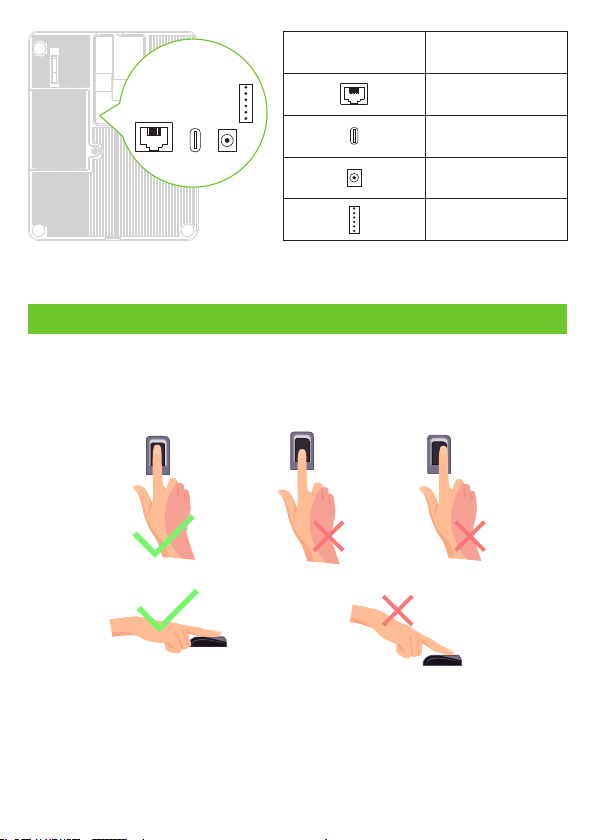

Interface Description

Network Interface

Type-C

12V Power In

Access Control

Finger Placement

Recommended fingers: Index, middle, or ring fingers.

Avoid using the thumb or pinky finger, as they are difficult to press accurately on the

fingerprint reader.

2

Installation Environment

Please refer to the following recommendations for installation:

Device Installation

3

The IN710 requires no difficult installation, just fix the device on a flat table.

4

Power Connection

Recommended AC Adapter:

1) Rating of 12V and 3A.

2) To share the device's power with other devices, use a power supply with higher

current ratings.

Ethernet Connection

After the device is powered on, connect the network connector via the Ethernet

cable.

AC Adapter

DC V, 3A

Connect the device and computer via a Type-C cable.

5

Type-C Connection

Door Sensor, Exit Button and Lock Relay Connection

Door Sensor and Exit Button:

The system supports Normally Opened Lock and Normally Closed Lock. The NO

LOCK (normally unlocked when power-ON) is connected to 'NO' and 'COM'

terminals, and the NC LOCK (normally locked when power-ON) is connected to 'NC'

and 'COM' terminals. For an example, refer to the below-mentioned NC Lock:

1)Device not sharing power with the lock 2)Device sharing power with the lock

6

Lock Relay Connection:

GND

+5V +5V

New User Registration

7

Click on icon> [User Mgt.] > [New User] to register a new user. The options in-

clude entering the user ID and Name, setting User Role and Verification Mode,

registering ID Card, Fingerprint and Password.

L

LL

When there is no super administrator set in the device, click on to enter the menu.

Add a new user and set User Role to Super Admin, then the system requests for the

administrator’s veriﬁcation before entering the menu. It is recommended to register a

super administrator initially for security purposes.

Ethernet

Click on icon > [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP

communication of the device is successful, the icon will be displayed in the

upper right corner of the standby interface.

8

LL

Access Control

Click on to enter the access control interface and set relevant icon > [Access Control]

parameters of access control.

L

Attendance Record

Click on icon > [ Search] Record to enter the Attendance > [Attendance ]

personal record search, input the user ID and select the time range. Then the

corresponding attendance record will be displayed.

9

System

Click on icon > [System] to enter the system interface to set the related system

parameters for optimizing the accessibility of the device.

L

L
