ZKTeco Notus Manuel utilisateur
Quick Start Guide
Notus
Date: June 2021
Version: 1.2
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.
Overview
IR
Camera
Card Reading Area
Speaker
Light Sensitive Diode
Indicator
Call Key
Doorbell Button
Reset
Button
Microphone
Fingerprint Sensor
Exit Button
Auxiliary Input AUX
AL+
AL-
NC
COM
NO
BUT
GND
BELL+
BELL-
Alarm
Lock
Sensor
GND
+12V Power In
GND
INWD0
INWD1 Wiegand In
Wiegand Out
12V
GND
RS485
485B
485A
GND
SEN
WD0
WD1
Installation Environment
1
This product is suitable for semi-outdoor environment. Please install
it in an environment where there is no direct sunlight exposure, and
no refraction of glass.
Doorbell
12V-Out
Device Installation
1.2m
123
①
②
TCP/IP
Alarm Smoke
Detector
Lock
Exit Button
Door Sensor
Card
Reader
PC
Standalone Installation
2
Attach the mounting template sticker to the wall, and drill holes
according to the mounting paper. Fix the back plate on the wall
using the wall mounting screws.
Attach the device to the back plate.
Fasten the device to the back plate with two security screws.
①
②
③
Lock Relay Connection
The system supports Normally Opened Lock and Normally Closed
Lock.
The NO LOCK (normally opened at power on) is connected with 'NO1'
and 'COM' terminals, and the NC LOCK (normally closed at power on)
is connected with 'NC1' and 'COM' terminals. Take NC Lock as an
example below:
AUX
AL+
AL-
NC
COM
NO
BUT
GND
BELL+
BELL-
GND
SEN
AUX
AL+
AL-
NC
COM
NO
BUT
GND
BELL+
BELL-
GND
SEN
AUX
AL+
AL-
NC
COM
NO
BUT
GND
BELL+
BELL-
GND
SEN
Door Sensor, Exit Button & Alarm Connection
Door Sensor
Alarm
-
+
-+
-
+
Detector
Power
Smoke Detector
Exit Button
Alarm Power
3
NO
COM
485+
485-
GND
RS485
Reader
RS485 Connection
485B
485A
GND
WD0
WD1
Wiegand Reader & Power Connection
INWD0
INWD1
12V
GND
485B
485A
GND
WD0
WD1
Wiegand Reader
GND
+12V
WD1
WD0
Access Controller
GND
+12V 12V 3A DC
Recommended ower supplyP is 12V - 3A
To share the power with other devices, use a power supply with higher
current ratings.
4
DIP Switch Connection
(1) To prevent the interference, the last component in the
RS485 bus is a 120 Euro resistor. That is turn the switch ‘6’
(terminal resistor switch) to ‘ON’.
(2) The RS485 terminal no. is shown in the PC software.
You can change it as follows. ( The default switch state is
’OFF’ ) .
NO. 1 2 3 4 RS485 Reader ID
Switch
OFF OFF OFF OFF 0
ON OFF OFF OFF 1
OFF ON OFF OFF 2
OFF OFF ON OFF 4
...
ON ON ON ON 15
NO. 5 6
Switch ON OFF ON
Model All-in-one &
Wiegand reader
RS485 Reader Terminal Resistor
Note: As an all-in-one mode, you can connect an external RS485
reader. When it is used in RS485 reader mode, it needs to be used with
a 6-bit DIP switch. The rst to fourth digits are used to set the RS485
address, port 5 is used to switch the modes, and port 6 is to set the
state of terminal resistor.
5

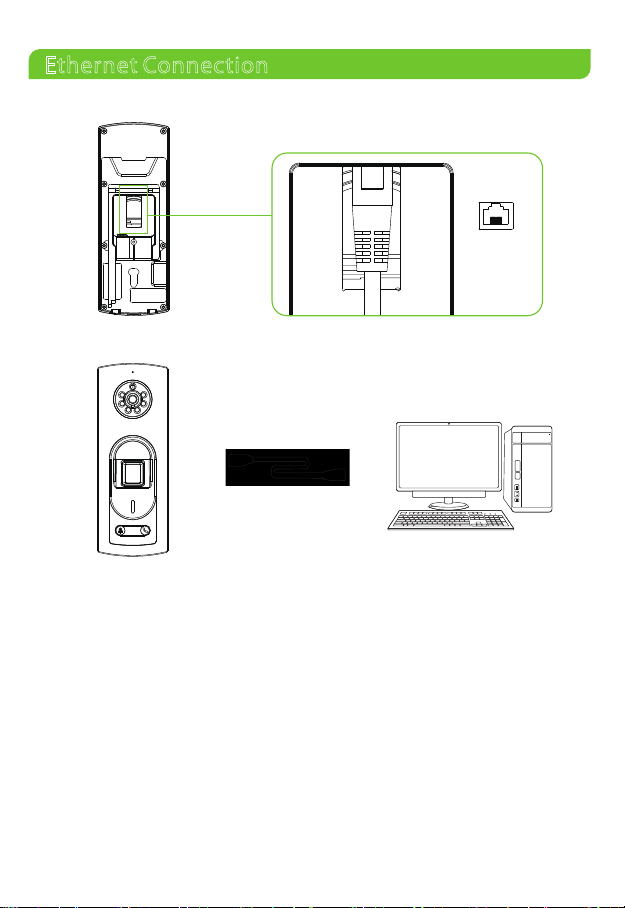

Ethernet Connection
Note: In LAN, IP addresses of the server (PC) and the device must be in
the same network segment when connecting to ZKBioAccess
software.
ZKBioAccess
Network
interface
6
Register on ZKBioAccess software
2. Click [Personnel] > [Person] > [New] to register new users in the
software.
3. Add users to access levels.
4. Click [Access] > [Device] > [Device Control] > [Synchronize All Data to
Devices].
For more details, please refer to the ZKBioAccess User Manual.
1. Click [Access] > [Access Device] > [Device] > [Search Device] to add
the device to the software.
The device can be added automatically once the server address and port
have been congured on the computer.
User Registration
7
Connect to ZSmart
8
Connect to ZSmart App
After downloading and installing the ZSmart App on the phone, open it and
add the device by scanning the QR code on the back cover of the device or scan the
Video Intercom QR Code in [Device]> [Video Intercom setting] on the web
application of the device.The process is as follows:
Users can use the ZSmart App for video intercom.
9
Video Door Phone Connection
Visitors press the on the device to make a call and the phone will ring.
The user can accept or decline the call. After the user accepts the call, it will
open the video door phone interface.
Webserver
First connect the device to the Internet. Open a browser and input the link:
https: //IP address (the device) to enter the login interface. (e.g The default
IP address of the device is 192.168.1.201, the webserver link is https:
//192.168.1.201.)
The user can enter the web application to set the relevant parameters of the
device.
Fox example: Comm Settings, Wi-Fi Settings, Cloud Settings, System Settings,
Date and Time etc.
