ZKTeco KF1000 Series Manuel utilisateur
Version: 1.0
KF1000 Series
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.
Quick Start Guide
1
1.Product Overview
KF
KF
0.54" (13.8mm)
0.54" (13.8mm)
3.58"(91.0mm)
3.58"(91.0mm)
3.15"(80.0mm)
4.76"(121.0mm)
Note: Features and parameters with mark are not available in all devices. ★
2.Installation Environment
INSTALL INDOORS
ONLY
AVOID DIRECT
SUNLIGHT
AND EXPOSURE
AVOID INSTALLATION
NEAR
GLASS WINDOWS
AVOID USE OF ANY
HEAT SOURCE
NEAR THE DEVICE
Back Plate
4.35"(110.4mm)
0.51" (13.1mm)
3.03"(77.0mm)3.25"(82.5mm)
3.30"(83.9mm)
0.51" (13.1mm)
Flash
Camera
Near-Infrared Flash
LED Indicator
Receive Antenna
Card Reading Area
No. Discription
1
2
3
4
Restart Button
Reset Button
Mounting Hole
Wiring Hole
Tamper Switch
Speaker
No. Discription
6
7
8
9
10
11
5
2
3.Device Installation
Install on the wall
1 2
43
1.5m
Baseline
1
2
①
②
③
④
Attach the mounting template sticker to the wall, and drill holes according to
the mounting paper.
Secure the back plate on the wall with the wall mounting screws.
After passing the wires through the wiring hole and connecting them to the
device, and then attach the device to the back plate from top to bottom.
Fasten the device to the back plate with a security screw.
Note: The installation method of KF1200 is the same as that of KF1100. Only
KF1100 is used as an example, and will not be repeated here again.
3
Power
Wiegand Out
Beep
Red LED
Green LED
Alarm
RS485
Ethernet
5.Terminal Block
WD2
WD1
GND
BEEP
LED-R
LED-G
ALARM
GND
485A
485B
RJ45-1
RJ45-2
RJ45-3
RJ45-6
+12V
+12V
GND
GND
4.Standalone Installation
Electric Lock
Door Sensor
InBio Series
TCPIP
KF1100 KF1200
TCPIP
TCPIP
Wiegand
STATE
PWR
EXT
RS485
PC
RS485
SWITCH
Router
WIFI
4
STATE
PWR
EXT
RS485
PC
RS485
SWITCH
BEEP
GLED
WD1
WD0
GND
+12V
READER1

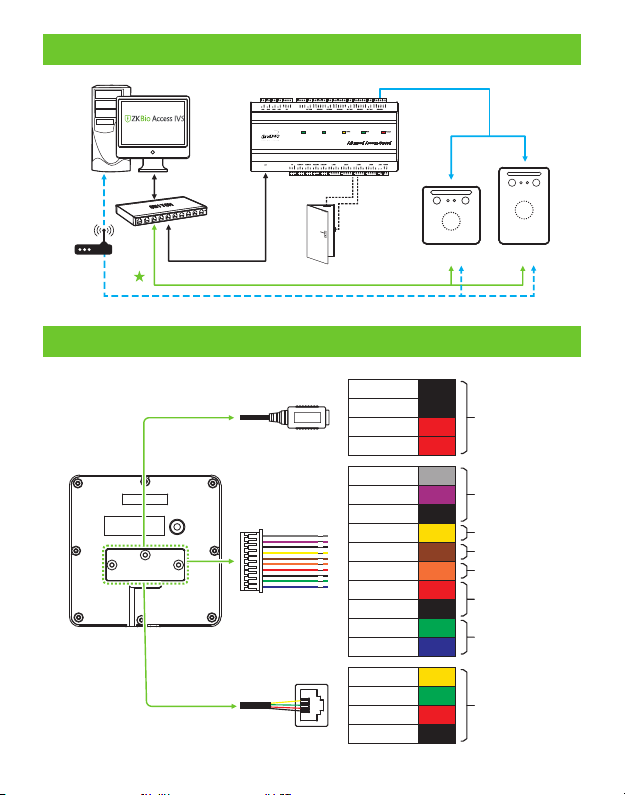

7.InBio Connection
6.Power Connection
Minimum :12V, 1.5A, :AC adapter AC adapter ,. Recommended 12V 3A
Use an AC adapter with a higher current rating to share power with the
other devices.
AC Adapter
DC12V
InBio Series
GND
GND
+12V
+12V
WD2
WD1
GND
BEEP
LED-R
LED-G
ALARM
GND
485A
485B
5
8.DM10 Connection
WD2
WD1
GND
BEEP
LED-R
LED-G
ALARM
GND
485A
485B
GND
485A
485B
Note:
1. You need to manually enable the DM10 function on the WebServer to access.
The path: [Advanced Settings] > [Serial Comm] > [Serial Port] > [Dm10].
2. A KF1000 series only supports connecting one DM10.
3. Set the 485 address of DM10 to 1.
4. Each device requires a separate power supply.
5. For more details, please refer to the User Manual.
DM10
+12V DC
6
1 2 34
485 Address
9.Ethernet Connection
Connect the device and the computer software over an Ethernet cable.
As shown in the example below:
Default IP address: 192.168.1.201
: Subnet mask 255.255.255.0
: 192.168.1.130IP address
: 255.255.255.0 Subnet mask
Note: In LAN, the IP addresses of the server (PC) and the device must be in the
same network segment while connecting to the ZKBioAccess IVS software.
On the WebServer page, click [Advanced Settings] > [COMM.] > [IP Address] to
change the IP address and then click [Conf irm].
10.Login to the WebServer
https://192.168.1.201:1443
Note: After logging in for the first time, the user needs to change the original
password and then log in again before it can be used.
After the device is powered on, connect the device using a cable network
to access the WebServer by entering the IP address and the server port in the
address bar of your browser. The IP address is set as: https://device IP address:
port. By default, the port is 1443. For example: https://192.168.1.201:1443
User name: admin Password: admin@123
7
11.Quick Start
Method 1: Registering on the WebServer
1. User registration
UserRegistration User Authentication ViewRecords
Verified
Click [User ] > [All Users] > [New User] to register a new user on the WebServer. Mgt.
Enter the User ID, Name, Password, Card, setting user role and access control role.
12
3
4Enroll Face on the device.
Enter the User Info.
After entering the basic information of the user, click [Confirm], and then select
the face and click [Register]. Follow the device prompts to face the camera and re-
cord the face until the LED indicator turns green.
8
Method 2: Registering on the software (ZKBioAccess IVS)
1. Click [Advanced Settings] > [COMM.] > [IP Address] to set the IP address and
then click [Advanced Settings] > [Cloud Service Setup] to set cloud service ad-
dress on the WebServer. As shown in the figure below.
1
192.168.163.58
192.168.163.1
3
2
Enter the IP Info.
13
192.168.163.61
8088
2
Cloud Server Address: This is the IP address after the software installation.
Cloud Service Port: Default is 8088.
114.114.114.114
Enter the Sever Info.
9
