English 3

Français 16

Español 31

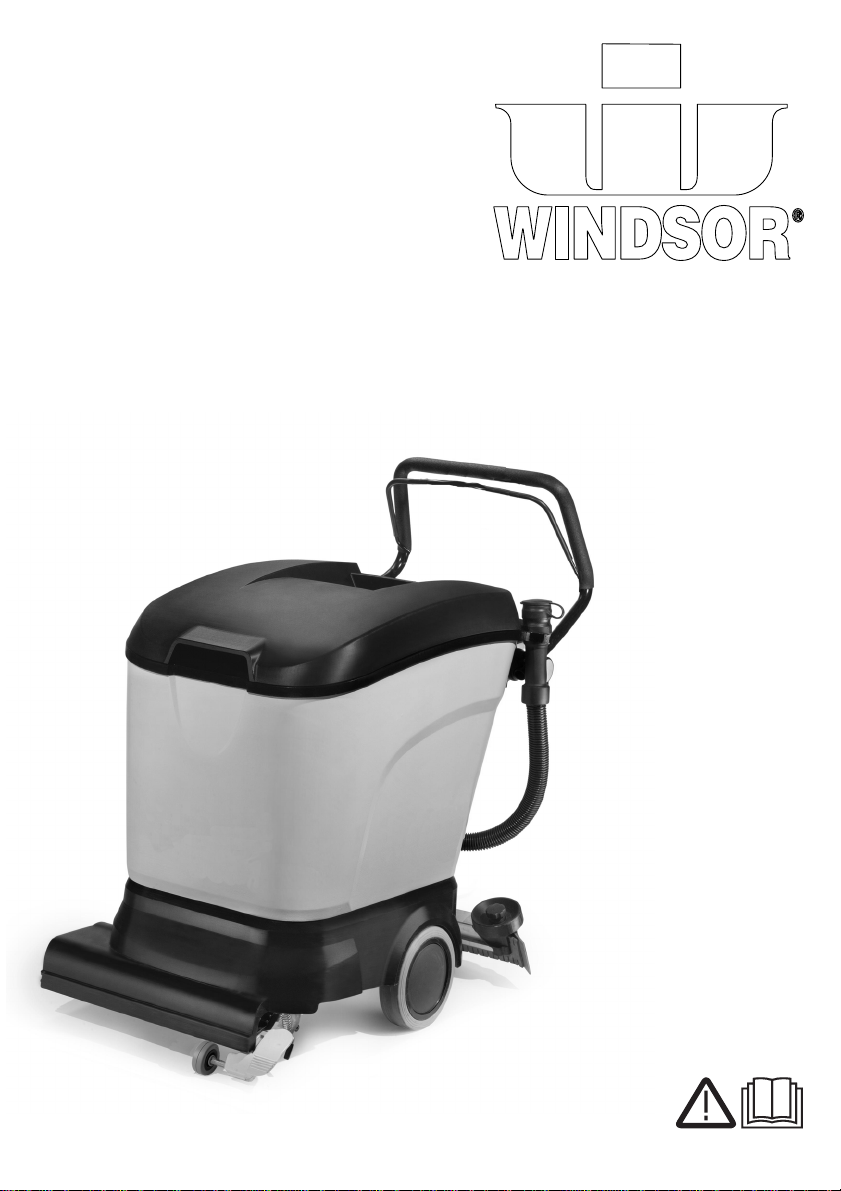

Saber Compact 16 SP

5.962-200.0 03/07

English 3

IMPORTANT SAFETY INSTRUCTIONS 3

Proper Use 6

Environmental Protection 6

Operating and Functional Elements 7

Before Commissioning 8

Operation 10

Maintenance and Care 12

Faults 13

Specifications 15

To reduce the risk of fire, electric shock, or

injury:

– Do not leave appliance when plugged in.

Unplug from outlet when not in use and

before servicing.

– TO REDUCE THE RISK OF ELECTRIC

SHOCK-USE INDOORS ONLY

– Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

– Use only as discribed in this manual. Use

only manufacturer`s recommended at-

tachments.

– Do not use with damaged cord or plug. If

appliance is not working as it should, has

been dropped, damaged, left outdoors,

or dropped into water, return it to a ser-

vice center.

– Do not pull or carry by cord, use cord as

a handle, close a door on cord, or pull

cord around sharp edges or corners. Do

not run appliance over cord. Keep cord

away from heated surfaces.

– Do not unplug by pulling on cord. To un-

plug, grasp the plug, not the cord.

– Do not handle plug or appliance with wet

hands.

– Do not put any object into openings. Do

not use with any opening blocked; keep

free of dust, lint, hair, and anything that

may reduce air flow.

– Keep hair, loose clothing, fingers, and all

parts of body away from openings and

moving parts.

– Turn off all controls before unplugging.

– Use extra care when cleaning on stairs.

– Do not use to pick up flammable or com-

bustible liquids, such as gasoline, or use

in areas where they may be present.

– Connect to a properly grounded outlet

only. See Grounding Instruction.

This appliance must be grounded. If it

should malfunction or breakdown, ground-

ing provides a path of least resistance for

electric current to reduce the risk of electric

shock. This appliance is equipped with a

cord having an equipment-grounding con-

ductor and a grounding plug. The plug must

be inserted into an appropriate outlet that is

properly installed and grounded in accor-

dance with all local codes and ordinances.

Improper connection of the equipment

grounding conductor can result in a risk of

electric shock. Check with a qualified electri-

cian or service person if you are in doubt as

to whether the outlet is properly grounded.

Do not modify the plug provided with the ap-

pliance-if it will not fit the outlet, have a prop-

er outlet installed by a qualified electrician.

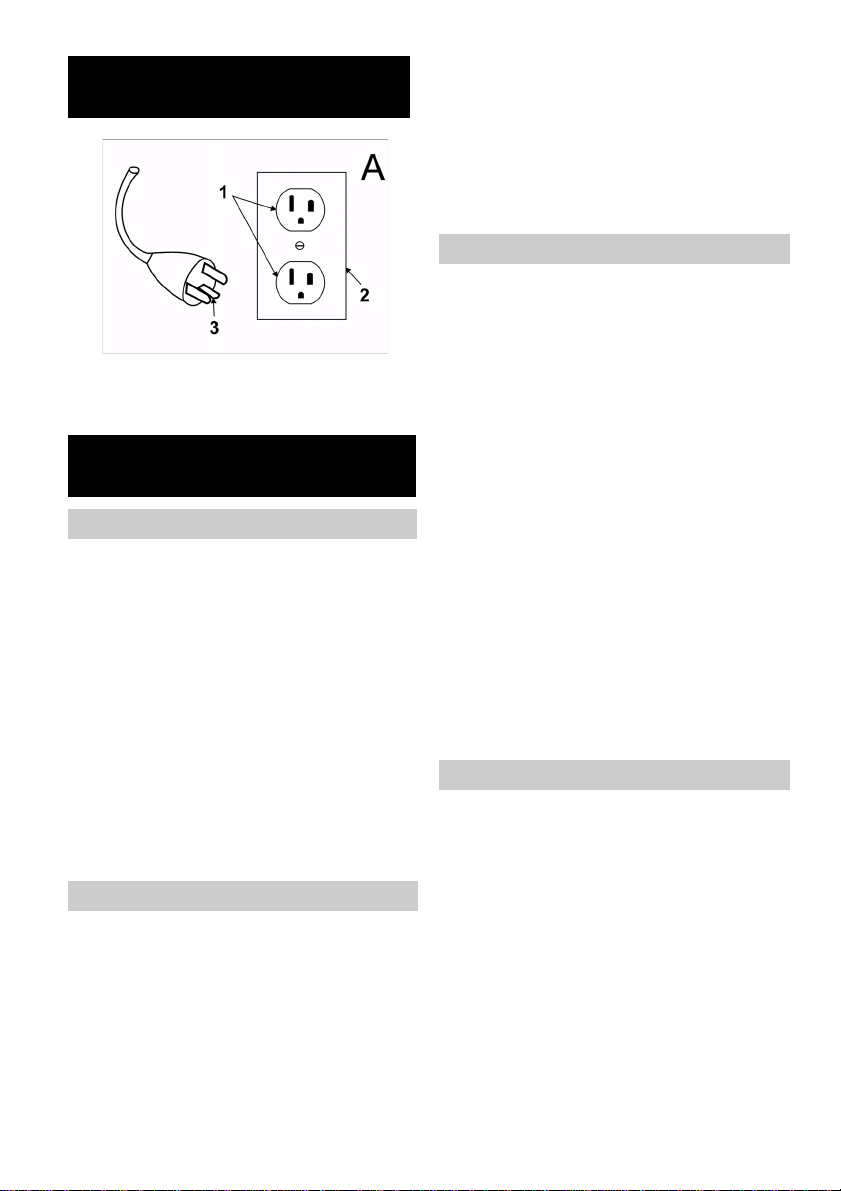

This appliance is for use on a nominal 120-

volt circuit and has a grounding attachment

plug that looks like the plug illustrated in fig-

ure A. Make sure that the appliance is con-

nected to an outlet having the same

configuration as the plug. No adaptor should

be used with this appliance.

Contents

IMPORTANT SAFETY IN-

STRUCTIONS

READ ALL INSTRUCTIONS

BEFORE USING.

WARNING

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

WARNING

4 English

1 Grounded outlet

2 Grounded outlet Box

3 Grounded Pin

Save operation is in the responsibility of the

operator.

The operator shall be familiar with the oper-

ation and function of all controls and instru-

ments before undertaking to operate the

unit.

Before operating the unit, operators shall

have read and be familiar with the operator’s

manual for the particular unit being operated

and they shall also abide by the safety rules

and practices in the following paragraphs.

Before operating any unit, the operator shall

be familiar with unusual operating conditions

which may require additional safety precau-

tions or special operating instructions.

Before starting to operate the unit be in op-

erating position.

Do not start or operate the unit, any of its

functions or attachments, from any place

other than from the designated operators

position.

Before leaving the operator’s position:

A bring the unit to a complete stop;

B if the unit must be on an incline, block the

wheels.

Maintain a safe distance from the edge of

ramps, platforms, and other similar working

surfaces.

Do not add to, or modify the unit.

Do not block access to fire aisles, stairways

or fire equipment.

Yield the right of way to pedestrians and

emergency vehicles such as ambulances

and fire trucks.

Cross railroad tracks at an angle wherever

possible. Do not park closer than 6 ft (1800

mm) to the nearest rail of a railroad track.

Keep a clear view of the path of travel and

observe for other traffic, personnel, and safe

clearances.

Under all travel conditions, operate the unit

at a speed that will pernit it to be brought to

a stop in a safe manner.

Do not indulge in stunt driving or horseplay.

Slow down for wet and slippery floors.

Before driving over a dockboard or bridge

plate, be sure that it is properly secured.

Drive carefully and slowly across the dock-

board or bridge plate, and never exceed its

rated capacity.

When negotiating turns, reduce speed to a

safe level consistent with the operating envi-

ronment. Make the turns smoothly.

If the unit is found to be in need of repair or

in any way unsafe, or contributes to an un-

safe condition, the matter shall be reported

immediately to the user’s designated author-

ity, and the unit shall not be operated until it

has been restored to safe operating condi-

tion.

If during operation the unit becomes unsafe

in any way, the matter shall be reported im-

mediately to the user’s designated authority,

and the unit shall not be operated until it has

been restored to safe operating condition.

Do not make repairs or adjustments unless

specifically authorized to do so.

CONNECT TO A PROPERLY

GROUNDED OUTLET ONLY

OPERATING SAFETY RULES

AND PRACTICES

Operator Responsibility

General

Traveling

Operator care of the unit

English 5

Operation of the unit may be hazardous if

maintenance is neglected or repairs, re-

builds, or adjustments are not performed in

accordance with the manufacturer’s design

criteria. Therefore, maintenance facilities

(on or off premises), trained personnel, and

detailed procedures shall be provided.

Maintenance and inspection of the unit shall

be performed in conformance with the fol-

lowing practices:

A a schedules planned maintenance, lubri-

cation, and inspection system shall be

followed; consult the manufacturer’s rec-

ommendations.

B only tranined and authorized personnel

shall be permitted to maintain, repair, ad-

just, and inspect the unit, and in accor-

dance with manufacturer’s

specifications.

Avoid fire hazards and have fire protection

equipment present in the work area. Do not

use open pans of fuel or flammable cleaning

fluids for cleaning parts.

Any unit not in safe operating condition shall

be removed from service.

Fire Prevention: The unit shall be kept in a

clean condition and reasonably free of lint,

excess oil, and grease. Noncombustible

agents are preferred for cleaning the unit.

Flammable liquids [those having flash points

at or above 100°F (37,8°C)] are not allowed.

Precautions regarding toxicity, ventilation,

and fire hazard shall be appropriate for the

agent or solvent used.

Nameplate Visibility: The unit type designa-

tions as shown on the nameplate and the

type markers shall not be covered over with

paint so that their identification information is

obscured.

Please read and comply with

these instructions prior to the

initial operation of your appliance. Retain

these operating instructions for future refer-

ence or for subsequent possessors.

Safety devices serve to protect the user and

must not be rendered inoperational or their

functions bypassed.

To render brush drive immediately inopera-

tional, release the control handle.

The following symbols are used in this oper-

ating manual:

Danger

Indicates an immediate threat of danger.

Failure to observe the instruction may result

in death or serious injuries.

몇Warning

Indicates a possibly dangerous situation.

Failure to observe the instruction may result

in light injuries or damage to property.

Note

Indicates useful tips and important informa-

tion about the product.

The appliance is used for wet cleaning or

polishing level floors. It can be easily adjust-

ed to the cleaning task by setting a cleaning

program and the water quantity.

A working width of 400mm / 15.7 in and a ca-

pacity of 25l / 6.6 gal each of the fresh and

dirty water reservoirs enable effective clean-

ing.

Note

The appliance can be equipped with various

accessories depending on the cleaning task.

Please request our catalogue or visit us on

the Internet at www.kaercher.com.

MAINTENANCE ANDREBUILD

PRACTICES

FIRE SAFETY STANDARD

Safety Instructions

Safety Devices

Control handle

Symbols

Function

6 English

Only use this appliance as directed in these

operating instructions.

– The appliance may only be used for the

cleaning of hard surfaces that are not

sensitive to moisture and polishing oper-

ations.

The application temperature ranges from

+5°C to +40°C / 41°F to 104°F.

– The appliance is not suitable for cleaning

frozen floors (e.g. in cold stores).

– The appliance may only be equipped

with genuine accessories and spare

parts.

– The appliance has been designed for the

cleaning of interior floors or covered sur-

faces. For other areas of application, the

use of alternative brushes must be

checked.

– The appliance is not intended for the

cleaning of public traffic routes.

– Take the permissible floor surface load-

ing into account.

The appliance is not suitable for use in

potentially explosive environments.

Proper use

Environmental protection

The packaging material can be re-

cycled. Please do not place the

packaging into the ordinary refuse

for disposal, but arrange for the

proper recycling.

Old appliances contain valuable

materials that can be recycled.

Please arrange for the proper recy-

cling of old appliances. Batteries,

oil, and similar substances must not

enter the environment. Please dis-

pose of your old appliances using

appropriate collection systems.

English 7

1 Push handle

2 Control handle

3 Star grip push handle fastening

4 Filling level display and fresh water dis-

charge hose

5 Battery *

6 Cleaning head

7 Battery control display

8 Brush motor overload display

9 Program selection switch

10 Water quantity regulator

11 Wing nuts for tilting squeegee

12 Wing nuts for fastening squeegee

13 Squeegee lowering lever

14 Electronics

15 Running gear for transport

16 Tank fixing screw

17 Fresh water reservoir filler neck

18 Lint filter

19 Dirty water reservoir

20 Dirty water reservoir cover

21 Float

22 Suction hose

23 Squeegee tool *

24 Dirty water discharge hose

25 Star grips for exchanging squeegee

blades

26 Splashguard

27 Brush rollers

* not included in delivery

Operating and Functional Elements

8 English

ÎRelease the star grips of the push handle

fastening.

ÎTurn the push handle backwards and

tighten the star grips.

ÎPlace the long lateral packaging boards

as a ramp next to the pallet.

ÎFix the ramp to the pallet with nails.

ÎPlace the short boards underneath the

ramp as a support.

ÎRemove the wooden bars in front of the

wheels.

ÎPush the appliance down the ramp from

the pallet.

Please observe the following warning notes

when handling batteries:

Danger

Danger of explosion. Do not put tools or sim-

ilar on the battery, i.e. on the terminal poles

and cell connectors.

Risk of injury. Ensure that wounds never

come into contact with lead. Always clean

your hands after working with batteries.

ÎDrain tanks if necessary.

ÎTurn the running gear to the front with

your foot.

Before Commissioning

Unloading

Batteries

Safety

Observe the directions on the bat-

tery, in the instructions for use

and in the vehicle operating in-

structions

Wear eye protection

Keep children away from acid and

batteries

Danger of explosion

Fire, sparks, naked flames and

smoking must be strictly avoided

Danger of chemical burns

First aid

Warning note

Disposal

Do not throw the battery into the

regular waste

Inserting and connecting batteries

English 9

몇Warning

The cable at the rear of the machine can get

damaged. Always tilt the chassis forward be-

fore tilting the tank backward.

ÎUnscrew the screw and swing the tank

backwards.

ÎLift the battery cover.

ÎInsert the battery.

ÎScrew down the fastening angle behind

the batteries.

몇Warning

Observe the correct polarity.

ÎConnect the positive pole of one battery

to the negative pole of the next battery.

ÎConnnect the connecting cable to the

free battery poles (+) and (-).

ÎReplace the battery cover.

ÎSwing the tank downwards and secure it

with the screw.

몇Warning

Charge the batteries before commissioning

the appliance.

Note

The appliance is fitted with low charge pro-

tection, that is, the appliance is switched off

when a minimum capacity level is reached.

If this is the case, the battery monitor on the

operator console lights up red. Always re-

charge discharged (and partially dis-

charged) batteries.

Danger

Never use the charger in the rain, at high hu-

midity levels or in damp rooms!

Note

Average charging time is around 10-12

hours.

ÎRemove the battery plug and connect to

the charging cable.

Note

Connect the charger to the detachable bat-

tery plug at the machine and not to the plug

installed on the machine.

ÎSwitch the charger on

ÎCorrect the acid level by adding distilled

water an hour before the end of the

charging procedure. The batteries are

correspondingly marked.

Danger!

Risk of injury! Adding water when the batter-

ies are discharged can cause acid to es-

cape! Wear protective goggles when

handling battery acid and observe guide-

lines to prevent injury and damage to

clothes. Rinse any splashed acid on skin or

clothing with large quantities of water.

몇Warning!

Only use chemically pure battery acid (as

per VDE 0510) of density 1.28 kg/l. Use dis-

tilled or desalinated water only to refill batter-

ies (VDE 0510). Do not use any additives

(so-called improvement agents) otherwise

all warranties will be void.

ÎUnplug the charger from the wall outlet.

ÎIn the case of models without a built-in

cable: remove the battery cable from the

charging cable and connect it to the ap-

pliance.

If wet batteries are to be used, please note

the following:

Charging the batteries

–

Charging procedure

Non-maintenance-free batteries

After charging:

Maximum battery dimensions

Length Width Height

13 in

330 mm

6.7 in

171 mm

9.2 in

235 mm

Table des matières

Langues :

Autres manuels Windsor Machine de plancher

Windsor

Windsor MERIT MP13 Manuel utilisateur

Windsor

Windsor SCC172 Manuel utilisateur

Windsor

Windsor BDP 51/2000C Manuel utilisateur

Windsor

Windsor ADMIRAL ADM8IA - 10080010 Caractéristiques techniques

Windsor

Windsor Clipper Duo Manuel utilisateur

Windsor

Windsor Dominator 17 NMWU2215N Manuel utilisateur

Windsor

Windsor Commodore 20 Manuel utilisateur

Windsor

Windsor Chariot 2 iGloss 20 Manuel utilisateur

Windsor

Windsor Clipper CLP12IA Caractéristiques techniques

Windsor

Windsor 10080480 Manuel utilisateur

Windsor

Windsor Cadet 7 CDT7I Manuel utilisateur

Windsor

Windsor GROUTHOG GH3 Manuel utilisateur

Windsor

Windsor Ensign E50 Manuel utilisateur

Windsor

Windsor D250 (115V) Manuel utilisateur

Windsor

Windsor iExtract 26 Duo Manuel utilisateur

Windsor

Windsor Admiral ADM8 Manuel utilisateur

Windsor

Windsor SCENX326 10052340 Manuel utilisateur

Windsor

Windsor Walk Behind Scrubber SCE326 Manuel utilisateur

Windsor

Windsor ADMIRAL Admiral 8 Manuel utilisateur

Windsor

Windsor U1500 Manuel utilisateur

Windsor

Windsor CLP12 Manuel utilisateur

Windsor

Windsor ADMIRAL ADM8IA - 10080010 Manuel utilisateur

Windsor

Windsor NMWU225H Caractéristiques techniques

Windsor

Windsor Dominator 200 NWWE2220N Manuel utilisateur

Manuels Machine de plancher populaires d'autres marques

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Manuel utilisateur

Numatic

Numatic ET 4045 Manuel utilisateur

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Manuel utilisateur

Mytee

Mytee 8070 Mytee-Lite Manuel utilisateur

Kärcher

Kärcher B 140 R Manuel utilisateur

Triple S

Triple S Ace 26T1 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SW 750 Manuel utilisateur

Tornado

Tornado Marathon 2000 98190 Manuel

Numatic

Numatic TTB 1117/100 Manuel utilisateur

Tennant

Tennant 8210D Manuel utilisateur

Nobles

Nobles Frontier Manuel du produit

lavina

lavina 21-X Manuel utilisateur

KENT

KENT Edge 28B Manuel utilisateur

Tennant

Tennant 215 Manuel du produit

CleanFreak

CleanFreak DURA-18HD Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Guide de l'administrateur

BETCO

BETCO PB24 Manuel utilisateur

IPC

IPC CT51-71 BT Manuel utilisateur
