Windsor Cadet CDT7IHB Caractéristiques techniques

Read instructions before operating the machine

Bitte lesen Sie diese Anleitungen, bevor Sie die Maschine in Gebrauch nehmen

MODEL: CDT7IHB

10080240

Operating Instructions (ENG)

Bedienungsanleitung (GER)

8.603-684.0-M 04/26/11

PRV NO. 980016

CARPET EXTRACTOR

IPX4

MACHINE DATA LOG/OVERVIEW

CDT7IHB 86036840 04/26/11

Warranty Registration

Thank you for purchasing a Windsor product. Warranty registration is quick and easy.

Your registration will allow us to serve you better over the lifetime of the product.

To register your product go to:

www.windsorind.com/WarrantyRegistration.aspx

For customer assistance:

1-800-444-7654

TABLE OF CONTENTS

CDT7IHB 86036840 03/12/07

Machine Data Log/Overview.........................1

Table of Contents..........................................2

HOW TO USE THIS MANUAL

How to use this Manual.................................1-1

SAFETY

Important Safety Instructions........................2-1

Hazard Intensity Level. .................................2-2

Safety Label Location. ..................................2-3

OPERATIONS

Technical Specifications. ..............................3-1

Controls/Components...................................3-2

Filling the Solution Tank................................3-5

Machine Operation........................................3-6

Cleaning Procedure......................................3-9

Accessory Tool Usage................................3-10

MAINTENANCE

Periodic Maintenance ...................................4-1

Daily/Regular Maintenance...........................4-1

Vacuum Motor Replacement. .......................4-2

Belt Replacement..........................................4-3

Solution Pump Replacement. .......................4-4

Machine Troubleshooting..............................4-5

Wiring Diagram.............................................4-6

GROUP PARTS LIST

Frame Assembly......................................... 5-1

Brush Assembly.......................................... 5-3

Pump Assembly.......................................... 5-5

Vacuum Shoe Assembly............................. 5-9

Control Panel Assembly ............................. 5-11

Solution Tank Assembly............................. 5-13

Recovery Tank Assembly........................... 5-15

Suggested Spare Parts............................... 5-17

EC Declaration of Conformity..................... 5-18

HOW TO USE THIS MANUAL

CDT7IHB 86036840 04/26/11

1-1

This manual contains the following sections:

-HOW TO USE THIS MANUAL

-SAFETY

-OPERATIONS

-MAINTENANCE

-PARTS LIST

The HOW TO USE THIS MANUAL section will tell

you how to find important information for ordering

correct repair parts.

Parts may be ordered from authorized Windsor

dealers. When placing an order for parts, the

machine model and machine serial number are

important. Refer to the MACHINE DATA box which

is filled out during the installation of your machine.

The MACHINE DATA box is located on the inside of

the front cover of this manual.

The model and serial number of your machine is on

the bottom back-end of the machine.

The SAFETY section contains important information

regarding hazard or unsafe practices of the

machine. Levels of hazards is identified that could

result in product or personal injury, or severe injury

resulting in death.

The OPERATIONS section is to familiarize the

operator with the operation and function of the

machine.

The MAINTENANCE section contains preventive

maintenance to keep the machine and its

components in good working condition. They are

listed in this general order:

-Vacuum Motor Replacement

-Belt Replacement

-Solution Pump Replacement

The PARTS LIST section contains assembled parts

illustrations and corresponding parts list. The parts

lists include a number of columns of information:

-REF – column refers to the reference

number on the parts illustration.

-PART NO. – column lists the part

number for the part.

-PRV NO. – reference number.

-QTY – column lists the quantity of the

part used in that area of the machine.

-DESCRIPTION – column is a brief

description of the part.

-SERIAL NO. FROM – column indicates

the first machine the part number is

applicable to. When the machine design

has changed, this column will indicate

serial number of applicable machine.

The main illustration shows the most

current design of the machine. The

boxed illustrations show older designs. If

column has an asterisk (*), call

manufacturer for serial number.

-NOTES – column for information not

noted by the other columns.

NOTE: If a service or option kit is installed on your

machine, be sure to keep the KIT INSTRUCTIONS

which came with the kit. It contains replacement

parts numbers needed for ordering future parts.

SAFETY INSTRUCTIONS

CDT7IHB 86036840 03/12/07 2-1

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precaution

must always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

This machine is for commercial use.

To reduce the risk of fire, electric shock, or injury:

Connect to a properly grounded outlet. See Grounding Instructions.

Do not leave the machine unattended. Unplug machine from outlet when not in use and before

maintenance or service.

Use only indoors. Do not use outdoors or expose to rain.

Do not allow machine to be used as a toy. Close attention is necessary when used by or near

children.

Use only as described in this manual. Use only manufacturer’s recommended components and

attachments.

Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding

the machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or

dropped into water, return it to an authorized service center.

Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord

around sharp edges or corners.

Do not run machine over cord. Keep cord away from heated surfaces.

Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.

Do not handle the electrical plug or machine with wet hands.

Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce

airflow.

This machine is intended for cleaning carpet only.

Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

This machine is not suitable for picking up health endangering dust.

Turn off all controls before unplugging.

Machine can cause a fire when operating near flammable vapors or materials. Do not operate this

machine near flammable fluids, dust or vapors.

This machine is suitable for commercial use, for example in hotels, schools, hospitals,

factories, shops and offices for more than normal housekeeping purposes.

Maintenance and repairs must be done by qualified personnel.

If foam or liquid comes out of machine, switch off immediately.

SAVE THESE INSTRUCTIONS

WARNING:

HAZARD INTENSITY LEVEL

CDT7IHB 86036840 03/12/07

2-2

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR

SAFETY. The level of hazard intensity is determined by the following definitions:

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property

damage.

FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper

operating condition. Following is information that signals some potentially dangerous conditions to the

operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate

all safety devices on the machine. Please take the necessary steps to train the machine operating

personnel.

FOR SAFETY:

DO NOT OPERATE MACHINE:

Unless Trained and Authorized.

Unless Operation Guide is Read and understood.

In Flammable or Explosive areas.

In areas with possible falling objects.

WHEN SERVICING MACHINE:

Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the

machine. Use Windsor approved replacement parts.

!WARNING

!CAUTION

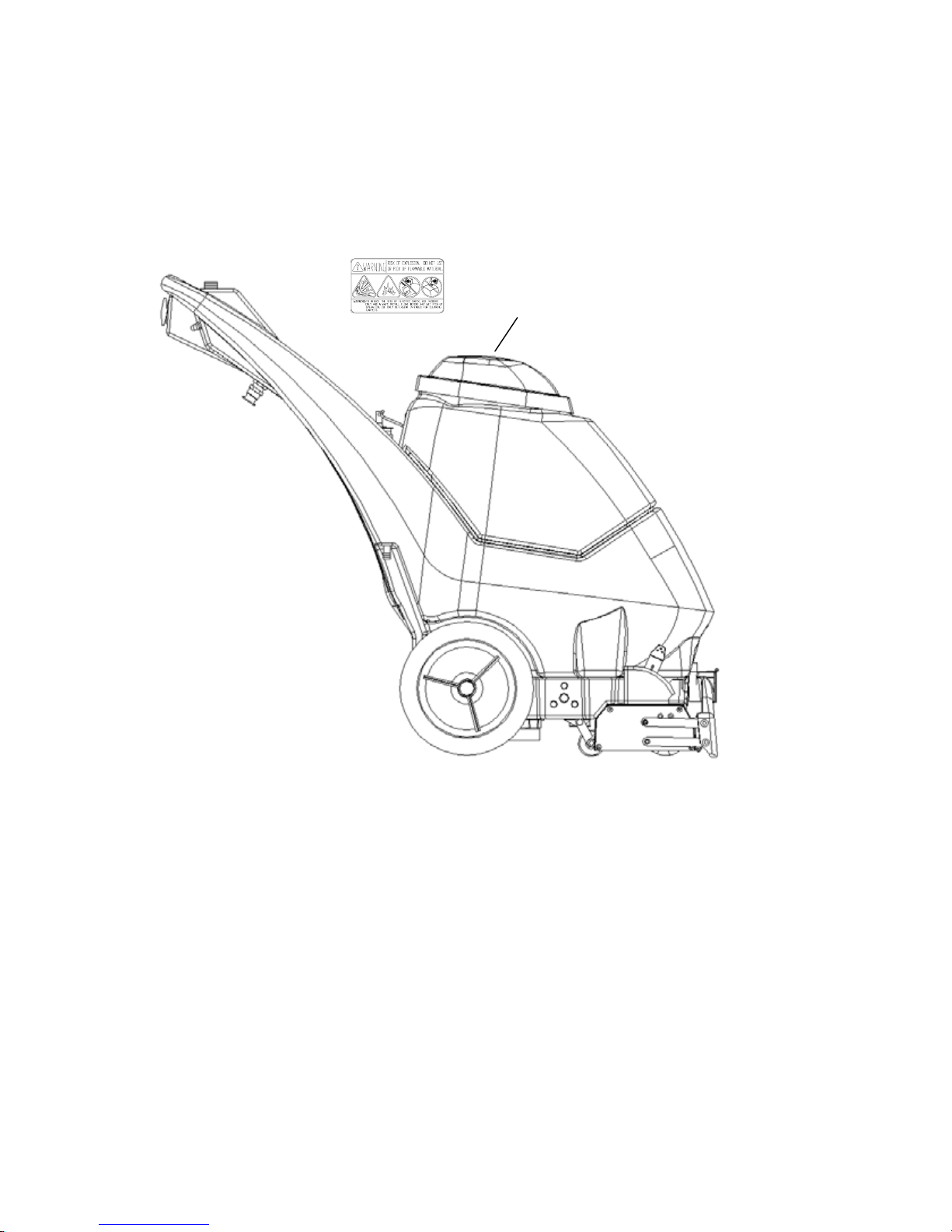

SAFETY LABEL LOCATION

CDT7IHB 86036840 03/12/07 2-3

NOTE: These drawings indicate the location of safety labels on the CDT7IHB. If, at any time, the labels become

illegible contact your Windsor representative for prompt replacement.

WARNING DECAL

86242230

PRV NO. 500009

TECHNICAL SPECIFICATIONS

CDT7IHB 86036840 11/02/10

3-1

POWER TYPE

ELECTRICAL: 230-240 V, 7 A, 50 HZ

ELECTRIC VACUUM MOTOR: (1) –3 stage, 1.5 hp,

100 cfm (2.80 cubic meters/min.) Waterlift –120” (304

cm)

BRUSH: (1) 15” (38.1 cm.)

SOLUTION PUMP: 90 PSI, diaphragm style, internal

bypass

SOLUTION CAPACITY: 7 gallons (26.5ltr)

RECOVERY CAPACITY: 7 gallons (26.5ltr)

BRUSH SPEED: 1000 rpm

GENERAL DIMENSIONS/WEIGHT

Vacuum shoe: 17” (43.18 cm) cast

aluminum with spring loaded down

pressure

WHEELS: (2) 10” dia. (25 cm) wheels

by 2”

WEIGHT: 92lbs. (42kg)

LENGTH: 41” (104 cm)

HEIGHT: 34” (86.36 cm)

WIDTH: 17.5” (44.45 cm)

SOLUTION SPRAY: 2 quick change

jets.

POWER CABLE: 50’ (12.7 m) (1mm)

17.5”

(44.45cm)

41”

(104cm)

34”

(86.36cm)

CONTROLS/COMPONENT LOCATIONS

CDT7IHB 86036840 03/12/07 3-2

1. Main Handle. Used to pull and maneuver

machine.

2. Electrical Cord.

3. Pump Switch. Turns on pump and enables

spray.

4. Brush/Spray switch. Turns on brush motor

and activates electro-valve to dispense

solution to floor through jets. Intermittent, off,

and continuous settings.

5. Vacuum Motor Switch. Turns on vacuum

motor

6. Brush Motor Circuit Breaker. 4 amp.

Breaker protecting brush motor.

7. Vacuum Motor Circuit Breaker. 7 amp.

Breaker protecting vacuum motor.

8. Recovery Dump Hose. Facilitates draining

dirty cleaning solution.

9. Solution Dump Hose. Facilitates draining

excess cleaning solution from solution tank.

1 4

6 7

3 5

CONTROLS/COMPONENT LOCATIONS

CDT7IHB 86036840 03/12/07

3-3

1. Solution Accessory Tool Hookup. Used for

various auxiliary cleaning tools.

2. Vacuum Hose Door. Used to connect

various auxiliary 1-1/2 inch cleaning tool

vacuum hoses.

3. Brush Height Adjustment. Used to regulate

brush height from storage position to various

carpet heights.

4. Recovery Tank. Used to collect dirty

cleaning solution.

5. Solution Tank. Used to hold cleaning

solution.

6. Recovery Tank Dome.

7. Vacuum Shoe.

8. Brush Housing.

9. Front Lifting Handle.

10. Cleaning Solution Filter.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Windsor Machine de plancher

Windsor

Windsor CE26 Manuel utilisateur

Windsor

Windsor 10080480 Manuel utilisateur

Windsor

Windsor passport Manuel utilisateur

Windsor

Windsor COMPASS CMPS 10070050 Manuel utilisateur

Windsor

Windsor CLP12 Manuel utilisateur

Windsor

Windsor Compass 2 10070560 Manuel utilisateur

Windsor

Windsor Lightning 10023030 Manuel utilisateur

Windsor

Windsor MB2000 Caractéristiques techniques

Windsor

Windsor ENSIGN E50 10070090 Manuel utilisateur

Windsor

Windsor CDT7IB/10080060 Manuel utilisateur

Windsor

Windsor BDP 51/2000C Manuel utilisateur

Windsor

Windsor Ensign E50 Manuel utilisateur

Windsor

Windsor Dominator 200 NWWE2220N Manuel utilisateur

Windsor

Windsor FILTRONIC F22 Manuel utilisateur

Windsor

Windsor MPRO Caractéristiques techniques

Windsor

Windsor Sensor XP 18 Manuel du propriétaire

Windsor

Windsor VOYDU1, VOYXDU 10086130 Manuel utilisateur

Windsor

Windsor Dominator NMWU2215N Caractéristiques techniques

Windsor

Windsor Chariot iGloss 20 Manuel utilisateur

Windsor

Windsor Lightning Battery Burnisher 10027100 Manuel utilisateur

Windsor

Windsor ADMIRAL ADM8 10080170 Manuel utilisateur

Windsor

Windsor CMPS2 Manuel utilisateur

Windsor

Windsor SUPREME ULTRA HIGH SPEED BURNISHER P1700120 Guide de dépannage

Windsor

Windsor Lightning 1500 Manuel utilisateur

Manuels Machine de plancher populaires d'autres marques

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Manuel utilisateur

Numatic

Numatic ET 4045 Manuel utilisateur

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Manuel utilisateur

Mytee

Mytee 8070 Mytee-Lite Manuel utilisateur

Kärcher

Kärcher B 140 R Manuel utilisateur

Triple S

Triple S Ace 26T1 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SW 750 Manuel utilisateur

Tornado

Tornado Marathon 2000 98190 Manuel

Numatic

Numatic TTB 1117/100 Manuel utilisateur

Tennant

Tennant 8210D Manuel utilisateur

Nobles

Nobles Frontier Manuel du produit

lavina

lavina 21-X Manuel utilisateur

KENT

KENT Edge 28B Manuel utilisateur

Tennant

Tennant 215 Manuel du produit

CleanFreak

CleanFreak DURA-18HD Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Guide de l'administrateur

BETCO

BETCO PB24 Manuel utilisateur

IPC

IPC CT51-71 BT Manuel utilisateur
