WIKA TR33 Manuel utilisateur

Operating instructions

Betriebsanleitung

Mode d’emploi

Manual de instrucciones

Miniature resistance thermometer, model TR33

Miniatur-Widerstandsthermometer, Typ TR33

Sonde à résistance miniature, type TR33

Termorresistencia miniatura, modelo TR33

70018194

14073818.10 05/2021 EN/DE/FR/ES

WIKA operating instructions model TR33

Operating instructions model TR33 Page 3 - 34

Betriebsanleitung Typ TR33 Seite 35 - 66

Mode d'emploi type TR33 Page 67 - 98

Manual de instrucciones modelo TR33 Página 99 - 129

WIKA®is a registered trademark in various countries.

WIKA®ist eine geschützte Marke in verschiedenen Ländern.

Prior to starting any work, read the operating instructions!

Keep for later use!

Vor Beginn aller Arbeiten Betriebsanleitung lesen!

Zum späteren Gebrauch aufbewahren!

Lire le mode d‘emploi avant de commencer toute opération !

A conserver pour une utilisation ultérieure !

¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!

¡Guardar el manual para una eventual consulta!

WIKA operating instructions model TR33

14073818.10 05/2021 EN/DE/FR/ES

Contents

Declarations of conformity can be found online at www.wika.com.

1. General information 4

2. Design and function 4

3. Safety 8

4. Transport, packaging and storage 11

5. Commissioning, operation 12

6. Conguration 18

7. CongurationsoftwareWIKAsoft-TT 19

8. Connecting the PU-548 programming unit 21

9. Faults 21

10. Maintenance, cleaning and calibration 23

11. Dismounting, return and disposal 25

12. Specications 27

Annex:CSAcontroldrawing 33

14073818.10 05/2021 EN/DE/FR/ES

4WIKA operating instructions model TR33

1. General information

■

The resistance thermometer described in the operating instructions

has been designed and manufactured using state-of-the-art

technology. All components are subject to stringent quality and

environmental criteria during production. Our management systems

are certied to ISO 9001 and ISO 14001.

■

These operating instructions contain important information on handling

the instrument. Working safely requires that all safety instructions and

work instructions are observed.

■

Observe the relevant local accident prevention regulations and

general safety regulations for the instrument's range of use.

■

Skilled personnel must have carefully read and understood the

operating instructions prior to beginning any work.

■

Subject to technical modications.

■

Further information:

- Internet address: www.wika.de / www.wika.com

- Relevant data sheet: TE 60.33

- Application consultant: Tel.: +49 9372 132-0

Fax: +49 9372 132-406

[email protected]

2. Design and function

2.1 Description

The model TR33 resistance thermometer consists of a protection tube

with a xed process connection and is screwed directly into the process.

If the resistance thermometer is to be operated in an additional

protection tube, a spring-loaded compression tting must be used.

1. General information / 2. Design and function

WIKA operating instructions model TR33

14073818.10 05/2021 EN/DE/FR/ES

140069565.04

without neck tube without process

connection

with compression

tting

with neck tube

It is designed to be impact and vibration resistant and all electrical

components are protected against humidity (IP67 or IP69K). The

vibration resistance conforms to IEC 60751 (20 g, dependent on the

instrument version). The impact resistance of all versions meets the

requirements of IEC 60751. Ensure that mechanical loads on the

connector are minimised, especially in case of increased ambient

temperatures or strong vibration loads.

The electrical connection is made via an M12 x 1 circular connector.

An adapter for electrical connection with angular connector per

DIN EN 175301-803 is optionally available.

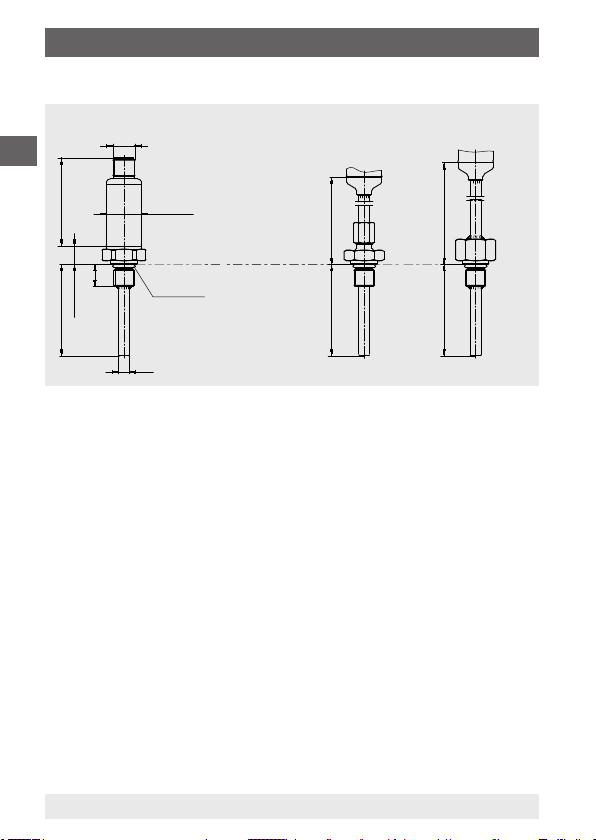

2.2 Dimensions in mm

■

Process connection with parallel thread (or without process connection)

2. Design and function

At a process temperature of > 150 °C [302 °F], a neck length N (MH) of 70 mm

[2.76 in] is necessary, otherwise N (MH) selectable (55 mm [2.17 in], 65 mm

[2.56 in] or 70 mm [2.76 in]).

Legend:

A (U1)Insertion length

N (MH)Neck length

Ød Protection tube diameter

14073818.10 05/2021 EN/DE/FR/ES

6WIKA operating instructions model TR33

49 mm

[1.929 inch]

Ø19mm

[Ø 0.748 inch]

A (U1)

Ohne Halsrohr Mit Klemmverschraubung Mit Halsrohr

Prozessanschluss mit zylindrischem Gewinde (7/16-20 UNF-2A)

14069565.04

11 mm

[0.433 inch]

A(U1)

M12x1

N=55 mm

=[2.165 inch]

N(MH)=70 mm

=[2.755 inch]

Ød

O-Ring 9,25x1,78

Material: FKM 75

49 mm

[1.929 inch]

Ø19mm

[Ø 0.748 inch]

A (U1)

Ohne Halsrohr Mit Klemmverschraubung Mit Halsrohr

Prozessanschluss mit zylindrischem Gewinde (7/16-20 UNF-2A)

14069565.04

11 mm

[0.433 inch]

A(U

)

M12x1

N=55 mm

=[2.165 inch]

N(MH)=70 mm

=[2.755 inch]

Ød

O-Ring 9,25x1,78

Material: FKM 75

49 mm

[1.929 inch]

Ø19mm

[Ø 0.748 inch]

A (U1)

Ohne Halsrohr Mit Klemmverschraubung Mit Halsrohr

Prozessanschluss mit zylindrischem Gewinde (7/16-20 UNF-2A)

14069565.04

11 mm

[0.433 inch]

A(U1)

M12x1

N=55 mm

=[2.165 inch]

N(MH)=70 mm

=[2.755 inch]

Ød

O-Ring 9,25x1,78

Material: FKM 75

■

Process connection with parallel thread (7/16-20 UNF-2A) and O-ring

2. Design and function

The FKM O-ring must be protected from temperatures lower than -20 °C [-4 °F] and

higher than 125 °C [257 °F].

Legend:

A (U1)Insertion length

N (MH)Neck length

Ød Protection tube diameter

At a process temperature of > 150 °C [302 °F], a neck length N (MH) of 70 mm

[2.76 in] is necessary, otherwise N (MH) selectable (55 [2.17 in], 65 [2.56 in] or

70 mm [2.76 in]).

without neck tube with compression

tting

with neck tube

140069565.04

WIKA operating instructions model TR33

14073818.10 05/2021 EN/DE/FR/ES

■

Process connection with tapered thread

2. Design and function

Legend:

A (U2)Insertion length

N (MH)Neck length

X Height process connection

Ød Protection tube diameter

X Height process connection

1/4 NPT = 15 mm [0.59 in]

1/2 NPT = 19 mm [0.75 in]

At a process temperature of > 150 °C [302 °F], a neck length N (MH) of 70 mm

[2.76 in] is necessary, otherwise N (MH) selectable (55 [2.17 in], 65 [2.56 in] or

70 mm [2.76 in]).

2.3 Scope of delivery

Cross-check scope of delivery with delivery note.

without neck tube with compression

tting

with neck tube

140069565.04

14073818.10 05/2021 EN/DE/FR/ES

8WIKA operating instructions model TR33

3. Safety

3.1 Explanationofsymbols

WARNING!

... indicates a potentially dangerous situation that can result in

serious injury or death, if not avoided.

CAUTION!

... indicates a potentially dangerous situation that can result in

light injuries or damage to property or the environment, if not

avoided.

DANGER!

... identies hazards caused by electric power. Should the

safety instructions not be observed, there is a risk of serious

or fatal injury.

WARNING!

... indicates a potentially dangerous situation that can result in

burns, caused by hot surfaces or liquids, if not avoided.

Information

... points out useful tips, recommendations and information for

ecient and trouble-free operation.

3.2 Intendeduse

The model TR33 resistance thermometer is used as a general-purpose

thermometer for the measurement of temperatures from -50 ... +150 °C

[-58 ... +302 °F] (without neck tube) and -50 … +250 °C [-58 ... +482 °F]

(with neck tube) in liquid and gaseous media. They can be used for

pressures up to 140 bar [2,030 psi] with 3 mm [0.12 in] protection tube

diameters and up to 270 bar [3,916 psi] with 6 mm [0.24 in] protection

tube diameters, depending on the instrument version.

3. Safety

WIKA operating instructions model TR33

14073818.10 05/2021 EN/DE/FR/ES

The instrument has been designed and built solely for the intended use

described here, and may only be used accordingly.

The technical specications contained in these operating instructions

must be observed. Improper handling or operation of the instrument

outside of its technical specications requires the instrument to be taken

out of service immediately and inspected by an authorised WIKA service

engineer.

The manufacturer shall not be liable for claims of any type based on

operation contrary to the intended use.

3.3 Responsibility of the operator

The system operator is responsible for selecting the thermometer

or protection tube, and for the selection of their materials, so as to

guarantee their safe operation within the plant or machine. When

preparing a quote, WIKA can only give recommendations which are

based on our experience in similar applications.

The safety instructions within these operating instructions, as well as the

safety, accident prevention and environmental protection regulations for

the application area must be maintained.

The operator is obliged to maintain the product label in a legible

condition.

3.4 Personnelqualication

WARNING!

Riskofinjuryshouldqualicationbeinsucient!

Improper handling can result in considerable injury and

damage to property.

▶

The activities described in these operating instructions

may only be carried out by skilled personnel who have the

qualifications described below.

▶

Keep unqualified personnel away from hazardous areas.

3. Safety

14073818.10 05/2021 EN/DE/FR/ES

10 WIKA operating instructions model TR33

Skilled electrical personnel

Skilled electrical personnel are understood to be personnel who,

based on their technical training, know-how and experience as well

as their knowledge of country-specic regulations, current standards

and directives, are capable of carrying out work on electrical systems

and independently recognising and avoiding potential hazards.The

skilled electrical personnel have been specically trained for the work

environment they are working in and know the relevant standards and

regulations.The skilled electrical personnel must comply with current

legal accident prevention regulations.

Special operating conditions require further appropriate knowledge, e.g.

of aggressive media.

3.5 Labelling, safety marks

Productlabels(example)

Model

Date of manufacture (year-month)

Approval logos

Information on version (measuring element, output signal, measuring range...)

■

With transmitter and 4 … 20 mA output signal

■

With direct sensor output with Pt100 and Pt1000

Serial number, tag number

Before mounting and commissioning the instrument,

ensure you read the operating instructions!











3. Safety

Autres manuels pour TR33

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels WIKA Thermomètre

WIKA

WIKA TR25 Manuel utilisateur

WIKA

WIKA 70 Manuel utilisateur

WIKA

WIKA TR10-W Manuel utilisateur

WIKA

WIKA DiwiTherm TR75 Manuel utilisateur

WIKA

WIKA CTR3000 Manuel utilisateur

WIKA

WIKA 53 Series Manuel utilisateur

WIKA

WIKA IntelliTHERM TGT73 Manuel utilisateur

WIKA

WIKA 32 Manuel utilisateur

WIKA

WIKA 53 Series Manuel utilisateur

WIKA

WIKA TR57-M Manuel utilisateur

WIKA

WIKA TG53 Manuel utilisateur

WIKA

WIKA 55 Series Manuel utilisateur

WIKA

WIKA CTH 6450 Manuel utilisateur

WIKA

WIKA TR30 Manuel utilisateur

WIKA

WIKA TGU73.100 Manuel utilisateur

WIKA

WIKA Intelli Therm TGT73.100 Manuel utilisateur

WIKA

WIKA R52.100 Manuel utilisateur

WIKA

WIKA TR25 (Ex i) Manuel utilisateur

WIKA

WIKA F73.100 Manuel utilisateur

WIKA

WIKA IntelliTHERM TGT73 Manuel utilisateur

WIKA

WIKA CTR3000 Manuel utilisateur

WIKA

WIKA R5502 Manuel d'installation

WIKA

WIKA TR10-W Manuel utilisateur

WIKA

WIKA Twin-Temp 54 Manuel utilisateur

Manuels Thermomètre populaires d'autres marques

Delton

Delton 981A Manuel utilisateur

Baker

Baker MM2P Manuel utilisateur

Tarmo

Tarmo 320281 Manuel utilisateur

Citizen

Citizen CTD 504 Manuel utilisateur

TFA

TFA 14.1500 Manuel utilisateur

Vive

Vive DMD1010 Manuel utilisateur

Gotemp

Gotemp THB4002 Manuel utilisateur

GREISINGER

GREISINGER G 1202 Manuel utilisateur

Amprobe

Amprobe TMD-53W Manuel utilisateur

Trotec

Trotec BP10 Manuel utilisateur

Radiance instruments

Radiance instruments RT616 Series Manuel utilisateur

Eurolec

Eurolec IR151 Manuel utilisateur

Scaneo

Scaneo TS42B Manuel utilisateur

Sper scientific

Sper scientific 800043 Manuel utilisateur

Microlife

Microlife NC 200 Mode d’emploi

Motorola

Motorola MBP69SN Guide de configuration

The MeatStick

The MeatStick The MeatStick Manuel utilisateur

Hama

Hama TH35-A Manuel utilisateur
