WIKA DIH10 Manuel utilisateur

Operating instructions

Betriebsanleitung

Mode d’emploi

Manual de instrucciones

Connection head with integrated digital display

module, model DIH10

Anschlusskopf mit integriertem digitalem

Anzeigemodul, Typ DIH10

Tête de raccordement avec module d'achage

numérique intégré, type DIH10

Cabezal con indicador digital integrado,

modelo DIH10

Model DIH10

14089810.03 08/2018 EN/DE/FR/ES

WIKA operating instructions model DIH102

Operating instructions model DIH10

Page

3 - 24

Betriebsanleitung Typ DIH10

Seite

25 - 46

Mode d'emploi type DIH10

Page

47 - 68

Manual de instrucciones modelo DIH10

Página

69 - 90

WIKA®is a registered trademark in various countries.

WIKA®ist eine geschützte Marke in verschiedenen Ländern.

Prior to starting any work, read the operating instructions!

Keep for later use!

Vor Beginn aller Arbeiten Betriebsanleitung lesen!

Zum späteren Gebrauch aufbewahren!

Lire le mode d'emploi avant de commencer toute opération !

A conserver pour une utilisation ultérieure !

¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!

¡Guardar el manual para una eventual consulta!

Declarations of conformity can be found online at www.wika.com.

1. General information 4

2. Design and function 5

3. Safety 8

4. Transport, packaging and storage 13

5. Commissioning, operation 14

6. Faults 19

7. Maintenance and cleaning 20

8. Dismounting, return and disposal 22

9. Specications 23

WIKA operating instructions model DIH10 3

14089810.03 08/2018 EN/DE/FR/ES

Contents

4WIKA operating instructions model DIH10

14089810.03 08/2018 EN/DE/FR/ES

1. General information

■

The instrument described in the operating instructions has been

manufactured using state-of-the-art technology. All components

are subject to stringent quality and environmental criteria during

production. Our management systems are certied to ISO 9001 and

ISO 14001.

■

These operating instructions contain important information on

handling the instrument. Working safely requires that all safety

instructions and work instructions are observed.

■

Observe the relevant local accident prevention regulations and

general safety regulations for the instrument's range of use.

■

The operating instructions are part of the product and must be kept

in the immediate vicinity of the instrument and readily accessible to

skilled personnel at any time. Pass the operating instructions on to the

next operator or owner of the instrument.

■

Skilled personnel must have carefully read and understood the

operating instructions prior to beginning any work.

■

The general terms and conditions contained in the sales

documentation shall apply.

■

Subject to technical modications.

■

Further information:

- Internet address: www.wika.de / www.wika.com

- Relevant data sheet: AC 80.11

- Application consultant: Tel.: +49 9372 132-0

Fax: +49 9372 132-406

[email protected]

1. General information

WIKA operating instructions model DIH10 5

14089810.03 08/2018 EN/DE/FR/ES

2. Design and function

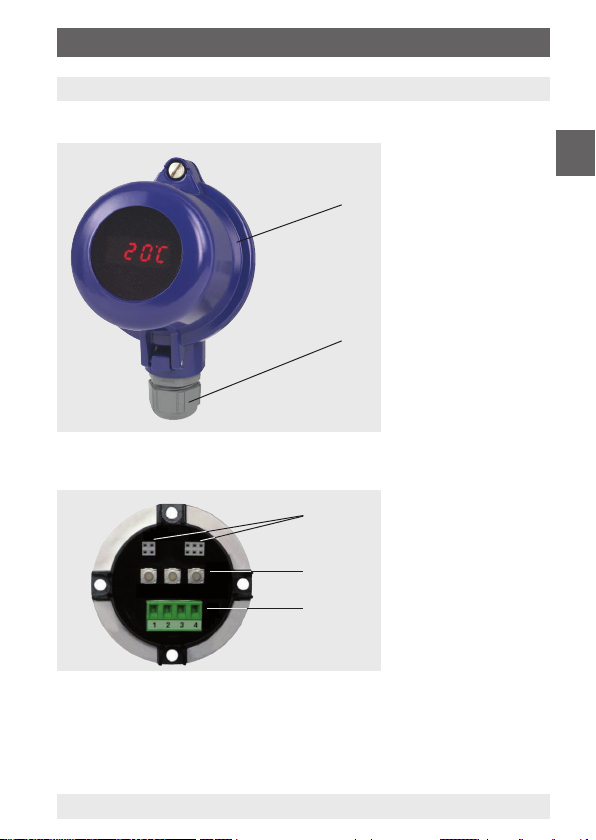

2.1 Overview

Model DIH10 display module, operating side

Connection head with integrated digital display

Connection to thermometer (incl. protection cap)

Connector pins for factory programming

Buttons for programming

Coupler connector











▲

▼

2. Design and function

6WIKA operating instructions model DIH10

14089810.03 08/2018 EN/DE/FR/ES

2.2 Description

The model DIH10 display module is a universal, microprocessor-

controlled display, monitoring and control instrument. It has an input, to

which 4 … 20 mA standard signals can be connected.

Thanks to simple installation and free programmability via the existing

buttons, transmitters already in use can also be retrotted in a short time.

The display is loop-powered, and so no additional voltage supply is

needed.The 8 mm high LED display ensures good readability, even in

poor lighting conditions.

2.3 Case designs

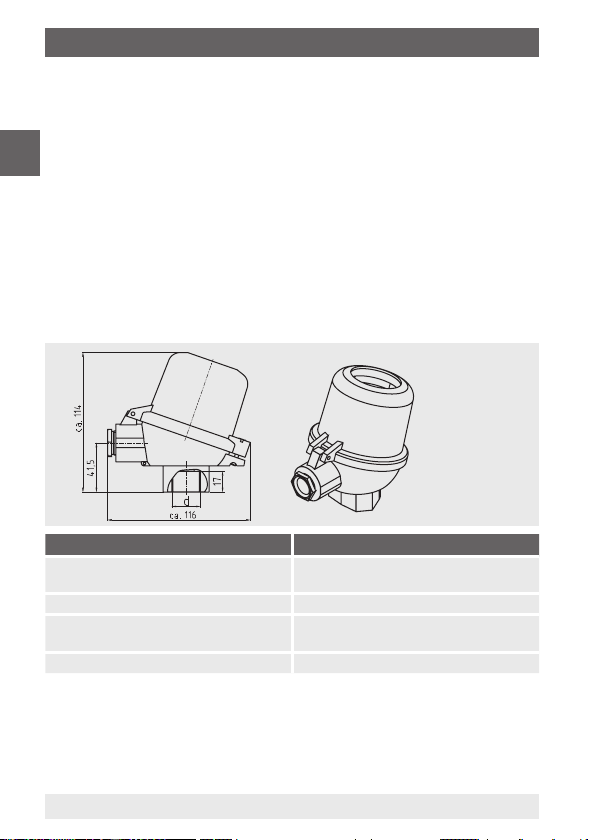

2.3.1 Connection head BSZ-H (standard version), DIH10-Z-*A

Specications Standard version

Connection to thermometer d

■

M24 x 1.5

■

½ NPT

Material Aluminium blue, lacquered 1)

Cable gland

■

1 x M20 x 1.5

■

1 x ½ NPT

Ingress protection IP65 (option: IP67)

1) RAL 5022

14053621.01

Weight approx. 350 g

2. Design and function

WIKA operating instructions model DIH10 7

14089810.03 08/2018 EN/DE/FR/ES

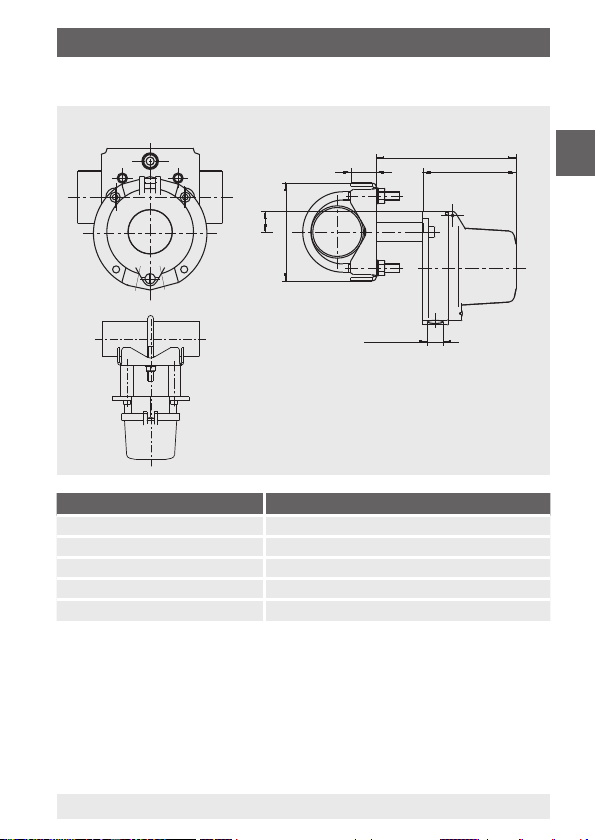

2.3.2 Case with pipe support, DIH10-Z-*D

Specications Standard version

Material Aluminium blue, lacquered 1)

Pipe support Stainless steel

Pipe diameter R 1" ... 2"

Cable gland 2 x M16 x 1.5

Ingress protection IP65 (option: IP67)

1) RAL 5022

2.4 Scope of delivery

Cross-check scope of delivery with delivery note.

14078928.01

2x M16x1,5

136

2x M16x1,5

136

2x M16x1,5

136

Weight approx. 950 g

BSZ-H upper body special version

2. Design and function

8WIKA operating instructions model DIH10

14089810.03 08/2018 EN/DE/FR/ES

3. Safety

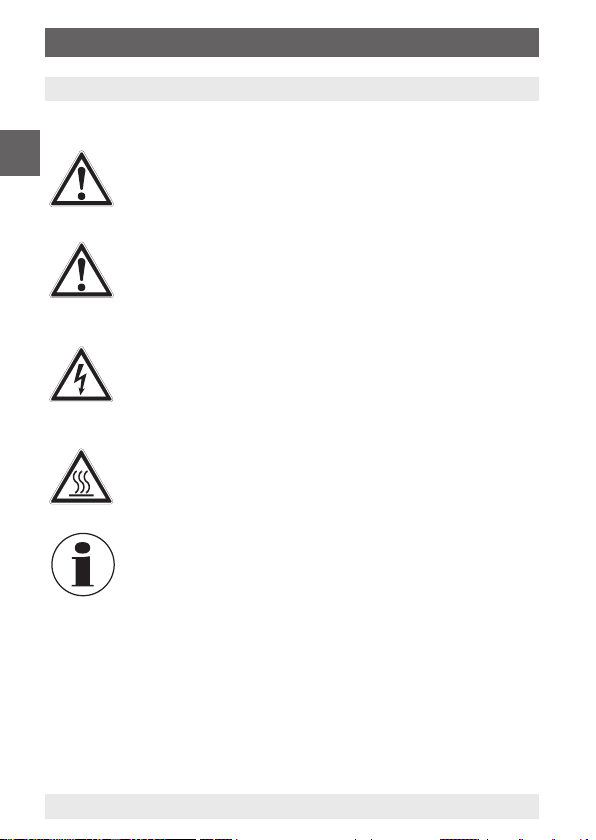

3.1 Explanation of symbols

WARNING!

... indicates a potentially dangerous situation that can result

in serious injury or death, if not avoided.

CAUTION!

... indicates a potentially dangerous situation that can result

in light injuries or damage to equipment or the environment,

if not avoided.

DANGER!

... identies hazards caused by electrical power. Should the

safety instructions not be observed, there is a risk of serious

or fatal injury.

WARNING!

... indicates a potentially dangerous situation that can result

in burns, caused by hot surfaces or liquids, if not avoided.

Information

... points out useful tips, recommendations and information

for ecient and trouble-free operation.

3.2 Intended use

The model DIH10 digital indicator is an all-purpose, configurable

loop-powered indicator for single resistance thermometers (RTD),

thermocouples (TC) and resistance and sensor transmitters.

WIKA operating instructions model DIH10 9

14089810.03 08/2018 EN/DE/FR/ES

3. Safety

It can be used especially where a standard signal of 4 ... 20 mA is

already available.The current-loop display is built into an appropriate

connection head and can thus be used as a local display in all sectors of

industry.

This instrument is not permitted to be used in hazardous areas!

This is class A equipment for emissions and is intended for use in

industrial environments. In other environments, e.g. residential or

commercial installations, it can interfere with other equipment under

certain conditions. In such circumstances the operator is expected to

take the appropriate measures.

The instrument has been designed and built solely for the intended use

described here, and may only be used accordingly.

The technical specications contained in these operating instructions

must be observed. Improper handling or operation of the instrument

outside of its technical specications requires the instrument to be taken

out of service immediately and inspected by an authorised WIKA service

engineer.

The manufacturer shall not be liable for claims of any type based on

operation contrary to the intended use.

3.3 Improper use

WARNING!

Injuries through improper use

Improper use of the instrument can lead to hazardous

situations and injuries.

▶

Refrain from unauthorised modications to the instrument.

▶

Do not use the instrument within hazardous areas.

▶

Do not use the instrument with abrasive or viscous media.

10 WIKA operating instructions model DIH10

14089810.03 08/2018 EN/DE/FR/ES

3. Safety

Any use beyond or dierent to the intended use is considered as

improper use.

Do not use this instrument in safety or emergency stop devices.

3.4 Responsibility of the operator

The instrument is used in the industrial sector.The operator is therefore

responsible for legal obligations regarding safety at work.

The safety instructions within these operating instructions, as well as the

safety, accident prevention and environmental protection regulations for

the application area must be maintained.

The operator is obliged to maintain the product label in a legible

condition.

To ensure safe working on the instrument, the operating company must

ensure

■

that suitable rst-aid equipment is available and aid is provided

whenever required.

■

that the operating personnel are regularly instructed in all topics

regarding work safety, rst aid and environmental protection and know

the operating instructions and in particular, the safety instructions

contained therein.

■

that the instrument is suitable for the particular application in

accordance with its intended use.

■

that personal protective equipment is available.

3.5 Personnel qualication

WARNING!

Risk of injury should qualication be insucient

Improper handling can result in considerable injury and

damage to equipment.

▶

The activities described in these operating instructions

may only be carried out by skilled personnel who have the

qualications described below.

▶

Keep unqualied personnel away from hazardous areas.
