Weider PLATINUM 600 Manuel utilisateur

CAUTION

Read all precautions and instruc-

tions in this manual before

using this equipment. Save this

manual for future reference.

Model No. WESY68631

Serial No.

Write the serial number in the

space above for future reference.

Serial Number Decal (under seat)

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts, we

will guarantee complete satis-

faction through direct assis-

tance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge.

CUSTOMER HOT LINE:

1-877-992-5999

Mon.–Fri., 6 a.m.–6 p.m. MST

Visit our website at

www.weiderplatinum.com

USER’S MANUAL

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

UPPER CABLE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of

this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-

ning assembly.

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

TABLE OF CONTENTS

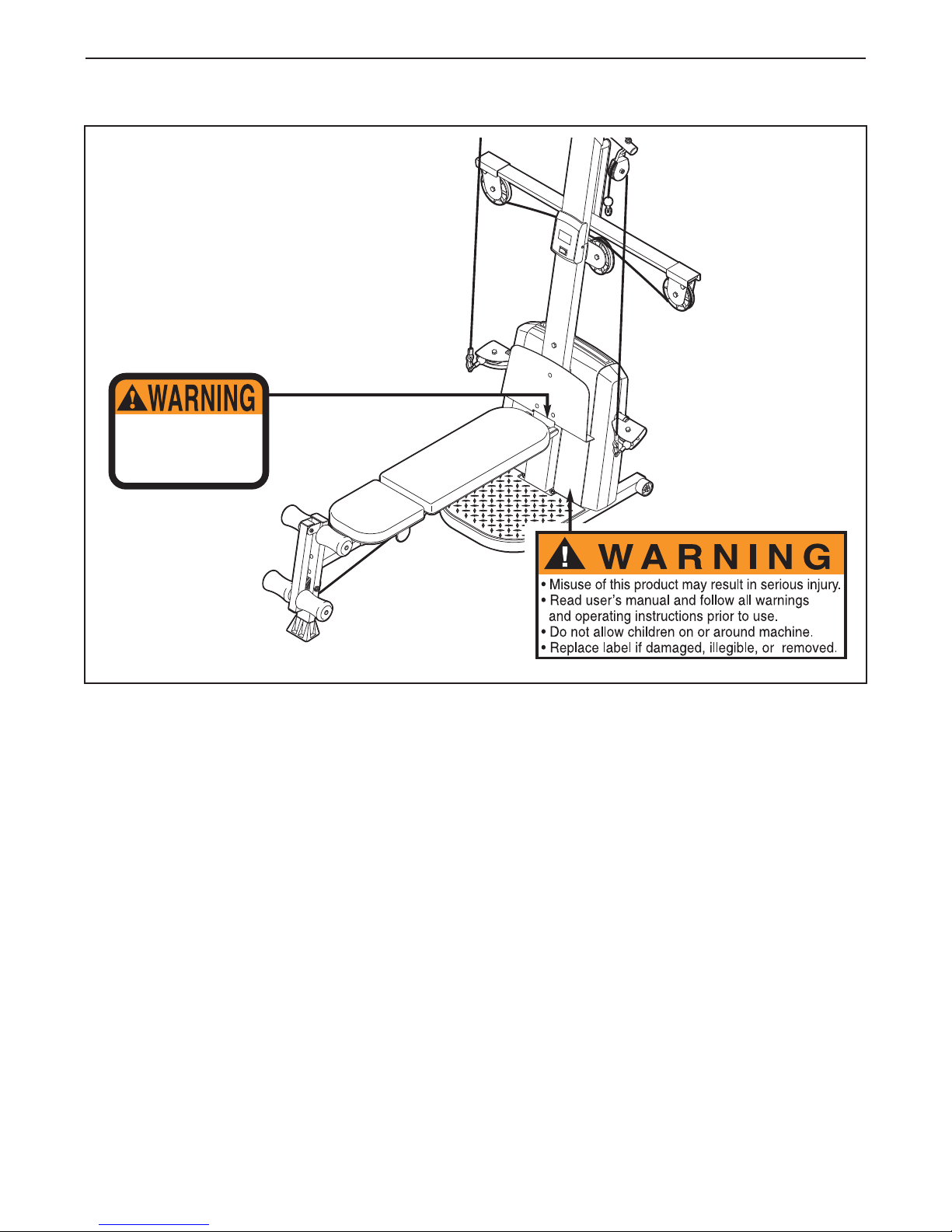

WARNING DECAL PLACEMENT

The decals shown here have been

placed on the resistance system. If a

decal is missing or illegible, please call

our Customer Service Department toll-

free at 1-877-992-5999, Monday through

Friday, 6 a.m. until 6 p.m. Mountain

Time, to order a free replacement decal.

Apply the decal in the location shown.

Keep hands and

fingers clear of

this area.

1. Read all instructions in this manual before

using the resistance system. Use the resist-

ance system only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the resistance system are

adequately informed of all precautions.

3. The resistance system is intended for home

use only. Do not use the resistance system in

any commercial, rental, or institutional setting.

4. Use the resistance system only on a level

surface. Cover the floor beneath the resist-

ance system to protect the floor.

5. Make sure that all parts are properly tight-

ened each time the resistance system is

used. Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the resistance system at all times.

7. Keep hands and feet away from moving parts.

8. Always wear athletic shoes for foot protec-

tion while exercising.

9. The resistance system is designed to sup-

port a maximum user weight of 300 pounds.

10. The crossbar on the top frame is not

designed to be used for pull-up exercises. Do

not hang on the crossbar.

11. Pull on the lower cable only while sitting on

the bench or standing on the base plate. Pull

on the high cables only while sitting on the

bench, with the seat in one of the three posi-

tions closest to the upright base, or while

standing on the base plate.

12. The resistance system is designed to be

used with the included resistance. Do not

use the resistance system with any other

type of resistance.

13. Always disconnect the lat bar from the high

cables when performing an exercise that

does not require it.

14. Make sure the storage knob is in place and

fully tightened each time the resistance sys-

tem is used.

15. Make sure that the cables remain on the pul-

leys at all times. If the cables bind as you are

exercising, stop immediately and make sure

that the cables are on the pulleys.

16. Do not pull on the cables while the resist-

ance level is being adjusted.

17. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the resistance system.

IMPORTANT PRECAUTIONS

Crossbar

High Pulley

Backrest

Storage Knob

Upright

Console

Low Pulley

Base Plate

Leg Lever Seat Knob

Seat

Foot Plate

Resistance Bar

BEFORE YOU BEGIN

Thank you for selecting the innovative WEIDER®

PLATINUM 600 resistance system. The resistance sys-

tem offers a selection of stations designed to develop

every major muscle group of the body. Whether your

goal is to tone your body, build dramatic muscle size

and strength, or improve your cardiovascular system,

the resistance system will help you to achieve the spe-

cific results you want.

For your benefit, read this manual carefully before

using the resistance system. If you have questions

after reading this manual, please call our Customer

Service Department toll-free at 1-877-992-5999,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you, please

note the product model number and serial number

before calling. The model number is WESY68631. The

serial number can be found on a decal attached to the

resistance system (see the front cover of this manual).

Before reading further, please review the drawing below

and familiarize yourself with the parts that are labeled.

ASSEMBLED

DIMENSIONS:

Height: 82 in.

Width: 66 in.

Depth: 80 in.

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two persons.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•For help identifying small parts, use the PART

IDENTIFICATION CHART. Note: Some small

parts may have been pre-attached for shipping. If

a part is not in the parts bag, check to see if it

has been pre-attached.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•As you assemble the resistance system, make

sure all parts are oriented as shown in the draw-

ings.

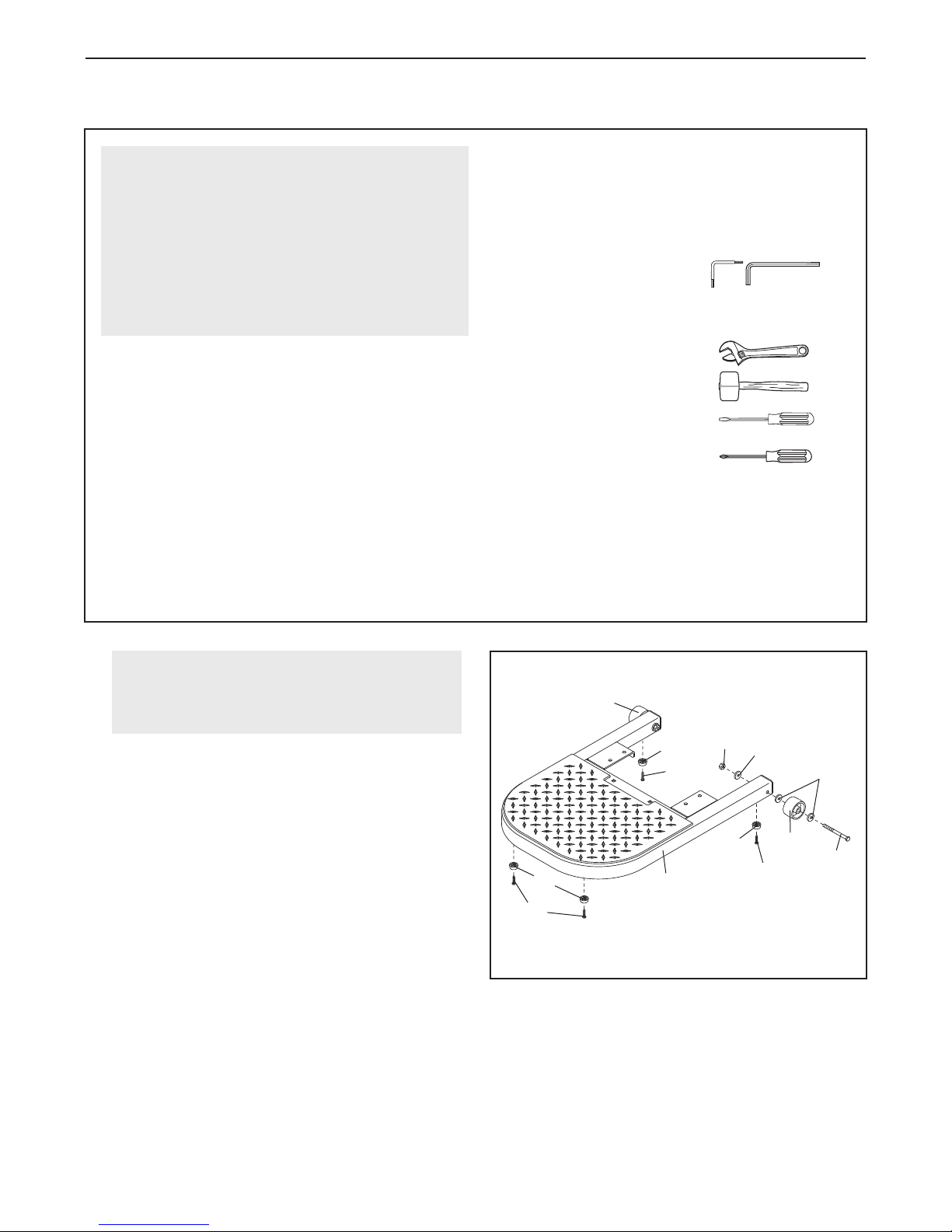

The included Allen wrenches and

the following tools (not included) are required

for assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly,

and soapy water.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Things Easier for Yourself

This manual is designed to ensure that the resist-

ance system can be assembled successfully by

most people. However, it is important to realize

that the versatile resistance system has many

parts and that the assembly process will take

time. Most people find that by setting aside plenty

of time, assembly will go smoothly.

ASSEMBLY

Attach a Wheel (21) to the Base (1) with a 3/8” x

3 1/2” Bolt (90), three 3/8” SAE Washers (75),

and a 3/8” Nylon Jamnut (92). Do not overtight-

en the Jamnut; the Wheel must be able to turn

easily.

Attach the other Wheel (21) to the Base (1) in

the same manner.

Attach two Plastic Feet (19) and two Large Plastic

Feet (20) to the Base (1) with four #8 x 3/4”

Screws (104).

Before beginning assembly, make sure that

you have read and understand the informa-

tion in the box above.

104

1104

104

2. Attach the Upright (3) to the Base (1) with two

3/8” x 2 3/4” Carriage Bolts (88), two 3/8” x 3”

Bolts (87), and four 3/8” Nylon Locknuts (73) as

shown. Note: This step will be easier to com-

plete if the Upright and Base are tipped on

their sides.

3. Attach the Foot Plate (4) to the Upright (3) with

three 3/8” x 2 3/4” Carriage Bolts (88), three 3/8”

SAE Washers (75), and three 3/8” Nylon

Locknuts (73).

4. Insert the connector of the lower wire harness (A)

into the socket of the Upper Wire Harness (13).

The connector should slide easily into the

socket and snap into place. If the connector

does not slide easily and snap into place, turn the

connector over and then insert it.

Make sure that the connector and wire appear as

shown in the inset drawing. IF THE CONNEC-

TOR IS NOT INSERTED PROPERLY, THE CON-

SOLE MAY BE DAMAGED WHEN THE POWER

IS TURNED ON.

Pull the excess lower wire harness (A) out of

the Mech Assembly (6) and push it and the

Upper Wire Harness (13) into the Upright (3).

Insert the Mech Assembly (6) into the Base (1).

Attach the Mech Assembly to the Upright (3) with

a 1/2” x 3” Carriage Bolt (79) and a 1/2” Nylon

Locknut (78). Do not tighten the Locknut yet.

Attach the Mech Assembly (6) to the Base (1)

with the four M10 Nylon Locknuts (71).

Tighten the 1/2” Nylon Locknut (78).

5. Press the Front Leg Foot (29) onto the bottom of

the Front Leg (31). Note that the front of the

Front Leg Foot is taller than the back.

Attach the Leg Lever Bumper (30) to the Front

Leg (31) with a #8 x 3/4” Screw (104).

Attach the Bench Rail (23), with the hook on the

bottom, to the Front Leg (31) with two 3/8” x 2”

Carriage Bolts (91) and two 3/8” Nylon Jamnuts

(92).

104

Front 29

7. Grease a 3/8” x 2 3/4” Bolt (93). Orient the Leg

Lever (32) with the slot on the side shown. Attach

the Leg Lever to the Front Leg (31) with the Bolt

and a 3/8” Nylon Locknut (73). Do not overtight-

en the Locknut; the Leg Lever must be able to

pivot easily.

8. Pull out the Seat Knob (43) as far as it will go, and

set the Seat Carriage (48) on the Bench Rail (23).

Loosely attach two 8mm Metal Spacers (45), a

60mm Metal Spacer (44), and two Bearing

Wheels (46) to the center holes in the Seat

Carriage (48) with two M8 Flange Nuts (47) and

the M8 x 114mm Axle (102). Make sure that the

serrated edge of the Flange Nuts are against

the Seat Carriage.

While a second person presses down on the Seat

(41), hold the wheel assembly firmly against the

bottom of the Bench Rail (23) and properly tight-

en the M8 Flange Nuts (47). Make sure that

three threads are extending past the Nuts, and

that the wide sides of all six Bearing Wheels

(46) are pressed against the Bench Rail.

Engage the Seat Knob (not shown) into an

adjustment hole in the Bench Rail (23).

Wide

Side

45 45

102

32 73

Grease

Slot

Grease

Hole

6. Grease a 3/8” x 4” Bolt (86) using the included

grease pack. Attach the Bench Rail (23) to the

Upright (3) with the Bolt and a 3/8” Nylon Jamnut

(92). Make sure the Bolt is inserted through

the indicated hole in the Bench Rail. Do not

overtighten the Jamnut; the Bench Rail must

be able to pivot easily.

Tighten the Storage Knob (26) into the Upright (3)

and the Bench Rail (23).

9. Attach the Lat Tower (5) to the Upright (3) with

four 3/8” x 1” Screws (100) and four 3/8” Lock

Washers (74).

Plug the Upper Wire Harness (13) into the

Console (53). Push all of the excess wire into

the Upright (3). Make sure the wire does not

get pinched. Attach the Console to the Upright

with two #8 x 1/2” Screws (82).

10. Attach two Eyebolts (51) to the Lat Tower

Crossbar (49) with two 5/16” Washers (76) and

two 5/16” Nylon Locknuts (107).

Attach the Lat Tower Crossbar (49) to the Lat

Tower (5) with two 3/8” x 2 1/2” Button Bolts (96),

two 3/8” SAE Washers (75), and the Crossbar

Cover (50). Make sure that the Eyebolts (51)

are oriented as shown in the inset drawing. If

they are not, turn the Lat Tower Crossbar

around and reattach it.

11. Attach a Large Pulley (17) and the Pulley Plate

(18) to the Upright (3) with an M12 x 62mm

Button Bolt (80) and an M12 Nylon Locknut (72).

Do not tighten the Locknut yet.

100

107

17 18

Side View

107

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weider Salle de sport à domicile

Weider

Weider 224 Bench Manuel utilisateur

Weider

Weider Victory SM12 Manuel utilisateur

Weider

Weider 340 L Manuel utilisateur

Weider

Weider WESY78734 Manuel utilisateur

Weider

Weider 7400 Weight Manuel utilisateur

Weider

Weider Flex Xt2/flex 2000 Plus Manuel utilisateur

Weider

Weider Body Works Pro 2.0 Bench Manuel d'utilisation et d'entretien

Weider

Weider Club 565 Manuel utilisateur

Weider

Weider C 625 Manuel utilisateur

Weider

Weider 9000 Bench Guide de l'utilisateur

Weider

Weider 9150 Manuel utilisateur

Weider

Weider 525 Manuel utilisateur

Weider

Weider 831.159360 Manuel utilisateur

Weider

Weider WEBE03820 Manuel utilisateur

Weider

Weider 831.159010 Manuel utilisateur

Weider

Weider WESY16010 Manuel utilisateur

Weider

Weider Pro 9730 Manuel utilisateur

Weider

Weider XP 800 WESY75742 Manuel utilisateur

Weider

Weider PRO 230 Manuel utilisateur

Weider

Weider XP400 831.15392.2 Manuel utilisateur

Weider

Weider E9000A Manuel utilisateur

Weider

Weider 9000 Bench Guide de démarrage rapide

Weider

Weider WESY86300 Manuel utilisateur

Weider

Weider PRO 900 Manuel d'utilisation et d'entretien

Manuels Salle de sport à domicile populaires d'autres marques

Horizon Fitness

Horizon Fitness OXFORD 6 Manuel utilisateur

Energetics

Energetics Multi Trainer 5.1 Manuel utilisateur

Matrix

Matrix MG-PL Series Manuel utilisateur

Reebok

Reebok Tbr2i Manuel d'utilisation et d'entretien

Pure Fitness

Pure Fitness 8526HE Manuel utilisateur

Bowflex

Bowflex Sport 001-6961 Manuel utilisateur

NordicTrack

NordicTrack E8200 Competition Bench Guide de démarrage rapide

Body Solid

Body Solid GHYP-345 Manuel utilisateur

Evo

Evo TAHOE 5105 Manuel utilisateur

cardiobull

cardiobull RA17 Manuel utilisateur

ParaBody

ParaBody 40 Manuel utilisateur

JLL

JLL Ventus Pro Air Power Manuel utilisateur

Trojan

Trojan Colorado 370 Manuel utilisateur

Octane Fitness

Octane Fitness xRide xR650 Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur

Insportline

Insportline RW600 Manuel utilisateur

Stamina

Stamina 55-1532 Manuel utilisateur

Tunturi

Tunturi R25 Manuel utilisateur
