WANHAO Duplicator i3 Manuel

WANHAO i3 UNBOXING AND

HARDWARE SET UP

Wanhao I3 unboxing and hardware set up. Rev.D 1 / 10

Unboxing and Hardware Setup

We packaged your Duplicator i3 very carefully at the Wanhao Bot cave -- we hope you’ll read this

guide and be just as careful unpacking it. In fact you should always be really careful with The

Duplicator i3. Here are a few things to keep in mind.

Safety In Safety Information formation

1.1 Caution: The Duplicator i3 generates high temperatures and includes moving parts that can

cause injury. Never reach inside The Duplicator i3 while it is in operation and allow time for The

Duplicator i3 to cool down after operation.

The Duplicator i3 is sensitive to electrostatic discharge. Make sure you don't have a static charge

on you by touching a grounded

object before operating The Duplicator i3 or attempting any adjustments. If opening The

Duplicator i3 for service ensure that the power supply is turned off and the cord is disconnected.

Package Contents

Here are the items that should be found in the Duplicator i3 package:

-The Duplicator i3

-Single Step exstruder MK10

-1x spool holder

-Hex Wrench and bolt Kit

- 1 x SD card

-2 x Wanhao platform tape

-10 meters PLA filament

-1 x Power supply cable

-1 x USB A to B cable

-1 x filament stand

Wanhao I3 unboxing and hardware set up. Rev.D 2 / 10

Unboxing

2.1 The Duplicator i3 is packed very tightly and carefully -- take your time unpacking it. In this

section the names of important parts of the machine will be in bold type.

First place The Duplicator i3's box on the work table next to a clean flat work space. Open from

the up side. Cut the plastic bag. So you can clear all the protection foam and cut all the white

secure ribbons.

1. Cut the ribbon 2. Get the spare parts box out

3.Take the foam out 4.Take off the box

Wanhao I3 unboxing and hardware set up. Rev.D 3 / 10

5. Put the Base onto a table or floor. Never drag the black cable.

6. Put the control box onto table or floor.

7. Stand the tower on the table take 8. Cut the white secure ribbon.

Of secure sticker on switch and wing nuts.

Wanhao I3 unboxing and hardware set up. Rev.D 4 / 10

9. Raise the right X axis manually. 10.Raise the left axis manually.

11.Insert the Base into the tower and match the bolt hole.

12. Lock the 2 bolts on left right side.

Wanhao I3 unboxing and hardware set up. Rev.D 5 / 10

13.Turn printer aside Lock extra 2bolts inside base 14. Lock the left motor cable

15. Cut the black ribbon 16.Short cable for Z; Long for X black for end stop switch

17. Connect end stop switch to socket switch directly onto it’s position. For some printer you may

need to install the switch onto the side wall.

18. 18. Insert the drag Chain into socket

Wanhao I3 unboxing and hardware set up. Rev.D 6 / 10

Note: the black cable is not a handle! Never lift The D plicator i3 by the black cable 2.3

In the packaging underneath your Duplicator i3 you’ll find the Power cable as well as your USB A

to B cable and Filament. Take these out and put them aside.

You should be able to see the build platform: it’s an aluminum plate. Tear off one Wanhao

Masking tape to cover the plate.

Wanhao I3 unboxing and hardware set up. Rev.D 7 / 10

You have now finished unpacking your Duplicator i3! We’re really proud of it! Also we

recommend that you keep the box that it was shipped in for future transport and long-term

storage.

The D plicator i3 Diagram

Before we continue let’s familiarize ourselves with some of the main features of The Wanhao

Duplicator i3.

3.1 Front:

1. Step exstruder MK10

2. Build Platform

3. LCD Interface Panel

5. SD Card slot (on side panel)

3.2 Back and side:

6. Power switch（110V or 220V）

7. Power input

8. USB cable input

9. spool holder

Initial Hardware Set p.

Now set the Spool holder on the control box. Insert 2 screws through the 2 holes of spool holder

stand. Lock the 2 screws onto the stand. Then insert the filament spool holder through the stand

hole and lock it by 2 plastic nuts.

Wanhao I3 unboxing and hardware set up. Rev.D 8 / 10

Almost finished! Check your Power Supply power switch. There are 2 voltage option, 110V and

220V. Make sure you are setting the switch at right voltage according to your local power supply

voltage. 4.6 Note:this is a 2 voltage Power Supply Unit which can accept 110V and 240 V AC at

50/60 hz. It also has a standard IEC cable input to accept international cable types if you’re out

side the China. Next plug the cable into the Power Supply socket next to the power switch.

4.7Before connecting anything make sure that the Duplicator i3 power switch is in the OFF

position and the switch is at right voltage of your local area.

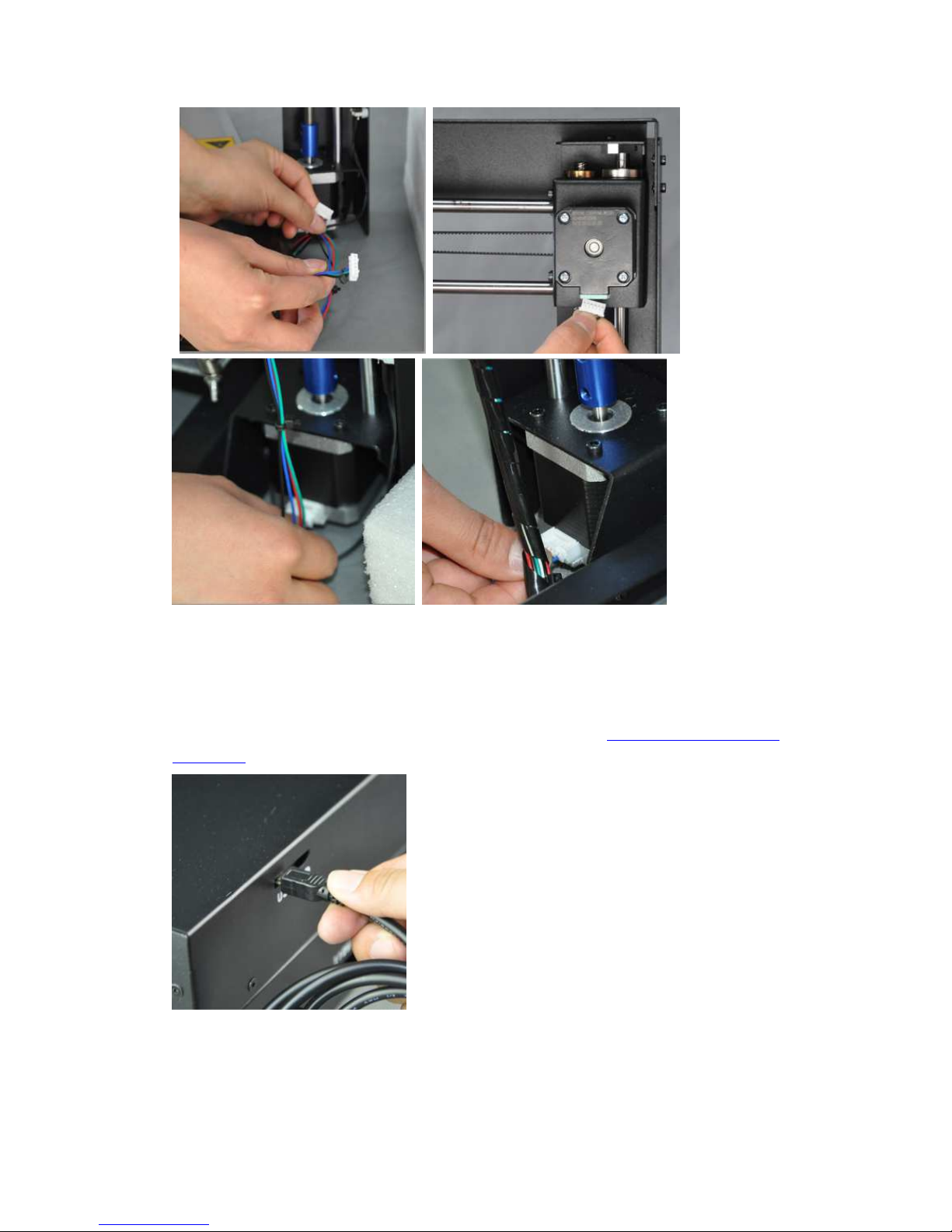

To protect the motor cable from damage during shipping we have unplug the Z axis and X axis

motor cable connector. You need to insert the connector into the socket when you start. The

longest cable is for X axis. And the other 2 male connectors quite near the female connector are

for Z axis motor. Just insert them.

Wanhao I3 unboxing and hardware set up. Rev.D 9 / 10

Last open up your WANHAO filament(not included in the printer box) and mount them on the

Spool holder.

We do recommend to print from SD card only. If you need to update the firmware in future

locate the USB A to B cable and plug it into the USB B port on The Duplicator i3. Don’t plug the

other end into anything yet. For updating firmware check www.wanhao3dprinter.com

----software downloading.

Guess what? You’re done with initial hardware setup! Take a moment to relax and mentally

prepare yourself for what lies ahead.

When you’re ready to flip the switch and make your first prints head to the next step the First
