WANHAO CGR Mini Mono Manuel utilisateur
USER MANUAL
Like the printing speed of lightning
you can
WANHAO C.G.R Mini
Monochrome
CONTENTS
Warranty Details 3
Important 2
Technical Specications 4
A Safety Instructions 7
B Congratulations 8
C Electrical Power 9
D Useful Tips 10
E Getting Started 11
Product Overview 5
Software Installation And Conguration
Repair Recommendations
Disposal Instructions
Contents of Tool Kit
Recommended Tools
Computer Minimum Requirements
Working Principles of DLP 3D Printers
USB Memory Stick Printing
WiFi Printing
Printer Preparation 15
Filling Resin Vat
System Compatibility
Loading a Model
Actions in Scene View
Cloning your mode
Actions in Tool Bar
Scaling objects
Rotating Objects
View Options
Working with Model Support tools
Slice view
Save les
Save a Scene
Motor Control
Others functions
F Cleaning The Printer and Printed Objects 19
G Chitu Software Detailed Guide 20
Repair and Refurbished Goods or Parts Notice 27
1
AFTER SALES SUPPORT
86-571-63379578 [email protected]
IMPORTANT
How to get the most out of your 3D printer
Read this manual carefully
You will be able to set up with ease
Visit our website for tutorial videos and guides
www.wanhao3dprinter.com
Email us! We’re always happy to hear from you
Technical support: [email protected]
Product feedback and partnerships: [email protected]
Purchase orders: [email protected]
Warranty Note
Join Wanhao Google forum for online support
https://groups.google.com/forum/#!forum/wanhao-printer-3d
Google Forum
2
If the product is not performing up to your expectations or you experience any
issues, please contact us before returning the item.
We are experienced in resolving problems through phone and email, or you can
reach us through your local distributor.
Email: support3@wanhao3dprinter.com
Website: www.wanhao3dprinter.com
Phone: +86-571-63379578 (Hours: Mon to Sat from 8:30 AM to 5:00 PM China
Time)
3D Printer
Warranty Details
The product is guaranteed to be free from defects in workmanship and motherboard for a period
of 12 months from the date of purchase. The LCD display is a consumable part with minimum
working hours of 1200 hours. You may need to purchase and replace the LCD display after 1200
hours of use. Printing with materials other than WANHAO resin which are different from those
recommended our the website www.wanhao3dprinter.com, may result in damage of the printer or
inferior printing quality. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced, or refunded at WANHAO’s discretion. The benets conferred by this
warranty are in addition to all rights and remedies in respect of the product that the consumer has
under the laws of the People’s Republic of China. In case you purchase from WANHAO distributor,
your warranty shall be covered by the distributor’s warranty and honored by WANHAO distributor
as well. Our goods come with guarantees that cannot be excluded under the Chinese Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
AFTER SALES SUPPORT
86-571-63379578 [email protected]
3
TECHNICAL SPECIFICATIONS
4
CGR Mini Mono
Technical Specications Table
Machine Type DLP (Digital Light Processing) 3D Printer
Extruder System 405-410nm Wavelength UV Lamp
Enclosure Type Tilt Hood with Transparent Cover UV Safe
Max printable area 130.56(L)*82.62(W)*200(H) mm
Software Chitu
UV Type 405nm UV light
Material supported 405nm Resin
Max printing speed Max 50mm/hour
output format .ctb
Projection Size 6.08 Inch Monochrome LCD
Accuracy X:140/1620=0.051 mm
Y:78/2560=0.051 mm
Z:0.01mm
LCD display Front
Net Weight(kg) 11.96kg
Gross Weight(kg) 13.96kg
Packing size(cm) 345*370*520mm
Layer Thickness 35-100 micron
Certifcation FCC, CE, CB
Plateform Holder 4 bolt adjusting system
Rail locking system Steel bolt locking frame
Plateform Aluminum building plate
Price Range Varied for different country
Power supply unit Inside 110 AND 250V(Manual switch), 50/60Hz,
4.0A (input), and takes standard IEC cable
Typical application • Prototyping, Modeling, Jewelry, Dentistry,
Gaming and Art Applications.
• Great for Professional use or DIY hobbyists.
AFTER SALES SUPPORT
86-571-63379578 [email protected]

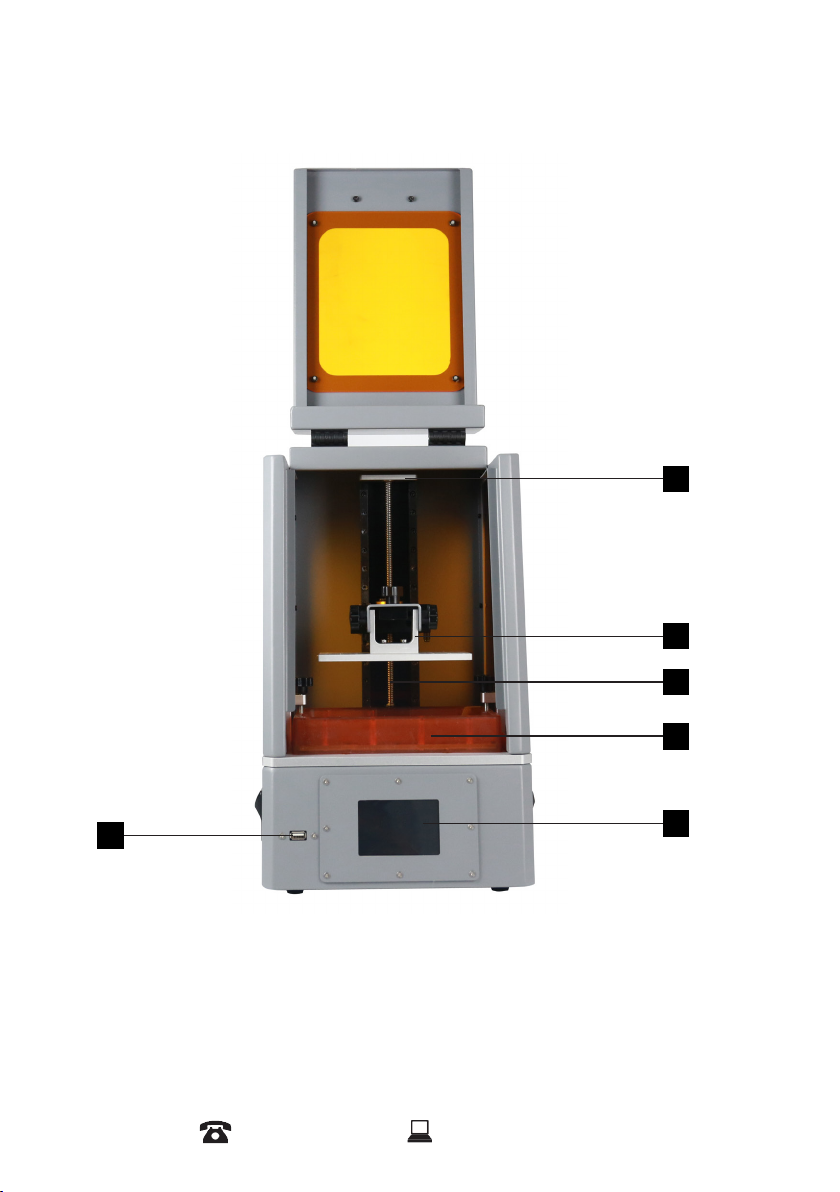

PRODUCT OVERVIEW
5
1
2
3
4
5
6
1. Gray Anti Wobble Cover
2. Aluminum Super Flat Build Plate
3. Z Axis Rail
4. Super Flat, Re-usable Vat
5. Touch Screen
6. USB Slot
AFTER SALES SUPPORT
86-571-63379578 [email protected]
6
10
7
8
9
PRODUCT OVERVIEW
7. Power Switch
8. Plug Socket
9. Cooling Fan
10. Portable grip
AFTER SALES SUPPORT
86-571-63379578 [email protected]
SAFETY INSTRUCTIONS
Before you get started, please read these safety instructions.
CAUTION : WANHAO 3D Printers include moving parts that can cause injury. Never reach inside
the WANHAO 3D Printer while it is in operation, and allow time for the printer to cool down after
operation.
MOVING PARTS
Do not leave the WANHAO 3D Printer unattended during operation.
Always wear gloves while handling resin or printed objects.
Always be careful when using the scraper. Never direct the scraper towards your ngers.
In case of emergency turn off the 3D printer by unplugging the power outlet.
• The printer must not be exposed to water or rain, or the printer will be damaged.
• The printer is designed to be used in ambient temperatures, ranging from 15°C to 30°C.
• The printer is designed to be used in humidity levels ranging from 20% to 50%.
• Operating the printer outside the recommended temperatures and humidity levels
may result in low quality print models.
• Eye protection during cleaning or sanding of the printed models is recommended
to protect your eyes from small airborne particles.
7
A
AFTER SALES SUPPORT
86-571-63379578 [email protected]
You have just purchased a new and innovative Direct UV-Light Printing (DLP) technology
based 3D printer. The direct UV method of printing uses LCD display panel as a matrix of
pixels that hardens the liquid in the resin vat with the light from the UV light source.
UV-LED's at the bottom is used as background lighting.
This revolutionary system is a new way of printing that uses normal UV light as the energy
source to provide initiation of free radicals polymerization that is necessary to change the
liquid imagepac resin into your solid hardened object.
Working Principles of DLP 3D Printers
There are two amazing advantages of DLP technology:
1. High resolution can be achieved through affordable and accessible LCD screens.
These screens are the same as the widely available screens of mobile phones and
tablets, so phenomenal value for money is passed directly on to you.
2. Energy used by CGR printer is an order of magnitude lower than comparable
systems. This is not only good news for your energy bills and the environment,
but also performance advantage due to avoiding unnecessary creation of excess
energy that leads to over-curing. The problem of over-curing is common among
Digital Light Projector (DLP) and laser systems.
8
B
AFTER SALES SUPPORT
86-571-63379578 [email protected]
Bulld Plate
Resin Vat
Light beam
UV LED
Resin
LCD Panel/
Display
CONGRATULATIONS
9
This 3D printer is connected to an electrical network with an input of 110 or 240 VAC,
50/60Hz, and has an operating voltage of 24V.
- Insert the power cable cord into the socket at the back of the printer.
- Do not allow anything to rest on the power cord.
- Do not place the printer and cable where people will walk on or trip over the cord.
- If an extension cord is used with the printer, make sure the combined ampere
of all equipment plugged into the extension cord does not exceed the extension’s limit.
- Do not overload a power outlet, strip, or receptacle by plugging in too many devices.
- Remove the power cable cord when printer will not be used for long periods of time.
- Before unplugging the power cord, remember to turn off the printer.
- Use the printer only with the cord supplied in the original packaged set. For power
cord replacements, ensure the following requirements are met: detachable type,
UL listed/ CSA certied, VDE approved or its equivalent, 4.5 meters (15 meet)
maximum length.
- In case of malfunction, unplug and disconnect the printer immediately from
the network.
- Do not attempt to x the product without seeking qualied technical service
personnel, or you may risk being exposed to dangerous voltage points after
removing covers.
- For technical service please contact your location distributor, or contact
WANHAO at [email protected].
Disposal Instructions
Do not dispose of this printer as regular waste. Please minimize pollution to the environment
and recycle or return to WANHAO for recycling.
C
Repair Recommendations
Unplug the printer form the wall outlet and contact a qualied service personnel when:
- The power cord is damaged, cut, or frayed.
- Liquid is spilled into the printer.
- Printer is dropped or case is damaged.
- Product exhibits distinct changes in performance that indicates malfunction.
- Product does not operate normally after following operating instructions.
AFTER SALES SUPPORT
86-571-63379578 [email protected]
ELECTRICAL POWER
