WANHAO Duplicator Five Manuel utilisateur
WANHAO 3D PRINTER
Duplicator Five
Tel: +86-579-82346658
Email: [email protected]
Web: WWW.WANHAO3DPRINTER.COM
USER MANUEL
Resolution 0.02mm
Speed 300mm/second
Software: Wanhao Maker
A1 The Duplicator 5 Experience
This User manual is designed to help you start your experience with Duplicator 5. Within these pages, we want
to show you how simple and easy it is to produce great prints.You might be familiar with earlier types of Wanhao
printers or other 3D-printers. It is essential that your read this manual carefully as there are a lot of new procedures
with Duplicator 5.
WANHAO is excited to welcome you to the world of the WANHAO Duplicator 5. Following this guide will help
ensure that you are getting the most out of your machine, and that you continue to make amazing things,
A2. Specicatioin of the Duplicator 5
Data
Print Technology Fused lament
Fabrication(FFF)
Build Volume 300*200*590mm
Layer Resolution Ultra high 20 micron
High 60 micron
Medium 100 micron
Low 200 micron
Position precision X 12.5 micron
Y 12.5 micron
Z 5 micron
Filament diameter 3MM +-0.15mm
Nozzle diameter 0.4 mm
Print speed 30mm/s-300mm/s
Travel speed 30mm/s-350mm/s
Software
Software Package Wanhao Maker
File Type STL
Support Windows(XP32 bit/7+)
Mac OS X( 10.6 64bit +)
Electrical
AC Input 100-240V
4 AMPS
50-60Hz
200Watt max
Power Requirements 24V [email protected]
Connectivity Stand-alone printing
from SD-card
USB（rmware)
Physical dimensions
Frame Dimension Length 460mm
Width 400mm
Height 860mm
Shipping box Length 550mm
Width 490mm
Height 940mm
Net Weight 35kg(77lbs)
Gross Weight 44kg(96lbs)
Temperature
Ambient Operating
Temperature 10°- 38°C
Storage Temperatuer 0° - 40°C
Operating Nozzle
Temperature 180°- 260°C
Sound
Average Operational
noise 48dBA.
WARNING: The Duplicator 5 generates high temperatures and has hot moving parts that can cause injury.
Never reach inside of the Duplicator 5 while it is in operation. Always control the Duplicator 5 from the push
wheel on the front or with the power-switch on the back. Allow the Duplicator 5 to cool down for 5 minutes
before reaching inside.
CAUTION: When opening the Duplicator 5 for service, ensure that the power supply is turned off and the
cord is disconnected from the wall socket.
CAUTION: Only use power supply provided with your Duplicator 5 .
B1. Unboxing
1. Place the Duplicator 5 box on a
stable surface, Placing it centrally
on the floor will provide the best
accessible position for unpacking.
2. Lay down the printer, Open the box
from the bottom
3. Turn the bottom cardboard
outwards and open from the top box.
4. Pull the Box from the bottom to top

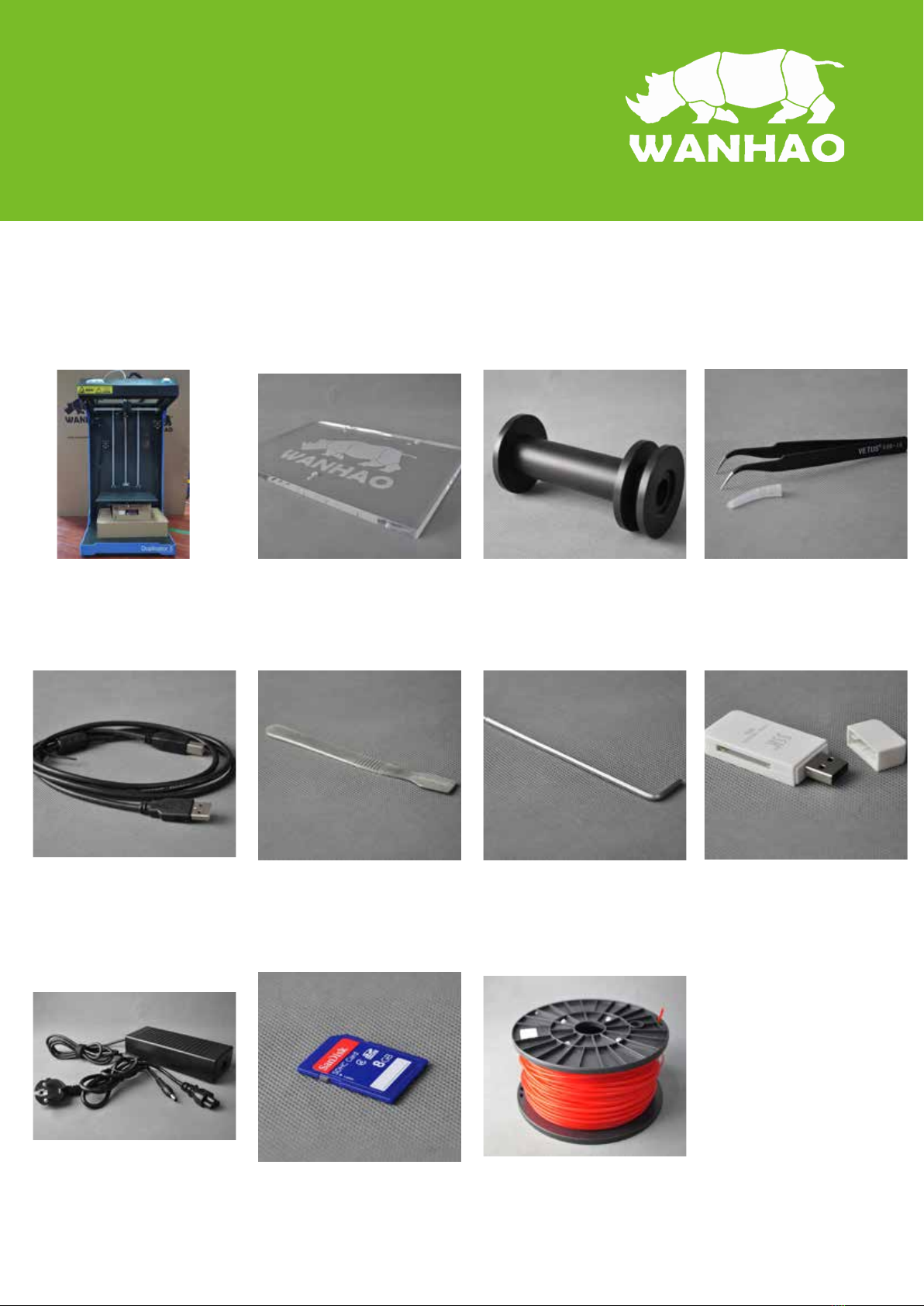

B2. What's in the box
Besides your Duplicator 5 supplied with SD card in the 3D printer, there are a lot of essential accesoires
that comes with this 3D printer. All the following parts should be in the box, please check contents.
1 pc
printer
1 pc
build plate
1 pc
spool holder
1 pc
clamp
1 pc
USB cable
1 pc
Print raiser
1 pc
3mm
lament
1 pc
SD card
1 pc
SD card
reader
1 pc
Print
wrench
1 pc
Power
supply unit
B2 Duplicator 5 glance
1. LED display
2. Push and Rotate button
3. Extruder Cable
4. Filament tube
5. MK10 Extruder
6. Building Plate
7. Building Plate Screw
8. Spool Holder
9. USB Socket
10. Power Switch
11. Material Feeder
12. Power Socket
C1 Install Power Supply
Now the next step is to give the Duplicator 5 power.
This is done by attaching the external power supply.
Detaching the power supply
1. If the power supply has to be detached, the first
step is to make sure the Duplicator 5 turned off. This
is done by pressing the power switch to 0.
First make sure the power switch is in the OFF
position, this is when the button at the back is
pressed to [0].
2. The corresponding power cable (for your country)
has to be inserted in the power brick of the power
supply.
3. The connector has to be inserted at the back of
the Duplicator 5, in the round hole next to the on/off
switch and USB slot. The at side of the power plug
has to face towards the top of the Duplicator 5.
4. Now plug the external power supply into the wall
socket.
2. Next take the power plug out of the wall
socket.
3. The plug has a sliding collar. When
removing the plug from the machine, gently
slide the collar outwards which will release
the plug and allow it to come out with ease.
CAUTION: Please make sure not to pull
the cable. Excessive force may result in
breaking this component.
4. The main cable in the power brick can be
detached by pulling it out gently.
D2. How to level the building plate
1. Navigate the Rotate button and
Push the button
2. Navigate the Rotate button to
Utility and Push the button
7. Navigate to Step2, 3 and 4
6. Insert one name card between
the nozzle and plate(0.1mm thick)
5. Push the button and adjust nut
below the plate
4. Prepare a name card, Wait until
auto-homing nished
3. Navigate to Calibrate plate and
push the button
8. Adjust the rest 2 nuts and ensure
name card can go through
D3. Loading filament material
1. Now that we have completed the initial leveling
tasks we [CONTINUE] and go to the step where
we are going to insert filament material in the
material feeder.
Navigate the control button to ---Utility---Load
2. Wait the extruder to heat up to 220'C. Warning,
never touch the nozzle while printer power on.
You are only allowed to touch the nozzle when
the printer is power off.
3. Please make sure you have a filament spool
positioned over the spool holder,
guided along the lament guide, with the lament
in counter clockwise direction.
4. This step needs some extra focus.
The wheel in the material feeder will start rotating
slowly. Take the material and put it in the hole at
the bottom of the material feeder. There is a hole
where it should go into right above the sticker.
Follow the display instruction with the supporting
images below but WAIT! before pushing and
check the next page for more instructions.
