Vortex Viper Series Manuel utilisateur

IPER

Enjoy the excellent optical performance and portable size

of the Viper binocular. Built with a tough and durable

roof prism design, the Viper is made for any outdoor

adventure.

The 28mm Vipers are rugged roof prism binoculars. An

internal focus mechanism, o-rings at all open points, and

argon purging contribute to the waterproof, dust proof,

internally fog proof design of this compact binocular.

Rugged Design

The

Binocular Series

IPER

The Viper features fully multi-coated optics and

phase-corrected prisms for the ultimate in light

transmission and brightness in any light condition.

Optical Quality

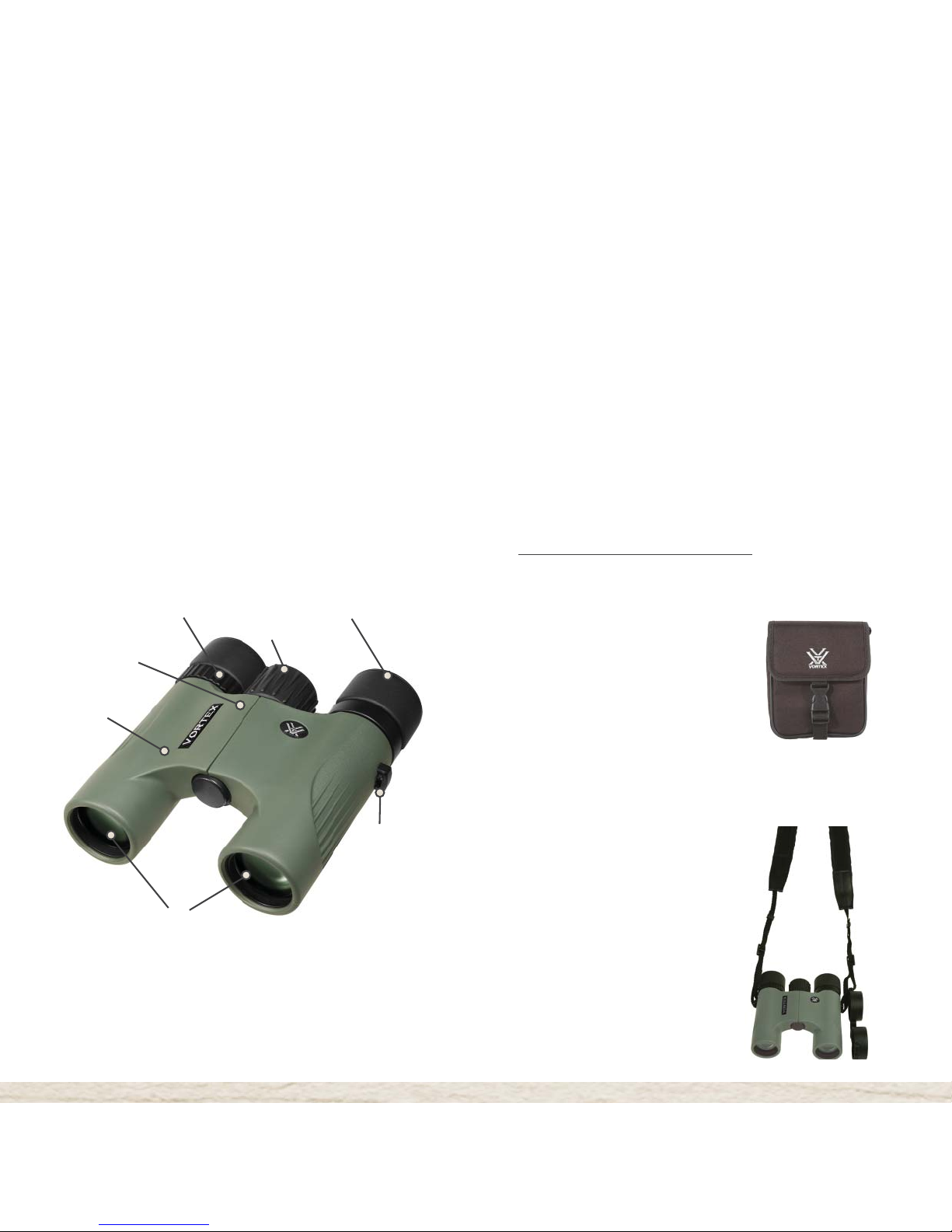

Center Focus

Diopter Ring

Roof Prism

Housing

Objective

Lenses

Neckstrap

Attachment

Point

Center Hinge

Binoculars are not intended for looking at the sun, or any other

intense light source. Such viewing could damage the retina and

cornea of your eyes—even to the point of causing blindness.

Caution:

Adjustable Eyecup

The Viper binocular comes with a one-piece rainguard

that covers the eyepieces. For convenience, the

rainguard can be attached to the

neckstrap where it is within easy

reach. Simply slip the neckstrap

through the attachment point on

the rainguard before connecting

the neckstrap to the binocular.

The Lens Covers

The soft case of the Viper provides protection for the

binocular when not in use. A belt

loop attachment on the back of the

case allows for an easy carry in the

field.

The Case

Preparing the Viper for Use

Attach the padded neckstrap to the binocular in

three simple steps. Begin with the right barrel of the

binocular and repeat the process for the left barrel.

The Neckstrap

1.Push a few inches of the

strap through the neckstrap

attachment point on the

binocular.

2.Loop the strap over the

attachment point, then

thread the strap through

the strap buckle.

3.Secure the end of the

strap by slipping it

through the strap loop.

IPD

The multi-step eyecups on the Viper binocular twist up

and down so any viewer can take advantage of the long

eye relief and enjoy comfortable, full-field viewing.

With eyeglasses or sunglasses,

retract the eyecups.

Without eyeglasses or sunglasses,

extend the eyecups.

Adjusting the Eyecups

The twist-up eyecups are built on a solid frame and

covered with rubber.

Adjusting the Interpupillary Distance.

The interpupillary distance (IPD) is the distance

between the centers of the left and right eye pupils.

Match the IPD of your eyes to

that of the binocular by

rotating the binocular barrels

inward or outward until you

see a single image that is free of

shading.

Customizing the Viper

Focusing the Binocular

Choose an object that is about 20 yards away from you

and follow this two-step process to properly adjust

the focus. Be sure to stay in the same spot until you

have adjusted both the center focus and diopter.

1.Adjust the center focus

– Start by closing your right

eye or covering the right objective

lens with your hand. Focus your

left eye on the object and adjust

the center focus wheel until the

image is in focus. Leave the center

focus in this position as you adjust

the diopter.

2.Adjust the diopter

– Start by closing your left eye

or covering the left objective lens with your hand. Look

through your right eye and adjust

the diopter until the object is in

focus. Make note of this diopter

setting in case you need to set it

again.

From this point on, you will only need to use the center focus dial.

Maintain the optical brilliance of the Viper binocular

by keeping the lens surfaces free of dirt, oils, and dust.

Protect Lenses While Out in the Field

Caring for the Lenses

Make use of the rainguard to protect the lenses when

not viewing. Store the Viper in its carry case.

Keep Lenses Clean

Along with normal use comes the need to clean the

binocular lenses. Follow these guidelines for cleaning:

1.Remove any dust or grit from lenses before wiping.

Use a can of pressurized air or soft camel hair brush

(acrylic optical brushes also work well).

2.Clear lens of smudges, fingerprints, or eyelash oil.

Fog the lenses with your own breath and wipe with the

non-abrasive lens cloth included with the Viper binocular.

Cleaning fluid and optical paper can also be used. However, you

should never use facial tissue, heavy cotton, or flannel clothing

on lenses—these materials can scratch the lens surfaces.

Using other cleaning options

Vortex Service and Repair Policy

Vortex Optics wants you to

use your Viper binocular under

any conditions with complete

confidence—that’s why our

VIP warranty is straightforward

and simple:

Rest assured, if this binocular should ever require

repair, all you need to do is contact Vortex for

absolutely free service. Call 800-426-0048 or e-mail

[email protected].

• Fully transferable

• No warranty card needed

• No receipt needed

Vortex Optics

2120 West Greenview Drive

Middleton, Wisconsin 53562

USA

Visit Vortex Optics at vortexoptics.com.

Unconditional Lifetime

Warranty ©Vortex Optics USA
