Vortex BIN-DBK-12A Instructions de montage

Objective Lens

Ocular Lens

Twist-up Eyecup

Strap

Attachment

Tripod Adapter Socket

Center Focus

Diopter

IPD

The eyecups on a Diamondback® binocular twist up and down so

any viewer can see the full ﬁeld and enjoy comfortable viewing—

with or without eyeglasses.

When not using eyeglasses or

sunglasses, keep the eyecups fully

extended. For the best viewing

when viewing through eyeglasses,

twist eyecups down.

Adjust the interpupillary distance

The interpupillary distance (IPD) is the distance between the centers

of the left and right eye pupils. Match the IPD of your eyes to that of

the binocular so that you see a single image that is free of shading.

BASIC OPERATION

Adjust the eyecups

Rotate the binocular barrels

inward or outward to line your

eyes up with ocular lenses.

Distance between the centers

of the ocular lenses.

Properly focus the binocular

For the best views, follow this two-step process to properly adjust

the center focus and diopter. Choose an object that is about 20

yards away from you and stay in the same spot until you have

adjusted the binocular for your eyes.

1. Adjust the center focus—start by closing your right eye

or covering the right objective lens

with your hand. Focus your left eye

on the object and adjust the center

focus wheel until the image is in focus.

Leave the center focus in this position

as you adjust the diopter.

2. Adjust the diopter—start by closing your left eye or covering

the left objective lens with your hand.

Look through your right eye and adjust

the diopter ring (found on the right

eyepiece) until the object is in focus.

Make note of this diopter setting in

case you need to set it again. From this

point on, you will only need to use the center focus wheel.

The Diamondback comes with a rainguard for the ocular lenses

and tethered objective lens covers. Use these covers to protect the

lenses whenever you are not viewing.

Lens Covers

The Diamondback’s protective case provides safe storage between

viewing sessions.

Carry Case

ACCESSORIES

Attach the padded neckstrap to the Diamondback in three simple

steps. Begin with the right barrel of the binocular and repeat the

process for the left barrel.

Neckstrap

1. Push a few

inches of the strap

through the strap

attachment on the

binocular.

3. Adjust the

overall length,

then pull the tight

until strap secured

within the buckle.

2. Hold the buckle

and thread the end of

the strap through the

buckle.

Note: If using another type of strap, never attach metal o-rings directly

onto the strap attachment.

LENS CARE

Maintain the optical brilliance of the Diamondback binocular by

keeping lens surfaces free of dirt, oils, and dust.

Protect lenses while out in the field

Make use of the provided eyepiece and objective lens covers

to protect the lenses when not viewing. Then, store the

Diamondback in its carry case between viewing sessions.

Keep lenses clean

In order to enjoy the best views through your Diamondback

binocular, take time to regularly clean the exterior lenses:

1. Remove any dust or grit from lenses before wiping. Use a can

of pressurized air, soft camel hair brush, or an acrylic optical brush.

2. Clear lenses of smudges, fingerprints, or eyelash oil. Fog the

lenses with your own breath, then use a non-abrasive lens cloth to

clean the lenses.

Note: Use lens cleaning fluid

and optical paper to clean

lenses. Never use facial tissue,

heavy cotton, or flannel clothing

on lenses—these materials can

scratch the surface of a lens.

THE VIP WARRANTY

We build optics based on our commitment to your absolute

satisfaction. That’s why Vortex products are unconditionally

guaranteed and we make this Very Important Promise to you—a

Very Important Person.

Rest assured that in the event your

Diamondback binocular becomes

damaged or defective, Vortex Optics

will repair or replace the binocular at

no charge to you. Call Vortex Optics at

800-426-0048 for prompt, professional,

and friendly service.

Vortex Optics

2120 West Greenview Drive

Middleton, WI 53562

[email protected]

Visit www.vortexoptics.com for more information. Canadian

customers may visit www.vortexcanada.net for customer service

information.

Caution: Binoculars are not intended for looking at the sun, or any

other intense light source. Such viewing could damage the retina and

cornea of your eyes—even to the point of causing blindness.

Note: The VIP warranty does not cover theft, loss, or deliberate damage

to the product.

#BIN-DBK-12A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vortex Jumelles

Vortex

Vortex Kaibab HD Manuel utilisateur

Vortex

Vortex FURY HD 5000 AB Manuel utilisateur

Vortex

Vortex FURY HD 5000 AB Manuel utilisateur

Vortex

Vortex Kaibab HD Manuel utilisateur

Vortex

Vortex Diamondback 10x28 Manuel utilisateur

Vortex

Vortex Raptor Manuel utilisateur

Vortex

Vortex Viper HD Manuel utilisateur

Vortex

Vortex Vulture HD Manuel utilisateur

Vortex

Vortex Razor 8.5x50 Manuel utilisateur

Vortex

Vortex Razor 10x50 Manuel utilisateur

Vortex

Vortex TRIUMPH HD Manuel utilisateur

Vortex

Vortex Viper Manuel utilisateur

Vortex

Vortex Viper Series Manuel utilisateur

Vortex

Vortex Solo 25 mm Manuel utilisateur

Vortex

Vortex Raptor 6.5x32 Manuel utilisateur

Vortex

Vortex DB-205 Manuel utilisateur

Vortex

Vortex Diamondback HD Manuel utilisateur

Vortex

Vortex VIPER HD Manuel utilisateur

Vortex

Vortex Razor HD Manuel utilisateur

Vortex

Vortex Vanquish Manuel utilisateur

Vortex

Vortex FURY Manuel utilisateur

Vortex

Vortex Viper HD R/T Manuel utilisateur

Vortex

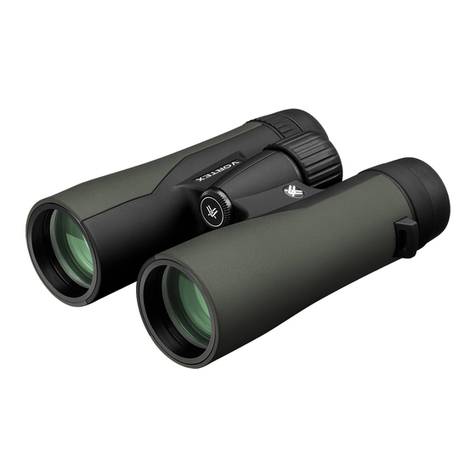

Vortex CROSSFIRE Manuel utilisateur
