User’s Manual

VIVOTEK Fixed Dome Series

AM-10H Recessed-mount Bracket

Rev. 1.0

Corresponding part number: VIO900073500

2

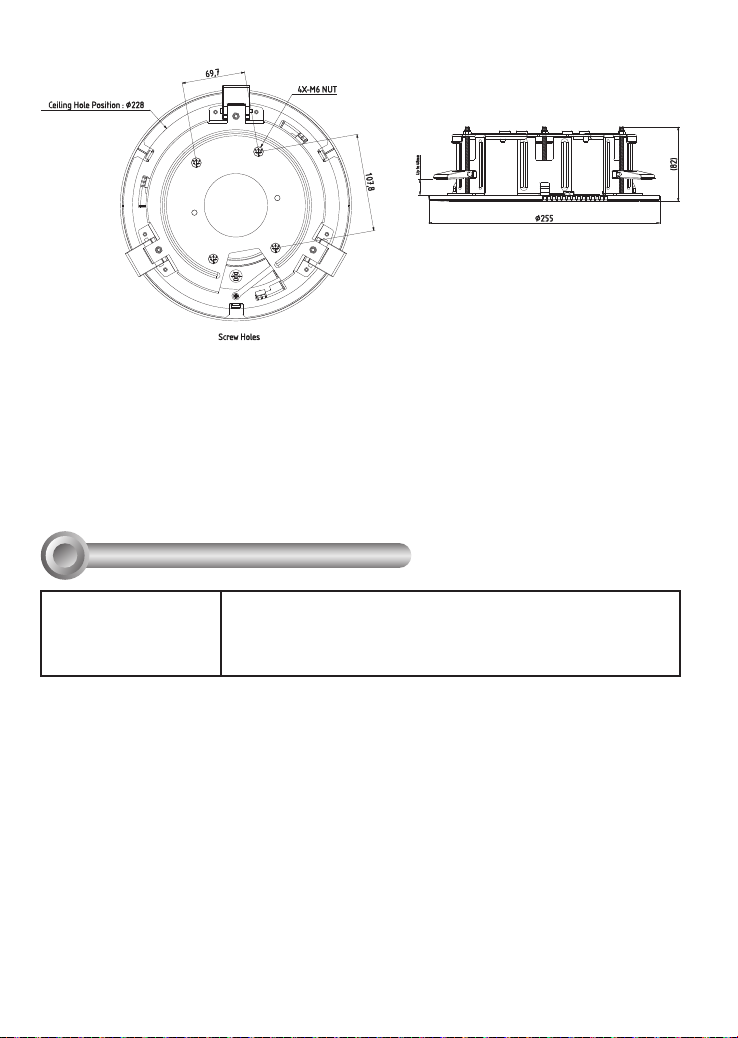

AM-10H Recessed-mount Bracket Mechanical Drawing

Compatible VIVOTEK Cameras

I

Fixed Dome series FD9167-HT-v2, FD9367-EHTV-v2, FD9365-EHTV-v2,

FD9391-EHTV-v2

You may also refer to VIVOTEK's website for the list of supported models. Support for other models can

be available through time.

Package Contents

• Recessed-mount bracket

• Screws: M6x12 SEMS x4

• Alignment sticker

• Installation Guide

Revision History

• Rev. 1.0: Initial release.

3

English

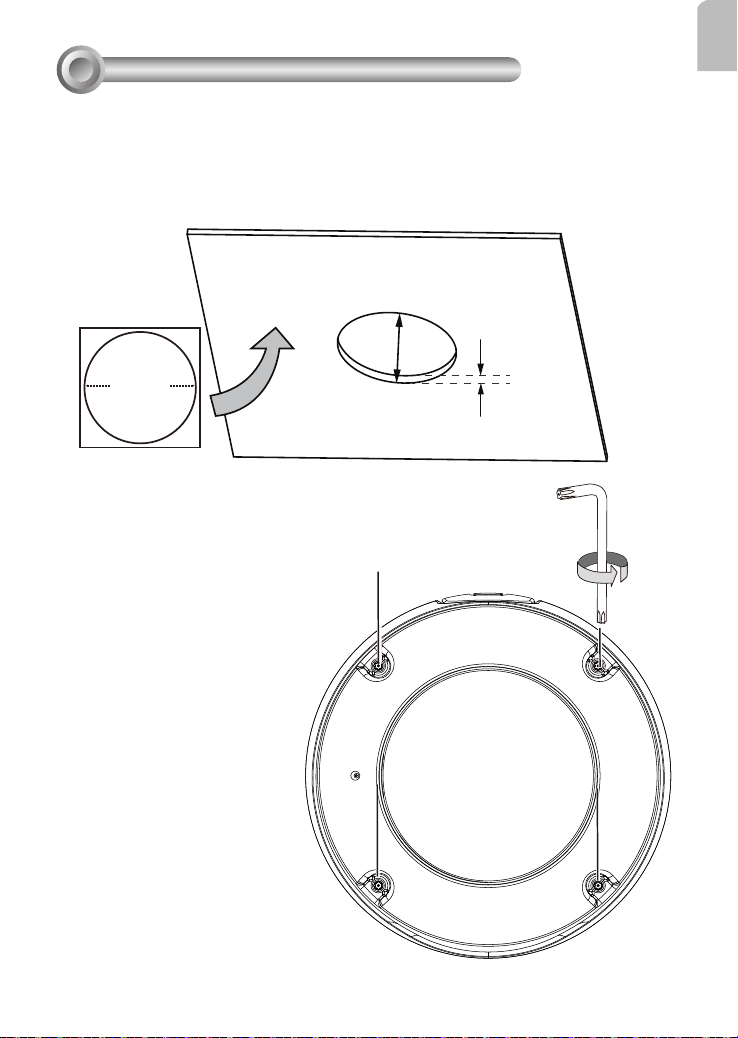

Installation

II

228mm

24mm

Up to

Ceiling Hole Template Sticker

186mm

Mounting Hole Denitions

1. Determine a secure location for the recessed-mount bracket.

2. Drill or cut a 228mm hole (in diameter). The maximum thickness of the ceiling/board is

24mm. The ceiling should be able sustain at least a weight of 3.3kg.

3. Remove dome cover from the

camera using the stardriver

included in kit.

4

5. Install camera to the recessed-mount bracket by driving screws.

4. Detach the dome cover from the recessed mount.

5

English

NOTE:

1. Connect and route cables before you secure the recessed-mount bracket to a ceiling.

2. For details on the cable connections with each camera, please refer to their Quick

Installation Guide.

Optional: You can tie up a tether line to the top of the bracket in case the bracket may fall

during the installatioin.

6

6. Connect cables to the camera.

6-1. Re-install the top cover of the camera.

7. Use a #2 Phillips screwdriver to loosen the clamping plates (see drawing below) and

insert the recessed-mount bracket through the hole in the ceiling.

7

English

8. Use a #2 Phillips screwdriver to move the clamping plates down so that the ceiling/

board is caught between the clamps and the ange on the other side of the ceiling.

Clockwise Counter-

clockwise

9. Adjust shooting angle and check for a satistory image over a web session. When you

have a satisifactory live view, secure the dome cover from below by turning it counter-

clockwise.

Microphone

8

10. You are done with the installation.
