Vivotek Fixed Dome AM-116 Manuel utilisateur
IP Surveillance
Installation Guide
VIVOTEK SD83XXE Speed Dome
Mounting Accessories
AM-116/117 Pendant Pipe
AM-118 Pendant Head
AM-221 Gooseneck
AM-231 Parapet Mount
AM-519 Pendant Adaptor
Rev. 1.1
Corresponding part numbers:
AM-116: 900014300G
AM-117: 900014400G
AM-118: 900014600G
AM-221: 900014800G
AM-231: 900015000G
AM-519: 900014900G
2
Compatible VIVOTEK Cameras
I
Speed Dome SD8364E, SD8363E, SD8333E, SD83x4E, SD83x6E, SD8362E
AM-118 Pendant Head
Revison History:
Rev. 1.0: Initial release
Rev. 1.1: Adding corresponding ordering part numbers and supported speed dome
models.
A
90
20
26.2
R1
26.2
77.94
25.98
28.04
20
R5
8.5
50
M6
R8
R5
60.3
R2
R5
20 32.2
R2
10
4
52.2
10
6
15
1-1/2" PS11

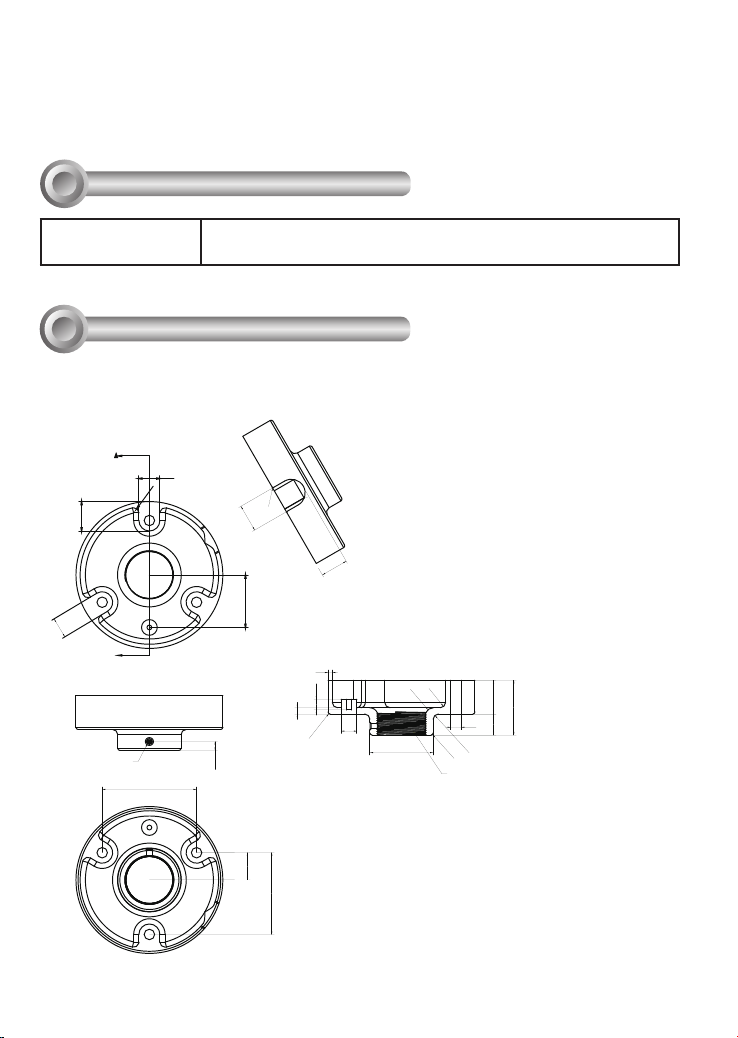

Mechanical Drawings
II
3
English
AM-116 20cm Pendant Pipe
n 50.8
17
228
1 1/2" PS11
AM-117 40cm Pendant Pipe
n 50.8
17
400
35
428
1 1/2" PS11
1 1/2" PS11
37,5
50,8
46
60,3
17 8
5,38
5,25
28
45
R0,5
3
43,6
1-1/2" PS11X17mm (L)
C4
AM-519 Pendant Adapter
(comes with the network camera)
4
AM-221 Gooseneck
405.8
262.19
140
350 107.8
165.5
200
278
AM-231 Parapet Mount
1193
1077.95
997
463
228.15
5
English
AM-231 Parapet Corner Mount
1193
1077.95
997
202.95
463
6
AM-231 Parapet Mount - Alignment Sticker
178.15
100180180
n 10
228.15
495
parapet top
AM-231 Corner Mount - Alignment Sticker
100180180
143.5
287
n 10
495
Fold Line
PARAPET TOP
7
English
Preparation before Installation
III
1
2
Connect Ethernet cable and IO wires (this may include the AC24V wires) to the interface
section of the camera, and then combine the interface section with the dome cap. Note
that you must route cables through the waterproof connector and the rubber seal plug, and
install them to the dome cap. Please refer to the Quick Installation Guide for details.
Cabling should be done before mounting the camera.
The top section will look like this.
8
Mounting & Cabling
IV
446.2 mm
AM-118
AM-117
AM-519
321.4 mm
204.8 mm

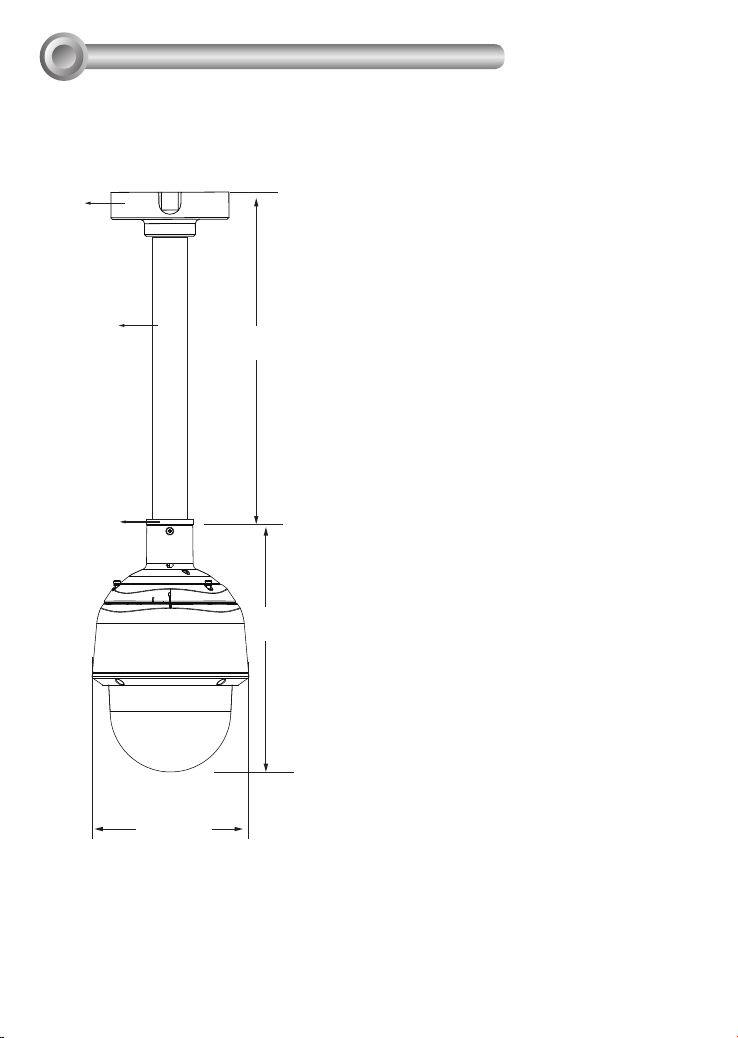

Shown below are the dimensions of a pendant mount conguration using the 40cm
pendant pipe.
IV-1. Pendant Pipe Mounting: AM-116/-117 & AM-118
9
English
AM-519
IV-1-1. Pendant Mount without Pendant Pipe: AM-118
Below are the sample procedures using a pendant head and pendant pipe:
1. Determine a hard surface ceiling location, and use the alignment sticker to mark the
positions where holes will be drilled to secure the pendant head. Hammer the anchors
into the ceiling.
Note that mounting holes should be 10mm in diameter and 60mm deep. The included
screws are M6.2 x75mm.
2. Install a pendant adapter (AM-519) by turning it clockwise to the pendant head, and
secure the connection using an included 3mm hex wrench.
10
3. Route power lines and other wires through the pendant head. You may apply a 1 inch
conduit.
4. Secure the pendant head to ceiling by driving screws through its mounting holes.
Depending on the length of your cables, you may need the help from your colleague for
holding the camera top section.
Pendant Head
Camera top section
Cables
